Product Overview

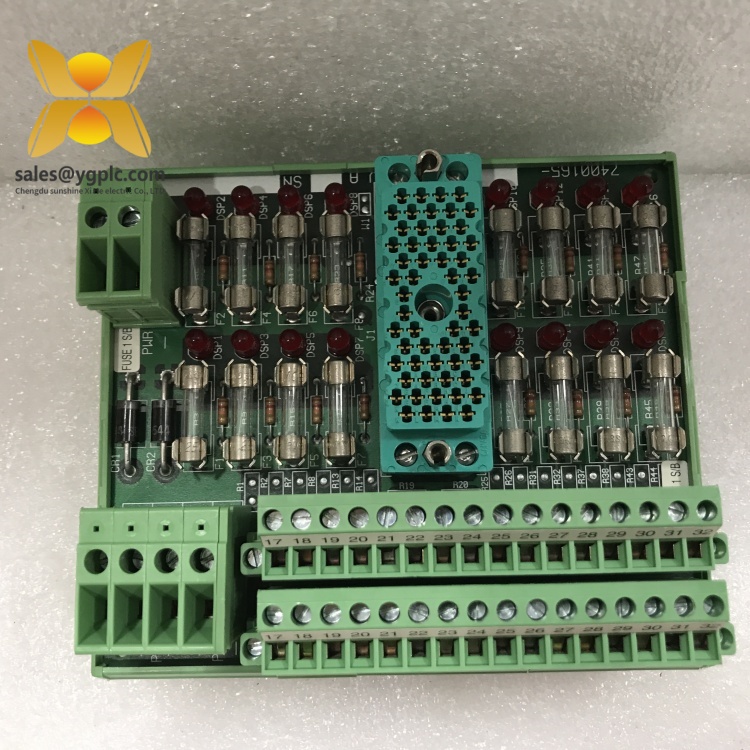

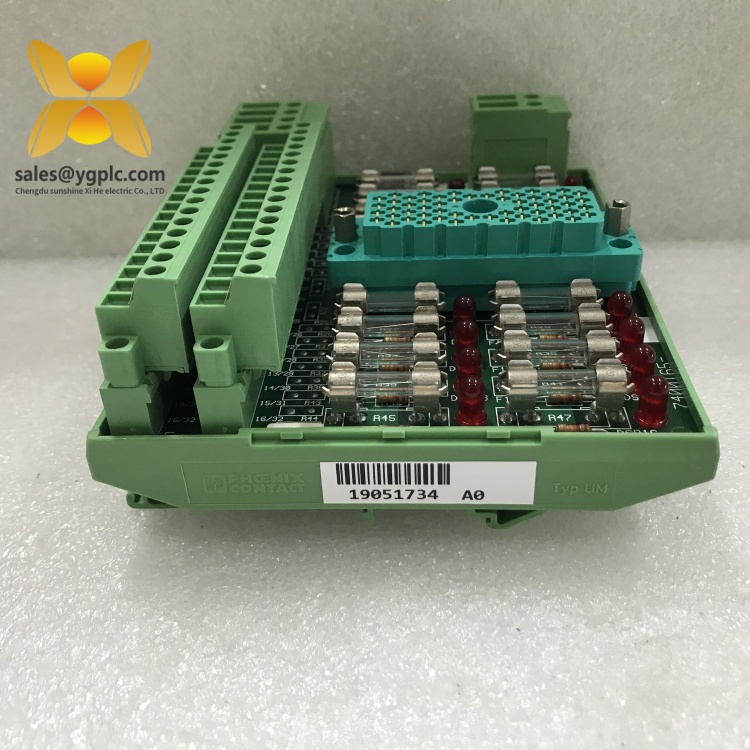

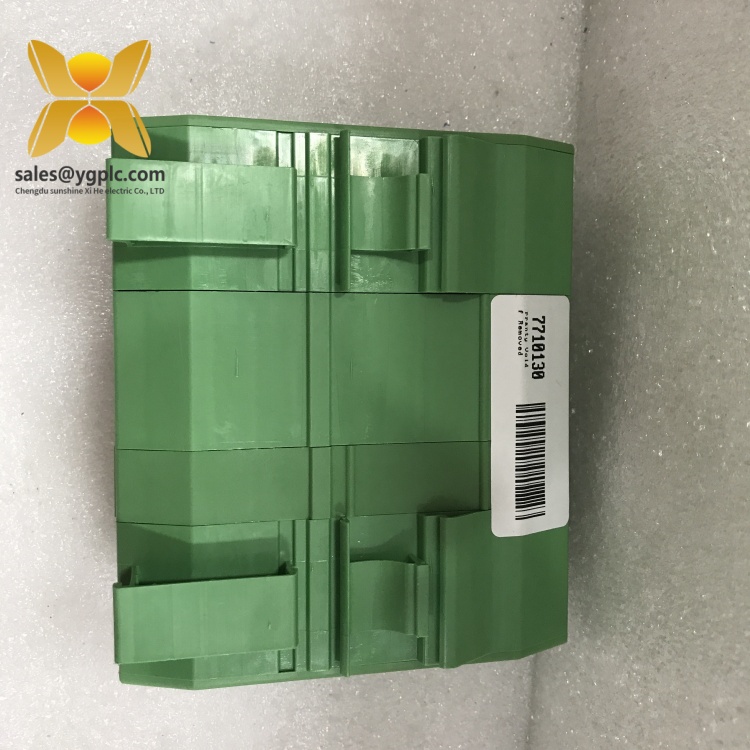

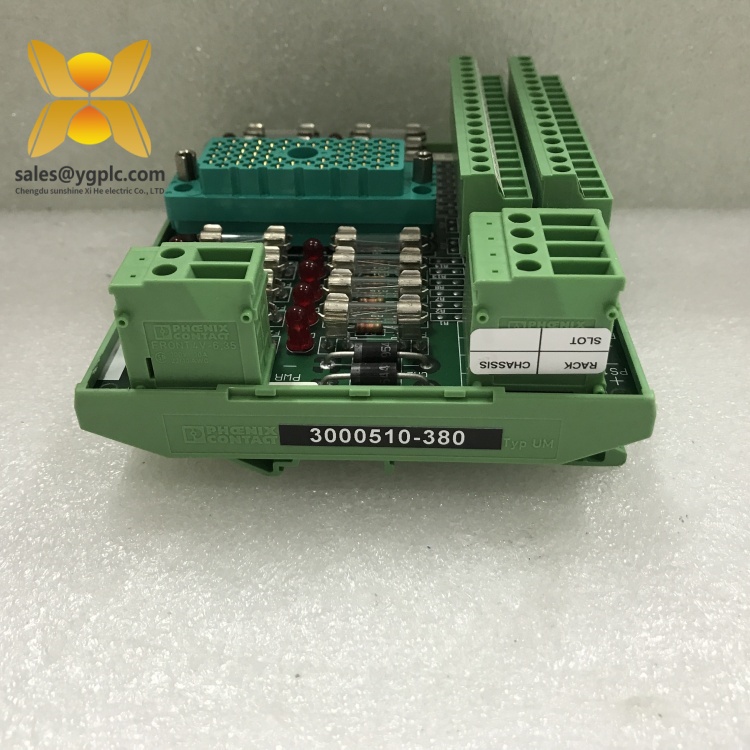

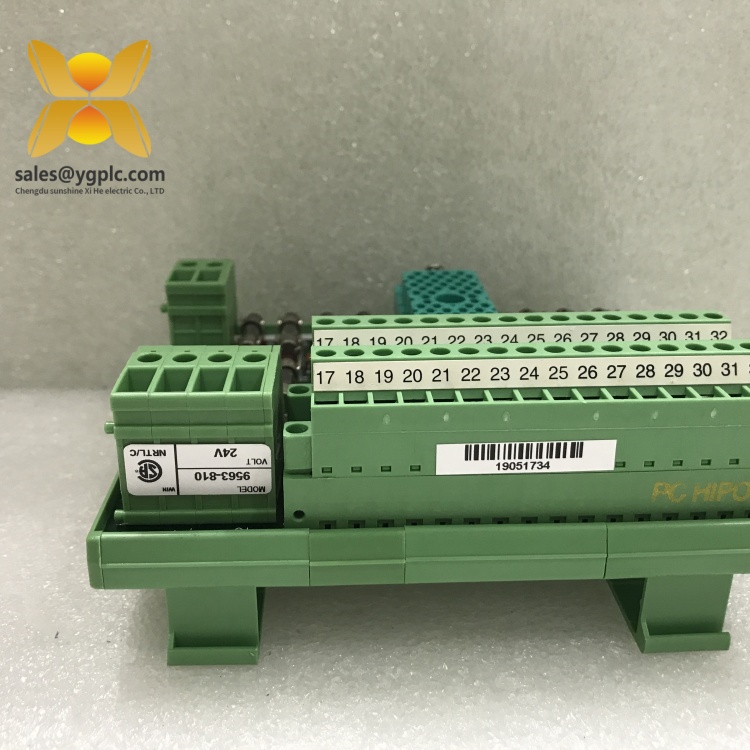

The TRICONEX 3503E/9563-810 is a high-performance digital input module designed for safety instrumented systems (SIS) in industrial automation. It serves as a critical interface between field devices—such as sensors, switches, and relays—and the central controller, collecting real-time status signals to support safety-critical decision-making. As a key component of TRICONEX’s I/O module portfolio, the TRICONEX 3503E/9563-810 is engineered to integrate seamlessly with TRICONEX Tricon and TriconEX systems, which rely on triple modular redundancy (TMR) to ensure fault tolerance.
The TRICONEX 3503E/9563-810 is built to handle a large number of input signals while maintaining accuracy, even in harsh industrial environments. Its TMR-compatible design means three independent channels work in parallel, cross-checking each other to eliminate errors. This makes it ideal for systems requiring SIL 3 compliance, where reliable data transmission is vital to prevent accidents. By consistently delivering accurate signals from the field to the controller, the TRICONEX 3503E/9563-810 helps keep operations safe and efficient across industries like oil and gas, chemical processing, and power generation.
Technical Specifications
| Product model | 3503E/9563-810 |
|---|---|
| Manufacturer | TRICONEX |
| Product type | Digital Input Module |
| Input voltage | 24V DC ±10% |
| Number of channels | 32 isolated channels |
| Electrical isolation | 2500Vrms between channels and system ground |
| Response time | <10ms |
| Physical dimensions | 130mm (W) x 160mm (H) x 210mm (D) |
| Weight | 1.2 kg |
| Interface type | Screw terminal block |
| Working environment | Operating temperature: -40°C to +70°C; Relative humidity: 5% to 95% (non-condensing) |
| Place of origin | United States |
| Safety compliance | SIL 3 (IEC 61508), ISA S84.01 |
3503E/9563-810
Related products
- TRICONEX 3401: A digital output module that pairs with 3503E/9563-810 to form a complete input-output loop. While 3503E/9563-810 collects field signals, 3401 sends control signals to actuate devices like valves or relays.
- TRICONEX 4351B: The main processor module in TRICONEX Tricon systems. It uses data from 3503E/9563-810 to execute safety logic, such as triggering emergency shutdowns when abnormal signals are detected.
- TRICONEX 8312: A redundant power supply module that provides stable 24V DC to 3503E/9563-810, ensuring the input module operates without interruption even if the primary power source fails.
- TRICONEX 9662-810: A communication module that shares data from the controller—including signals collected by 3503E/9563-810—with external systems like SCADA, enabling remote monitoring of field device statuses.
- TRICONEX 3311S2: A digital input module with 16 channels, serving as a smaller alternative to 3503E/9563-810 for applications requiring fewer monitoring points.
- TRICONEX 3625: A 32-channel digital input module with similar functionality to 3503E/9563-810, offering flexibility in system design for large-scale installations.
- TRICONEX 7400: A power distribution unit that delivers power to multiple I/O modules, including 3503E/9563-810, simplifying wiring in complex TRICONEX systems.
Main features and advantages
High channel density: The TRICONEX 3503E/9563-810 offers 32 isolated channels, allowing it to monitor 32 field devices simultaneously. This high density reduces the number of modules needed in large systems, saving space in control cabinets and lowering overall setup costs.
Robust signal integrity: With 2500Vrms electrical isolation between channels and the system ground, the module blocks electrical noise and surges common in industrial environments. This isolation ensures that signals from devices like pressure switches in oil refineries or flame detectors in chemical plants remain accurate, preventing false alarms or missed warnings.
TMR compatibility: Designed for TRICONEX’s triple modular redundancy (TMR) architecture, the 3503E/9563-810 works with three parallel channels. Each channel checks the signals, and the controller uses a “vote” of two out of three to confirm accuracy. This redundancy eliminates single points of failure, helping systems meet strict SIL 3 safety standards.
Fast response: The module can detect changes in field device statuses in less than 10ms. This speed is critical in emergencies—for example, if a gas leak is detected, the 3503E/9563-810 quickly sends this information to the controller, allowing for immediate action to prevent escalation.
Easy maintenance: The 3503E/9563-810 features status lights for each channel, showing whether a device is working correctly. This makes it easy for maintenance teams to identify issues like loose wires or faulty sensors. Its screw terminal block also simplifies wiring, reducing installation and repair time.
3503E/9563-810
Installation and maintenance
Pre-installation preparations: Before installing 3503E/9563-810, check that it is compatible with the target TRICONEX chassis, such as TriconEX main racks. Confirm the input voltage matches the 24V DC requirement. Ensure the mounting area has enough space for wiring and airflow to prevent overheating. Turn off the system power and disconnect all field wires to avoid electrical damage. Inspect the module for cracks or bent pins before placing it in the chassis.
Maintenance suggestions: For 3503E/9563-810, check the terminal block connections every three months to ensure they are tight and free of corrosion. Use a multimeter to verify that input signals from field devices reach the module correctly. Clean dust from the module’s surface and ventilation slots regularly to keep it cool. Monitor the status lights—if a light stays off when it should be on, check the connected device or wiring. In systems with two 3503E/9563-810 modules (for backup), test the failover function once a year to ensure the backup takes over smoothly if the main module fails.
Application fields
The TRICONEX 3503E/9563-810 is widely used in industries where safety monitoring is critical. In the oil and gas sector, it monitors signals from pressure switches, valve position sensors, and emergency stop buttons on offshore rigs and pipelines. If a pressure spike or leak is detected, the module sends this information to the controller, which can trigger an emergency shutdown to prevent explosions or environmental damage.
In chemical processing plants, the 3503E/9563-810 collects data from temperature sensors, level switches, and agitator statuses in reactor systems. This data helps the SIS ensure that chemical reactions stay within safe limits, preventing spills or harmful releases.
In power generation facilities, the module monitors status signals from turbine vibration sensors, generator breakers, and cooling system pumps. By quickly relaying these signals to the controller, the 3503E/9563-810 supports timely decisions to avoid equipment damage and unplanned outages.
In all these fields, the module acts as a reliable link between field devices and the safety system, ensuring that critical information is always available when needed most.
3503E/9563-810
Product guarantee
Our company offers a one-year quality warranty service for 3503E/9563-810, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems. Our company is a leading enterprise in the industrial control industry, established in 2007, with 17 years of experience. We are an import and export trade distribution company, mainly selling major brands of industrial control parts, there are many unpopular discontinued models, with a large stock. Our company has the advantage of supply channels, a large number of spot, to meet the needs of customers anxious to find spare parts.
