Product Overview：TRICONEX 3625A
The TRICONEX 3625A digital output module is a high – performance component designed for industrial automation and control systems. As part of the TRICONEX product line, it plays a crucial role in ensuring reliable and efficient operation in safety – critical applications.
This module is engineered to translate digital signals from the control system into electrical outputs, typically operating at 24V DC. With its advanced design, the 3625A can precisely control external devices such as valves, motors, pumps, and actuators. It features a triple modular redundancy (TMR) architecture, which significantly enhances system reliability by tolerating faults. In case of a component failure in one of the three redundant channels, the module can continue to function without interruption, making it suitable for industries where downtime is unacceptable.
The TRICONEX 3625A module also has quadruplicated output circuitry, providing an extra layer of redundancy for critical signal paths. This not only improves the safety of the overall system but also increases its availability. Its compact design allows for easy installation, even in tight spaces, and it can be effortlessly configured through TRICONEX system software, enabling users to adapt it to various industrial requirements.
Technical Specifications：TRICONEX 3625A
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3625A |
| Manufacturer | TRICONEX |
| Product Type | Digital Output Module |
| Output Voltage | 24V DC |
| Dimensions | 105 x 105 x 44 mm |
| Weight | 2.06 kg |
| Redundancy | Triple Modular Redundancy (TMR) |
| Circuitry | Quadruplicated output circuitry |
| Communication Interface | RS – 485, CANopen |
| Temperature Range | – 20 °C to + 70 °C |
| Memory | 128 kb Flash, 32 kb RAM |
| Environmental Compliance | CE, UL, EN 61000 – 6 – 4, EN 61000 – 6 – 2 |
| Place of Origin | USA |

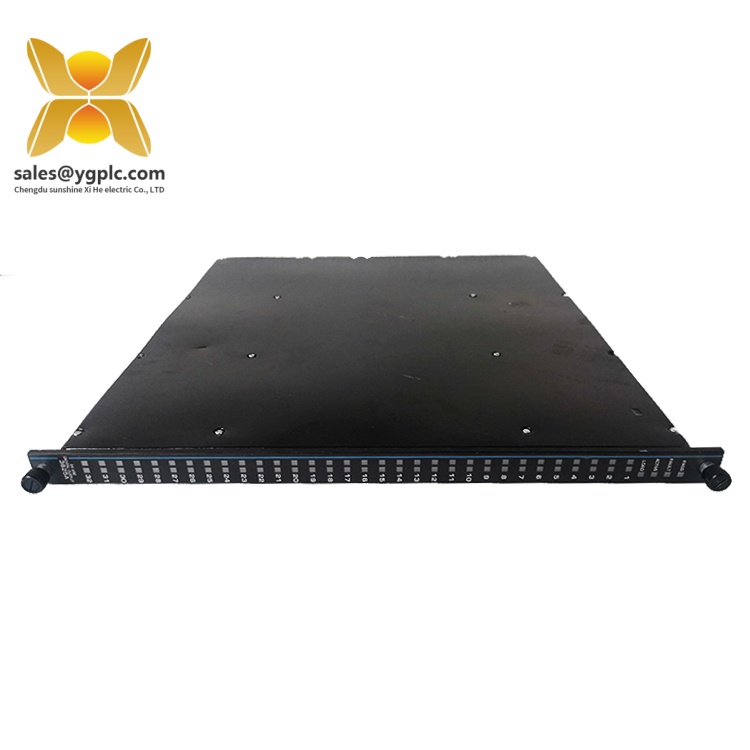

3625A
Main features and advantages：TRICONEX 3625A
High Reliability with Redundancy
The 3625A‘s triple modular redundancy (TMR) architecture is a key feature. By having three identical sub – circuits, each independently processing and controlling signals, the module can tolerate single – point failures. The quadruplicated output circuitry further enhances the reliability of critical signal paths. In industries like oil and gas or power generation, where continuous operation is essential, this high – level redundancy minimizes the risk of system failures, ensuring smooth operation.
Precise Control
Operating at 24V DC, the 3625A provides accurate and stable electrical outputs for controlling external devices. Its ability to precisely regulate the power supplied to valves, motors, and other equipment ensures that industrial processes are carried out with high precision. This is particularly important in applications such as chemical processing, where even small deviations in control can lead to significant quality issues or safety hazards.
Compact and Easy to Install
With its compact dimensions of 105 x 105 x 44 mm, the TRICONEX 3625A module can be easily installed in control cabinets, even in areas with limited space. Its lightweight design (2.06 kg) also simplifies handling during installation. Additionally, it can be configured through TRICONEX system software, which is user – friendly, reducing the time and effort required for setup and commissioning.
Wide Temperature Range Compatibility
The module is designed to operate within a temperature range of – 20 °C to + 70 °C. This wide operating temperature range makes it suitable for use in various industrial environments, from cold storage facilities to hot and humid industrial plants. It can withstand harsh conditions without sacrificing performance, ensuring long – term reliability.

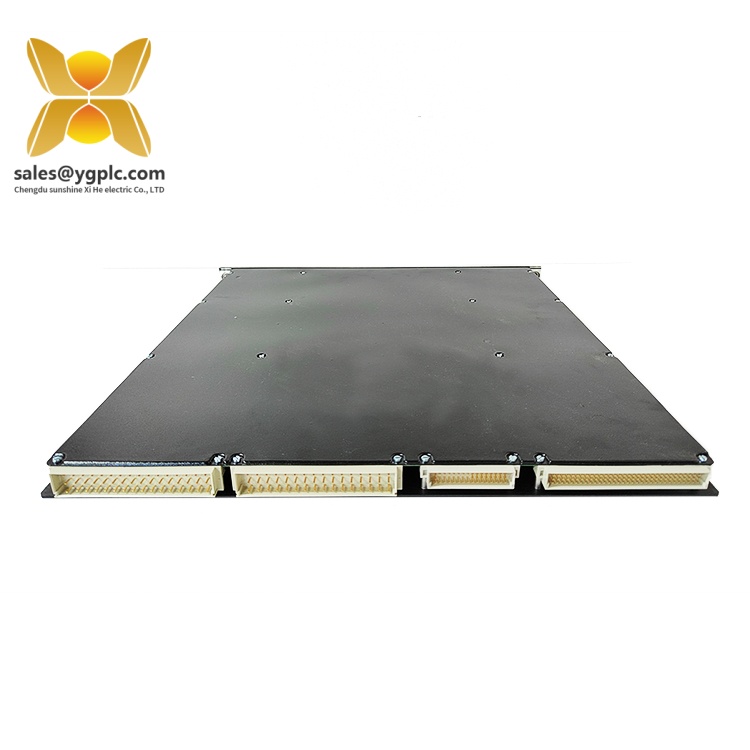

3625A
Application fields：TRICONEX 3625A
Oil and Gas Industry
In the oil and gas sector, the TRICONEX 3625A digital output module is used to control a variety of equipment. It can manage the opening and closing of valves in pipelines, ensuring the safe and efficient flow of oil and gas. For example, in offshore platforms, where equipment reliability is crucial due to the difficulty of maintenance, the 3625A‘s redundancy features make it an ideal choice. It also controls pumps that transfer fluids, maintaining the proper pressure and flow rates in the production process.
Chemical Industry
Chemical plants rely on precise control of various processes. The 3625A is used to control motors that drive agitators in chemical reactors, ensuring proper mixing of chemicals. It also manages the operation of safety – critical valves that prevent the release of hazardous substances in case of emergencies. The module’s ability to provide accurate and reliable digital outputs is essential for maintaining the quality of chemical products and ensuring plant safety.
Power Generation
In power plants, whether they are coal – fired, gas – fired, or nuclear, the 3625A plays a vital role. It controls the operation of turbines, adjusting their speed and power output based on the electrical demand. The module also manages the valves that regulate the flow of steam or gas to the turbines. In addition, it can be used to control auxiliary equipment such as cooling pumps and fans, ensuring the overall efficiency and stability of the power generation process.
Transportation Systems
In transportation systems, such as subway or railway networks, the TRICONEX 3625A module can be used to control signals and equipment. It can operate the switches that direct trains to different tracks, ensuring safe and efficient train movement. The module’s high reliability and fast response time are crucial in this application, as any malfunction could lead to serious disruptions and safety risks.

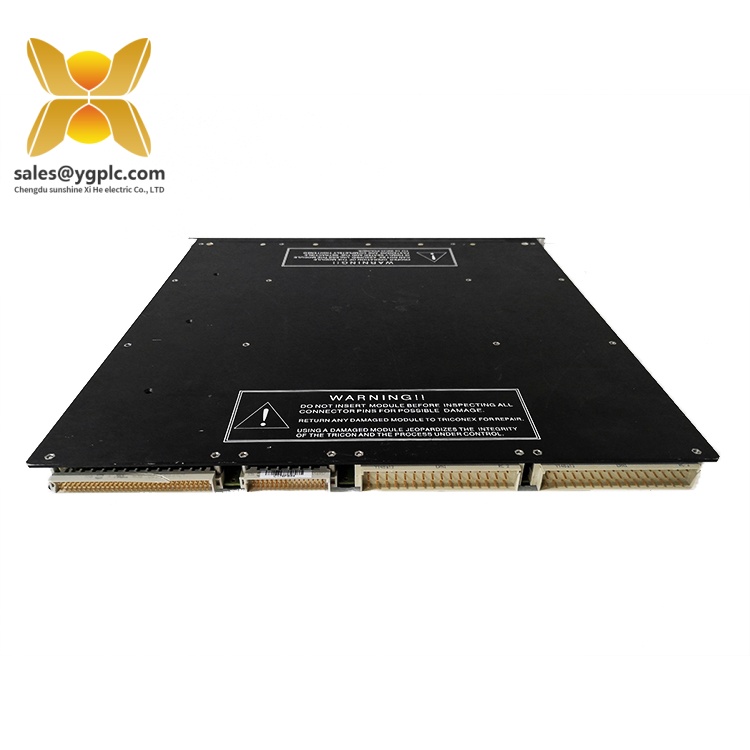

3625A
Related products：TRICONEX 3625A
- TRICONEX 3624A: This is a digital input module from TRICONEX. While the 3625A is for digital output, the 3624A is used to receive digital signals from sensors and other devices. They are often used together in industrial control systems, with the 3624A providing the input data that the 3625A then uses to generate appropriate output signals for controlling external equipment.
- TRICONEX 3700A: It is a triple modular redundant controller. The 3625A output module can be integrated with the 3700A controller. The 3700A processes the control logic and sends commands to the 3625A, which then executes the control actions by driving external devices.
- TRICONEX 3503E: A high – speed controller. It can be paired with the 3625A in applications that require fast – paced control. The 3503E’s high – speed processing capabilities can quickly generate control signals that the 3625A converts into electrical outputs for rapid – response industrial processes.
- TRICONEX 3805E: This is a communication module. It enables the 3625A to communicate with other devices in the industrial network. For example, it can transfer data about the status of the output signals controlled by the 3625A to a central control station or receive updated control commands from a higher – level system.
- TRICONEX 3630A: Another digital output module with different characteristics. It may have a different number of output channels or slightly different electrical specifications compared to the 3625A. Users can choose between the two based on the specific requirements of their industrial applications, such as the number of devices to be controlled or the voltage requirements of the output signals.
Installation and maintenance：TRICONEX 3625A
Pre – installation preparations
Before installing the TRICONEX 3625A module, first, ensure that the power supply in the installation area is stable and provides 24V DC, which is the operating voltage of the module. Check the physical space where it will be installed to ensure it can accommodate the module’s dimensions of 105 x 105 x 44 mm. Clean the installation area to prevent dust or debris from interfering with the module’s operation. Verify that the communication interfaces (RS – 485, CANopen) are properly configured and compatible with the other devices in the system. Also, make sure that the TRICONEX system software, which will be used to configure the 3625A, is installed and updated on the associated control computer.
Maintenance suggestions
Regularly inspect the 3625A module for any signs of physical damage, such as cracks or loose connections. Check the temperature of the module during operation to ensure it remains within the specified – 20 °C to + 70 °C range. Periodically review the module’s configuration settings in the TRICONEX system software to make sure they are still appropriate for the industrial process. If there are any changes in the process requirements, update the configuration accordingly. For the communication interfaces, test the data transmission periodically to ensure reliable communication with other devices. In case of any issues, refer to the TRICONEX documentation or contact technical support for troubleshooting.

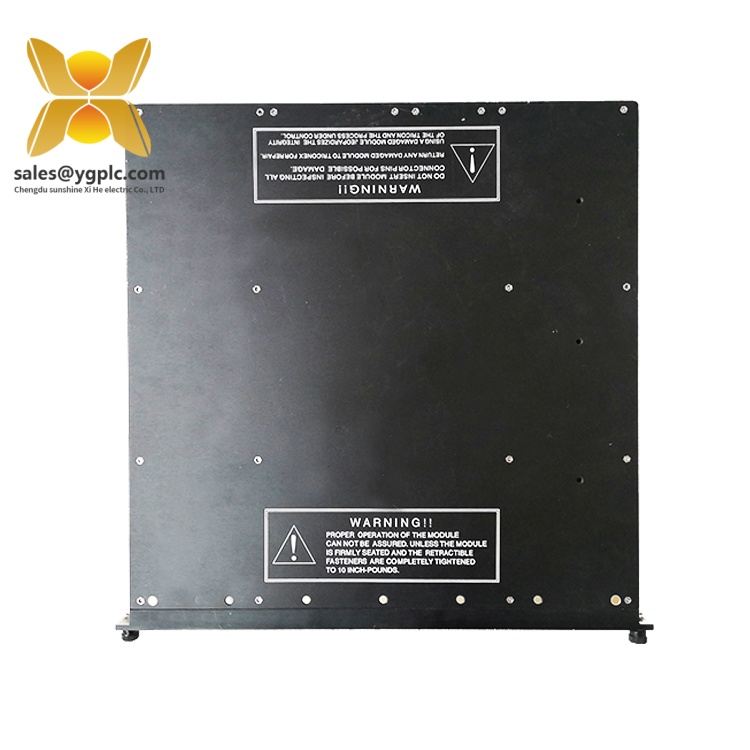

3625A
Product guarantee：TRICONEX 3625A
Our company offers a one – year quality warranty service for the TRICONEX 3625A digital output module, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services promptly. Our company has been in the industrial control industry for 17 years, and we have a vast inventory, including many hard – to – find and discontinued models. For the 3625A module, even if it becomes a discontinued model or in case of urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts. We are committed to providing reliable services to support the continuous and stable operation of industrial systems, ensuring that our customers can rely on the 3625A module with confidence.
