Product Overview
The TRICONEX 0923-141-6957 is a specialized interface module designed for seamless integration within TRICONEX safety instrumented systems (SIS), particularly in critical industrial control environments. As a key component in TRICONEX’s portfolio of safety-critical hardware, this module acts as a bridge between field devices and the central controller, facilitating secure and reliable data transmission. Its primary function is to translate signals from sensors, actuators, and other peripherals into a format compatible with TRICONEX SIS, ensuring that safety-related data is processed without delay or corruption.
The TRICONEX 0923-141-6957 is engineered to meet the rigorous demands of high-risk industries, leveraging TRICONEX’s expertise in triple modular redundancy (TMR) principles to minimize the risk of single-point failures. It is part of a broader ecosystem of TRICONEX modules, where its role as an interface ensures that the SIS can effectively monitor and respond to process variables. By maintaining signal integrity even in harsh conditions, the TRICONEX 0923-141-6957 contributes directly to the overall safety and efficiency of industrial operations, making it an indispensable component in systems where downtime or failure could have severe consequences.
Technical Specifications
| Parameter | Value |
|---|---|
| Product model | TRICONEX 0923-141-6957 |
| Manufacturer | TRICONEX |
| Product type | Interface module for safety instrumented systems |
| Physical dimensions | 165 mm (length) × 102 mm (width) × 55 mm (height) |
| Weight | 0.6 kg |
| Electrical specifications | 24 V DC operating voltage; 0.3 A maximum current consumption |
| Interface type | 8-channel input/output (I/O) terminals; RJ45 Ethernet port |
| Communication protocol | Supports TRICONEX proprietary protocol, Modbus RTU |
| Working environment | Operating temperature: -20°C to 60°C; Relative humidity: 10%–90% (non-condensing) |
| Place of origin | United States |
| Installation requirements | Compatible with TRICONEX standard racks; requires secure mounting to prevent vibration-induced interference |
| Certifications | SIL 2 compliant (IEC 61508); meets NEMA TS2 standards for industrial safety |

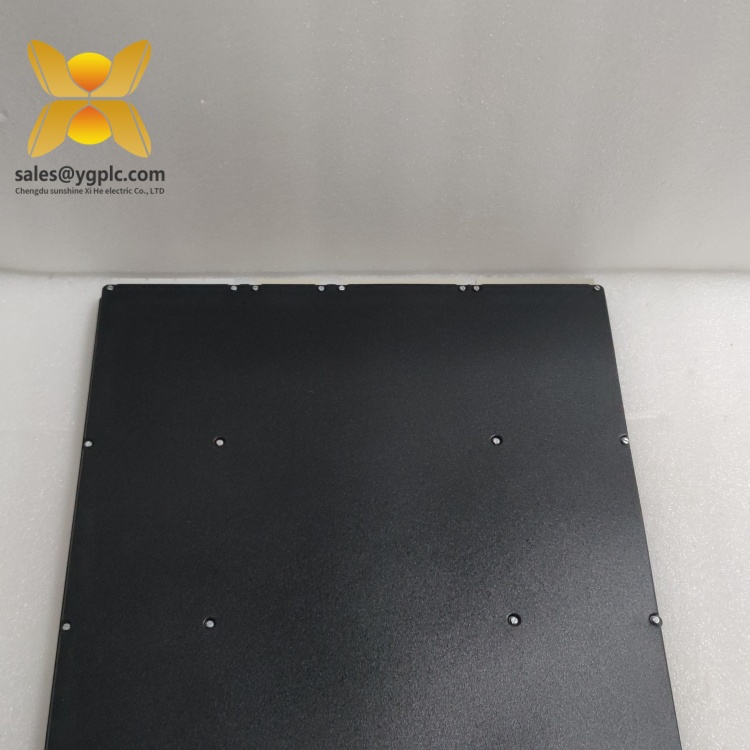

TRICONEX 0923-141-6957
Related Products
- TRICONEX 4351B: A digital input module that works with the TRICONEX 0923-141-6957 to collect raw data from field sensors. The TRICONEX 0923-141-6957 processes and forwards this data to the controller, while the 4351B focuses on signal acquisition.
- TRICONEX 4210: The central processor module of TRICONEX SIS. The TRICONEX 0923-141-6957 connects directly to the 4210, relying on it to execute safety logic based on the data it transmits.
- TRICONEX 0923-141-6960: A higher-capacity variant of the TRICONEX 0923-141-6957 with additional I/O channels, designed for larger-scale systems where more peripheral connections are needed.
- TRICONEX 4400: A redundant power supply module that ensures stable power delivery to the TRICONEX 0923-141-6957, preventing shutdowns during voltage fluctuations.
- TRICONEX 3625: A communication gateway that extends the reach of the TRICONEX 0923-141-6957 by connecting to non-TRICONEX systems, enabling cross-platform data sharing.
Main Features and Advantages
Signal integrity and reliability: The TRICONEX 0923-141-6957 is built to maintain signal integrity even in noisy industrial environments. It incorporates advanced filtering technology to reduce electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring that data transmitted between field devices and the SIS remains accurate. This is critical in safety applications, where corrupted signals could lead to incorrect safety actions, such as unnecessary shutdowns or failed hazard mitigation.
SIL 2 compliance and safety design: With SIL 2 certification under IEC 61508, the TRICONEX 0923-141-6957 meets the safety requirements of industries where moderate risk of failure is unacceptable. Its design includes built-in fault detection mechanisms that continuously monitor for internal errors, such as voltage spikes or connection drops. When a fault is detected, the module triggers an alarm and isolates the issue, preventing it from affecting the broader SIS.
Seamless integration with TRICONEX systems: The TRICONEX 0923-141-6957 is engineered to work seamlessly with other TRICONEX modules, such as the 4210 processor and 4351B I/O modules. It uses TRICONEX’s proprietary protocol to ensure fast, secure communication, eliminating the need for custom adapters or complex configuration. This plug-and-play compatibility reduces installation time and minimizes the risk of integration errors.
Durable construction for industrial environments: The TRICONEX 0923-141-6957 is housed in a rugged enclosure that withstands operating temperatures from -20°C to 60°C, making it suitable for use in refineries, chemical plants, and outdoor installations. Its resistance to vibration and humidity ensures reliable performance in settings where environmental conditions are often harsh, reducing the need for frequent replacements.

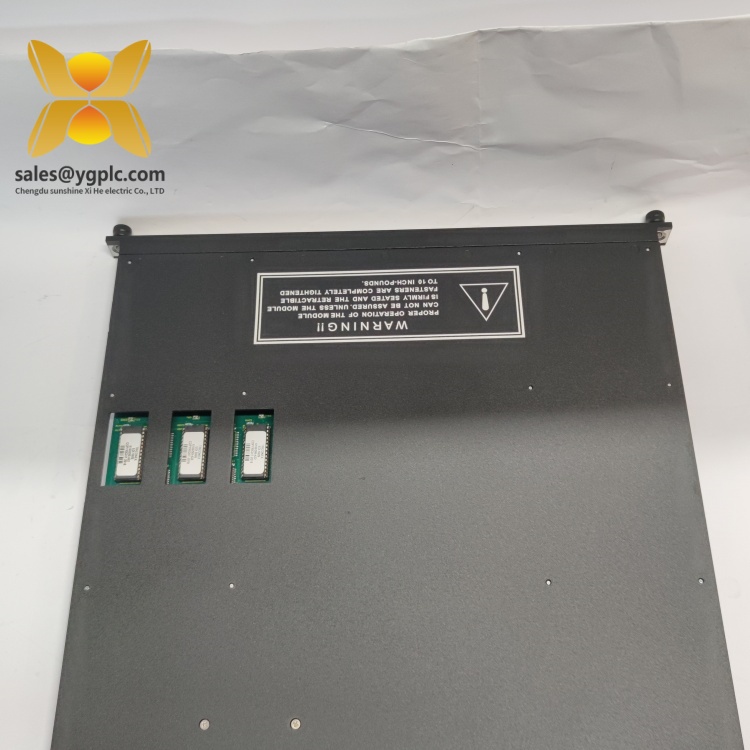

TRICONEX 0923-141-6957
Installation and Maintenance
Pre-installation preparations: Before installing the TRICONEX 0923-141-6957, ensure the target TRICONEX rack is powered off to avoid electrical damage. Verify that the rack’s firmware version is compatible with the module; outdated firmware may limit communication capabilities. Inspect the module for physical defects, such as damaged pins or cracked casings, which could impair functionality. Prepare the mounting area by cleaning the rack rails and ensuring they are properly aligned to prevent misalignment during installation. Check that the 24 V DC power supply meets the module’s current requirements (0.3 A max) to avoid overloading.
Maintenance suggestions: Regular maintenance of the TRICONEX 0923-141-6957 is essential to preserve its performance. Conduct bi-annual visual inspections to check for loose connections, dust buildup, or corrosion on terminal blocks. Use compressed air to remove dust from vents, as accumulation can cause overheating. Test signal transmission quarterly by sending test data through the module and verifying reception at the controller; this ensures the module’s filtering and translation functions are working correctly. If communication issues arise, first check cable integrity and power supply stability before assuming a module fault. For firmware updates, follow TRICONEX’s recommended procedures to ensure compatibility with the rest of the SIS.
Application Fields
The TRICONEX 0923-141-6957 is widely used in industries where safety instrumented systems are critical to preventing accidents and ensuring operational continuity:
In the oil and gas sector, it plays a key role in upstream drilling operations, connecting pressure sensors and flow meters to the SIS. By translating these signals, the TRICONEX 0923-141-6957 enables the SIS to detect anomalies such as sudden pressure spikes, triggering emergency shutdowns to prevent well blowouts. It is also used in midstream pipeline monitoring, where it connects to leak detection sensors, ensuring that safety systems respond quickly to breaches.
In chemical processing plants, the TRICONEX 0923-141-6957 interfaces with toxic gas detectors and temperature sensors, relaying data to the SIS that controls emergency venting systems and isolation valves. This ensures that if hazardous conditions are detected, the SIS can act immediately to contain the hazard, protecting workers and the environment.
In power generation facilities, particularly fossil fuel and biomass plants, the TRICONEX 0923-141-6957 connects boiler pressure sensors and turbine vibration monitors to the SIS. It ensures that critical data about equipment health is transmitted reliably, allowing the SIS to prevent catastrophic failures by shutting down equipment before damage occurs.

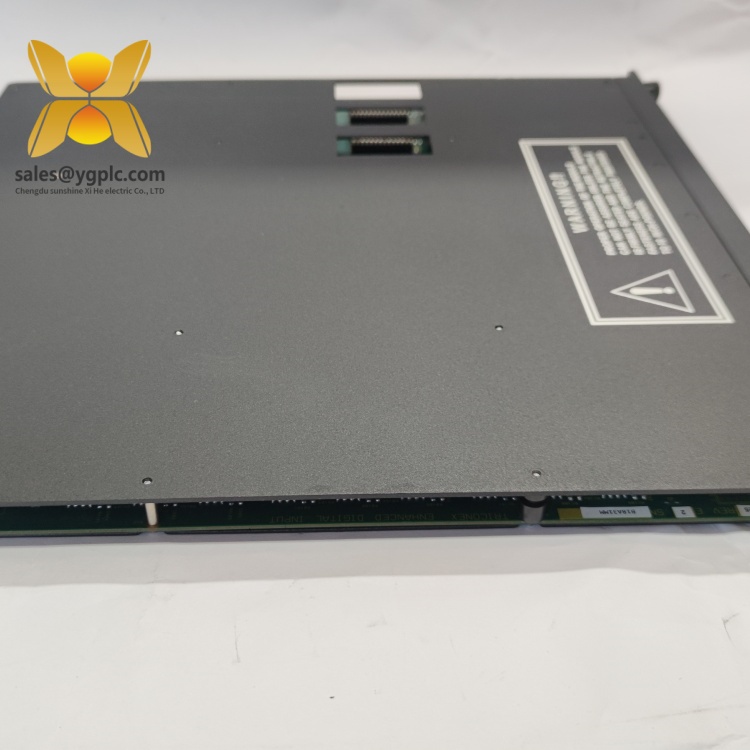

TRICONEX 0923-141-6957
Product Guarantee
Our company offers a one-year quality warranty service for the TRICONEX 0923-141-6957, covering hardware malfunctions not caused by human factors. During the warranty period, if the TRICONEX 0923-141-6957 exhibits abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems. Our technical team is available to assist with installation guidance and troubleshooting, ensuring that the TRICONEX 0923-141-6957 integrates smoothly into your existing systems.
