Product Overview: GE IC693CPU350-CF PLC Processor Module

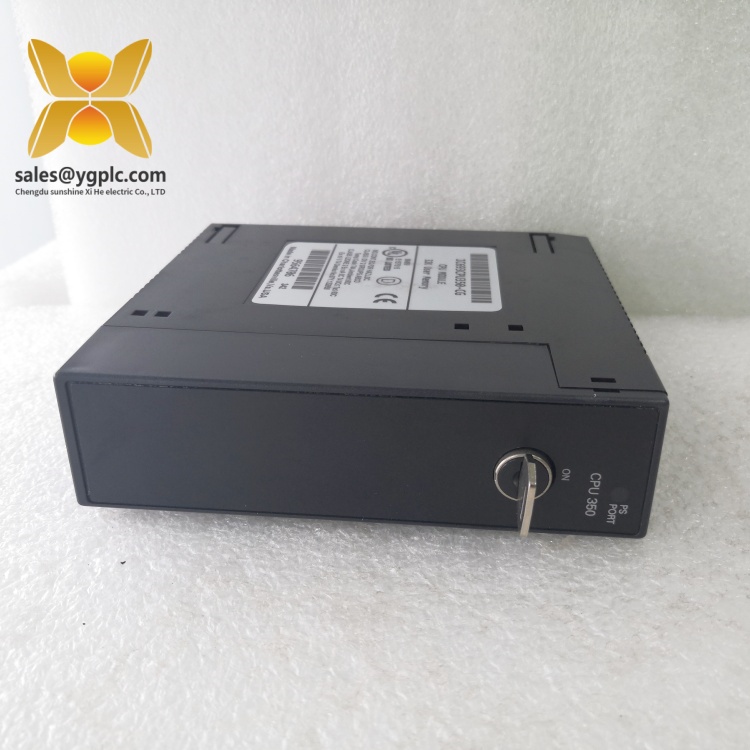

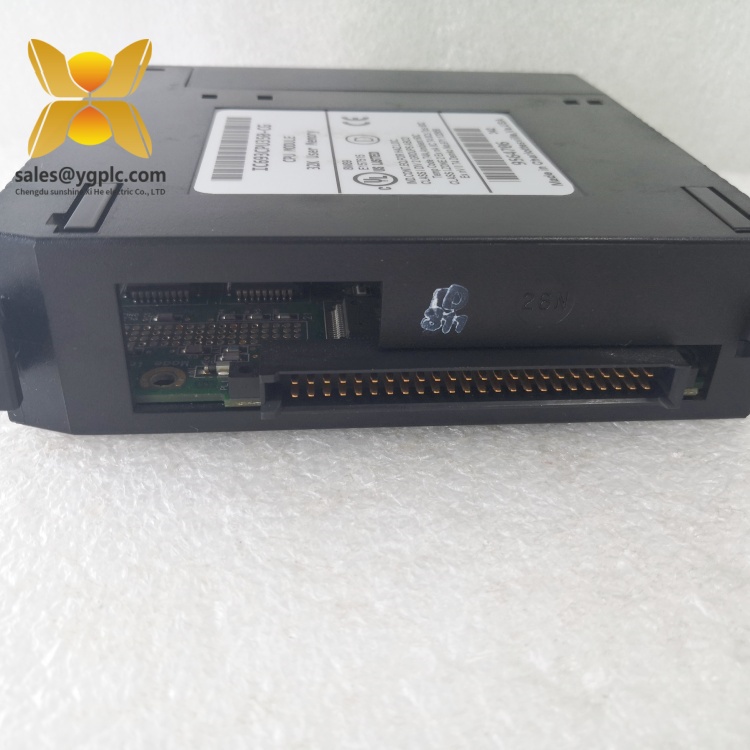

The GE IC693CPU350-CF is a programmable logic controller (PLC) processor module. It belongs to the GE Fanuc Series 90-30 platform. This module acts as the central processing unit in industrial automation systems. Its main role is to execute control logic programs. It also manages data flow between input and output (I/O) devices.

The GE IC693CPU350-CF comes with 32KB of user memory. This memory is used to store control programs and data. The module can handle up to 4,096 I/O points across 8 connected racks. This capacity makes it suitable for mid-sized industrial applications. These applications require a balance of processing power and flexibility.

The GE IC693CPU350-CF features a 25MHz 80386EX processor. This processor enables a fast scan rate. The scan rate is approximately 0.22 milliseconds per kilobyte of program code. Fast scan rates are important for real-time control. They ensure that the system can respond quickly to changes in industrial processes.

The GE IC693CPU350-CF does not have built-in serial communication ports. However, it works well with optional communication modules. Examples of these modules include the GE IC693CMM31 for Genius Bus communication and the GE IC693BEM331 for Ethernet connectivity. This compatibility allows the module to integrate into various communication networks. It meets the needs of different automation setups.

In industrial environments, the GE IC693CPU350-CF is designed to be reliable. It operates within a temperature range of 0°C to 60°C. This range allows it to function in harsh conditions. These conditions include dusty factories and humid processing plants. The module supports multiple programming languages. These languages are ladder logic, instruction list, and structural text. This support makes it easy to use with both older systems and newer setups. It helps in upgrading existing automation systems without major overhauls.

Technical Specifications

IC693CPU350-CF

Related products

• GE IC693CPU364: This is a higher-performance CPU module in the Series 90-30 line. It has 64KB of user memory. It is used in more complex control systems than the GE IC693CPU350-CF.
• GE IC693MDL753: This is a discrete output module. It connects to devices like motors and valves. The GE IC693CPU350-CFsends control signals to it to manage these devices.
• GE IC693PWR321: This is a power supply module. It provides the 5V DC power needed by the GE IC693CPU350-CFwhen installed on the same baseplate.
• GE IC693CMM31: This is a Genius Bus communication module. It connects the GE IC693CPU350-CFto other devices on a Genius Bus network. It allows data sharing across the network.
• GE IC693BEM331: This is an Ethernet communication module. It enables the GE IC693CPU350-CFto connect to Ethernet networks. This allows remote monitoring and control.
• GE IC693ALG220: This is an analog input module. It collects data from sensors that measure things like temperature and pressure. The GE IC693CPU350-CFprocesses this data to make control decisions.
• GE IC693CHS397: This is a 5-slot baseplate. The GE IC693CPU350-CFis installed on it. It holds the CPU and other modules in place and connects them electrically.

Main features and advantages

Processing performance: The GE IC693CPU350-CF has a 25MHz processor. This processor handles control logic efficiently. It can execute complex calculations needed for tasks like adjusting machine speeds or regulating process temperatures. The fast scan rate ensures that the module can update outputs quickly based on new input data. This is critical in applications where even small delays can affect product quality or safety.

Memory and I/O capacity: The 32KB user memory in the GE IC693CPU350-CF is enough for most mid-sized control programs. It can store logic for sequences of operations, alarm conditions, and data logging. The module supports up to 4,096 I/O points. This means it can connect to hundreds of sensors and actuators. It reduces the need for multiple controllers in a single system.

Flexibility in communication: The GE IC693CPU350-CF works with various communication modules. This lets it fit into different network setups. Whether a facility uses Genius Bus for local device connections or Ethernet for remote access, the module can adapt. This flexibility makes it easy to integrate into existing systems. It also allows for future upgrades without replacing the entire CPU.

Reliability in harsh environments: The GE IC693CPU350-CF is built to withstand tough industrial conditions. It operates in temperatures from 0°C to 60°C. It resists dust and moisture better than standard electronics. This reliability reduces downtime caused by module failures. It is important in industries where continuous operation is key, such as chemical processing or power generation.

Compatibility with programming languages: The GE IC693CPU350-CF supports ladder logic, instruction list, and structural text. Ladder logic is familiar to many technicians. It is easy to troubleshoot. Instruction list is useful for simple, step-by-step operations. Structural text is good for complex mathematical operations. This variety allows programmers to choose the best language for the task. It makes the module accessible to a wide range of users.

IC693CPU350-CF

Installation and maintenance

Pre-installation preparations: Before installing the GE IC693CPU350-CF, check the baseplate. The baseplate (like the GE IC693CHS397) must be securely mounted in a control cabinet. The cabinet should have enough space to allow air flow around the module. This prevents overheating. Check the power supply. It must provide a stable 5V DC output. Use a multimeter to verify the voltage. Clean the baseplate’s connector slots. Use a dry cloth to remove dust or debris. This ensures good electrical contact between the module and the baseplate. Make sure the module is compatible with other modules in the system. Check that the baseplate has enough slots for all required modules.

Maintenance suggestions: Keep the GE IC693CPU350-CF clean. Dust can build up on the module over time. This can block air flow and cause overheating. Use compressed air to blow dust off the module every three to six months. Do this when the power is off. Check the status LEDs on the front of the GE IC693CPU350-CF. A steady green LED means the module is working normally. A red or flashing LED may indicate a problem. Common issues include memory errors or communication failures. Refer to the user manual to diagnose the specific issue. Replace the backup battery every 3 to 5 years. The battery keeps program data safe when the power is off. A dead battery can cause loss of programs during power outages. Avoid exposing the module to extreme conditions. Keep it away from direct sunlight, heavy vibrations, and corrosive chemicals. These can damage the internal components over time.

Application fields

Automotive manufacturing: In car factories, the GE IC693CPU350-CF controls assembly lines. It coordinates robotic arms that weld parts together. It monitors sensors that check for proper part alignment. It adjusts conveyor speeds to match the pace of workers or machines. If a sensor detects a defective part, the module can stop the line immediately. This prevents faulty products from moving to the next stage. The module’s ability to handle multiple I/O points makes it ideal for managing the many sensors and actuators in a typical assembly plant.

Power generation: Power plants use the GE IC693CPU350-CF to control turbine systems. It monitors pressure, temperature, and rotational speed of turbines. It adjusts fuel flow or steam input to maintain stable power output. The module also manages auxiliary systems like cooling pumps and lubrication lines. In case of an abnormal condition, such as high vibration, it can trigger alarms or shut down equipment to prevent damage. Its reliability in high-temperature environments makes it suitable for the harsh conditions inside power plant control rooms.

Water and wastewater treatment: The GE IC693CPU350-CF automates water treatment processes. It controls pumps that move water through filtration systems. It adjusts chemical dosing pumps to add the right amount of chlorine or other treatments. It monitors water quality sensors to ensure that pH levels and contaminant levels are within safe limits. If levels go out of range, the module can increase or decrease chemical doses automatically. This ensures that treated water meets regulatory standards. The module’s ability to handle analog inputs from sensors makes it well-suited for this application.

Food and beverage production: In food processing, the GE IC693CPU350-CF manages cooking, mixing, and packaging equipment. It controls ovens to maintain precise temperatures for baking. It regulates mixers to ensure ingredients are blended correctly. It coordinates packaging machines to fill containers with the right amount of product. The module also monitors hygiene systems, such as CIP (Clean-in-Place) units, to ensure equipment is cleaned properly between batches. Its reliability helps prevent production stops that could lead to food spoilage.

Chemical processing: Chemical plants use the GE IC693CPU350-CF to control reaction vessels. It monitors pressure, temperature, and chemical concentrations inside the vessels. It adjusts valves to add reactants at the right rate. It triggers cooling systems if temperatures rise too high. The module also manages safety systems, such as emergency shutdown valves, to prevent leaks or explosions. Its ability to process analog data and execute complex logic makes it essential for maintaining safe and efficient chemical reactions.

IC693CPU350-CF

Product Guarantee

Our company offers a one-year quality warranty service for the GE IC693CPU350-CF. This warranty covers hardware malfunctions that are not caused by human factors. Examples of such malfunctions include faulty circuits or failed memory chips. During the warranty period, if the GE IC693CPU350-CF shows abnormal performance, such as not responding to input signals or failing to execute programs, we will provide a replacement module.

Our company was established in 2007. We have 17 years of experience in the industrial control parts industry. We are an import and export trade distribution company. We sell industrial control spare parts from major brands. We have a large stock of products, including many unpopular and discontinued models. This means we can often provide the GE IC693CPU350-CF immediately, even if it is hard to find elsewhere.

We have strong supply channels. This allows us to meet urgent needs. If a customer’s system breaks down and needs a replacement GE IC693CPU350-CF quickly, we can ship it promptly. We focus on distributing PLC modules, DCS cards, ESD system cards, and other industrial control products. Our goal is to support the continuous and stable operation of our customers’ industrial systems by providing reliable parts and services.
