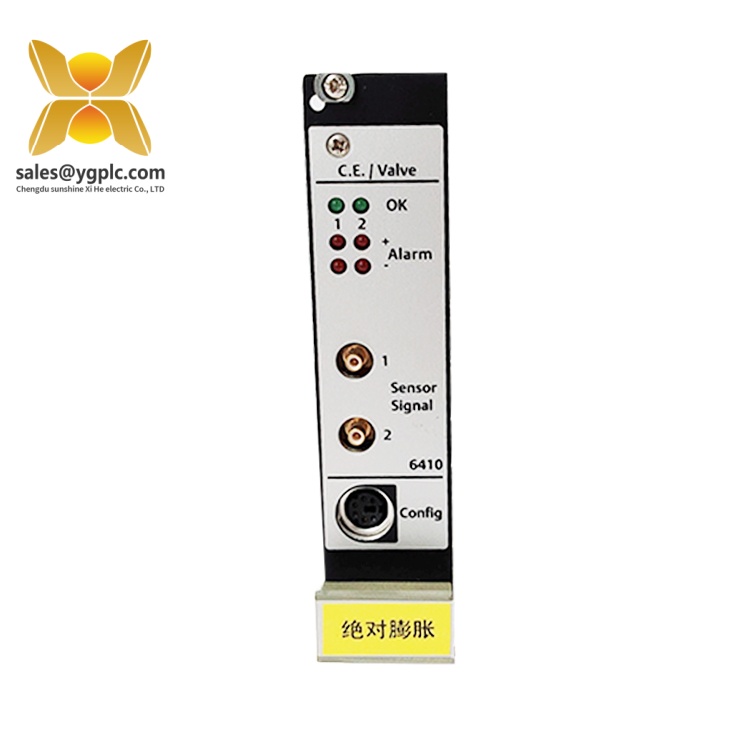

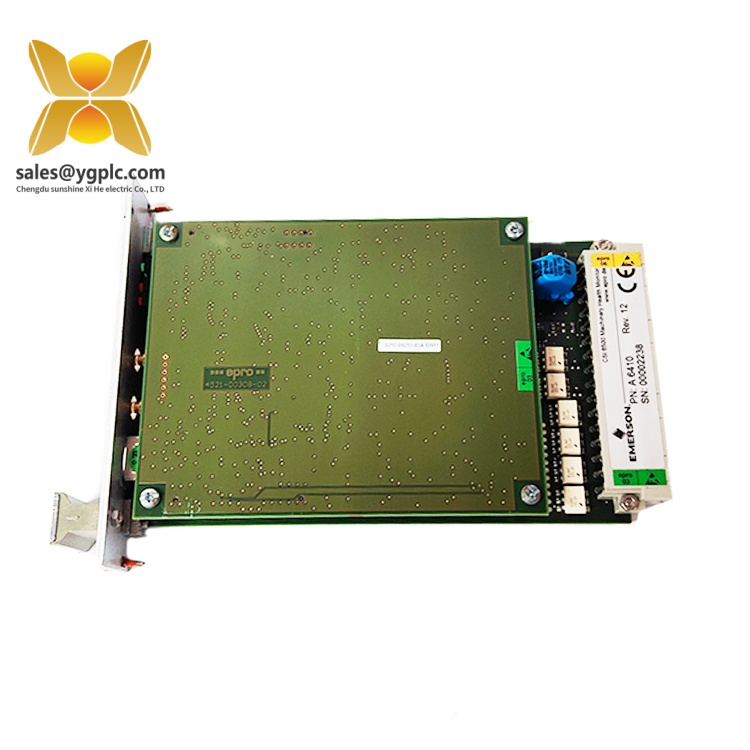

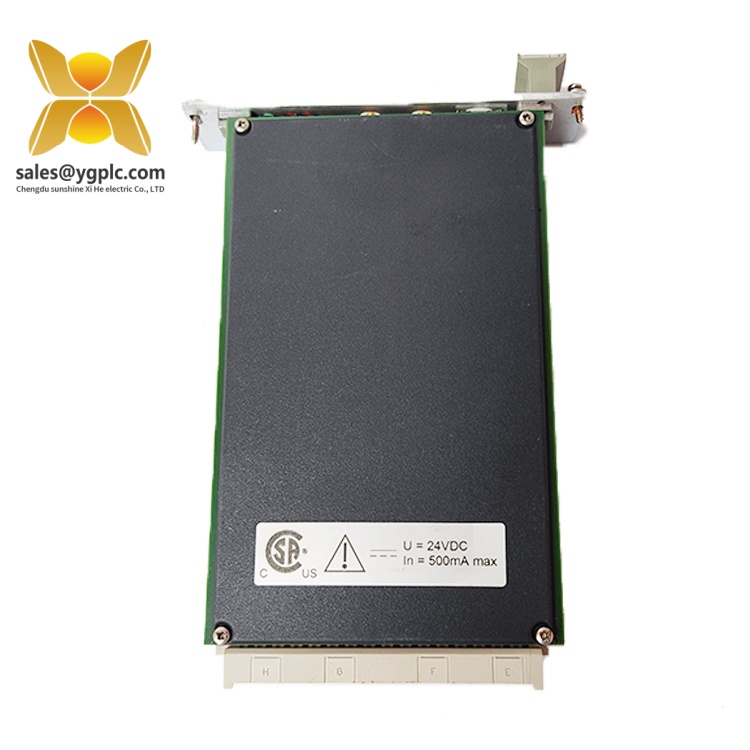

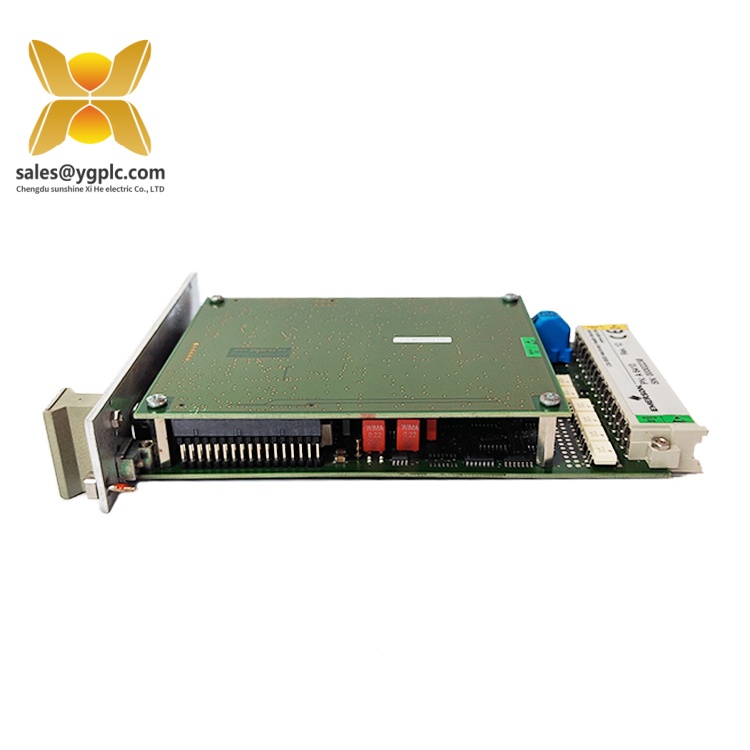

EMERSON A6410 9199-00005 Vibration Monitoring Module
Product Overview ：EMERSON A6410 9199-00005
The EMERSON A6410 9199-00005 is a high-precision Vibration Monitoring Module designed to deliver real-time mechanical health insights for critical industrial equipment. As a core component of Emerson’s CSI 6500 Machinery Health Monitoring System, this module plays a pivotal role in preventing unexpected downtime by continuously analyzing vibration data from rotating assets such as turbines, compressors, and motors. The A6410 9199-00005 integrates advanced signal processing algorithms and multi-channel acquisition capabilities, making it an indispensable solution for industries where equipment reliability is non-negotiable.
Featuring four independent input channels, the EMERSON A6410 9199-00005 supports both dynamic vibration sensors (e.g., accelerometers, velocity transducers) and static displacement probes, providing comprehensive coverage of machinery parameters like amplitude, frequency, and phase. Its modular design allows seamless integration into existing automation ecosystems, including PLC and DCS systems, via analog outputs (4–20 mA) and digital communication protocols. By converting raw vibration data into actionable metrics, the module enables predictive maintenance strategies, reducing operational costs and extending equipment lifespan.
Part of Emerson’s PlantWeb™ suite of solutions, the A6410 9199-00005 is engineered for harsh industrial environments, with a rugged enclosure rated for temperatures ranging from -40°C to +85°C and resistance to electromagnetic interference. Its user-configurable alarm thresholds and fault diagnostics ensure rapid response to abnormal conditions, while compatibility with Emerson’s AMS Machinery Manager software enhances data visualization and trend analysis. Whether deployed in standalone applications or large-scale monitoring networks, this module elevates system resilience and operational efficiency.
Technical Specifications ：EMERSON A6410 9199-00005
| Parameter Name | Parameter Value |
|---|---|
| Product Model | A6410 9199-00005 |
| Manufacturer | EMERSON |
| Product Type | Vibration Monitoring Module |
| Input Channels | 4 channels (analog/digital hybrid) |
| Signal Types | Accelerometer (IEPE), velocity transducer, proximity probe |
| Frequency Range | 0.1 Hz – 20 kHz |
| Amplitude Range | 0–100 g (acceleration), 0–250 mm/s (velocity) |
| Outputs | 4 x 4–20 mA analog, RS-485 (Modbus RTU) |
| Power Supply | 24 V DC ±15% (redundant inputs) |
| Physical Dimensions | 178 mm (H) × 102 mm (W) × 229 mm (D) |
| Weight | 1.8 kg |
| Operating Temperature | -40°C to +85°C |
| Mounting | Rack-mounted (3U height) |
| Certifications | CE, UL, API 670 |
A6410 9199-00005
Key Features and Advantages ：EMERSON A6410 9199-00005
Multi-Parameter Monitoring: The EMERSON A6410 9199-00005 supports simultaneous monitoring of vibration acceleration, velocity, and displacement, eliminating the need for multiple standalone devices. This versatility simplifies system architecture and reduces hardware costs.
Advanced Signal Processing: Built-in FFT (Fast Fourier Transform) and time waveform analysis enable precise identification of fault patterns such as imbalance, misalignment, and bearing wear. The module’s real-time trend tracking allows maintenance teams to detect early signs of degradation and schedule proactive repairs.
Rugged Industrial Design: Engineered with a metal enclosure and conformal coating, the module withstands high vibration, moisture, and corrosive atmospheres, ensuring reliable performance in offshore platforms, refineries, and other harsh environments. Its shock resistance (50 g peak, 11 ms) meets IEC 60068-2-27 standards.
Seamless System Integration: As part of the CSI 6500 series, the A6410 9199-00005 interoperates with Emerson’s DeltaV™ DCS and third-party systems via open protocols like Modbus and OPC UA. This flexibility supports centralized data management and cross-platform analytics.
User-Configurable Alarms: Each channel features adjustable warning and danger thresholds, with relay outputs for immediate shutdown or alert activation. The module’s front-panel LED indicators provide at-a-glance status updates, minimizing troubleshooting time.
Scalable Architecture: With support for up to 16 modules per rack, the system can be scaled to monitor hundreds of channels, making it suitable for both small-scale machinery and large industrial complexes.
A6410 9199-00005
Application Areas ：EMERSON A6410 9199-00005
The EMERSON A6410 9199-00005 is deployed across industries to safeguard high-value assets and optimize maintenance strategies:
- Oil & Gas: Monitoring pumps, compressors, and turbines in upstream production, midstream pipelines, and downstream refineries. The module’s ability to detect cavitation and valve instability helps prevent costly process interruptions.
- Power Generation: Ensuring the reliability of steam turbines, gas generators, and cooling systems in thermal, hydro, and nuclear plants. Real-time vibration data supports compliance with grid stability regulations and reduces unplanned outages.
- Manufacturing: Protecting motors, fans, and gearboxes in automotive, pharmaceutical, and food processing facilities. By identifying mechanical faults early, the module minimizes production delays and maintains quality control.
- Mining & Metals: Monitoring conveyor systems, crushers, and mills to avoid downtime in mineral extraction and processing. The module’s durability in dusty, high-vibration environments makes it ideal for underground and 露天 operations.
Specific applications include:
- Condition-Based Maintenance (CBM): Providing continuous vibration data for predictive analytics, reducing reliance on time-based maintenance schedules.
- Machinery Protection Systems (MPS): Triggering alarms or shutdowns when vibration levels exceed safe limits, preventing catastrophic failures.
- Energy Efficiency Optimization: Identifying mechanical inefficiencies caused by misalignment or worn components, enabling targeted repairs to reduce energy consumption.
A6410 9199-00005
Related Products ：EMERSON A6410 9199-00005
- EMERSON A6420 9199-00010: A 8-channel vibration module with expanded frequency range (0.01 Hz – 100 kHz), suitable for high-speed machinery applications.
- EMERSON A6300 9199-00002: A compact 2-channel module designed for small-scale systems or retrofitting existing equipment.
- EMERSON A6500 9199-00020: A combined vibration and temperature monitoring module, integrating thermal data for comprehensive machinery health assessment.
- EMERSON A6100 9199-00001: A basic vibration module with single-channel input, ideal for budget-sensitive applications.
- EMERSON A6600 9199-00030: A high-speed data acquisition module for transient vibration analysis during machine startup/shutdown.
- EMERSON A6800 9199-00040: A rack-mounted power supply unit for the CSI 6500 series, ensuring stable power delivery to multiple modules.
- EMERSON A6900 9199-00050: A communication gateway module enabling Ethernet/IP and Profibus connectivity for the A6410 9199-00005.
- EMERSON A6700 9199-00060: A termination panel for field sensor connections, simplifying wiring and maintenance.
A6410 9199-00005
Installation and Maintenance ：EMERSON A6410 9199-00005
Installation Preparation:
Before installing the EMERSON A6410 9199-00005, ensure the rack is properly grounded and ventilated. Verify sensor compatibility (e.g., accelerometer type, cable length) and use shielded twisted-pair cables to minimize noise interference. Mount the module in a 3U rack slot, securing it with captive screws. Connect redundant 24 V DC power supplies and terminate sensor leads to the module’s terminal blocks, following Emerson’s wiring diagrams. Configure channel parameters (e.g., sensor type, alarm thresholds) using the AMS Machinery Manager software.
Before installing the EMERSON A6410 9199-00005, ensure the rack is properly grounded and ventilated. Verify sensor compatibility (e.g., accelerometer type, cable length) and use shielded twisted-pair cables to minimize noise interference. Mount the module in a 3U rack slot, securing it with captive screws. Connect redundant 24 V DC power supplies and terminate sensor leads to the module’s terminal blocks, following Emerson’s wiring diagrams. Configure channel parameters (e.g., sensor type, alarm thresholds) using the AMS Machinery Manager software.
Maintenance Recommendations:
- Routine Inspections: Quarterly checks should include visual inspection of connections, cleaning of dust from vents, and verification of LED status indicators. Use Emerson’s diagnostic tools to monitor module health and signal integrity.
- Calibration: Annually calibrate sensors and module inputs using traceable calibration equipment. Document results to ensure compliance with industry standards.
- Firmware Updates: Periodically update the module’s firmware via the AMS Machinery Manager to access new features and security patches, ensuring compatibility with evolving automation systems.
- Spare Parts Management: Store spare A6410 9199-00005 modules in a controlled environment (temperature: 10–30°C, humidity: <70%) to facilitate rapid replacement in case of failure.
Product Warranty
Our company provides a 12-month quality warranty for the EMERSON A6410 9199-00005, covering hardware defects under normal use. In the event of performance issues or functional failures, we offer prompt replacement services. For discontinued models or urgent requirements, our global supply chain network ensures rapid delivery of scarce components, supporting uninterrupted industrial operations. Our technical support team is available 24/7 to assist with installation, diagnostics, and system optimization, ensuring the module’s long-term reliability and alignment with your operational goals.
