Name: ABB LM80 SL3 | DLM02 | DLM01 | SLMG99 | SUNSHINE XIHE
Brand: ABB
Price: 1750.00 USD
Availability: InStock

Description

Product Overview

The ABB LM80 SL3 Laser Level Transmitter is a high-performance industrial instrument designed for non-contact measurement of level, distance, and position in extreme environments. As part of ABB’s LM80 series, this transmitter combines pulsed laser technology with advanced signal processing to deliver precise and reliable measurements for granular solids and opaque liquids.

Engineered for rugged durability, the LM80 SL3 features a stainless steel housing and IP66/IP67 protection rating, ensuring reliable operation in harsh conditions such as dust, moisture, and corrosive atmospheres. It supports 4–20 mA and Modbus RTU communication for seamless integration with SCADA systems, enabling real-time data monitoring and remote configuration. The transmitter’s 24 V DC power input and compact design (280 mm × 240 mm × 240 mm) make it suitable for space-constrained installations in industries like mining, oil & gas, and food processing.

In automation systems, the LM80 SL3 acts as a critical component for inventory management and process control. Its 100 m level measurement range and 10 mm resolution allow for accurate monitoring of bulk materials in silos, tanks, and bunkers. The built-in laser pointer simplifies alignment in narrow or tall vessels, while the last pulse detection technology ensures reliable measurements even in light to moderate dust environments. With ATEX/IECEx certification, the LM80 SL3 is also suitable for use in potentially explosive atmospheres, making it ideal for hazardous industrial settings.E-mail :sales@ygplc.com.

Technical Specifications

Parameter Name	Parameter Value
Product Model	LM80 SL3
Manufacturer	ABB
Product Type	Laser Level Transmitter
Measurement Range	0.5–100 m (level), 0.5–150 m (positioning)
Resolution	10 mm
Power Supply	24 V DC ±10%
Output Signals	4–20 mA, Modbus RTU
Communication Protocol	Modbus RTU
Protection Rating	IP66/IP67
Hazardous Area Approval	ATEX/IECEx (Zone 1/21)
Operating Temperature	-40°C to +60°C
Humidity	5–95% non-condensing
Physical Dimensions	280 mm × 240 mm × 240 mm
Weight	7 kg
Laser Class	IEC 60825-1 Class 1M (measuring laser)
Aiming Laser	Class 3R (visible red)

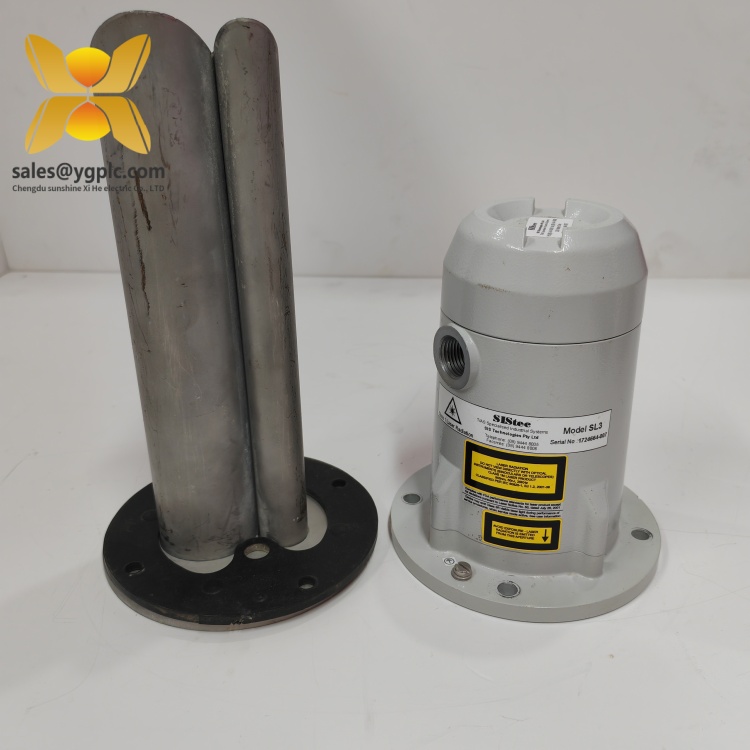

LM80 SL3

Key Features and Advantages

Non-Contact Measurement: The LM80 SL3 uses pulsed laser technology to measure level and distance without physical contact, eliminating wear and tear associated with mechanical sensors. This makes it ideal for corrosive or abrasive materials.Whatsapp:+86 18859254943.

High Accuracy and Range: With a 100 m level measurement range and 10 mm resolution, the transmitter delivers precise results for bulk solids and opaque liquids. Its auto-ranging capability adjusts automatically to measure all levels within the vessel, ensuring consistent performance.

Rugged Design: The stainless steel housing and IP66/IP67 protection rating protect the LM80 SL3 from dust, water ingress, and extreme temperatures. The non-condensing heated optics option prevents lens fogging in humid environments, further enhancing reliability.

Hazardous Area Compliance: The ATEX/IECEx certification allows the LM80 SL3 to operate safely in explosive atmospheres, such as those found in oil refineries and chemical plants. This compliance ensures adherence to international safety standards.

Easy Installation and Configuration: The transmitter’s plug-and-play design and intuitive LCD2 configuration device simplify setup and calibration. No manual adjustments are required, reducing downtime and maintenance efforts.

Application Areas

The ABB LM80 SL3 Laser Level Transmitter is widely used in industries requiring accurate and reliable level measurement:

Mining and Aggregates: Monitors stockpiles of coal, ores, and gravel in bunkers and silos. The 100 m range and dust-resistant design ensure precise measurements in harsh conditions.
Oil & Gas: Deployed in offshore platforms and refineries to measure levels of crude oil, fuels, and chemicals. The ATEX certification guarantees safe operation in explosive environments.
Food and Beverage: Tracks inventory of grains, powders, and liquids in silos and tanks. The stainless steel housing and IP67 rating meet hygiene standards for food processing facilities.
Chemicals and Pharmaceuticals: Measures corrosive liquids and bulk solids in reactors and storage vessels. The non-contact design eliminates contamination risks.
Water and Wastewater: Monitors sludge levels in treatment plants and raw water in reservoirs. The Modbus RTU interface enables integration with centralized control systems.

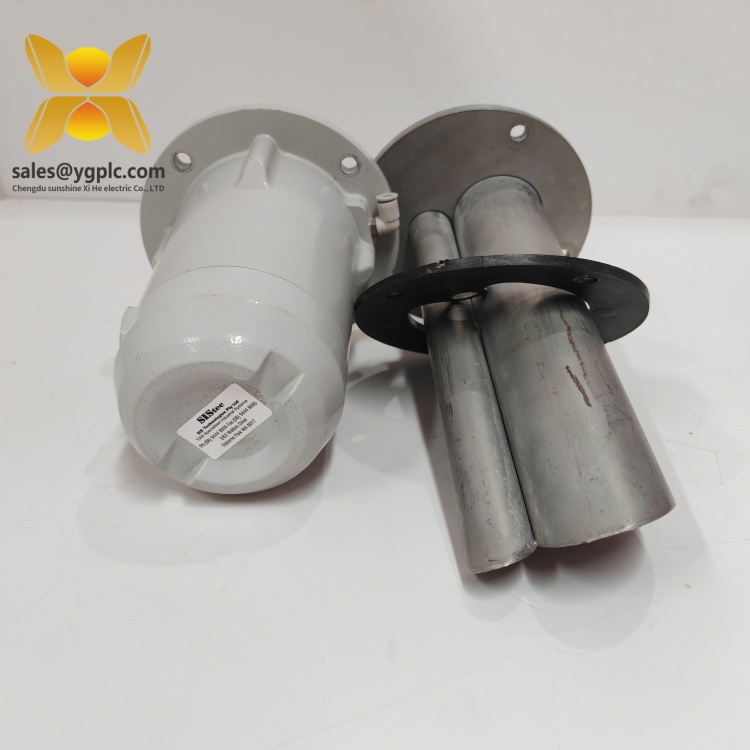

LM80 SL3

Installation and Maintenance

Installation Preparation:
Before installing the LM80 SL3, verify the power supply matches the 24 V DC input requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the transmitter’s laser beam perpendicular to the target surface, using the built-in laser pointer for precise aiming. For hazardous areas, confirm the ATEX/IECEx certification aligns with site requirements. Mount the transmitter using the stainless steel mounting plate or Tri-Clover fitting, depending on the application.

Maintenance Recommendations:

Routine Inspections: Quarterly checks include inspecting the lens for dust or debris and verifying LED status indicators. Clean the lens with a soft, dry cloth to maintain optical clarity.
Sensor Calibration: The LM80 SL3 requires no periodic calibration, but annual checks using a reference target are recommended to ensure accuracy.
Firmware Updates: Periodically update the transmitter’s firmware using ABB’s official software to access new features and bug fixes.
Environmental Checks: In high-dust environments, inspect the dust tube for blockages and clean as needed. For humid conditions, ensure the heated optics option is operational.

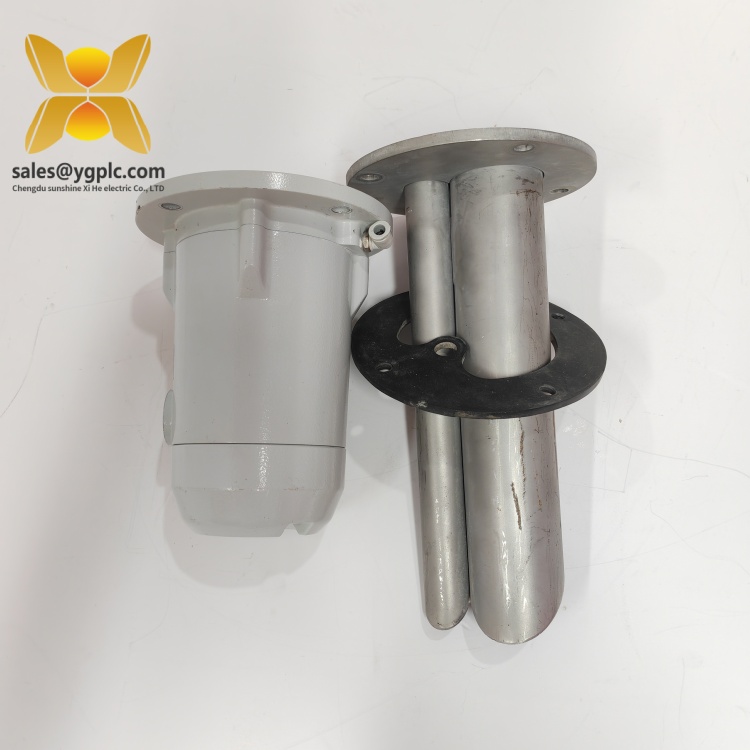

LM80 SL3

Product Warranty

We provide a 12-month quality warranty for the ABB LM80 SL3 Laser Level Transmitter, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning unit free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.

With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to optimize your level measurement system with the LM80 SL3 Laser Level Transmitter.

Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.Whatsapp:+86 18859254943.
