Description
Product Overview
Technical Specifications
Parameter Name | Parameter Value |
---|---|
Product Model | 190065-00-01-03-01-01 |
Manufacturer | Bently Nevada |
Product Type | General Purpose Equipment Monitor |
Input Voltage | 18–36 VDC |
Communication Protocol | Modbus RTU/TCP |
Protection Rating | NEMA 4X/IP66 |
Mounting Type | Wall-mounted with NEMA 4X enclosure |
Weight | 2 kg |
Operating Temperature | -20°C to +60°C |
Humidity | 5–95% non-condensing |
Hazardous Area Approval | ATEX/IECEx (optional) |
Display Option | Optional attached display (no cable) |
Input Channels | 4 analog inputs, 2 digital inputs |

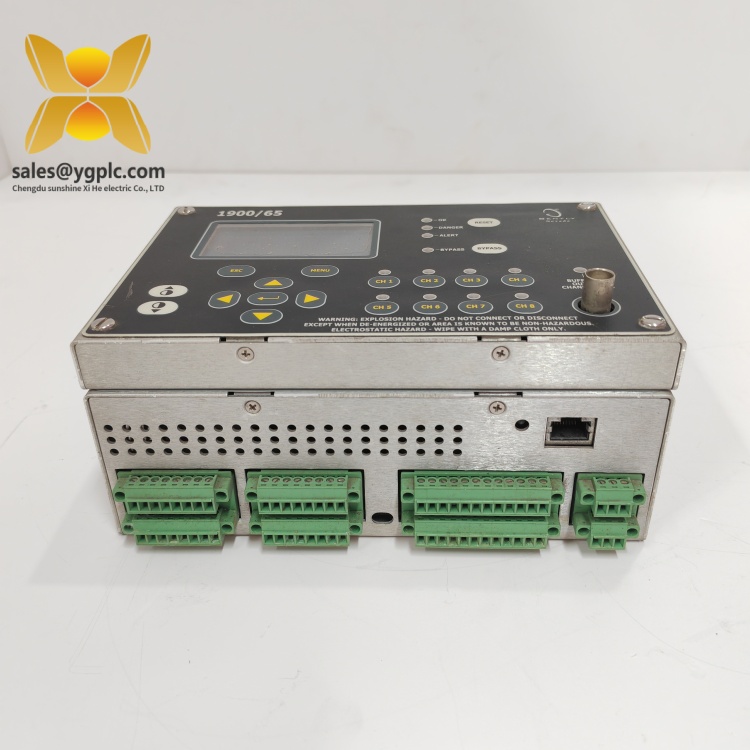

190065-00-01-03-01-01
Key Features and Advantages
Hazardous Area Compliance: The optional ATEX/IECEx certification makes the monitor suitable for use in Zone 1/21 explosive environments, ensuring compliance with international safety standards in oil and gas operations.

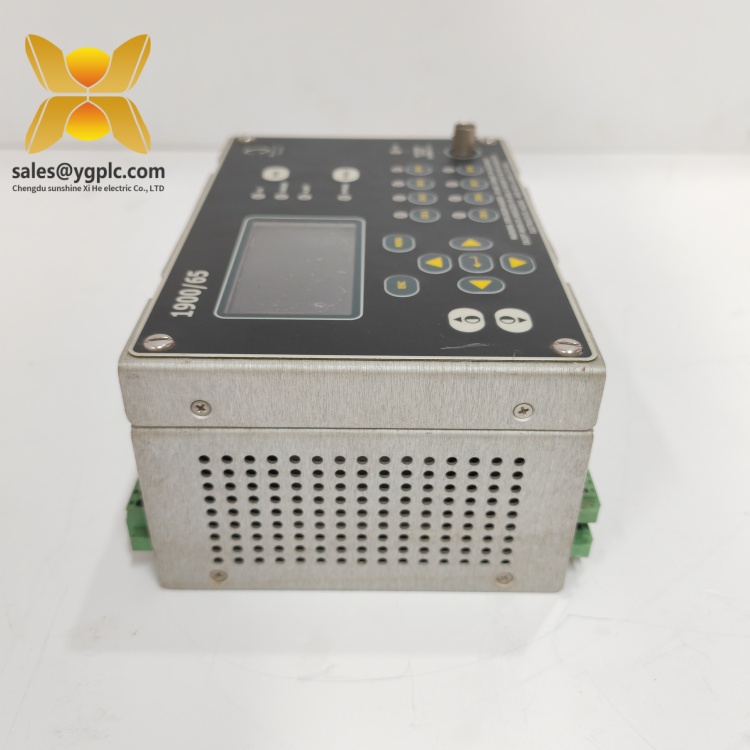

190065-00-01-03-01-01
Application Areas
- Power Generation: Monitors steam turbines and generators to ensure stable energy production. Its vibration analysis capabilities help detect rotor imbalances or bearing wear, preventing catastrophic failures.
- Oil & Gas: Deployed in offshore platforms and refineries to monitor pumps, compressors, and motors. The ATEX-certified version ensures safe operation in explosive atmospheres.
- Manufacturing: Integrates with production lines to monitor conveyor belts, mixers, and CNC machines. Real-time data helps optimize performance and reduce maintenance costs.
- Water Treatment: Tracks pump and blower health in wastewater treatment plants, ensuring continuous operation and compliance with environmental regulations.
- Mining: Monitors crushers, conveyors, and ventilation systems in mining operations, enhancing safety and productivity.
Related Products
- Bently Nevada 3300 XL 8mm Proximity Transmitter: 配套使用 with the 190065-00-01-03-01-01 to measure shaft vibration and displacement, providing critical data for machinery health assessment.
- Bently Nevada 3500/42M Vibration Monitoring Module: A high-performance module for advanced vibration analysis, compatible with the 190065-00-01-03-01-01 in distributed control systems.
- Bently Nevada 1900/95A Speed Monitor: A specialized monitor for rotational speed measurement, ideal for applications requiring precise speed control.
- Bently Nevada 3300/32 Keyphasor Probe: Provides phase reference signals for the 190065-00-01-03-01-01, enabling accurate vibration analysis and machinery alignment.
- Bently Nevada 3500/93 Display Interface Module: Enhances the monitor’s functionality by providing local or remote visual indicators of system status and events.
- Bently Nevada 3300/20 Proximitor: Converts sensor signals into measurable outputs, ensuring reliable data transmission to the 190065-00-01-03-01-01.
- Bently Nevada 1900/65B Enhanced Equipment Monitor: An upgraded version with additional input channels and advanced diagnostic features for complex machinery setups.

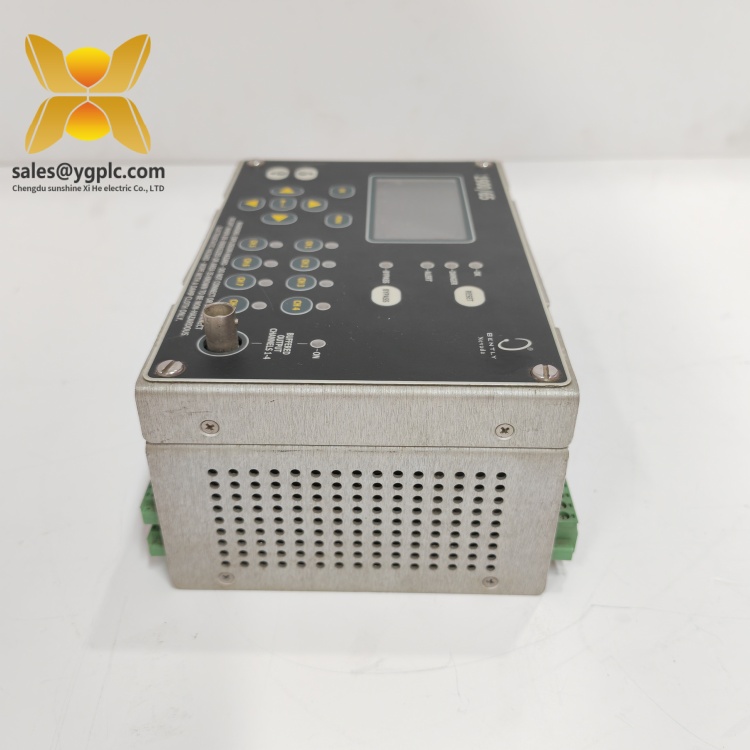

190065-00-01-03-01-01
Installation and Maintenance
Installation Preparation:
Before installing the 190065-00-01-03-01-01, verify the power supply matches the 18–36 VDC input requirement. Ensure the mounting location meets NEMA 4X/IP66 environmental standards and has adequate space for cable routing. For hazardous areas, confirm the monitor’s ATEX/IECEx certification aligns with site requirements. Connect sensors to the analog inputs and configure Modbus settings using Bently Nevada’s SensorVue software.Whatsapp:+86 18859254943.
- Routine Checks: Inspect the enclosure quarterly for signs of damage or corrosion. Clean the window to maintain visibility of status indicators.
- Sensor Calibration: Calibrate attached sensors annually using Bently Nevada’s calibration tools to ensure accurate measurements.
- Firmware Updates: Periodically check for firmware updates on Bently Nevada’s official website to access new features and bug fixes.
- Communication Testing: Verify Modbus connectivity bi-annually to ensure seamless data transmission to the control system.
Product Warranty
190065-00-01-03-01-01
