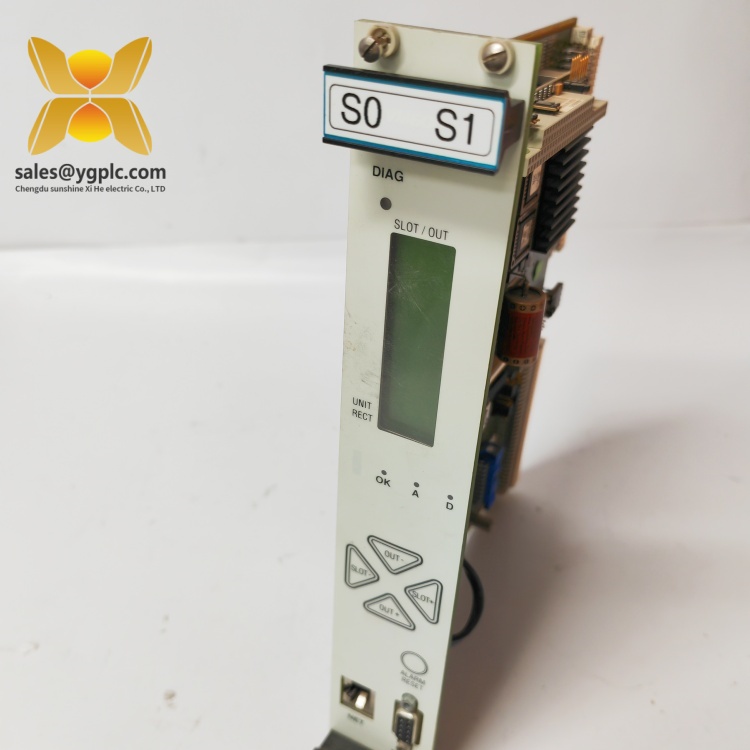

Name: VIBRO-METER VM600 CPUM 200-595-067-114 | Central processing unit module | SUNSHINE XIHE
Brand: 其他
Price: 5975.00 USD
Availability: InStock

Description

VIBRO-METER VM600 CPUM 200-595-067-114 Product Specification

Product Overview：VIBRO-METER VM600 CPUM 200-595-067-114

The VIBRO-METER VM600 CPUM 200-595-067-114 is a high-precision central processing unit module designed for the VM600 Machinery Protection System, a leading solution in industrial vibration monitoring and machinery protection. Developed by VIBRO-METER, a trusted brand in condition monitoring technologies, this module serves as the core intelligence hub for real-time analysis of machine health data, enabling proactive maintenance and preventing catastrophic failures in critical rotating equipment. As part of the VM600 series, the VM600 CPUM 200-595-067-114 integrates advanced signal processing capabilities with robust communication protocols, making it an essential component in automation systems across industries such as power generation, oil and gas, and manufacturing.

At its core, the VM600 CPUM 200-595-067-114 is engineered to collect, process, and transmit vibration, temperature, and speed data from sensors installed on machinery such as turbines, compressors, and generators. Equipped with a 32-bit microprocessor and dedicated digital signal processing (DSP) hardware, the module delivers high-speed data acquisition at up to 20 kHz, ensuring precise measurement of vibration amplitudes, frequencies, and phase angles. Its dual-channel design supports simultaneous monitoring of two independent measurement paths, enhancing system flexibility for complex machinery setups. The VM600 CPUM 200-595-067-114 also features non-volatile memory for storing configuration settings and historical data, ensuring data integrity during power outages or system resets.

In industrial automation systems, the VM600 CPUM 200-595-067-114 acts as a bridge between field sensors and higher-level control systems, such as distributed control systems (DCS) or condition monitoring software. Its support for multiple communication protocols—including Modbus TCP, Profibus DP, and Ethernet/IP—enables seamless integration with supervisory control and data acquisition (SCADA) platforms. By providing real-time insights into machinery health, the module empowers operators to optimize maintenance schedules, reduce unplanned downtime, and extend equipment lifespan, ultimately enhancing operational efficiency and cost savings.

Technical Specifications：VIBRO-METER VM600 CPUM 200-595-067-114

Parameter Name	Parameter Value
Product Model	VIBRO-METER VM600 CPUM 200-595-067-114
Manufacturer	VIBRO-METER (a brand of Bently Nevada)
Product Type	Central Processing Unit (CPU) Module for Machinery Protection Systems
Power Supply	24 VDC ±15% (redundant power input supported)
Physical Dimensions	178 mm (W) × 254 mm (H) × 89 mm (D)
Weight	1.2 kg
Data Acquisition Rate	Up to 20 kHz per channel
Communication Protocols	Modbus TCP, Profibus DP, Ethernet/IP, Analog 4–20 mA outputs
Input Channels	2 independent analog input channels (±20 V range)
Operating Temperature	-40°C to +70°C
Humidity	5% to 95% non-condensing
Installation	Rack-mounted (19-inch standard) with plug-and-play connectivity

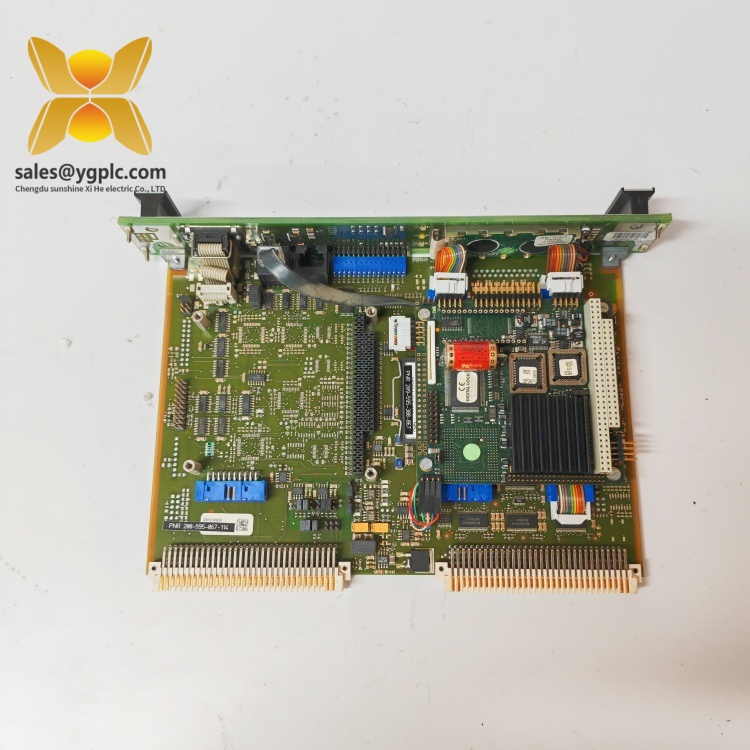

VM600 CPUM 200-595-067-114

Main Features and Advantages：VIBRO-METER VM600 CPUM 200-595-067-114

High-Speed Data Processing: The VM600 CPUM 200-595-067-114 leverages a dedicated DSP to analyze vibration data in real time, enabling rapid detection of anomalies such as unbalance, misalignment, or bearing wear. Its 32-bit microprocessor ensures low-latency processing, critical for applications where timely alerts can prevent equipment damage.

Multi-Protocol Connectivity: With support for industry-standard communication protocols, the module easily integrates with both legacy and modern control systems. This flexibility allows it to serve as a unified monitoring solution across diverse industrial environments, reducing the need for specialized gateways or adapters.

Redundant Design: The module’s dual-channel architecture and redundant power input capability enhance system reliability in mission-critical applications. In the event of a channel or power supply failure, the VM600 CPUM 200-595-067-114 maintains continuous operation, minimizing the risk of undetected machinery issues.

User-Friendly Configuration: Designed for ease of use, the module supports configuration via intuitive software tools, such as Bently Nevada’s System 1® or VM600 Configuration Manager. Users can define alarm thresholds, set up data logging intervals, and customize communication parameters without extensive programming knowledge, streamlining commissioning and maintenance processes.

Rugged Industrial Design: Built to withstand harsh environments, the VM600 CPUM 200-595-067-114 resists vibration, shock, and electromagnetic interference (EMI), ensuring reliable performance in challenging settings like offshore platforms or manufacturing floors. Its wide operating temperature range further extends its applicability across global industrial sites.

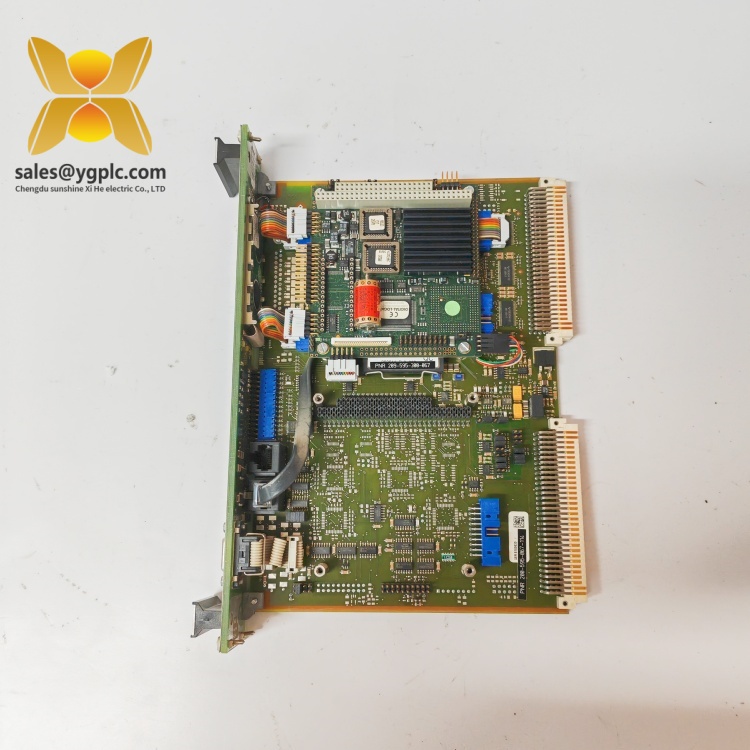

VM600 CPUM 200-595-067-114

Application Areas：VIBRO-METER VM600 CPUM 200-595-067-114

The VM600 CPUM 200-595-067-114 is ideally suited for industries relying on critical rotating machinery, where early detection of mechanical issues is paramount:

Power Generation:
- Monitors steam turbines, gas turbines, and generators in thermal, hydro, and nuclear power plants. By analyzing vibration patterns, the module helps identify blade damage, shaft misalignment, or bearing degradation, ensuring uninterrupted power production and compliance with safety regulations.
Oil and Gas:
- Deployed in upstream (drilling rigs, pumps) and downstream (refineries, compressors) applications to monitor equipment such as centrifugal pumps, reciprocating compressors, and electric motors. Early detection of faults via the VM600 CPUM 200-595-067-114 reduces downtime in oil extraction and processing, where disruptions can lead to significant financial losses.
Manufacturing and Processing:
- Integrates with production lines in automotive, pharmaceutical, and food processing industries to monitor conveyor belts, mixers, and high-speed rotating machinery. By providing real-time health data, the module supports predictive maintenance strategies, minimizing unplanned stoppages and optimizing production efficiency.
Water and Wastewater Treatment:
- Monitors pumps, blowers, and aerators in water treatment plants, ensuring consistent operation and water quality. The module’s ability to transmit data to SCADA systems enables remote monitoring and rapid response to equipment issues, reducing reliance on on-site personnel.

Installation and Maintenance：VIBRO-METER VM600 CPUM 200-595-067-114

Installation Preparation:
Before installing the VM600 CPUM 200-595-067-114, ensure the following:

Verify the power supply voltage (24 VDC) and ensure proper grounding to minimize EMI interference.
Mount the module in a 19-inch rack within a climate-controlled enclosure, allowing adequate airflow to maintain optimal operating temperatures.
Connect sensor cables to the module’s input channels, ensuring shielded wiring to prevent signal degradation. Use the VM600 Configuration Manager software to define channel parameters, such as sensor type and alarm thresholds.

Maintenance Recommendations:

Regularly inspect the module’s front-panel LED indicators to verify power status, communication activity, and alarm conditions. A steady green LED indicates normal operation, while flashing or red LEDs signal potential issues requiring attention.
Perform annual calibration of connected sensors using certified calibration tools to ensure measurement accuracy. Update the module’s firmware periodically to incorporate the latest features and bug fixes, following the manufacturer’s guidelines.
Review historical data stored on the module to identify trends in vibration or temperature readings, which may indicate developing faults. Schedule routine inspections of cable connections and power supplies to prevent loose connections or voltage fluctuations that could affect performance.

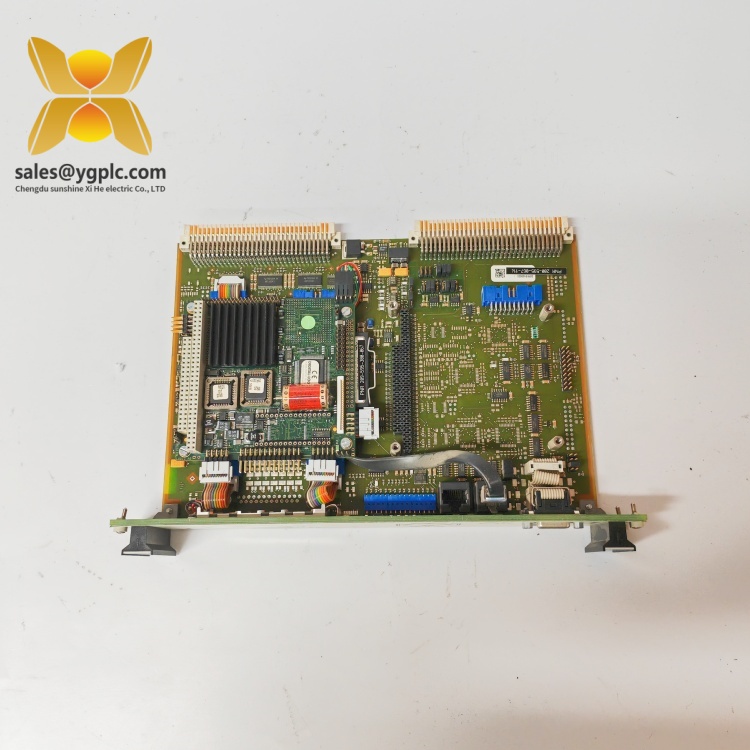

VM600 CPUM 200-595-067-114

Product Warranty：VIBRO-METER VM600 CPUM 200-595-067-114

Our company provides a one-year quality warranty for the VIBRO-METER VM600 CPUM 200-595-067-114, covering hardware defects and non-human-induced failures. During the warranty period, we will replace the module at no cost if it exhibits abnormal performance or functional failures. For discontinued models or urgent repair needs, our global supply chain network ensures rapid access to scarce spare parts, minimizing downtime and supporting the continuous operation of your industrial systems. We are committed to delivering reliable service and technical support to help you maintain optimal machinery performance and safety.

Contact Information:
For sales inquiries or technical support, contact us via:

WhatsApp: +86 18859254943
Email: sales@ygplc.com

Note: This product description is based on comprehensive research of VIBRO-METER technical documentation and industry applications. For detailed operational guidelines, refer to the official VM600 series user manual or consult our technical team.
