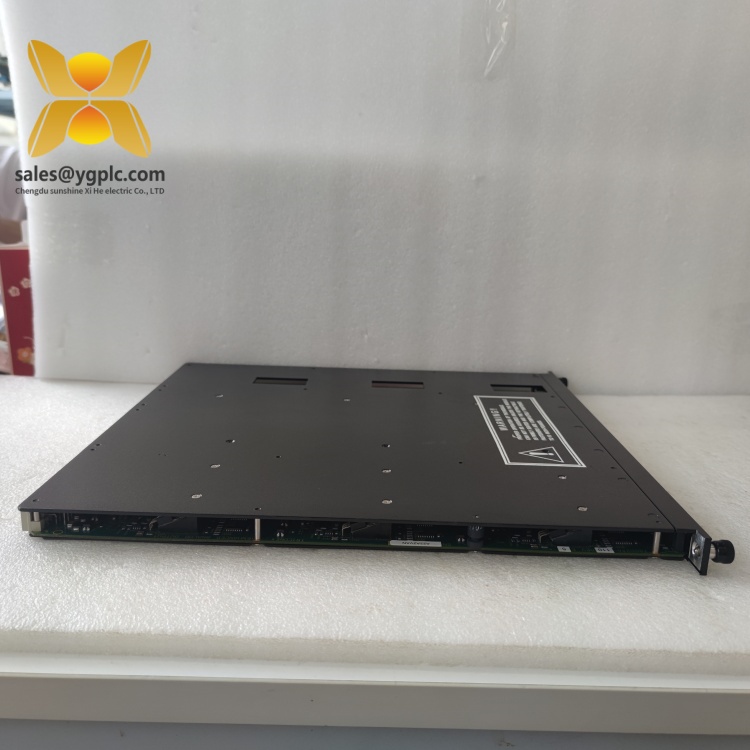

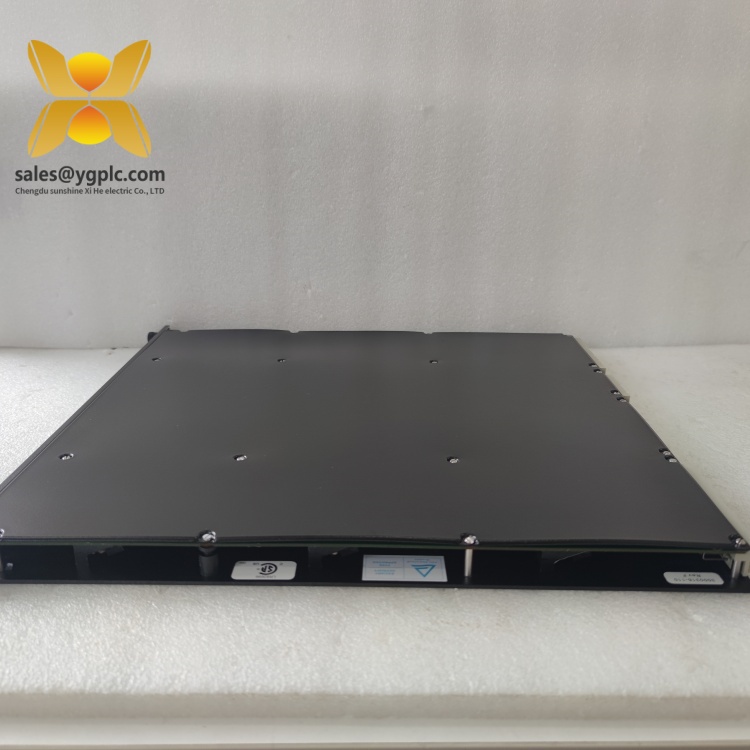

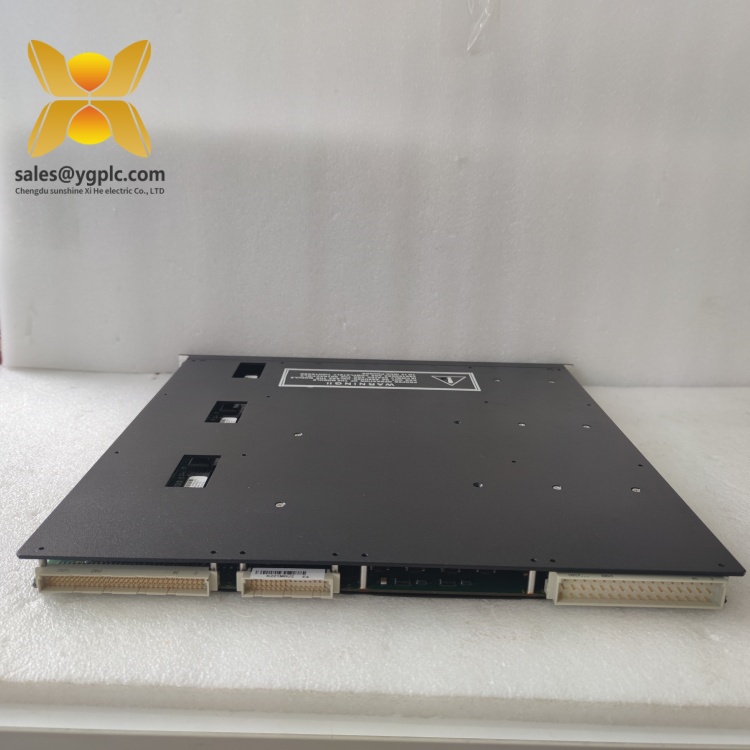

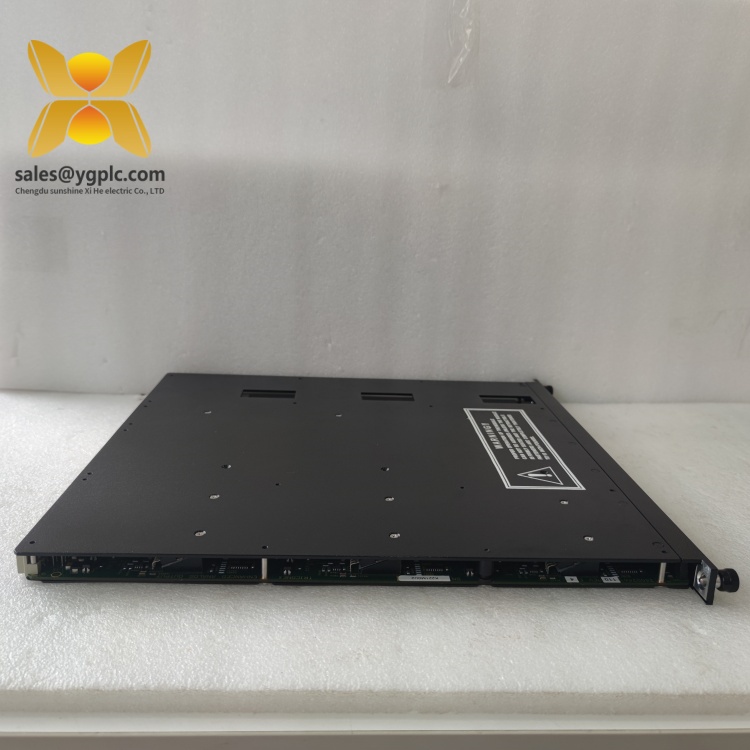

TRICONEX 3805/E9853-610 Analog Output Module
Product Overview
The TRICONEX 3805/E9853-610 is a high-reliability analog output module engineered for safety-critical industrial automation systems, specifically designed to integrate with Triple Modular Redundancy (TMR) architectures. As a core component of the TRICONEX Tricon safety system, this module serves as the interface between the central control logic and field actuators—such as control valves, variable frequency drives, and proportional solenoids—delivering precise analog signals to ensure reliable process control in high-risk environments. Certified to SIL 3 under IEC 61508 and IEC 61511 standards, the TRICONEX 3805/E9853-610 meets the strictest safety requirements, making it indispensable for applications like emergency shutdown systems (ESD), continuous process control, and turbine governor systems in oil and gas, chemical processing, and power generation industries.
Equipped to handle 4–20 mA output signals, the TRICONEX 3805/E9853-610 features 8 isolated output channels, each capable of driving field devices with high precision and stability. Its compact design (12.7 cm x 20.3 cm x 8.9 cm) and lightweight build (0.8 kg) allow seamless integration into existing Tricon racks, supporting both new installations and system upgrades. The module’s advanced diagnostic capabilities, combined with a -40°C to +70°C operating temperature range, ensure consistent performance in harsh industrial conditions, minimizing the risk of signal degradation or system failure. By providing real-time, redundant analog control, the TRICONEX 3805/E9853-610 forms the backbone of safe and efficient process automation, enabling precise regulation of critical plant operations.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TRICONEX |
| Product Type | Analog Output Module |
| Output Signal | 4–20 mA (±6% over-range capability) |
| Number of Channels | 8 isolated channels |
| Physical Dimensions | 12.7 cm (height) x 20.3 cm (width) x 8.9 cm (depth) |
| Weight | 0.8 kg |
| Isolation Rating | 1500VAC galvanic isolation between channels and backplane |
| Operating Temperature | -40°C to +70°C |
| Safety Integrity Level | SIL 3 (IEC 61508/IEC 61511) |
| Output Accuracy | <0.25% of full-scale range (FSR) within 0–60°C |
| Over-Voltage Protection | 42.5VDC continuous |
| Response Time | <10 ms for signal updates |
3805/E9853-610
Related Products
- TRICONEX 3805E/H: A variant of the TRICONEX 3805/E9853-610 with enhanced diagnostics for hazardous environments.
- TRICONEX 2870H: A HART-compatible analog output interface module for smart field device integration.
- TRICONEX 3706A: A thermocouple input module for temperature monitoring in parallel with analog output control.
- TRICONEX 4351B: A communication module enabling data transfer between Tricon systems and SCADA platforms.
- TRICONEX 8310: A power supply module designed to provide stable 24VDC power to Tricon I/O modules.
- TRICONEX 3721/N/C: A digital input module for sensor monitoring in hybrid analog-digital control systems.
- TRICONEX 3625: A digital output module for discrete actuator control in safety interlock applications.
Main Features and Advantages
The TRICONEX 3805/E9853-610 is defined by its TMR architecture, which duplicates critical components across three independent channels. This redundancy ensures that any single-channel fault is automatically detected and compensated for, eliminating single points of failure and maintaining system availability. Its SIL 3 certification validates its ability to reduce risk in high-hazard processes, providing compliance with global safety regulations.
A key advantage of the TRICONEX 3805/E9853-610 is its advanced diagnostic suite, which continuously monitors output integrity, channel health, and backplane communication. This allows operators to identify issues such as signal drift, open circuits, or power supply anomalies before they impact process stability. The module’s self-calibration feature maintains accuracy over time, reducing the need for manual adjustments. Its hot-swap capability further enhances operational flexibility, enabling replacement without powering down the Tricon rack—a critical feature for continuous-process industries where unplanned downtime is costly.
Environmental resilience is another standout feature. The TRICONEX 3805/E9853-610 operates reliably in extreme temperatures, high humidity (up to 95% non-condensing), and high-vibration environments, making it suitable for offshore platforms, refineries, and chemical plants. Its rugged design and long-term stability reduce maintenance requirements, lowering lifecycle costs for end-users.
Installation and Maintenance
Pre-installation Preparations:
Before installing the TRICONEX 3805/E9853-610, verify that the Tricon rack is powered off and properly grounded to prevent electrical damage. Inspect the module for physical defects, such as bent pins or damaged connectors. Confirm compatibility with the Tricon system’s firmware version and ensure the backplane connectors are clean and free of corrosion. Use the module’s guide rails to align it with the rack slots, applying gentle pressure to seat the connectors fully—avoid excessive force to prevent backplane damage. Connect redundant 24VDC power supplies to the module’s dedicated terminals and wire the analog outputs to field devices using shielded cables to minimize electromagnetic interference.
Before installing the TRICONEX 3805/E9853-610, verify that the Tricon rack is powered off and properly grounded to prevent electrical damage. Inspect the module for physical defects, such as bent pins or damaged connectors. Confirm compatibility with the Tricon system’s firmware version and ensure the backplane connectors are clean and free of corrosion. Use the module’s guide rails to align it with the rack slots, applying gentle pressure to seat the connectors fully—avoid excessive force to prevent backplane damage. Connect redundant 24VDC power supplies to the module’s dedicated terminals and wire the analog outputs to field devices using shielded cables to minimize electromagnetic interference.
3805/E9853-610
Maintenance Suggestions:
Regularly review system diagnostics via the Tricon configuration software to monitor TRICONEX 3805/E9853-610 channel status and detect anomalies early. Perform firmware updates as released by TRICONEX to address security enhancements and performance improvements. Clean the module’s exterior quarterly with a dry, lint-free cloth to remove dust, which can impede heat dissipation. For long-term storage, keep the module in an anti-static bag in a dry environment with temperatures between 0°C and 50°C. If a fault is detected, replace the module with a certified spare to maintain TMR integrity.
Regularly review system diagnostics via the Tricon configuration software to monitor TRICONEX 3805/E9853-610 channel status and detect anomalies early. Perform firmware updates as released by TRICONEX to address security enhancements and performance improvements. Clean the module’s exterior quarterly with a dry, lint-free cloth to remove dust, which can impede heat dissipation. For long-term storage, keep the module in an anti-static bag in a dry environment with temperatures between 0°C and 50°C. If a fault is detected, replace the module with a certified spare to maintain TMR integrity.
Application Fields
The TRICONEX 3805/E9853-610 is widely deployed in safety instrumented systems (SIS) and process control systems across high-risk industries. In oil and gas refineries, it regulates pressure control valves, compressor inlet guide vanes, and flare gas systems, ensuring precise adjustment of process parameters to prevent overpressure or equipment failure. In chemical plants, it drives reactor feed pumps, pH control valves, and distillation column actuators, enabling tight control of reaction rates and product quality.
Power generation facilities rely on the TRICONEX 3805/E9853-610 to manage turbine governor systems, boiler drum level control, and generator excitation systems, supporting stable power output and safe load shedding during grid disturbances. It also finds use in pharmaceutical manufacturing, where it adjusts sterilization chamber pressure and temperature via proportional valves, maintaining compliance with cGMP standards. By providing accurate, redundant analog control, the TRICONEX 3805/E9853-610 ensures industrial systems operate efficiently while adhering to the highest safety and regulatory benchmarks.
3805/E9853-610
Product Guarantee
Our company offers a one-year quality warranty for the TRICONEX 3805/E9853-610, covering hardware malfunctions not caused by improper installation, misuse, or environmental damage. During the warranty period, any malfunctioning module will be replaced promptly to minimize operational disruption. As a 17-year-old industrial control distribution leader, we maintain extensive stock of TRICONEX 3805/E9853-610 units and related spares, ensuring rapid fulfillment of urgent orders. Our global supply chain network enables us to source even discontinued or hard-to-find models, supporting the longevity of legacy systems. We also offer technical support to assist with installation, configuration, and troubleshooting, ensuring customers maximize the module’s performance. For inquiries or quotations, contact us via WhatsApp: +86 18859254943 or email: sales@ygplc.com.
