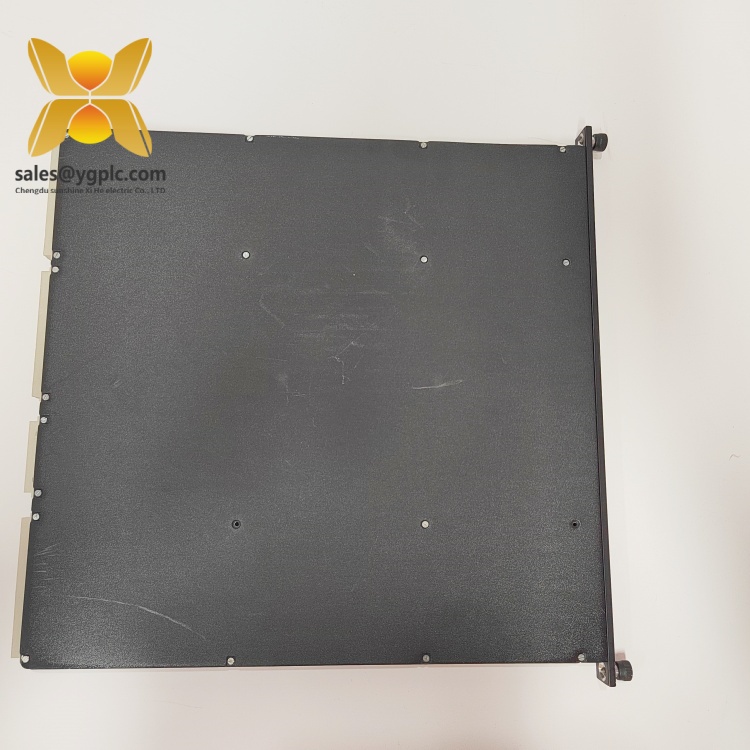

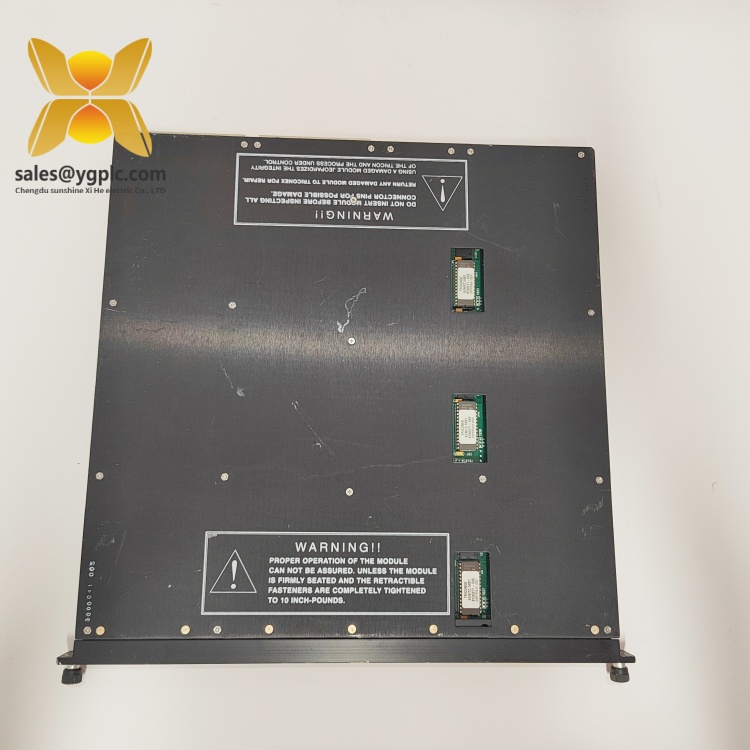

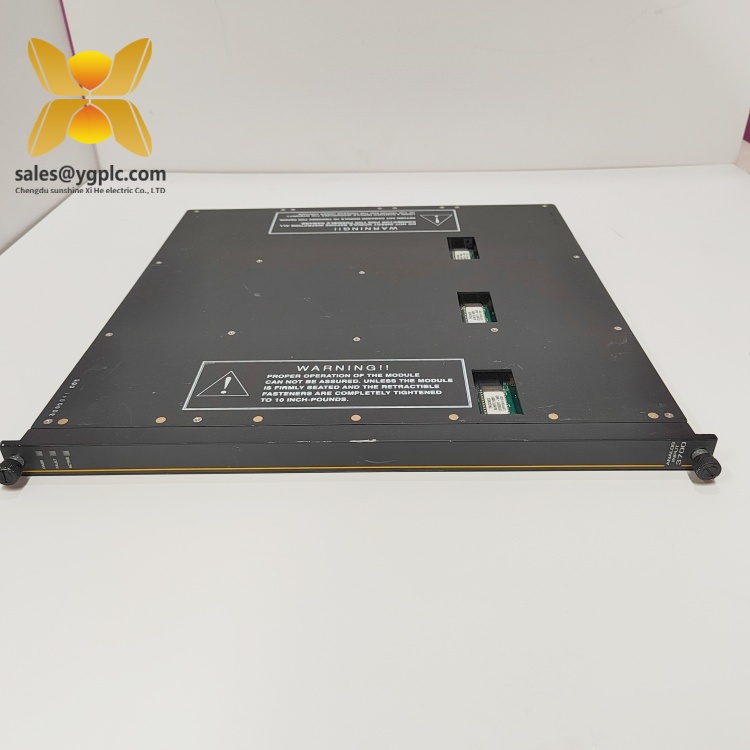

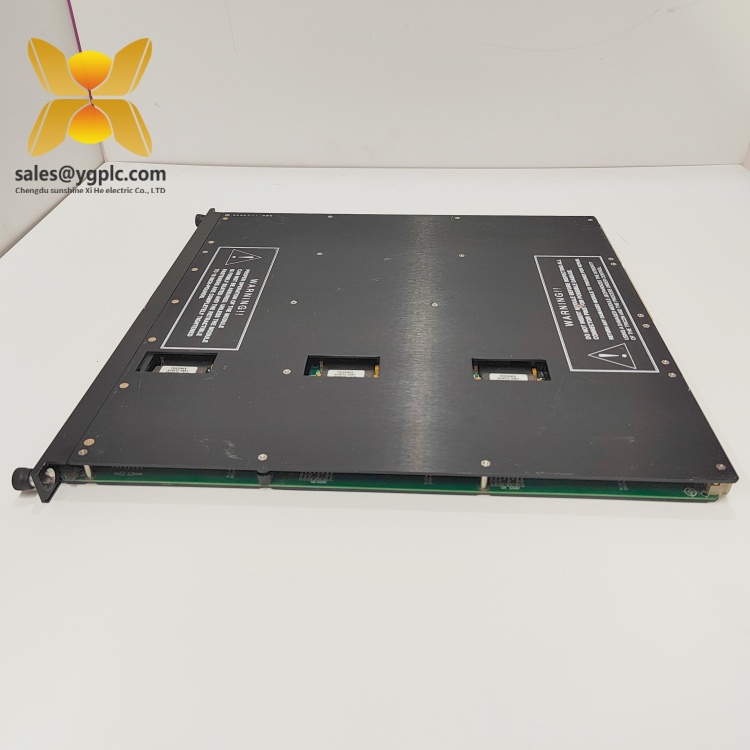

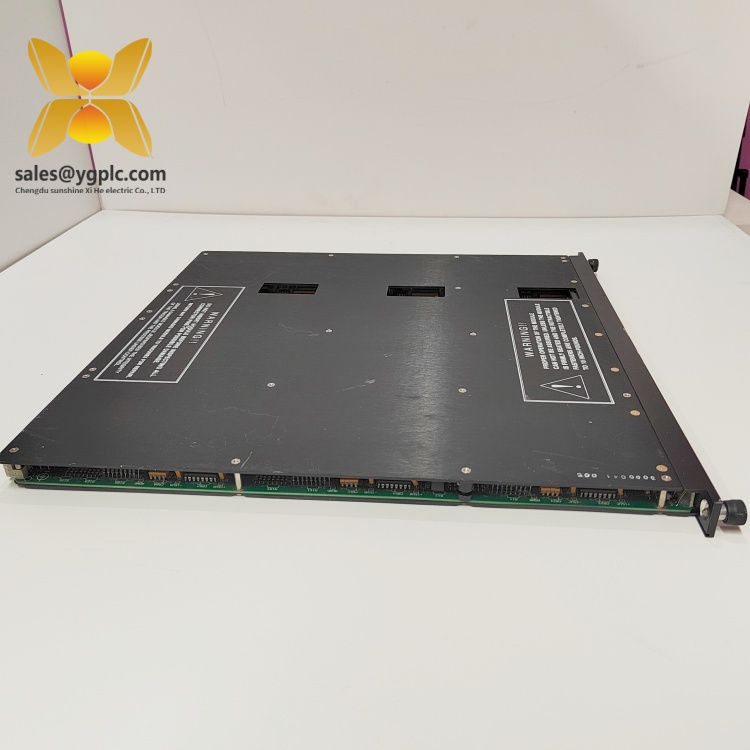

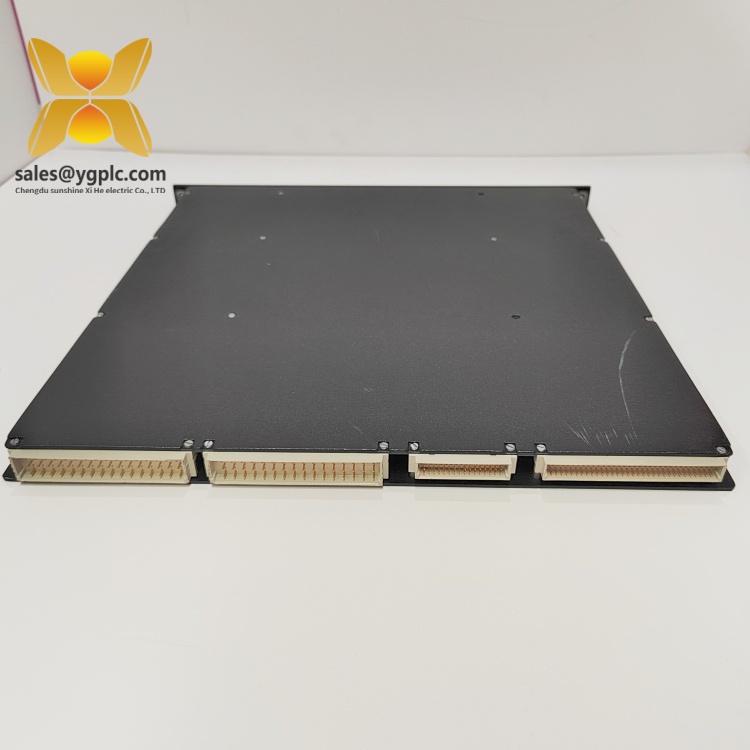

TRICONEX 3700 | Digital input module | 3700A

Description

Product Overview

Technical Specifications

Parameter Name	Parameter Value
Product Model	TRICONEX 3700
Manufacturer	TRICONEX
Product Type	Digital Input Module
Input Channels	16 channels
Input Type	Dry contact, TTL (Transistor-Transistor Logic)
Operating Voltage	24 VDC ±10%
Input Signal Range	Dry contact: 0–30 VDC; TTL: 0–5 VDC
Response Time	<10 ms
Communication Interface	Proprietary Tricon backplane bus
Physical Dimensions	178 mm (W) × 127 mm (H) × 63 mm (D)
Weight	0.8 kg
Enclosure Protection	IP65
Operating Temperature	-40°C to +85°C
Certifications	CE, UL, FM, ATEX, IECEx
Country of Origin	United States

3700

Main Features and Advantages

High Diagnostic Coverage: Built-in self-diagnostics monitor input integrity, power supply status, and internal component health, providing real-time alerts for potential issues. This proactive monitoring enables predictive maintenance and reduces unplanned outages.

Application Areas

1. Oil and Gas:
   • Monitors pressure switches and level sensors in offshore platforms to trigger emergency shutdowns (ESD) in the event of leaks or equipment malfunctions.
   • Supports wellhead control systems by providing real-time status updates for blowout preventers (BOPs) and choke valves.
2. Chemical Processing:
   • Interfaces with temperature and flow sensors in reactor systems to ensure safe operating conditions and prevent runaway reactions.
   • Integrates with burner management systems (BMS) to monitor flame detectors and fuel valves, ensuring compliance with safety standards.
3. Power Generation:
   • Monitors turbine overspeed switches and generator protection relays, providing critical inputs for emergency trip systems.
   • Supports boiler control systems by managing feedwater pump status and steam pressure sensors.
4. Pharmaceuticals and Food Processing:
   • Ensures safe operation of sterilization equipment by monitoring pressure and temperature thresholds.
   • Controls conveyor belt systems in packaging lines, detecting jams or misalignments to prevent product contamination.

Related Products

• TRICONEX 3721: An analog input module that complements the TRICONEX 3700 by converting 4–20 mA signals from transmitters into digital data for the Tricon controller.
• TRICONEX 3722: A 16-channel analog output module used to send control signals to actuators, often paired with the TRICONEX 3700 in closed-loop control systems.
• TRICONEX 3805E: A TMR controller module that processes inputs from the TRICONEX 3700 and executes safety logic for critical processes.
• TRICONEX 3783: A communication gateway module that enables the TRICONEX 3700 to interface with higher-level systems via protocols like PROFIBUS or HART.
• TRICONEX 3700E: An enhanced version of the TRICONEX 3700 with extended diagnostic capabilities and support for additional input types.

Installation and Maintenance

• Verify the input voltage matches the module’s requirements (24 VDC ±10%) and that the Tricon rack is properly grounded to prevent electrostatic discharge (ESD) damage.
• Use TRICONEX’s configuration software to assign channel parameters (e.g., input type, debounce time) and ensure compatibility with the connected field devices.
• Secure the module in a Tricon rack using the provided mounting brackets, ensuring adequate airflow for heat dissipation.

• Routine Inspections: Check front-panel LEDs monthly to confirm normal operation (e.g., green “Power” and “Health” indicators). Clean dust from vents quarterly to maintain optimal cooling.
• Signal Calibration: Perform annual calibration of input channels using certified test equipment to ensure accurate signal detection.
• Firmware Updates: Periodically update the module’s firmware via TRICONEX’s dedicated software to access new features and security patches.
• Redundancy Testing: Test TMR redundancy mechanisms biannually by simulating single-channel failures to verify seamless switchover and system integrity.
