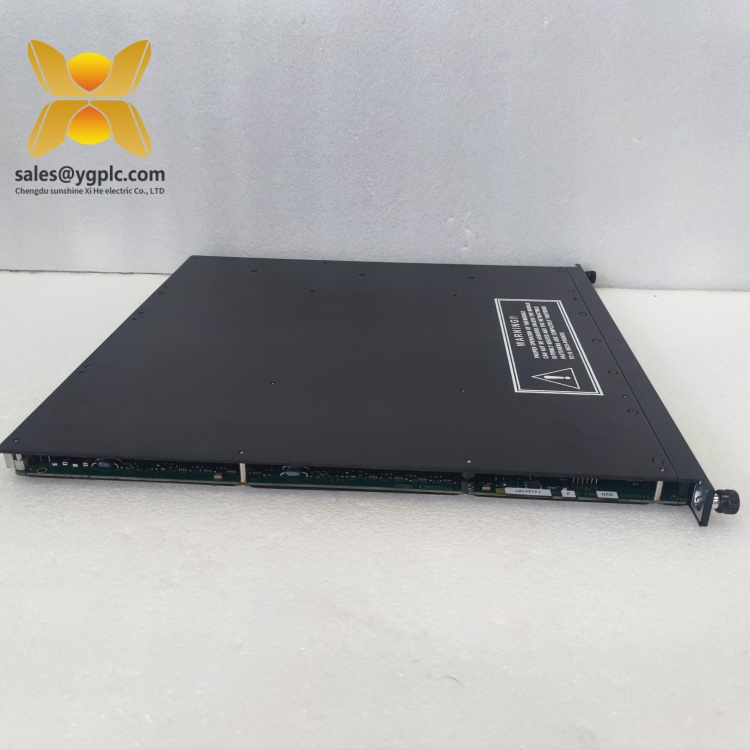

TRICONEX 3625: High-Reliability Safety Digital Input Module for Tricon Systems
Product Overview
The TRICONEX 3625 is a safety-certified digital input module designed for TRICONEX’s Tricon safety instrumented systems (SIS), a platform renowned for its triple modular redundancy (TMR) architecture. As a core component of industrial safety-critical applications, the TRICONEX 3625 processes digital signals from field devices such as sensors, switches, and actuators, ensuring accurate data transmission to the system’s central processing unit (CPU) for real-time decision-making. This module is engineered to maintain system integrity even in harsh industrial environments, where reliability is non-negotiable.
Within the Tricon ecosystem, the TRICONEX 3625 serves as a vital link between field-level equipment and higher-level control systems. Its 16 isolated digital input channels provide electrical isolation to prevent cross-talk and voltage spikes, enhancing signal purity. The module’s compliance with global safety standards like IEC 61508 SIL 3 and ISA 84.00.01 makes it a trusted choice for industries such as oil and gas, chemical processing, and power generation, where operational failures could lead to catastrophic consequences. By integrating the TRICONEX 3625, industrial facilities can achieve seamless safety loop management, reducing downtime and improving overall operational resilience.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | TRICONEX 3625 |
| Manufacturer | TRICONEX |
| Product Type | Safety digital input module |
| Number of Channels | 16 isolated digital inputs |
| Input Voltage Range | 24 VDC (nominal) |
| Input Current | 5 mA per channel (maximum) |
| Physical Dimensions | 160 mm × 100 mm × 30 mm (length × width × height) |
| Weight | 250 grams |
| Origin | United States |
| Interface Type | Backplane connector (compatible with Tricon 3-slot/10-slot chassis) |
| Communication Protocol | Proprietary Tricon backplane communication |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Mounting Requirement | Installed in Tricon system chassis with proper grounding and alignment |
3625
Related Products
- TRICONEX 3604: A 32-channel digital input module offering higher channel density for applications requiring extensive data acquisition. It shares the same TMR compatibility as the TRICONEX 3625 but prioritizes scalability.
- TRICONEX 3626: A digital output module designed to complement the TRICONEX 3625, enabling closed-loop control by sending actuation signals to field devices.
- TRICONEX 3503: A power supply module that ensures stable voltage delivery to the Tricon system, including the TRICONEX 3625, preventing operational disruptions due to power fluctuations.
- TRICONEX 4351B: The central processing unit (CPU) of the Tricon system, which processes data from the TRICONEX 3625 to execute safety logic and trigger protective actions.
- TRICONEX 3805E: An analog input module that handles continuous variable signals (e.g., pressure, temperature), expanding the system’s monitoring capabilities beyond digital inputs.
- TRICONEX 3700A: A communication module facilitating data exchange between the Tricon system and external platforms like SCADA or DCS, enhancing integration flexibility.
- TRICONEX 9753-810: A termination panel that simplifies wiring connections for the TRICONEX 3625, reducing installation complexity and improving maintenance accessibility.
Main Features and Advantages
Triple Modular Redundancy (TMR) Architecture
The TRICONEX 3625 operates within Tricon’s TMR framework, where three identical processing channels run in parallel. This design ensures that a single fault in one channel does not compromise system functionality, as the remaining two channels provide redundant data. By eliminating single points of failure, the module achieves a mean time between failures (MTBF) far exceeding industry averages, making it suitable for SIL 3-rated applications.
Hot-Swappable Design
Maintenance efficiency is a key strength of the TRICONEX 3625. The module can be replaced without powering down the entire Tricon system, minimizing downtime in continuous-process industries. This feature, combined with LED status indicators for real-time channel monitoring, streamlines troubleshooting and reduces maintenance costs.
Isolated Channels and Robust Protection
Each of the 16 input channels is electrically isolated from the backplane and adjacent channels, protecting against ground loops and voltage surges. The module’s IP20-rated enclosure and wide temperature tolerance (0°C to 60°C) ensure reliable performance in dusty, humid, or temperature-variable environments.
Compliance with Global Safety Standards
Certified to IEC 61508 SIL 3 and ISA 84.00.01, the TRICONEX 3625 meets the most rigorous safety requirements. Its fail-safe design ensures that in the event of a fault, the module defaults to a safe state, preventing unintended equipment activation.
3625
Ease of Integration
Supported by TRICONEX’s TriStation 1131 software, the TRICONEX 3625 offers intuitive configuration and diagnostics. Engineers can customize input parameters, monitor channel health, and perform firmware updates through a user-friendly interface, accelerating system commissioning.
Installation and Maintenance
Pre-Installation Preparations
Before installing the TRICONEX 3625, verify that the Tricon chassis is powered off and properly grounded. Inspect the module for physical damage, particularly to the backplane connector pins. Ensure the chassis supports the module’s form factor (3-slot or 10-slot) and that the backplane revision is compatible. Field wiring should comply with 24 VDC specifications and use shielded cables to mitigate electromagnetic interference.
Maintenance Suggestions
Regular maintenance involves using TriStation 1131 to monitor channel status and perform self-diagnostic tests. Clean the module and chassis slots annually to remove dust, which can degrade electrical connections. When replacing the TRICONEX 3625, use only genuine TRICONEX parts to maintain safety certifications. Document all maintenance activities to ensure regulatory compliance and traceability.
3625
Application Fields
The TRICONEX 3625 excels in industries where safety and precision are paramount:
- Oil and Gas: Deployed in upstream production facilities to monitor pressure sensors and emergency shutdown (ESD) signals, the module ensures rapid response to leaks or overpressure events. In downstream refineries, it manages safety interlocks for critical equipment like pumps and valves.
- Chemical Processing: Used to monitor temperature limits, valve positions, and reactor status, the TRICONEX 3625 prevents hazardous chemical releases and ensures compliance with environmental regulations.
- Power Generation: In fossil fuel and nuclear plants, the module tracks turbine and boiler safety interlocks, safeguarding against equipment failure and power outages.
- Pharmaceuticals: Critical for monitoring cleanroom conditions and sterile equipment in pharmaceutical manufacturing, the TRICONEX 3625 helps maintain compliance with FDA and EU GMP standards.
Product Guarantee
Our company provides a 1-year quality warranty for the TRICONEX 3625, covering hardware defects unrelated to misuse or improper installation. During the warranty period, defective modules will be replaced promptly to minimize operational disruptions. As a leading industrial control parts distributor with 17 years of experience, we maintain a large inventory of the TRICONEX 3625 and other hard-to-find models, ensuring fast delivery for urgent requirements. Leveraging our global supply chain network, we can source discontinued or scarce components within days, supporting continuous industrial operations. For technical support or inquiries, contact us via WhatsApp (+86 18859254943) or email (sales@ygplc.com).
This product description is based on comprehensive research and technical documentation. For specific use cases, consult TRICONEX’s official guidelines or our technical team.
