Product Overview
The TRICONEX 3481 is a high-precision analog output module engineered by TRICONEX, a global leader in safety-critical industrial automation solutions. Designed for integration into safety instrumented systems (SIS) and process control architectures, the TRICONEX 3481 converts digital control signals from central processors into continuous analog outputs (4–20 mA), enabling precise regulation of field devices such as valves, actuators, and variable-speed drives. This conversion is critical for maintaining process stability in industries where even minor deviations can lead to safety risks or operational inefficiencies.
As part of TRICONEX’s Tricon family of modules, the TRICONEX 3481 leverages triple modular redundancy (TMR) technology to ensure fault tolerance and eliminate single points of failure. This architecture allows the module to operate reliably in SIL 3-certified applications under IEC 61508, making it suitable for high-hazard environments like offshore platforms, chemical reactors, and nuclear power plants. Its compatibility with TRICONEX’s Tricon and Tricon CX platforms ensures seamless integration into existing systems, reducing downtime during upgrades or expansions. With a robust design that withstands extreme temperatures (-40°C to 70°C) and high humidity (5–95% RH), the TRICONEX 3481 delivers consistent performance in harsh industrial settings, reinforcing its role as a trusted component for mission-critical operations.
Technical Specifications
| Product models | Analog Output Module |
|---|---|
| Manufacturer | TRICONEX |
| Product type | Analog Output Module |
| Number of channels | 4 channels (commoned-return, DC-coupled) |
| Output signal range | 4–20 mA (controlled), 0–22 mA (over-range) |
| Accuracy | ±0.25% of full scale (4–20 mA range) |
| Resolution | 12 bits |
| Response time | <1 ms (typical) |
| Isolation | Galvanic isolation (channel-to-channel and channel-to-backplane) |
| Power supply | 24 VDC (nominal), 32 VDC (maximum) |
| Physical dimensions | 18.8 cm (length) x 21.8 cm (width) x 4.3 cm (height) |
| Weight | 1.46 kg (approximate) |
| Operating temperature range | -40°C to 70°C |
| Storage temperature range | -55°C to 85°C |
| Humidity tolerance | 5% to 95% RH, non-condensing |
| Origin | United States |
| Maximum loop load | 300 Ω @ >16 VDC (1 A minimum) |

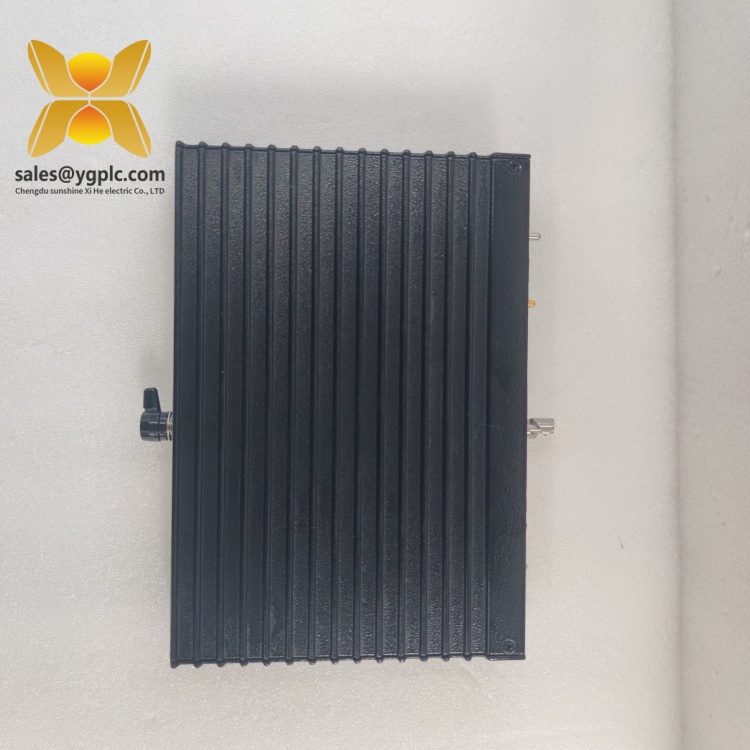

3481
Related products
- TRICONEX AO3481S2: An upgraded version of the TRICONEX 3481 with enhanced diagnostic capabilities and faster response times, ideal for applications requiring advanced fault detection.
- TRICONEX AI3351: An analog input module that pairs with the TRICONEX 3481 to create a complete monitoring and control loop, processing signals from sensors to adjust outputs in real time.
- TRICONEX DO3401: A digital output module used alongside the TRICONEX 3481 to trigger discrete actions (e.g., alarms, shutdowns) based on analog input thresholds.
- TRICONEX T8401: The central processor module of TRICONEX systems, which sends control commands to the TRICONEX 3481 after processing input data from multiple sources.
- TRICONEX PS3301: A redundant power supply module that ensures stable voltage delivery to the TRICONEX 3481, preventing output failures due to power fluctuations.
- TRICONEX IC3600SOSH: A surge protection module that can be integrated with the TRICONEX 3481 to shield it from voltage spikes in electrically noisy environments.
- TRICONEX 3805E: A high-density analog output module with 8 channels, offering double the capacity of the TRICONEX 3481 for large-scale process control systems.
Main features and advantages
The TRICONEX 3481 distinguishes itself through its combination of safety-certified performance and technical precision. Its SIL 3 certification under IEC 61508 validates its ability to maintain functionality in the presence of faults, making it indispensable in industries where safety is non-negotiable. This certification ensures the module meets rigorous standards for fault tolerance and diagnostic coverage, minimizing the risk of catastrophic failures in applications like emergency shutdown systems (ESDS) or high-integrity pressure protection systems (HIPPS).
With a measurement accuracy of ±0.25% of full scale and 12-bit resolution, the TRICONEX 3481 delivers highly precise analog outputs, enabling fine-tuned control of critical processes such as chemical reaction rates or turbine speed regulation. Each channel features galvanic isolation, which prevents electrical interference and protects against ground loops—a common issue in industrial wiring that can corrupt signals or damage components. This isolation also enhances the module’s durability by reducing stress from voltage surges, extending its operational lifespan in harsh environments.
Advanced diagnostic capabilities further enhance the TRICONEX 3481’s reliability. The module continuously monitors its own health and reports faults (e.g., open circuits, relay failures) in real time, allowing operators to address issues proactively. For example, forced-switch diagnostics (FSD) verify the integrity of output channels by simulating signal transitions, ensuring compliance with regulatory requirements for periodic testing. These diagnostics not only improve system availability but also simplify maintenance by pinpointing the exact location of failures.
The TRICONEX 3481’s rugged design ensures performance across a wide temperature range (-40°C to 70°C) and high humidity levels, making it suitable for deployment in extreme conditions such as offshore rigs or desert refineries. Its compatibility with TRICONEX’s Tricon platforms streamlines integration into existing systems, reducing installation complexity and costs. This adaptability, combined with its TMR architecture, makes the TRICONEX 3481 a cost-effective solution for both new projects and legacy system upgrades.

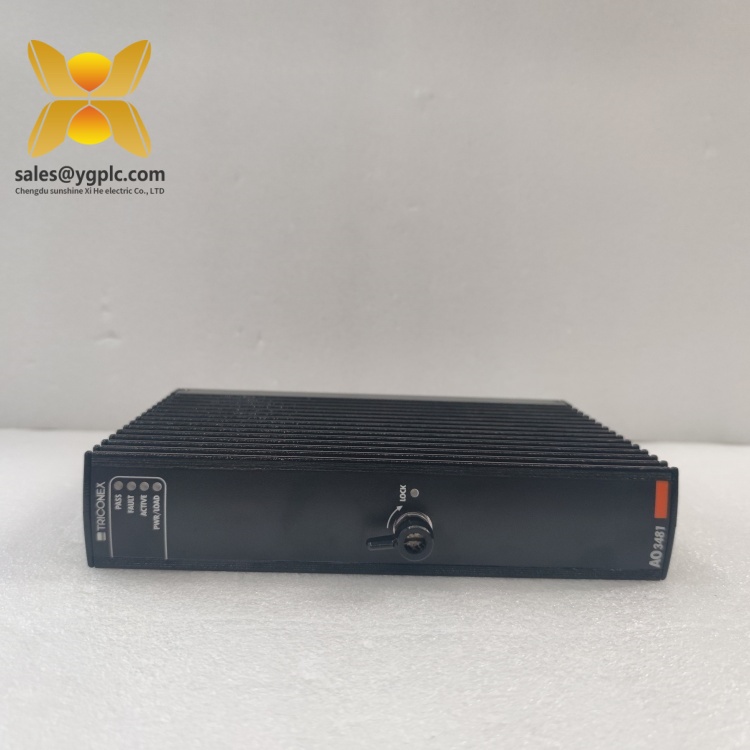

3481
Installation and maintenance
Pre-installation preparations: Before installing the TRICONEX 3481, ensure the target Tricon chassis is powered off and compatible with the module’s form factor. Inspect the module for physical damage (e.g., bent pins, cracked casing) and verify that field wiring matches the module’s 4–20 mA or 0–22 mA requirements. Clean the chassis slots to remove debris and ensure proper grounding to prevent electrostatic discharge. Confirm that the power supply meets the module’s 24 VDC specifications and that all connections are securely insulated to avoid short circuits.
Maintenance suggestions: Regular maintenance of the TRICONEX 3481 should include visual inspections of wiring for corrosion or loose connections, particularly in humid or corrosive environments. Use TRICONEX’s diagnostic software to perform periodic channel tests, verifying that each output responds accurately to control signals. Avoid exposing the module to mechanical shocks or vibrations, which can damage internal components. If a fault is detected, reference the system’s error codes to identify the root cause; replace the module if necessary, following shutdown procedures to protect other system components from electrical surges.
Application fields
The TRICONEX 3481 plays a pivotal role in industries where precise analog control is essential for safety and efficiency. In oil and gas production, it regulates the position of control valves in pipelines to maintain optimal flow rates and prevent overpressure events. For example, in offshore platforms, the TRICONEX 3481 adjusts choke valves based on pressure readings from downhole sensors, ensuring safe and efficient extraction of hydrocarbons.
In chemical processing plants, the module controls variables like reactor temperature and agitator speed by adjusting analog signals to proportional-integral-derivative (PID) controllers. This precision is critical for maintaining reaction stability and preventing hazardous runaway reactions. The TRICONEX 3481 also monitors and adjusts pH levels in wastewater treatment systems, ensuring compliance with environmental regulations.
Power generation facilities rely on the TRICONEX 3481 to control steam turbine governors and boiler feedwater valves, ensuring stable electricity production. In nuclear plants, it manages coolant flow rates to prevent overheating, while in renewable energy systems, it optimizes the output of wind turbines by adjusting pitch angles based on wind speed data.
Pharmaceutical manufacturing processes, which require strict adherence to regulatory standards, utilize the TRICONEX 3481 to control sterilization cycles and batch mixing parameters. Its high accuracy ensures product consistency, while diagnostic features provide traceability for audits. Across these industries, the TRICONEX 3481 serves as a vital link between digital control systems and physical processes, enabling data-driven decisions that enhance safety and operational excellence.

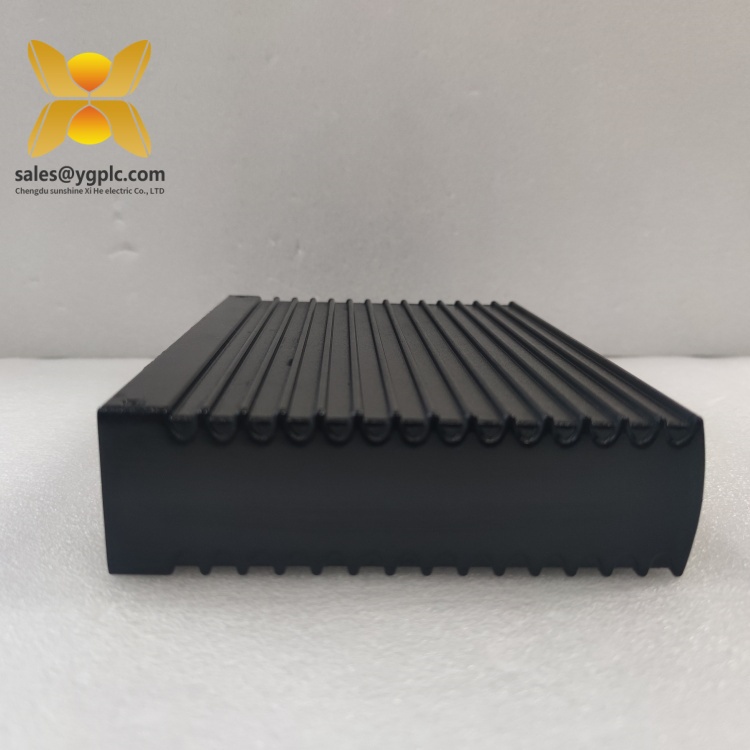

3481
Product guarantee
Our company offers a one-year quality warranty service for the TRICONEX 3481, covering hardware malfunctions unrelated to human error. During the warranty period, we provide prompt replacement services for modules exhibiting abnormal performance or functional failures. For discontinued models or urgent requirements, our global supply chain network ensures rapid procurement of scarce spare parts, minimizing downtime and supporting continuous system operation. Our technical team offers comprehensive support, including installation guidance and troubleshooting, to help customers optimize the TRICONEX 3481’s performance throughout its lifecycle. Whether for new system integrations or legacy upgrades, we are committed to delivering reliable solutions that meet the diverse needs of industrial automation users.
