TRICONEX 2401: High-Reliability Digital Output Module for Safety-Critical Industrial Systems
Product Overview
The TRICONEX 2401 is a digital output module engineered for mission-critical industrial automation and safety instrumented systems (SIS). Designed as part of TRICONEX’s Trident series, this module serves as a foundational component for translating control signals from safety controllers into actionable commands for field devices such as valves, actuators, and relays. Its architecture prioritizes electrical isolation, diagnostic robustness, and seamless integration with TRICONEX’s triple modular redundancy (TMR) systems, ensuring compliance with the most stringent safety standards.
The TRICONEX 2401 excels in hazardous environments where system downtime could lead to catastrophic consequences. With 16 isolated digital output channels, it enables precise control of process variables while protecting the control system from electromagnetic interference (EMI) and voltage spikes. Its programmable logic capabilities allow users to configure output thresholds, response logic, and fail-safe states, tailoring the module to specific application requirements. Whether used in emergency shutdown systems (ESD), fire and gas detection networks, or turbomachinery control, the TRICONEX 2401 delivers unmatched reliability and precision, aligning with TRICONEX’s legacy of over 40 years in safety-critical automation.
Technical Specifications
| Parameter | Value |
|---|---|
| Product model | TRICONEX 2401 |
| Manufacturer | TRICONEX |
| Product type | Digital output module |
| Physical dimensions | 10.2″ (259.08 mm) × 6.3″ (160.02 mm) × 3.1″ (78.74 mm) |
| Weight | 2.2 lbs (0.997 kg) |
| Electrical specifications | 24 V DC operating voltage; 0.3 A maximum current consumption |
| Output channels | 16 isolated digital outputs |
| Output current rating | 2 A per channel |
| Communication protocol | Supports TRICONEX proprietary protocol, Modbus RTU |
| Working environment | Operating temperature: -40°C to 70°C; Relative humidity: 5%–95% (non-condensing) |
| Installation requirements | DIN rail or rack mounting, compatible with Trident system enclosures |
| Certifications | SIL 3 compliant (IEC 61508); ATEX/IECEx for hazardous areas (Zone 1/2) |
2401
Related Products
- TRICONEX DO 3401: A high-current digital output module with 8 channels, ideal for applications requiring higher power delivery. While the TRICONEX 2401 focuses on standard industrial outputs, the DO 3401 is suited for heavy-duty actuators and valves .
- TRICONEX AO 3481: An analog output module that complements the TRICONEX 2401 in hybrid control systems, providing continuous voltage or current signals for proportional control .
- TRICONEX 2401L: A low-current variant of the TRICONEX 2401 with integral current limiting (180 Ω series resistors), designed for applications where precise current regulation is critical .

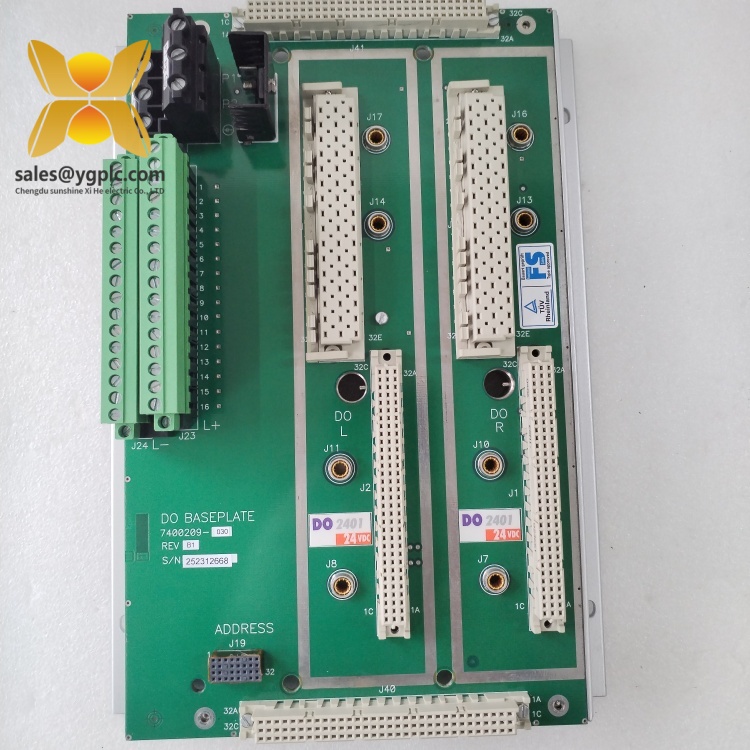

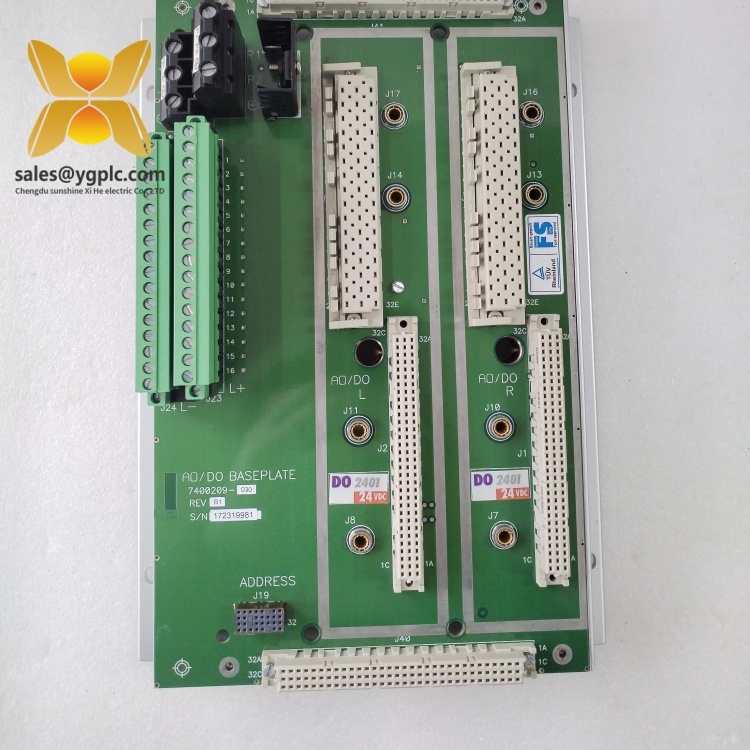

- TRICONEX 7400209-030 DO2401: A digital output baseplate that houses the TRICONEX 2401, providing power distribution and signal conditioning for the module .
- TRICONEX 4210: The central processor module of TRICONEX SIS, which executes safety logic based on data processed by the TRICONEX 2401 .
Main Features and Advantages
Robust Electrical Isolation and Noise Immunity
The TRICONEX 2401 incorporates advanced galvanic isolation technology, separating field-side outputs from the control system to eliminate ground loops and EMI. This design ensures signal integrity even in electrically noisy environments, such as chemical plants or offshore platforms, where interference could otherwise compromise safety logic .
SIL 3 Compliance and Fault Detection
Certified to SIL 3 under IEC 61508, the module meets the highest safety requirements for applications with severe risk of failure. Built-in self-diagnostics continuously monitor for faults like open circuits, short circuits, or overvoltage, triggering alarms and isolating affected channels to prevent cascading failures .
Flexible Configuration and Programming
Users can configure output parameters (e.g., fail-safe states, response time) via TRICONEX’s TriStation software, tailoring the TRICONEX 2401 to specific process needs. This flexibility reduces reliance on custom hardware solutions, streamlining system design and maintenance .
Hot-Swap Capability and Easy Maintenance
The module supports online replacement without powering down the system, minimizing downtime during repairs. Its modular design and intuitive diagnostic indicators simplify troubleshooting, while firmware updates can be applied remotely to ensure compatibility with evolving process requirements .
Rugged Construction for Harsh Environments

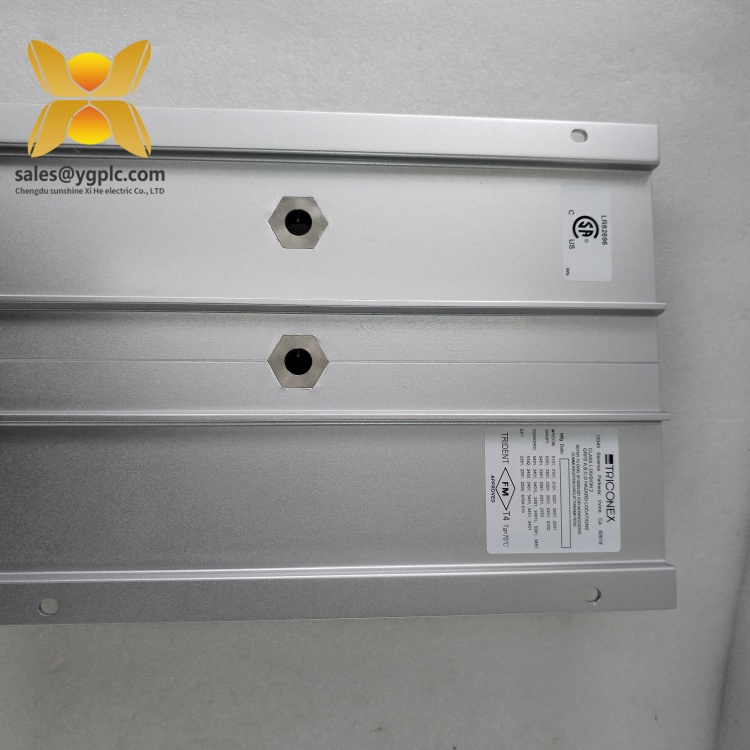

Housed in a durable enclosure, the TRICONEX 2401 withstands extreme temperatures (-40°C to 70°C), vibrations, and humidity. Its ATEX/IECEx certification allows deployment in explosive atmospheres, making it ideal for oil refineries, gas processing plants, and other hazardous locations .
2401
Installation and Maintenance
Pre-installation Preparations
Before installing the TRICONEX 2401, verify that the target Trident system is powered off and that the firmware version supports the module’s communication protocols. Inspect the module for physical damage, such as bent pins or cracked casings, and ensure the DIN rail or rack is properly grounded. Confirm the 24 V DC power supply meets the module’s electrical specifications and that wiring connections comply with ATEX/IECEx standards for hazardous environments .
Maintenance Suggestions
Regular maintenance is critical to sustaining the TRICONEX 2401’s performance. Conduct quarterly visual inspections to check for loose terminals, dust accumulation, or corrosion. Clean the module with compressed air and use insulation testers to verify wiring integrity. Update firmware annually to address security patches and performance optimizations, using TRICONEX’s TriStation software for seamless integration. In case of communication failures, check cable connections and power supply stability first; if issues persist, consult TRICONEX’s diagnostic guides or contact technical support .
Application Fields
The TRICONEX 2401 is widely deployed in industries where safety and reliability are non-negotiable:
- Oil and Gas: Controls emergency shutdown valves in upstream drilling rigs and midstream pipelines, ensuring rapid isolation of leaks or equipment failures. Its SIL 3 certification ensures compliance with API RP 14C and other industry standards for blowout preventer (BOP) control systems .
- Chemical Processing: Triggers deluge systems, venting valves, and agitator controls in response to fire or gas detection, preventing hazardous material releases. It also manages batch reactor parameters to maintain process consistency .
- Power Generation: Supports turbine control systems by activating bypass valves and emergency trip systems during 异常 vibrations or temperature spikes, preventing catastrophic equipment failures. In nuclear plants, it ensures compliance with NRC regulations for safety-critical instrumentation .
- Pharmaceuticals: Maintains sterile environments in cleanrooms by controlling HVAC dampers and sterilization equipment, adhering to Good Manufacturing Practices (GMP) .
In each scenario, the TRICONEX 2401’s isolation features and diagnostic capabilities provide a fail-safe layer of protection, aligning with global safety standards and minimizing operational risks.
2401
Product Guarantee
Our company offers a one-year quality warranty for the TRICONEX 2401, covering hardware malfunctions unrelated to improper use. During the warranty period, defective modules will be replaced at no cost. For urgent or discontinued models, our global supply chain network ensures rapid procurement of scarce parts, minimizing downtime. Technical support is available 24/7 to assist with installation, troubleshooting, and firmware updates, ensuring seamless integration and long-term performance. We stand behind the TRICONEX 2401’s ability to maintain industrial system continuity, reflecting our 17-year commitment to delivering reliable automation solutions .
