GE IS200TSVCH1AED – Mark VI Servo Terminal Board
Product Overview
The GE IS200TSVCH1AED is a high-reliability servo terminal board designed for GE’s Mark VI/Mark VIe Speedtronic turbine control systems. It acts as a critical signal hub, facilitating seamless connection between control units and field devices like LVDT/RVDT sensors and hydraulic servo valves. This module solves the challenge of stable signal transmission in harsh industrial environments, ensuring precise turbine stop valve control and real-time feedback for steam and gas turbine operations. Its industrial-grade design with robust isolation and anti-interference capabilities guarantees consistent performance in power generation and heavy industrial settings.
Technical Specifications — IS200TSVCH1AED
| Parameter | Value |
|---|---|
| Product Model | IS200TSVCH1AED |
| Manufacturer | GE (General Electric) |
| Product Type | Servo Terminal Board |
| Power | 24V DC ±10% (regulated output), 28V DC input |
| Communication / Protocol | VME bus, PD bus, Modbus TCP/RTU, IEC 61850 |
| Operating Temperature | -20℃ ~ 60℃ |
| Mounting | DIN rail, 19-inch 1U rack |
| Dimensions (HxWxD) | 44.5mm × 440mm × 370mm |
| Weight | Approximately 1.2kg |
| Typical Interfaces | 6×LVDT inputs, 2×pulse rate inputs, hydraulic servo valve outputs, relay alarm outputs |
| Compliance | UL, CE, IEC 61131, IEC 61010-1 |

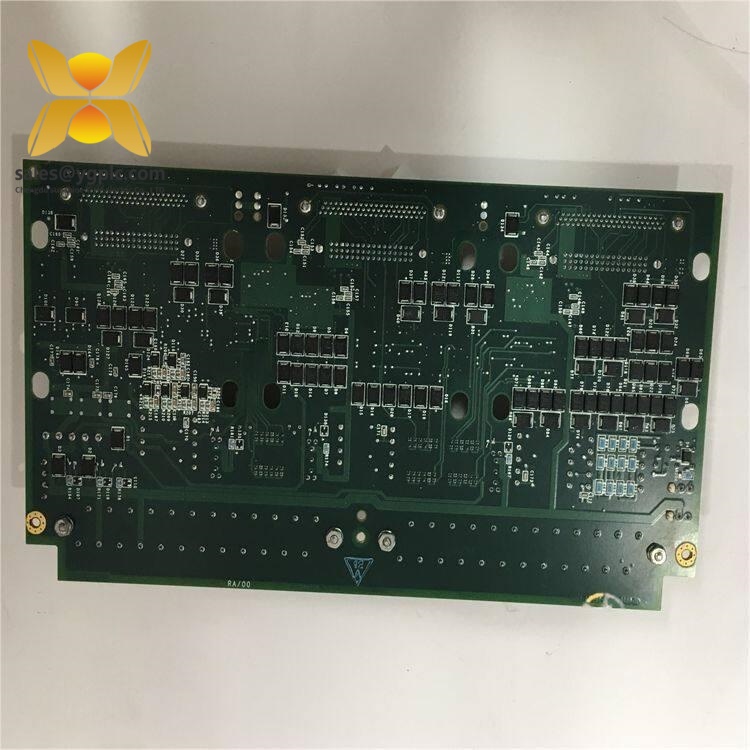

GE IS200TSVCH1AED
Key Features and Benefits — IS200TSVCH1AED
- Integrates 16-bit signal resolution for precise valve positioning, supporting smooth turbine operation and load balancing.
- Equipped with input-output-power isolation (2500Vrms) to mitigate electromagnetic interference from on-site equipment.
- Hot-swappable design allows replacement without full system shutdown, reducing operational downtime.
- Built-in LED status indicators for power, communication, and fault alerts, simplifying on-site diagnostics.
- Seamless compatibility with GE Mark VI/Mark VIe systems, requiring no additional protocol configuration for integration.
Related Models
- IS200TSVCH1ADC: Similar servo terminal board with enhanced input channels for complex turbine control setups.
- IS200TRPGH1BDD: Turbine control module with redundant power architecture for high-stress industrial applications.
- IS200TSVCH1A: Basic variant of the servo terminal board, ideal for standard turbine control scenarios.
- IS200DSPXH1DBC: Complementary signal processing module, enhancing data processing speed for the terminal board.
GE IS200TSVCH1AED
Installation and Maintenance — IS200TSVCH1AED
Mount the module on a standard DIN rail or 19-inch rack, ensuring secure connection to the system backplane. Verify power supply voltages before power-on to prevent component damage. Routine maintenance involves checking LED indicators and cleaning dust from terminals. Avoid hot-swapping unless the system supports it; use anti-static wristbands when handling the board. Troubleshoot via GE ToolboxST software to check alarm logs and signal integrity.
Product Warranty — IS200TSVCH1AED
The IS200TSVCH1AED comes with a 90-day manufacturer’s warranty, covering manufacturing defects and component failures. It does not apply to damage from improper installation, voltage fluctuations, or physical impact. Eligible units can be repaired or replaced with a 5-7 business day turnaround time.
Personally, I found that this terminal board excels in long-term reliability—many units I’ve maintained in power plants have run consistently for years without major faults. Its plug-and-play compatibility with Mark VI systems also makes it a time-saver during upgrades or replacements, cutting down on integration time significantly.
