Product Overview
The GE IS220UCSAH1A Mark VIe Embedded Controller is a high-performance industrial automation component designed for mission-critical turbine control applications. As part of GE’s Mark VIe series, this controller serves as the core processing unit for gas turbines, steam turbines, and wind turbines, providing real-time monitoring, diagnostics, and precise control of complex industrial systems.
Engineered for reliability, the IS220UCSAH1A features a Freescale PowerQUICC II Pro 667 MHz processor and 256 MB DDR SDRAM, enabling fast data processing and seamless integration with GE’s Speedtronic control platform. It operates on the QNX Neutrino real-time operating system, ensuring deterministic performance in high-stakes environments such as power plants and oil refineries. The controller supports multiple communication protocols, including Ethernet and USB, allowing connectivity with I/O modules, operator stations, and SCADA systems.
Within automation systems, the IS220UCSAH1A acts as the brain of turbine control, managing parameters like speed, load, and temperature to optimize energy efficiency and reduce downtime. Its 18–36 V DC power input and NFPA Class 1, Div. 2 certification make it suitable for hazardous areas, while the fanless design ensures reliable operation in temperatures ranging from 0°C to 65°C. This controller is widely used in power generation, oil & gas, and renewable energy sectors, where precision and durability are essential for continuous operation.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS220UCSAH1A |
| Manufacturer | GE |
| Product Type | Mark VIe Embedded Controller |
| Processor | Freescale PowerQUICC II Pro 667 MHz |
| Memory | 256 MB DDR SDRAM |
| Operating System | QNX Neutrino RTOS |
| Power Input | 18–36 V DC, 12 W |
| Communication Interfaces | Ethernet, USB |
| Physical Dimensions | 100mm x 150mm x 40mm (approx.) |
| Weight | 0.91 kg (2 lbs) |
| Operating Temperature | 0°C to +65°C |
| Humidity | 5–95% non-condensing |
| Hazardous Area Approval | NFPA Class 1, Div. 2 |
| Mounting Type | Panel-mounted with DIN rail compatibility |

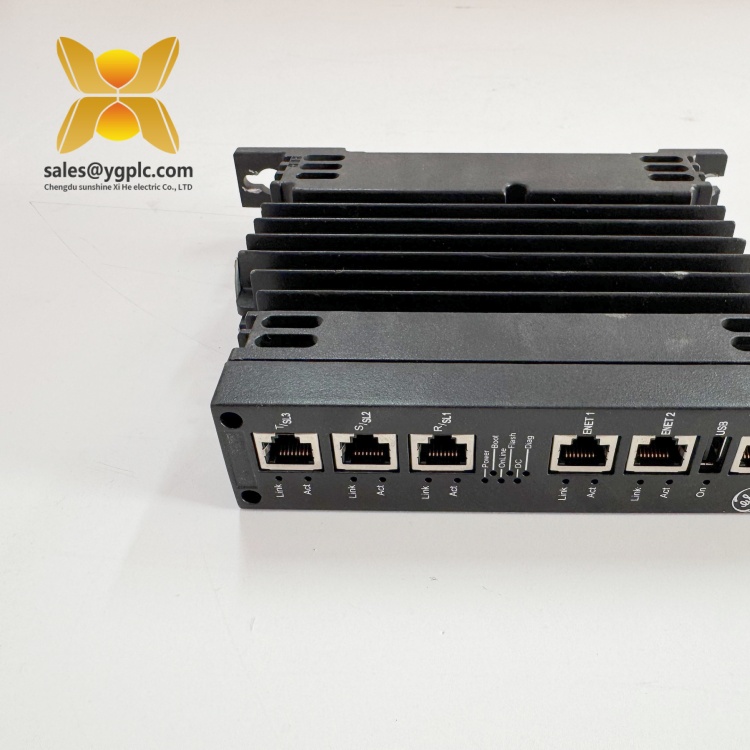

| LED Indicators | Power, Boot, Online, Flash, DC, Diag |
IS220UCSAH1A
Key Features and Advantages
High-Performance Processing: The IS220UCSAH1A’s Freescale 667 MHz processor and QNX Neutrino OS deliver rapid data processing and real-time control, ensuring responsive turbine management even under fluctuating loads.
Rugged Design: Built with a conformal-coated PCB and IP20-rated enclosure, the controller withstands harsh industrial environments, including dust, vibration, and temperature extremes. Its fanless design eliminates moving parts, reducing maintenance requirements.
Flexible Communication: Supports Ethernet and USB connectivity, enabling seamless integration with GE’s Mark VIe I/O modules, operator stations, and third-party systems. This flexibility simplifies system expansion and upgrades.
Predictive Maintenance: Advanced diagnostic capabilities monitor controller health in real time, alerting operators to potential failures via LED indicators and fault codes. This proactive approach minimizes downtime and extends equipment lifespan.
Hazardous Area Compliance: Certified for NFPA Class 1, Div. 2 environments, the IS220UCSAH1A is suitable for use in explosive atmospheres common in oil refineries and gas processing plants.
IS220UCSAH1A
Application Areas
The GE IS220UCSAH1A Mark VIe Embedded Controller is ideally suited for industries requiring precise turbine control and reliable performance:
- Power Generation: Controls gas and steam turbines in power plants, optimizing energy output and grid synchronization. Its real-time monitoring capabilities help detect temperature spikes to prevent catastrophic failures.
- Oil & Gas: Deployed in compressor stations and offshore platforms to manage turbine-driven equipment, such as pumps and compressors. The controller’s NFPA certification ensures safe operation in hazardous areas.
- Renewable Energy: Integrates with wind turbines to regulate rotor speed and power output, enhancing efficiency in wind farms. Its compatibility with GE’s Speedtronic platform simplifies system integration.
- Manufacturing: Powers control systems for heavy machinery, such as rolling mills and extruders, by managing motor speed and process variables. Real-time data analysis reduces energy consumption and waste.
- Water Treatment: Manages turbine-driven pumps and blowers in wastewater treatment plants, ensuring continuous operation and compliance with environmental standards.
Related Products
- IS220UCSAG1A: Enhanced memory and processing power, ideal for complex turbine control systems requiring advanced computational capabilities.
- IS220UCSAH1B: A variant with additional communication ports, supporting integration with legacy systems via serial protocols.
- IS220UCSAL1A: A specialized controller for Mark VIe EX2100E excitation systems, providing precise voltage regulation for generators.
- IS220UCSAM1A: A compact version with reduced dimensions, designed for space-constrained control cabinets without compromising performance.
- IS220UCSAN1A: A redundant controller module that pairs with the IS220UCSAH1A to create a fault-tolerant system, ensuring continuous operation in mission-critical applications.
- IS220UCSAP1A: A high-voltage controller compatible with the IS220UCSAH1A, designed for direct control of high-power equipment in industrial settings.
- IS220UCSAQ1A: A communication module that interfaces with the IS220UCSAH1A to enable integration with third-party systems via Ethernet/IP or Profibus protocols.
IS220UCSAH1A
Installation and Maintenance
Installation Preparation:
Before installing the IS220UCSAH1A, verify the power supply matches the 18–36 V DC input requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the controller with the DIN rail and secure it using the provided screws. Connect Ethernet and USB cables to the front-panel ports, following GE’s wiring guidelines. Finally, configure the controller using GE’s Proficy Machine Edition software, ensuring compatibility with the existing control system.
Before installing the IS220UCSAH1A, verify the power supply matches the 18–36 V DC input requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the controller with the DIN rail and secure it using the provided screws. Connect Ethernet and USB cables to the front-panel ports, following GE’s wiring guidelines. Finally, configure the controller using GE’s Proficy Machine Edition software, ensuring compatibility with the existing control system.
Maintenance Recommendations:
- Routine Inspections: Quarterly checks include verifying LED status indicators, inspecting connectors for corrosion, and cleaning the controller’s surface to prevent dust accumulation.
- Firmware Updates: Periodically update the controller’s firmware using GE’s official software to access new features and security patches.
- Thermal Management: Although fanless, ensure adequate airflow around the controller to maintain operating temperatures within the 0°C to 65°C range.
- Redundancy Testing: Semi-annually test the controller’s redundant power supply by disconnecting one input and verifying continuous operation.
IS220UCSAH1A
Product Warranty
We provide a 12-month quality warranty for the GE IS220UCSAH1A Mark VIe Embedded Controller, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning unit free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to optimize your turbine control system with the IS220UCSAH1A Mark VIe Embedded Controller.
