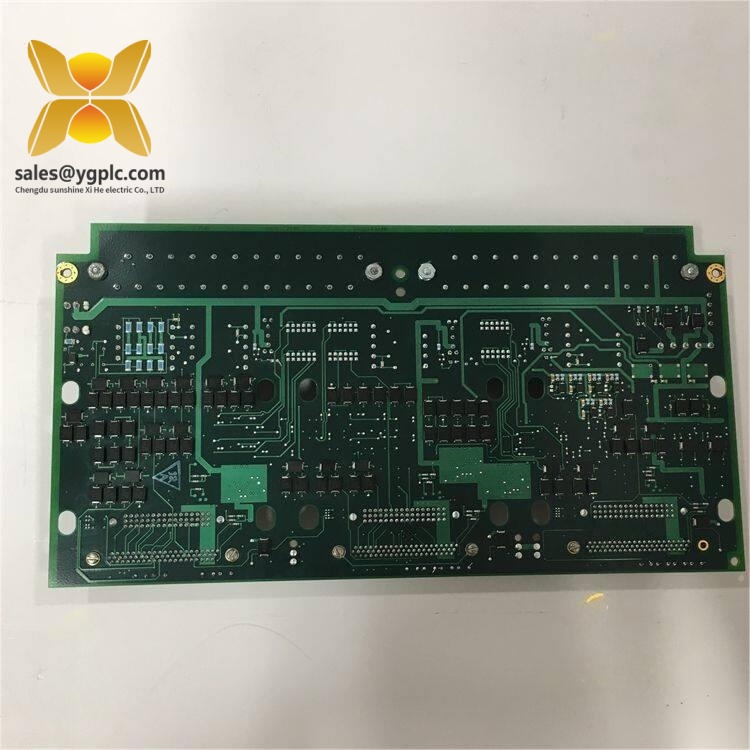

GE IS200TSVCH1ADC S1CX01H – Turbine Stop Valve Control Module
Product Overview
The GE IS200TSVCH1ADC S1CX01H is a high-performance turbine stop valve control module, integral to GE’s Mark VI/Mark VIe Speedtronic turbine control systems. It acts as a critical interface between the main controller and field devices like valves and actuators, focusing on precise stop valve control for steam and gas turbines. It solves the industrial challenge of ensuring safe, reliable turbine operation by mitigating signal interference and enabling real-time valve positioning, which is vital for power plants and heavy industrial facilities to avoid unplanned shutdowns and maintain operational efficiency.
Technical Specifications — IS200TSVCH1ADC S1CX01H
| Parameter | Value |
|---|---|
| Product Model | IS200TSVCH1ADC S1CX01H |
| Manufacturer | GE (General Electric) |
| Product Type | Turbine Stop Valve Control Module |
| Power | 24V DC (±10%), typical consumption 150mA |
| Communication / Protocol | VME Bus (Mark VI), PD Bus (Mark VIe), Modbus TCP/RTU, IEC 61850 |
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Mounting | 3U rack mounting (compatible with Mark VI/VIe cabinets) |
| Dimensions (HxWxD) | 130mm × 483mm × 220mm (5.1in × 19.0in × 8.7in) |
| Weight | 1.8kg (4.0 lbs) |
| Typical Interfaces | LVDT/RVDT inputs, 4-20mA analog ports, relay outputs, backplane connector |
| Compliance | UL, CE, IEC 61131, RoHS |
GE IS200TSVCH1ADC S1CX01H
Key Features and Benefits — IS200TSVCH1ADC S1CX01H
- 16-bit resolution for high-precision valve positioning, ensuring smooth and accurate turbine operation in critical applications.
- Hot-swappable design allows module replacement without full system shutdown, minimizing downtime in busy power generation environments.
- Built-in signal conditioning and isolation transformers, reducing electromagnetic interference (EMI) and protecting the control system from voltage spikes.
- Fail-safe logic triggers auto-close on fault detection, enhancing turbine safety during abnormal operating conditions.
- Seamless integration with GE Mark VI/VIe systems, supporting redundancy for mission-critical turbine control setups.
Related Models
- IS200TTURH1CCC S1DF00Z: GE turbine control module, optimized for speed and load regulation in gas turbines.
- IS200TRLYH1BGF: GE relay output module, designed for turbine interlock and alarm systems.
- IS200TSVCH1A: GE servo control module, suitable for medium-scale turbine valve control applications.
- IS200TSVCH1ADC S1CX01H: Core stop valve control module, specialized for Mark VI/VIe turbine systems.
GE IS200TSVCH1ADC S1CX01H
Installation and Maintenance — IS200TSVCH1ADC S1CX01H
Install the module in a standard 3U rack within Mark VI/VIe cabinets, ensuring proper grounding to minimize EMI. Use shielded cables for LVDT/RVDT connections and follow GE’s GEH-6421 system guide for configuration via ToolboxST software. Maintenance is straightforward: regularly inspect connectors for wear, clean with a static-free cloth, and monitor LED status indicators for power, communication, or fault alerts. Always disconnect power before module replacement.
Product Warranty — IS200TSVCH1ADC S1CX01H
The module comes with a 12-month manufacturer’s warranty, covering defects in materials and workmanship. It does not cover damage from improper installation, misuse, or unauthorized modifications. GE offers technical support for configuration guidance and troubleshooting to ensure optimal performance.
Personally, I found that this module stands out for its robust EMI protection—critical in power plant environments where electrical noise is common. Its seamless integration with Mark VI/VIe systems also cuts down on setup time, making it a reliable choice for turbine control teams.
