EPRO MMS3120/022-000 9100-03047-01 Product Specification
Product Overview：EPRO MMS3120/022-000 9100-03047-01
The EPRO MMS3120/022-000 9100-03047-01 is a high-precision multi-channel machinery health monitoring module designed for critical rotating equipment in industrial automation systems. As a part of the MMS 3000 Series by EPRO, a trusted brand in condition monitoring solutions (subsidiary of Bently Nevada), this module serves as a cornerstone for predictive maintenance in industries such as power generation, oil and gas, and manufacturing. The EPRO MMS3120/022-000 9100-03047-01 is engineered to continuously monitor vibration, shaft position, and temperature parameters, enabling real-time analysis and early detection of machinery faults to prevent unplanned downtime.
Featuring a rugged design and advanced signal processing capabilities, the EPRO MMS3120/022-000 9100-03047-01 integrates four independent input channels, supporting both proximity probes and accelerometers for comprehensive machinery diagnostics. It operates on a 24 VDC power supply and communicates via Modbus TCP/IP, ensuring seamless integration with supervisory control and data acquisition (SCADA) systems. Part of the MMS 3000 Platform, this module is recognized for its scalability, allowing users to configure up to 16 modules in a single rack for large-scale monitoring applications. By delivering reliable, high-resolution data, the EPRO MMS3120/022-000 9100-03047-01 empowers industries to optimize equipment performance, reduce maintenance costs, and enhance operational safety.
In automation ecosystems, the EPRO MMS3120/022-000 9100-03047-01 acts as a vital link between field sensors and control systems, converting raw vibration signals into actionable insights. Its dual-channel Ethernet connectivity supports redundant network setups, ensuring data integrity in harsh industrial environments. With a compact form factor (177.8 mm x 254 mm x 101.6 mm) and DIN rail mounting, the module is easy to install in both new and retrofitted systems, making it a versatile choice for machinery protection in global industrial settings.
Technical Specifications：EPRO MMS3120/022-000 9100-03047-01
| Parameter Name | Parameter Value |
|---|---|
| Product Model | EPRO MMS3120/022-000 9100-03047-01 |
| Manufacturer | EPRO (Bently Nevada) |
| Product Type | Multi-Channel Machinery Health Monitoring Module |
| Input Channels | 4 independent channels (proximity probes/accelerometers) |
| Power Supply | 24 VDC ±15% |
| Communication | Modbus TCP/IP, 10/100 Mbps Ethernet |
| Physical Dimensions | 177.8 mm (W) × 254 mm (H) × 101.6 mm (D) |
| Weight | 2.3 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 2 g (5–2000 Hz, IEC 60068-2-6) |
| Certifications | CE, UL, ATEX (for hazardous environments) |

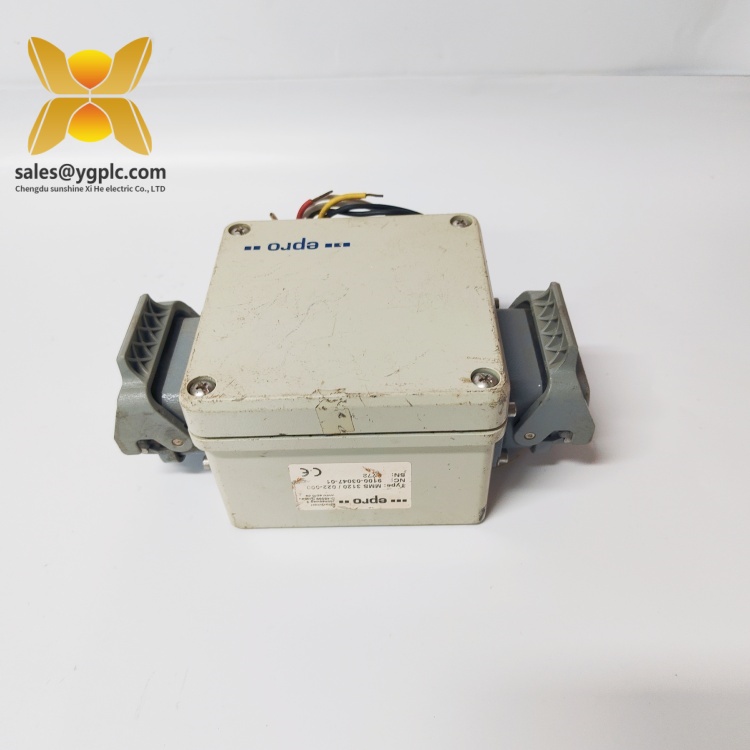

EPRO MMS3120 022-000 9100-03047-01
Main Features and Advantages：EPRO MMS3120/022-000 9100-03047-01
Comprehensive Machinery Diagnostics: The EPRO MMS3120/022-000 9100-03047-01 supports simultaneous monitoring of vibration amplitude, phase, and shaft eccentricity, providing a holistic view of machinery health. Its advanced algorithms detect early signs of imbalance, misalignment, or bearing wear, enabling proactive maintenance scheduling.
Redundant Network Architecture: With dual Ethernet ports, the module facilitates redundant network configurations, minimizing the risk of communication failures in mission-critical applications. This feature is particularly valuable in power plants and offshore oil platforms where continuous data flow is non-negotiable.
Scalable System Integration: As part of the MMS 3000 Series, the EPRO MMS3120/022-000 9100-03047-01 can be seamlessly integrated with other MMS 3000 modules (e.g., MMS3210 for analog outputs, MMS3300 for communication expansion), creating a unified monitoring solution for complex machinery trains.
Rugged Industrial Design: Built to withstand extreme conditions, the module’s metal enclosure and wide temperature range (-40°C to +70°C) ensure reliable operation in harsh environments, including high-vibration zones and chemically aggressive settings.
User-Friendly Configuration: The module is compatible with EPRO’s Insight software, allowing engineers to configure channels, set alarm thresholds, and generate trend reports through an intuitive interface. Real-time data visualization aids in quick decision-making during troubleshooting.

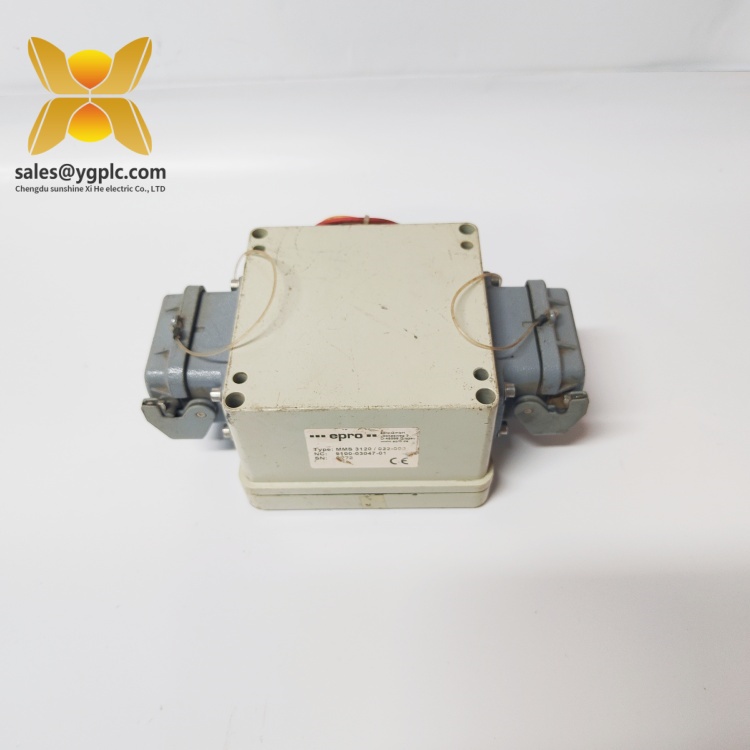

EPRO MMS3120 022-000 9100-03047-01
Application Areas：EPRO MMS3120/022-000 9100-03047-01
The EPRO MMS3120/022-000 9100-03047-01 is strategically deployed in industries requiring precise monitoring of rotating equipment:
-
Power Generation:
- Monitors steam turbines, generators, and pumps in thermal and nuclear power plants, ensuring optimal energy production and compliance with safety regulations.
- Detects abnormal vibration patterns in gearboxes and turbines, preventing catastrophic failures and costly shutdowns.
-
Oil and Gas:
- Integrates with compressors, motors, and offshore drilling rigs to monitor equipment health in harsh offshore environments.
- Supports predictive maintenance programs to reduce downtime in upstream production and downstream refining processes.
-
Manufacturing:
- Controls high-speed rotating machinery in automotive and pharmaceutical production lines, such as centrifuges and mixers, to maintain quality control and production efficiency.
- Provides real-time data for condition-based maintenance (CBM), reducing reliance on scheduled downtime.
-
Water and Wastewater Treatment:
- Manages pumps and blowers in water treatment facilities, ensuring continuous operation and water quality compliance.
- Early fault detection minimizes disruptions in wastewater processing, supporting environmental sustainability goals.

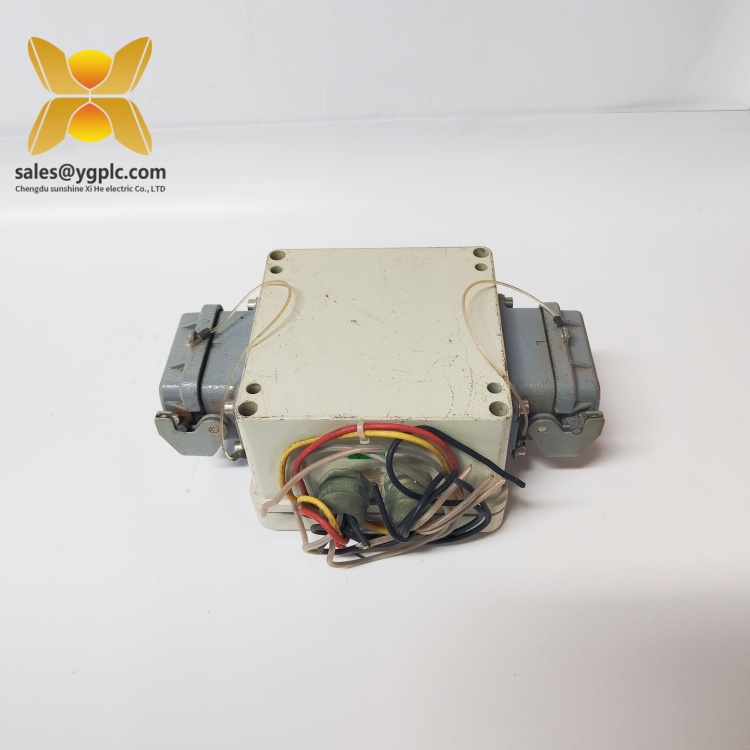

EPRO MMS3120 022-000 9100-03047-01
Related Products：EPRO MMS3120/022-000 9100-03047-01
- EPRO MMS3210/022-000: An analog output module that complements the EPRO MMS3120/022-000 9100-03047-01 by converting digital data into 4–20 mA signals for legacy control systems.
- EPRO MMS3300/010-000: A communication gateway module that enables integration with higher-level systems via protocols like OPC UA, expanding the monitoring network’s reach.
- EPRO MMS3400/001-000: A temperature monitoring module for multi-point thermal data acquisition, often used alongside the MMS3120 in combined vibration and temperature monitoring systems.
- Bently Nevada 3500/42M: A legacy vibration monitoring module compatible with retrofitting projects, serving as an alternative for systems not yet upgraded to the MMS 3000 Series.
- EPRO PR6423/003-031: A proximity probe designed for shaft displacement measurement, commonly paired with the MMS3120 to form a complete vibration monitoring solution.
Installation and Maintenance：EPRO MMS3120/022-000 9100-03047-01
Pre-installation Preparation:
Before installing the EPRO MMS3120/022-000 9100-03047-01, ensure the following:
Before installing the EPRO MMS3120/022-000 9100-03047-01, ensure the following:
- Verify the power supply voltage (24 VDC) and ground connections to prevent electrical interference.
- Mount the module on a DIN rail within a grounded control cabinet, allowing at least 50 mm of clearance for heat dissipation.
- Connect field sensors (proximity probes/accelerometers) using shielded cables to minimize noise, following the wiring diagrams in the product manual.
Maintenance Recommendations:
- Regularly inspect the module’s LED indicators to verify power status, communication activity, and alarm conditions.
- Perform annual calibration using EPRO’s calibration tools to ensure measurement accuracy.
- Update firmware quarterly to access the latest diagnostic features and security patches, leveraging the module’s built-in Ethernet interface for remote updates.
- In high-dust environments, clean the module’s ventilation slots every six months to prevent overheating.

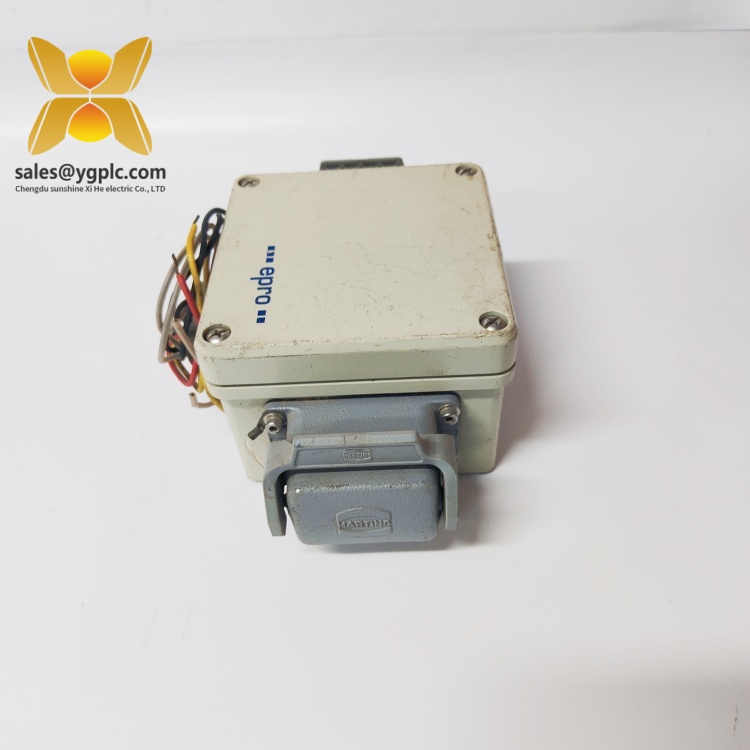

EPRO MMS3120 022-000 9100-03047-01
Product Warranty：EPRO MMS3120/022-000 9100-03047-01
Our company provides a one-year quality warranty for the EPRO MMS3120/022-000 9100-03047-01, covering hardware defects arising from non-human causes. During the warranty period, we will replace any faulty unit promptly to minimize operational disruptions. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of rare spare parts, supported by 24/7 technical assistance to maintain uninterrupted industrial operations.
