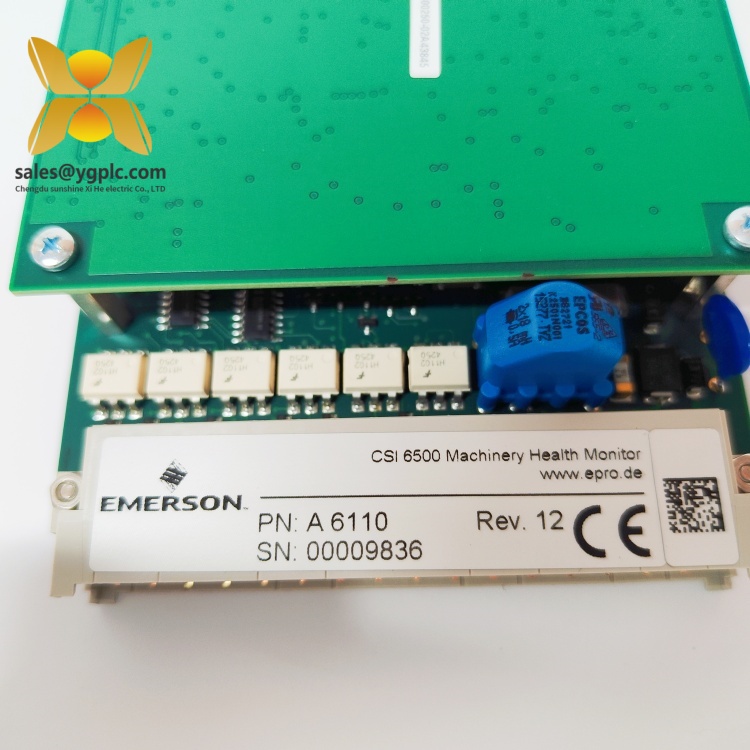

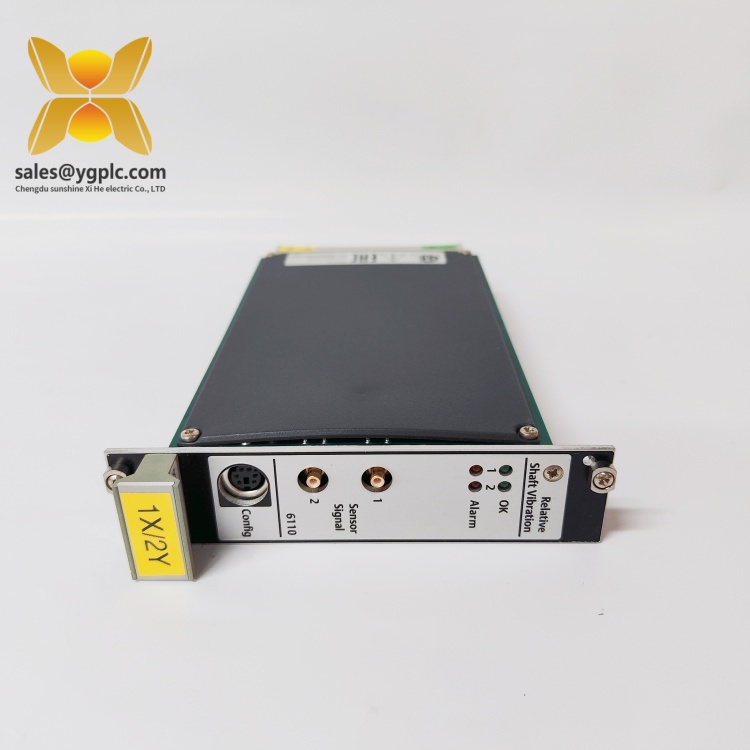

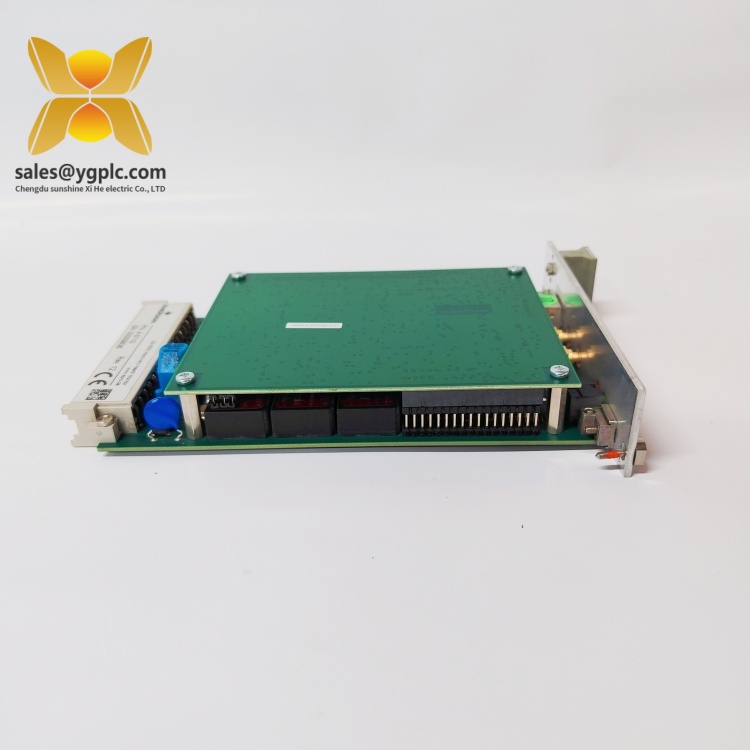

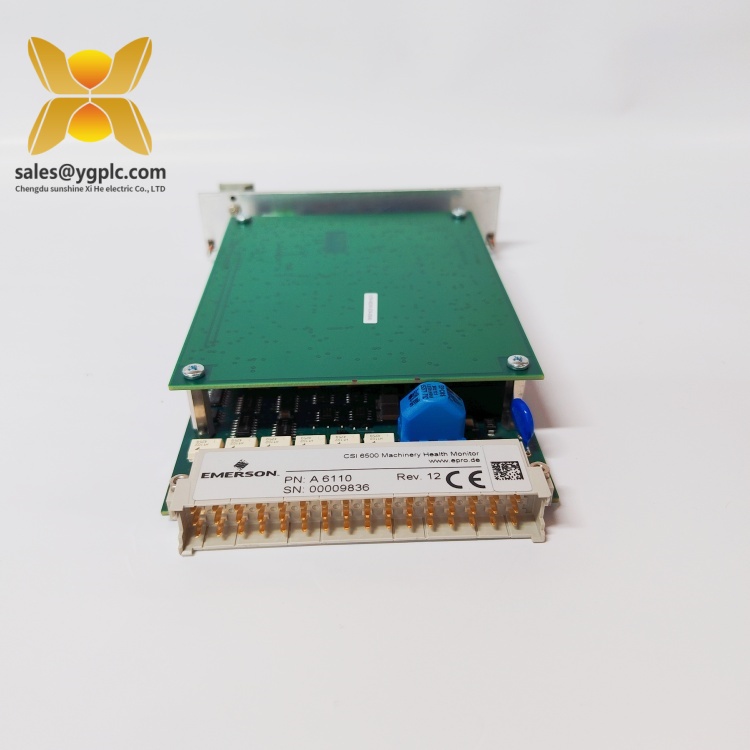

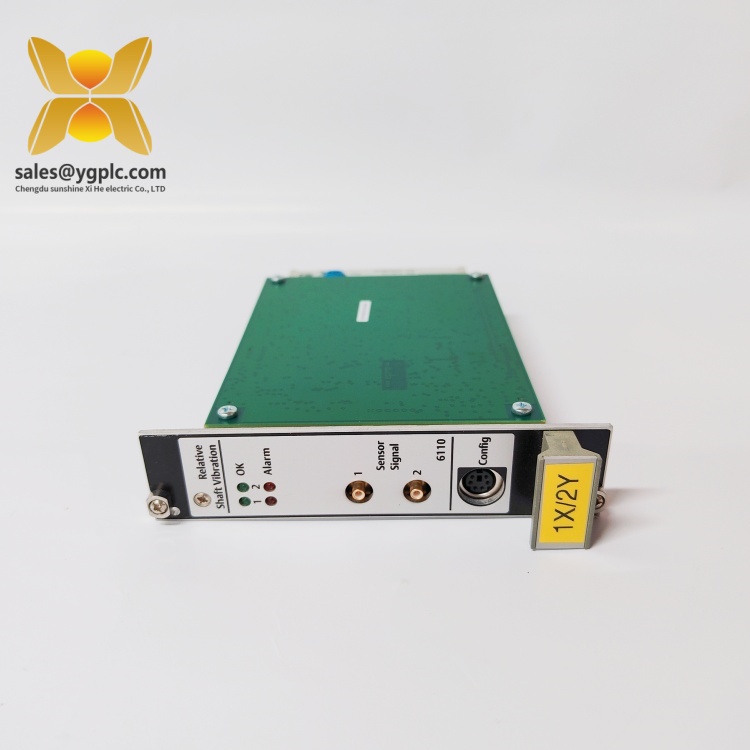

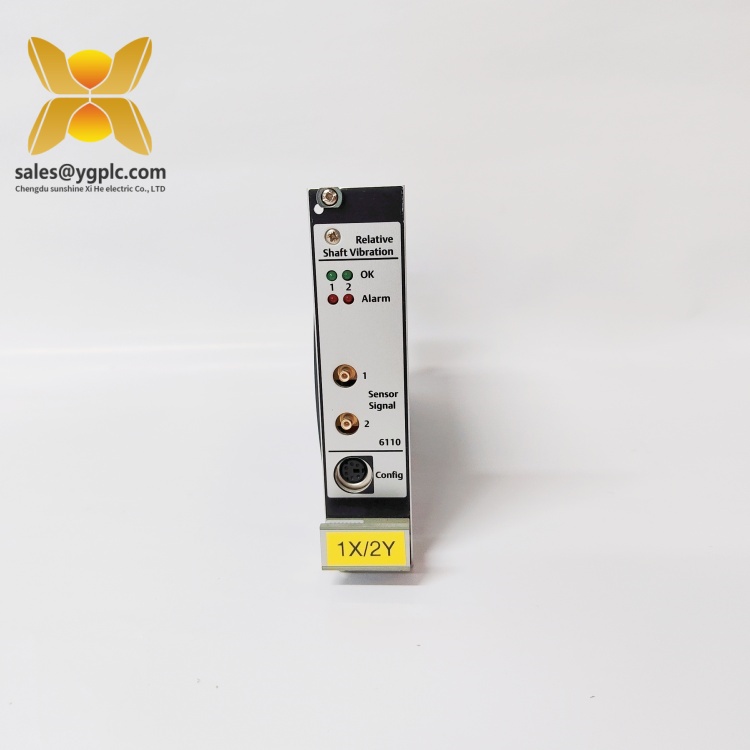

EMERSON A6110 Vibration Monitoring Module
Product Overview：EMERSON A6110
The EMERSON A6110 vibration monitoring module is a high-performance industrial solution designed for real-time condition monitoring of rotating machinery, serving as a critical component in Emerson’s ** machinery health management portfolio**. Engineered to deliver precise vibration analysis, this module is part of the CSI 6500 Series, a platform renowned for its reliability in detecting mechanical faults and optimizing equipment performance in mission-critical environments.
The A6110 module accepts input signals from proximity probes, velocity sensors, or accelerometers, processing them to provide detailed measurements of radial vibration, axial displacement, and velocity. With four independent channels, it enables simultaneous monitoring of multiple parameters, ensuring comprehensive visibility into machinery health. Its 24V DC power supply and rugged design make it suitable for integration into both new and existing automation systems, while compatibility with Emerson’s AMS Machinery Manager software allows for advanced data analysis and predictive maintenance strategies.
In industrial automation frameworks, the A6110 acts as a cornerstone for proactive maintenance, reducing unplanned downtime by identifying early signs of equipment degradation—such as bearing wear, misalignment, or looseness. Its modular architecture seamlessly integrates with DCS, PLC, and SCADA systems, facilitating real-time data exchange with control rooms and cloud-based platforms. By delivering accurate, timely insights into machinery condition, the A6110 empowers operators to make informed decisions, extend equipment lifespan, and enhance overall operational efficiency across diverse industries.
Technical Specifications：EMERSON A6110
| Parameter Name | Parameter Value |
|---|---|
| Product Model | A6110 |
| Manufacturer | EMERSON |
| Product Type | Vibration Monitoring Module |
| Input Channels | 4 (configurable for proximity/velocity/acceleration sensors) |
| Input Voltage | 24V DC ±10% |
| Frequency Range | 0.3 Hz to 10 kHz |
| Dynamic Range | 80 dB |
| Physical Dimensions | 178 mm (H) × 102 mm (W) × 254 mm (D) |
| Weight | 1.8 kg |
| Communication Protocol | Modbus RTU/TCP, Profibus DP |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | Rack-mounted (19-inch standard) |
| Country of Origin | United States |
EMERSON A6110
Main Features and Advantages：EMERSON A6110
Multi-Sensor Compatibility: The A6110 supports a wide range of vibration sensors, including proximity probes for shaft vibration and accelerometers for casing vibration, offering flexibility to adapt to different machinery types and monitoring requirements. This versatility eliminates the need for multiple specialized modules, streamlining system design and reducing hardware costs.
High Precision Measurement: With a 80 dB dynamic range and 0.3 Hz to 10 kHz frequency response, the module captures both low-speed and high-frequency vibrations with exceptional accuracy, enabling detection of subtle mechanical anomalies that might indicate developing faults. Its advanced signal processing algorithms filter out noise, ensuring reliable data even in high-disturbance environments.
Rugged Industrial Design: Built to withstand harsh conditions, the A6110 features a reinforced aluminum casing and conformal coating on PCBs, protecting against dust, moisture, and electromagnetic interference. Its -40°C to +70°C operating range makes it suitable for extreme industrial environments, from arctic oil fields to high-temperature refinery installations.
Seamless System Integration: The module’s support for Modbus and Profibus protocols ensures easy connectivity with mainstream automation systems, while its rack-mountable design (19-inch standard) simplifies installation alongside other CSI 6500 Series components. Integration with Emerson’s AMS Suite enhances diagnostic capabilities, allowing operators to correlate vibration data with process parameters for holistic machinery health assessment.
Proactive Fault Detection: By continuously monitoring vibration amplitude, phase, and spectral content, the A6110 identifies patterns associated with common machinery issues—such as unbalance, misalignment, or rolling-element bearing damage. Early fault detection enables timely maintenance actions, reducing repair costs and minimizing the risk of catastrophic failures.
EMERSON A6110
Application Areas：EMERSON A6110
The EMERSON A6110 vibration monitoring module is widely deployed in industries where machinery reliability is critical to operational success:
- Power Generation: Installed on steam turbines, gas turbines, and generators to monitor shaft vibrations and detect rotor imbalances or bearing defects. In combined-cycle power plants, the module helps maintain grid stability by ensuring consistent performance of rotating assets.
- Oil & Gas: Used in offshore platforms, refineries, and pipeline compressor stations to monitor pumps, compressors, and motors. Its ability to operate in explosive atmospheres (with optional hazardous area certification) makes it a trusted choice for safety-critical applications.
- Manufacturing: Integrated into production lines to monitor CNC machines, conveyors, and robotic arms, ensuring smooth operation and preventing quality defects caused by vibration-induced misalignment. In automotive plants, it supports just-in-time manufacturing by minimizing downtime in assembly processes.
- Chemical Processing: Deployed on agitators, centrifuges, and extruders to detect mechanical faults that could disrupt chemical reactions or lead to product inconsistencies. The module’s high-temperature tolerance is essential for processing units operating under extreme conditions.
- Mining and Metals: Used to monitor crushers, ball mills, and conveyor systems, where vibration analysis helps optimize equipment load and prevent costly breakdowns in remote mining sites. Its rugged design ensures reliable operation in dusty, high-vibration environments.
Related Products：EMERSON A6110
- EMERSON A6120 Process Variable Module: A complementary module that monitors temperature, pressure, and flow parameters, enabling integration of process data with vibration analysis for comprehensive machinery health reports.
- EMERSON A6300 Machinery Health Monitor: An advanced model with 8 channels and built-in data trending, ideal for complex systems requiring simultaneous monitoring of multiple machinery trains.
- EMERSON 3300 XL Proximity Probe System: A compatible sensor system that works with the A6110 to measure shaft displacement and vibration, offering high accuracy for critical rotating equipment.
- EMERSON AMS 6500 Machinery Protection System: A scalable platform that includes the A6110 and other modules, providing end-to-end machinery protection with alarm logic and shutdown capabilities.
- EMERSON A6200 Speed/Tachometer Module: A sets module that measures rotational speed and direction, essential for synchronizing vibration data with shaft position in gearboxes and turbines.
- EMERSON A6400 Communication Gateway: Enables seamless data transmission from the A6110 to enterprise-level systems via Ethernet/IP or OPC UA, facilitating remote monitoring and predictive analytics.
- EMERSON A6115 Dual-Channel Vibration Sensor: A compact sensor designed for direct mounting on machinery, pairing with the A6110 to simplify installation in space-constrained environments.
EMERSON A6110
Installation and Maintenance：EMERSON A6110
Installation Preparation:
Before installing the A6110, verify that the power supply matches the 24V DC requirement and that the rack enclosure meets electromagnetic compatibility (EMC) standards. Clean the mounting rails and ensure proper grounding to minimize interference. Secure the module in the rack using the provided brackets, then connect sensor cables to the terminal blocks, ensuring correct polarity and shielding for analog inputs. Finally, configure communication settings via Emerson’s AMS Configuration Manager software, setting the module address and protocol (Modbus or Profibus) to match the host system.
Before installing the A6110, verify that the power supply matches the 24V DC requirement and that the rack enclosure meets electromagnetic compatibility (EMC) standards. Clean the mounting rails and ensure proper grounding to minimize interference. Secure the module in the rack using the provided brackets, then connect sensor cables to the terminal blocks, ensuring correct polarity and shielding for analog inputs. Finally, configure communication settings via Emerson’s AMS Configuration Manager software, setting the module address and protocol (Modbus or Profibus) to match the host system.
Maintenance Recommendations:
- Routine Inspections: Conduct monthly visual checks for loose connections, damaged cables, or abnormal indicator lights. Use a soft brush to remove dust from the module’s vents, ensuring optimal heat dissipation.
- Sensor Calibration: Annually calibrate connected sensors using Emerson’s CalMaster software to maintain measurement accuracy. Verify that probe gaps and amplifier gains are within specified ranges for proximity probe systems.
- Firmware Updates: Periodically download the latest firmware from Emerson’s support portal and update the A6110 to access new features and security patches, ensuring compatibility with evolving automation standards.
- Functional Testing: Quarterly test the module’s signal processing by introducing known vibration signals and verifying output values against expected results. This helps identify potential issues with analog-to-digital conversion or protocol communication.
EMERSON A6110
Product Warranty：EMERSON A6110
We provide a 12-month quality warranty for the EMERSON A6110 vibration monitoring module, covering hardware defects arising from non-human factors. During the warranty period, any module exhibiting performance irregularities or functional failures will be replaced at no charge. For discontinued models or urgent requirements, our global supply chain network—built over 17 years in industrial control distribution—ensures rapid fulfillment of even the rarest spare parts, minimizing downtime and supporting the continuous operation of your critical systems.
With a commitment to reliability and technical excellence, we offer competitive pricing, expedited shipping, and dedicated customer support to address your automation needs. Contact us today to leverage the A6110 module’s precision monitoring capabilities and enhance the longevity of your industrial machinery.
Note: All product names, logos, and brands are the property of their respective owners. This document is for informational purposes only and does not substitute for official manufacturer documentation. Always refer to Emerson’s technical manuals for detailed installation and safety guidelines.
