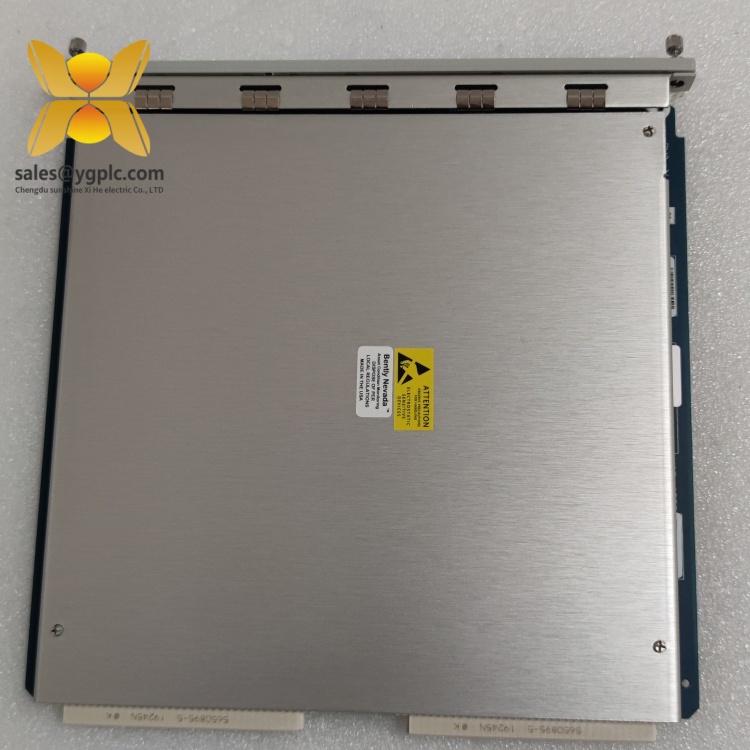

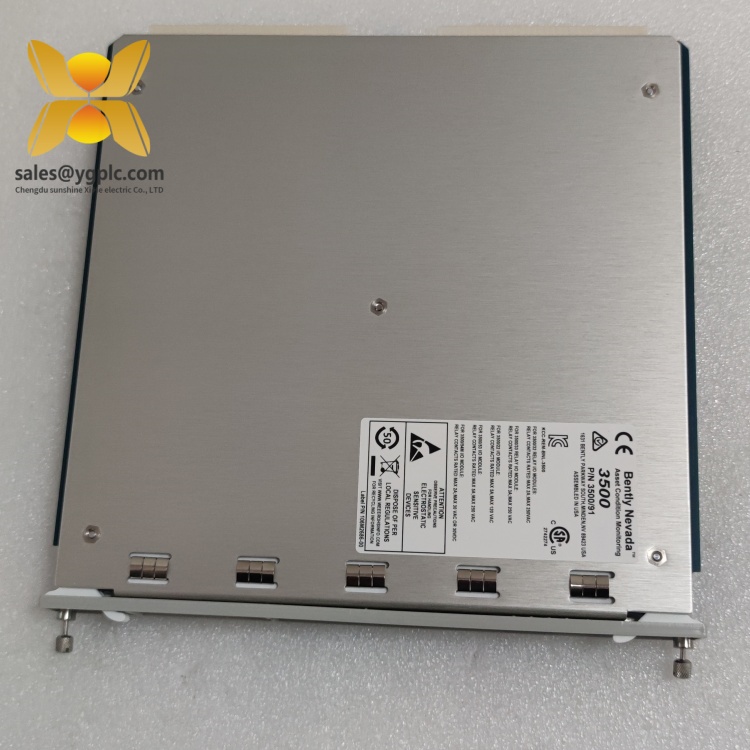

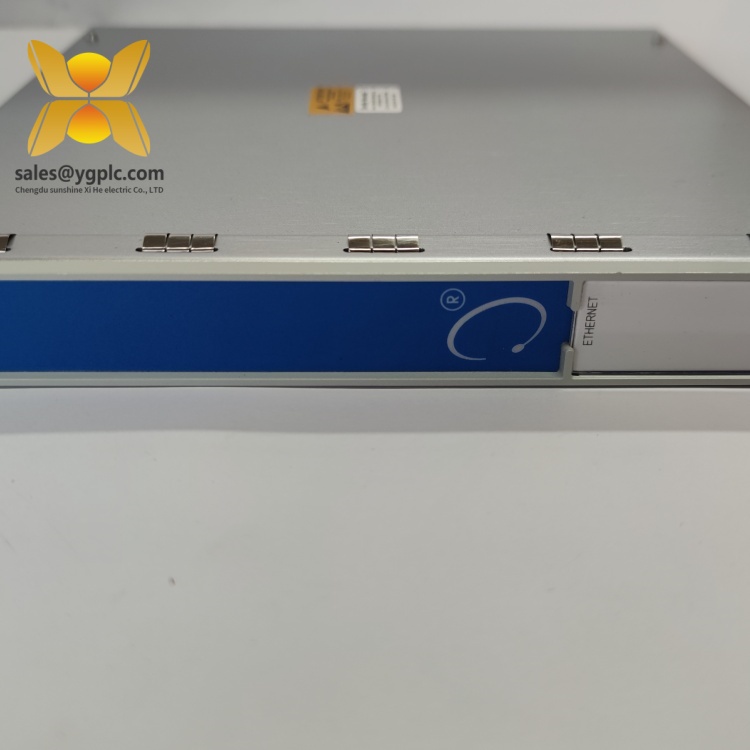

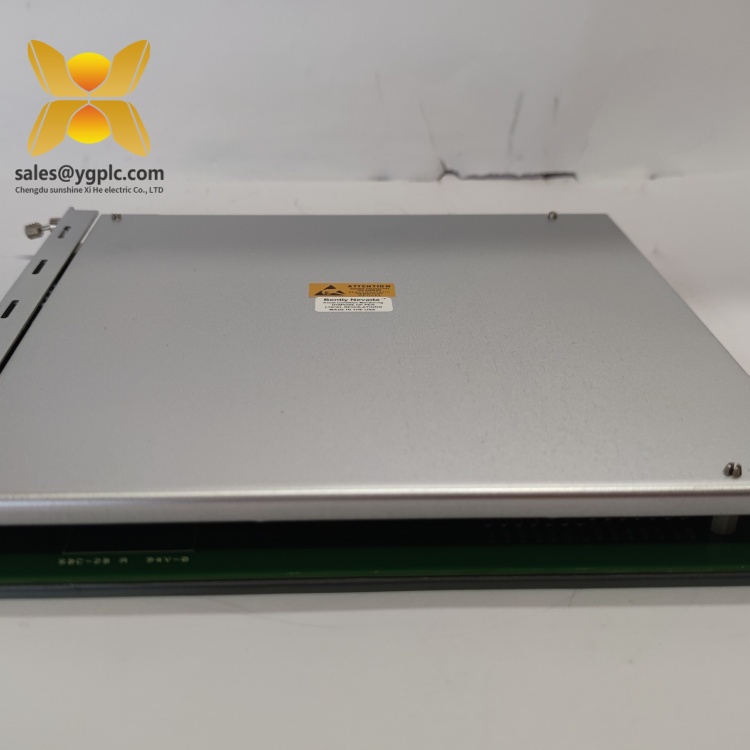

BENTLY 3500/91 161204-01 Communication Gateway Module
Product Overview
The BENTLY 3500/91 161204-01 is a high-performance Communication Gateway Module designed as the networking backbone for Bently Nevada’s 3500 Series Machinery Protection System. Engineered to bridge industrial monitoring systems with enterprise-level networks, this module enables real-time data transmission from machinery protection racks to SCADA, DCS, or cloud-based platforms. As an integral part of the 3500 Series, the 3500/91 161204-01 supports seamless integration with other 3500 modules (e.g., vibration monitors, keyphasor modules), facilitating remote diagnostics and predictive maintenance in critical industries such as oil & gas, power generation, and manufacturing.
Featuring a rugged industrial design, the BENTLY 3500/91 161204-01 supports multiple communication protocols, including Ethernet/IP, Modbus TCP, and OPC UA, ensuring compatibility with diverse automation ecosystems. Its dual-port Ethernet architecture enables redundant network configurations, minimizing downtime in mission-critical applications. The module’s advanced data processing capabilities allow real-time conversion of machinery health data (e.g., vibration amplitude, shaft position) into actionable insights, while built-in cybersecurity features protect against unauthorized access. With a wide operating temperature range (-40°C to +70°C) and compliance with industry standards (API 670, IEC 61131-2), the 3500/91 161204-01 ensures reliable performance in harsh industrial environments.
In automation systems, the 3500/91 161204-01 serves as the interface between field-level monitoring and enterprise-level management, enabling remote access to critical machinery data. Its modular design allows easy installation in 3500 Series racks, while intuitive configuration tools (e.g., Bently’s 3500 Configuration Software) simplify network setup and protocol customization. By combining high-speed data transfer with robust cybersecurity, this module enhances operational visibility and supports Industry 4.0 initiatives, making it indispensable for modern industrial asset management.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/91 161204-01 |
| Manufacturer | Bently Nevada |
| Product Type | Communication Gateway Module |
| Protocol Support | Ethernet/IP, Modbus TCP, OPC UA, Profibus DP |
| Network Interfaces | 2 × 10/100 Mbps Ethernet (RJ45), 1 × RS-485 |
| Data Throughput | Up to 100 Mbps |
| Input Voltage | 24 V DC (from 3500 Series rack) |
| Physical Dimensions | 10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D) |
| Weight | 0.8 kg |
| Operating Temperature | -40°C to +70°C |
| Mounting | Rack-mounted in 3500 Series enclosure |
| Certifications | CE, UL, cUL, API 670, IEC 62443 (cybersecurity) |
Key Features and Advantages
Multi-Protocol Connectivity: The 3500/91 161204-01 supports diverse industrial protocols, eliminating the need for multiple gateways and simplifying integration with legacy and modern systems. This versatility reduces hardware complexity and maintenance costs.
Redundant Network Design: Dual Ethernet ports enable ring or star network topologies, ensuring continuous data transmission even if one network path fails. This redundancy is critical for maintaining monitoring capabilities in 24/7 operations.
Advanced Cybersecurity: Built-in firewall and encryption features (e.g., TLS 1.2, AES) protect against cyber threats, ensuring data integrity and compliance with industrial cybersecurity standards. This is essential for preventing unauthorized access to critical machinery data.
High-Speed Data Processing: The module’s dedicated processor ensures low-latency data transfer, the real-time monitoring of high-speed rotating equipment. Its buffer management system prevents data loss during peak traffic periods.
Rugged Industrial Construction: Engineered to withstand extreme temperatures, vibration, and electromagnetic interference, the 3500/91 161204-01 meets rigorous environmental standards, making it suitable for offshore platforms, refineries, and other harsh locations.
Easy Configuration and Management: Bently’s intuitive configuration tools allow quick setup of communication parameters and protocol mappings. Remote management via web interface reduces onsite maintenance needs, enhancing operational efficiency.
Application Areas
The BENTLY 3500/91 161204-01 is essential for industrial networking in sectors where real-time machinery monitoring is critical:
- Oil & Gas: Connects vibration monitoring systems in compressors, pumps, and turbines to central SCADA systems in refineries and offshore platforms, enabling remote condition assessment and predictive maintenance.
- Power Generation: Transmits real-time data from turbine health monitoring systems to plant-wide DCS, supporting grid stability and optimizing maintenance schedules in thermal, hydro, and nuclear power plants.
- Manufacturing: Integrates machinery protection systems with enterprise resource planning (ERP) systems in automotive, chemical, and food processing plants, enabling data-driven decisions to reduce downtime.
- Mining: Links vibration and displacement monitoring modules in crushers and mills to remote monitoring centers, facilitating proactive maintenance in harsh mining environments.
Specific applications include:
- Remote Condition Monitoring: Transmits vibration data from offshore turbines to onshore control rooms, enabling timely intervention to prevent equipment failures.
- Cloud-Based Asset Management: Bridges 3500 Series racks to cloud platforms, supporting predictive maintenance analytics and equipment health trending.
- Safety System Integration: Connects machinery protection data with safety instrumented systems (SIS), enhancing overall plant safety and compliance with regulatory standards.
Related Products
- 3500/92 Communication Gateway: An upgraded version with additional protocol support (e.g., EtherCAT), compatible with the 3500/91 161204-01 in redundant configurations.
- 3500/42M Vibration Monitor: Works in tandem with the 3500/91 161204-01 to provide vibration data for transmission to enterprise networks.
- 3500/22M Keyphasor Module: Supplies rotational reference signals to the 3500/91 161204-01 for phase-locked vibration analysis.
- 3500/05 Rack Enclosure: Houses the 3500/91 161204-01 and other 3500 modules, providing a structured and protected networking environment.
- 3500/32M Relay Module: Triggers alarms based on machinery data, integrated with the 3500/91 161204-01 for remote alarm notification.
- 3500/15 Power Supply Module: Ensures reliable power for the 3500/91 161204-01 in redundant power configurations.
Installation and Maintenance
Pre-installation Preparations:
Before installing the BENTLY 3500/91 161204-01, ensure the 3500 Series rack is properly grounded and ventilated. Verify network configurations (IP addresses, subnet masks) and install redundant network cables for reliability. Mount the module in the rack using provided hardware, ensuring adequate spacing for heat dissipation. Connect Ethernet ports to the plant network using shielded cables, and route cables separately from high-voltage lines to minimize interference. Use Bently’s 3500 Configuration Software to configure communication protocols and security settings before commissioning.
Before installing the BENTLY 3500/91 161204-01, ensure the 3500 Series rack is properly grounded and ventilated. Verify network configurations (IP addresses, subnet masks) and install redundant network cables for reliability. Mount the module in the rack using provided hardware, ensuring adequate spacing for heat dissipation. Connect Ethernet ports to the plant network using shielded cables, and route cables separately from high-voltage lines to minimize interference. Use Bently’s 3500 Configuration Software to configure communication protocols and security settings before commissioning.
Maintenance Suggestions:
- Routine Checks: Monthly visual inspections of LED indicators to verify network connectivity and module health. Use network analysis tools to monitor data throughput and identify potential bottlenecks.
- Firmware Updates: Periodically update the module’s firmware to incorporate security patches and new features, following Bently’s validated procedures to avoid configuration loss.
- Cybersecurity Audits: Quarterly reviews of network security settings (firewall rules, access lists) to ensure compliance with industrial cybersecurity standards. Perform penetration testing to identify vulnerabilities.
- Spare Parts Management: Store spare 3500/91 161204-01 modules in a controlled environment (10–30°C, <50% humidity) to ensure rapid replacement during failures. Test spares annually to maintain functionality.
Product Guarantee
Our company provides a 12-month quality warranty for the BENTLY 3500/91 161204-01, covering hardware defects under normal use. In the event of network connectivity issues or functional failures, we offer prompt replacement services to minimize downtime. For legacy or urgent requirements, our global supply chain ensures rapid delivery of the 3500/91 161204-01 and related spares. Our technical support team assists with network configuration, cybersecurity setup, and troubleshooting, ensuring reliable data transmission for your machinery protection systems.
