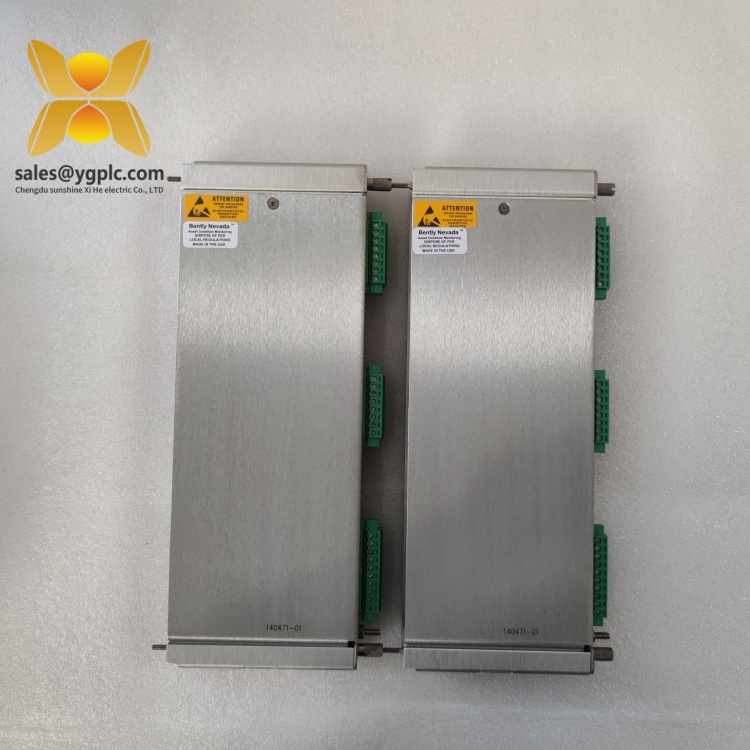

BENTLY 3500/42 140471-01 Product Specification
Product Overview
The BENTLY 3500/42 140471-01 is a high-precision quad-channel temperature monitoring module designed for BENTLY’s 3500 Series Machinery Protection System. Engineered to deliver real-time temperature analysis for critical industrial equipment, this module serves as a cornerstone in predictive maintenance strategies across industries such as oil and gas, power generation, and manufacturing. The BENTLY 3500/42 140471-01 supports up to 4 channels of temperature input, enabling continuous monitoring of bearings, windings, and other high-value components in turbines, compressors, and generators. As part of the 3500 Series, it integrates seamlessly with other system modules to form a comprehensive machinery health management solution.
Featuring advanced signal conditioning and diagnostic capabilities, the BENTLY 3500/42 140471-01 processes inputs from RTDs, thermocouples, and analog sensors, converting them into actionable data for real-time analysis. Its software-configurable design allows users to customize alarm thresholds, filter settings, and data logging parameters, ensuring optimal performance in diverse operational environments. The module’s rugged IP23-rated enclosure and conformal-coated PCBs protect against dust, moisture, and electromagnetic interference (EMI), while its compact form factor (210 mm × 150 mm × 100 mm) and 2 kg weight facilitate easy installation in 19″ control racks.
In automation architectures, the BENTLY 3500/42 140471-01 acts as a frontline diagnostic tool, detecting early signs of overheating in machinery components. Its high-resolution analog-to-digital conversion (16-bit) ensures precise temperature measurement, while the RS-485 communication interface enables seamless integration with PLCs, HMIs, and supervisory control systems. By delivering reliable temperature data, the module helps prevent costly downtime, extend equipment lifespan, and enhance operational safety in mission-critical applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | BENTLY 3500/42 140471-01 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Quad-Channel Temperature Monitoring Module |
| Input Channels | 4 channels (RTD, thermocouple, 4–20 mA/0–10 VDC) |
| Temperature Range | -200°C to +850°C (depending on sensor type) |
| Measurement Accuracy | ±0.1% of full scale |
| Communication Interface | RS-485 (Modbus RTU compatible) |
| Power Supply | 24 VDC ±10% |
| Physical Dimensions | 210 mm (W) × 150 mm (H) × 100 mm (D) |
| Weight | 2.1 kg |
| Operating Temperature | -25°C to +60°C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, ISO 10816 |
Main Features and Advantages
Multi-Channel Temperature Monitoring: The BENTLY 3500/42 140471-01 supports simultaneous monitoring of four temperature points, enabling comprehensive analysis of thermal patterns in complex machinery setups. This feature is ideal for multi-stage turbines or generators, where multi-point temperature data is essential for accurate fault diagnosis.
Universal Sensor Compatibility: The module accepts inputs from RTDs (e.g., Pt100), thermocouples (J, K, T types), and analog sensors (4–20 mA/0–10 VDC), eliminating the need for multiple specialized modules. This versatility reduces inventory needs and simplifies system integration in hybrid sensor environments.
Software-Defined Configuration: Users can tailor the module’s settings via BENTLY’s proprietary software, adjusting alarm levels, filter types, and sampling rates to match specific machinery requirements. This flexibility allows for quick adaptation to changing operational needs without hardware modifications.
Rugged Industrial Design: Constructed with an IP23-rated metal enclosure and anti-vibration mounting, the module withstands harsh industrial environments, including high temperatures, humidity, and mechanical stress. Its self-shielded design minimizes electromagnetic interference, ensuring reliable measurements in dense installations.
Real-Time Data Integration: The RS-485 interface enables real-time transmission of temperature data to higher-level control systems, supporting remote monitoring and predictive maintenance. Engineers can access live diagnostics and historical trend data via SCADA platforms, enabling proactive intervention before equipment failures occur.
Application Areas
The BENTLY 3500/42 140471-01 is widely deployed in industries where precise temperature monitoring is critical to operational reliability:
-
Oil and Gas:
- Monitors bearing temperatures in offshore platform compressors and pumps, detecting early signs of overheating to prevent unplanned shutdowns.
- Integrates with emergency shutdown systems (ESD) in refineries, ensuring safety during high-temperature processes like crude oil distillation.
-
Power Generation:
- Analyzes stator and rotor temperatures in steam turbines and generators, optimizing performance and preventing thermal damage in power plants.
- Supports condition-based maintenance programs by providing real-time data on transformer and motor temperatures, enabling scheduled repairs to minimize downtime.
-
Manufacturing:
- Controls oven temperatures in semiconductor fabrication, where ±1°C precision is critical for chip quality and yield.
- Monitors motor bearings in high-speed packaging machinery, predicting maintenance needs to improve overall equipment effectiveness (OEE) in automotive and pharmaceutical plants.
-
Water/Wastewater Treatment:
- Ensures reliable operation of centrifugal pumps by monitoring casing temperatures, maintaining consistent water flow in treatment facilities.
- Integrates with SCADA systems for remote monitoring of distributed pump stations, enabling proactive maintenance scheduling based on thermal data.
Related Products
- BENTLY 3500/42M 129408-01: A legacy temperature monitoring module with similar functionality, often used as a direct replacement in older systems.
- BENTLY 3500/15 114M5335-01: A power input module that supplies stable 24 VDC to the BENTLY 3500/42 140471-01, ensuring uninterrupted operation.
- BENTLY 3500/22M 146031-01: A vibration monitoring module that pairs with the BENTLY 3500/42 140471-01 to provide comprehensive machinery health analysis.
- BENTLY 3500/92 129410-01: A communication gateway that enables the BENTLY 3500/42 140471-01 to interface with Ethernet/IP networks for remote diagnostics.
- BENTLY 3500/32 129407-01: A speed/torque monitor that correlates temperature data with rotational speed, aiding in fault isolation for rotating equipment.
Installation and Maintenance
Pre-installation Preparation:
Before installing the BENTLY 3500/42 140471-01, ensure the following:
Before installing the BENTLY 3500/42 140471-01, ensure the following:
- Verify the power supply meets 24 VDC ±10% and that the control rack is properly grounded to prevent electrostatic discharge (ESD). Use a multimeter to confirm voltage stability before connecting the module.
- Use BENTLY’s configuration software to define input channel types (RTD, thermocouple, or analog) and set initial alarm thresholds based on machinery specifications.
- Mount the module in a 19″ rack with at least 50 mm of clearance for airflow, securing it with the provided brackets to minimize vibration-induced displacement.
Maintenance Recommendations:
- Routine Inspections: Monthly visual checks of front-panel LEDs (green for normal operation, red for faults) and cleaning of dust from ventilation slots to maintain optimal cooling. Use a soft brush to remove debris without damaging internal components.
- Calibration: Annual calibration of input channels using a BENTLY-certified temperature calibrator to ensure measurement accuracy. This involves applying known temperature inputs and verifying output signals against standards.
- Firmware Updates: Periodically update the module’s firmware via BENTLY’s software to access new diagnostic features and compatibility improvements, especially when integrating with newer 3500 Series components.
- Sensor Health Checks: Biannual verification of sensor connections and wiring to ensure reliable signal transmission, replacing faulty sensors promptly to maintain data integrity.
Product Warranty
Our company provides a one-year quality warranty for the BENTLY 3500/42 140471-01, covering hardware failures due to non-human factors. During the warranty period, we will replace any module that exhibits abnormal temperature reading or functional defects. For discontinued models like the BENTLY 3500/42 140471-01, our global inventory of legacy industrial parts ensures rapid fulfillment of urgent orders. We also offer post-warranty technical support and repair services to help maintain your equipment’s reliability throughout its lifecycle.
Contact Information:
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Note: This document is based on technical data derived from BENTLY’s official specifications and industry applications. For detailed installation guidelines, refer to the BENTLY 3500/42 140471-01 user manual or contact our technical support team for personalized assistance.
