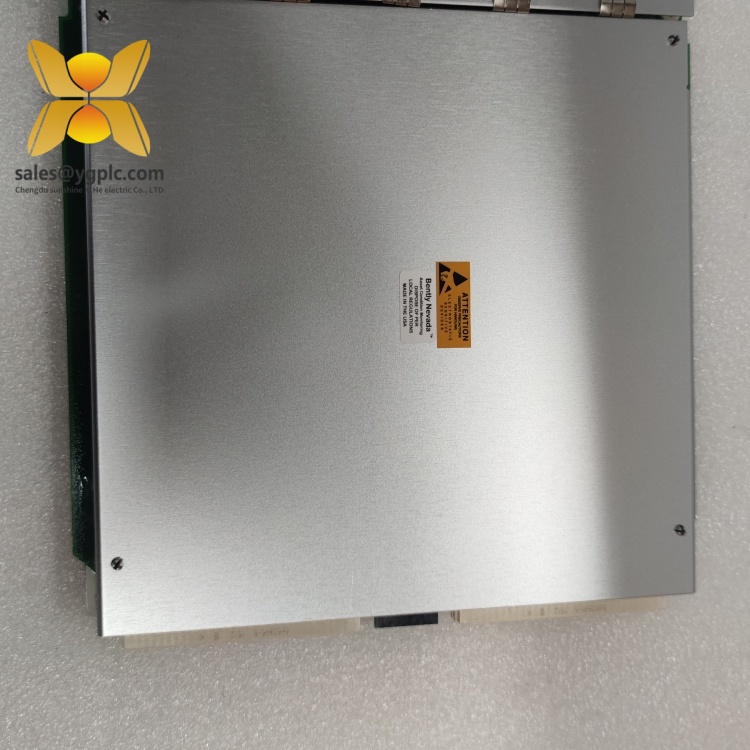

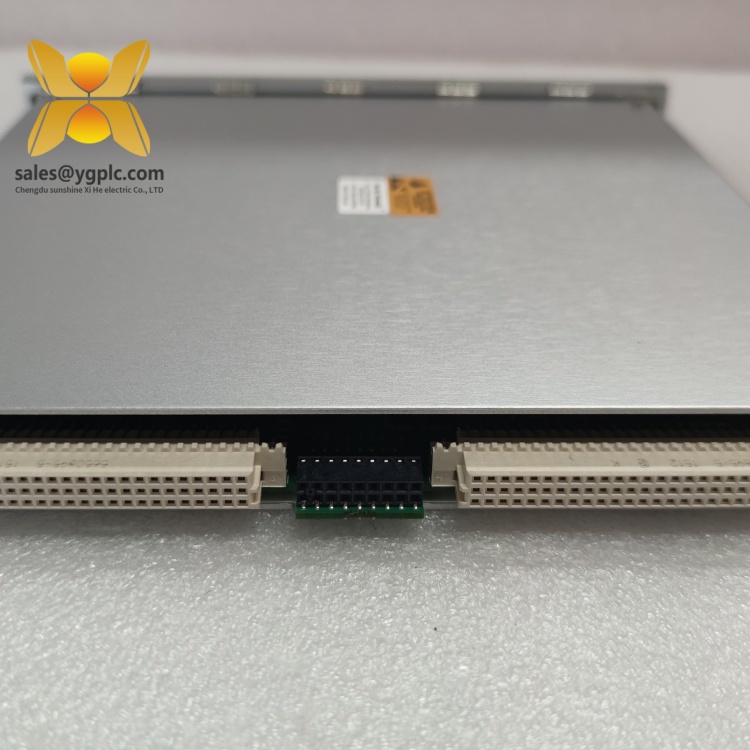

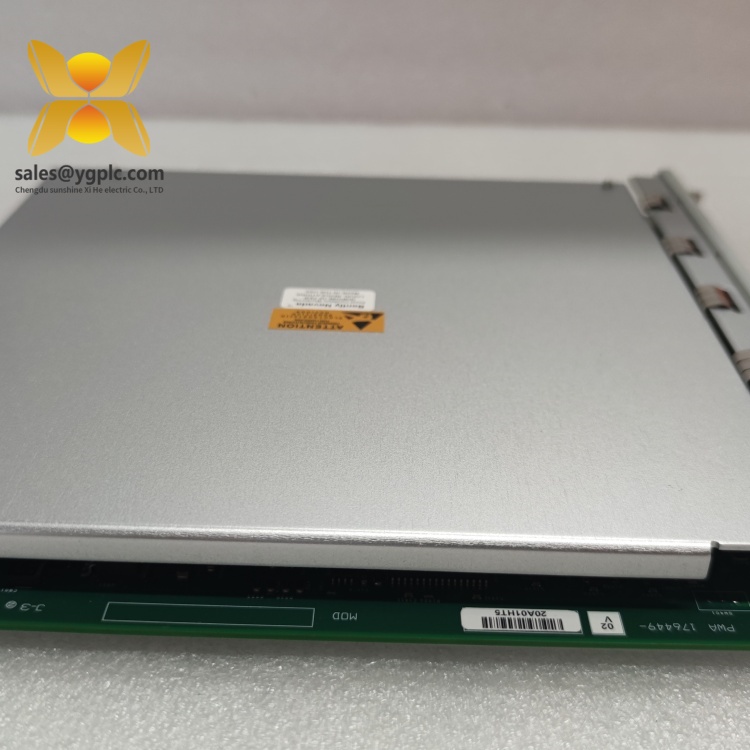

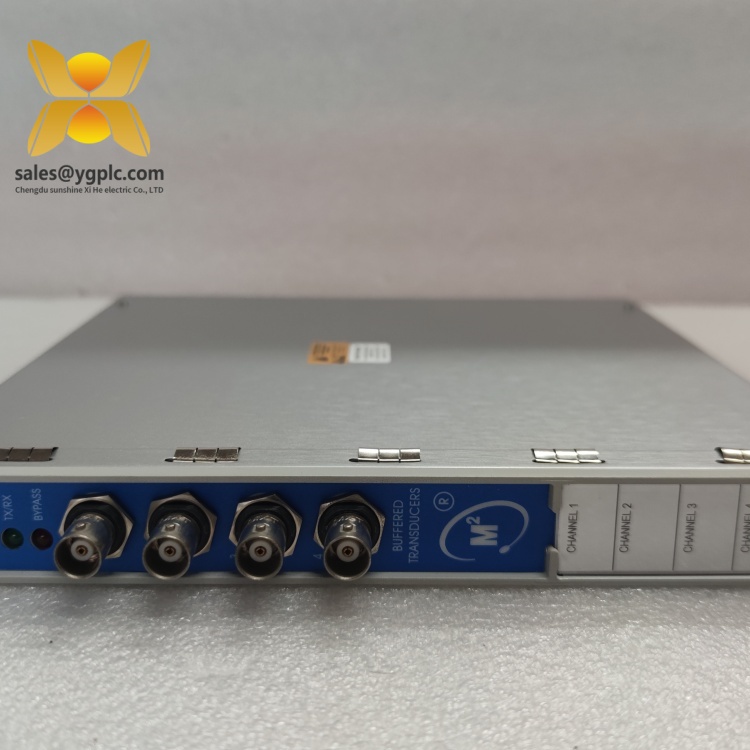

BENTLY 3500/42-01-00 Vibration Monitor
Product Overview
The BENTLY 3500/42-01-00 is a high-precision Vibration Monitor designed as a critical component of Bently Nevada’s 3500 Series Machinery Protection System. Engineered to monitor radial and axial vibrations in rotating equipment, this module converts mechanical movements into electrical signals for real-time analysis, enabling predictive maintenance and fault detection in turbines, compressors, and generators. As part of the 3500 Series, the 3500/42-01-00 integrates seamlessly with other 3500 modules (e.g., keyphasor, power supply) to form a comprehensive machinery health monitoring ecosystem, supporting industrial applications in oil & gas, power generation, and manufacturing.
Featuring a dual-channel architecture, the BENTLY 3500/42-01-00 processes vibration data from proximity probes or velocity transducers, providing accurate measurements of displacement, velocity, and acceleration. Each channel supports independent configuration for sensitivity, filter settings, and alarm thresholds, with built-in diagnostics to monitor signal integrity. The module’s rugged metal enclosure (IP54-rated) and wide operating temperature range (-40°C to +70°C) ensure reliable performance in harsh environments, while its hot-swappable design allows maintenance without system shutdowns. Compatibility with industry standards like API 670 ensures compliance with safety and reliability requirements for mission-critical assets.
In automation systems, the 3500/42-01-00 serves as the front-end processor for vibration analysis, feeding real-time data to supervisory control systems for trend monitoring and alarm activation. Its 4–20 mA analog outputs and digital communication interfaces (e.g., Modbus) enable seamless integration with PLCs, DCS, and SCADA platforms, facilitating remote monitoring and centralized data management. By delivering precise vibration insights, this module helps reduce unplanned downtime, extend equipment lifespan, and optimize maintenance schedules in high-value industrial operations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/42-01-00 |
| Manufacturer | Bently Nevada |
| Product Type | Vibration Monitor |
| Channels | 2 independent channels |
| Measurement Types | Displacement (0–250 mils), velocity (0–100 in./sec), acceleration (0–100 g) |
| Output Signals | 4–20 mA (per channel), digital via 3500 bus |
| Frequency Response | 2–10,000 Hz |
| Accuracy | ±0.5% of full scale |
| Physical Dimensions | 10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D) |
| Weight | 1.1 kg |
| Operating Temperature | -40°C to +70°C |
| Mounting | Rack-mounted in 3500 Series enclosure |
| Certifications | CE, UL, API 670 |
Key Features and Advantages
Dual-Channel Redundancy: The 3500/42-01-00 features two independent channels that can monitor separate vibration points or operate in redundant mode, ensuring continuous data acquisition even if one channel fails. This design eliminates single points of failure in critical monitoring setups.
Multi-Parameter Measurement: Capable of measuring displacement, velocity, and acceleration, the module provides comprehensive vibration analysis for different fault signatures (e.g., imbalance, misalignment, bearing wear). Customizable filter settings (low-pass, band-pass) enhance signal clarity for specific machinery types.
Real-Time Diagnostics: Built-in self-test functions monitor probe health, signal integrity, and module temperature, with LED indicators and fault codes for quick troubleshooting. Diagnostic data is accessible via the 3500 Series rack interface, reducing mean time to repair (MTTR).
Hot-Swap Capability: The module can be replaced without powering down the rack, allowing maintenance during operation. This feature is essential for 24/7 industrial processes where downtime is costly.
Rugged Industrial Design: With a corrosion-resistant enclosure and conformal-coated circuitry, the 3500/42-01-00 withstands harsh conditions, including vibration (up to 15 g), shock (50 g), and electromagnetic interference. It meets rigorous environmental standards for offshore, refinery, and manufacturing environments.
Scalable System Integration: As part of the 3500 Series, the module interoperates with other 3500 components (e.g., keyphasor, relay modules) and third-party systems via open protocols, enabling scalable monitoring solutions from small setups to large industrial complexes.
Application Areas
The BENTLY 3500/42-01-00 is essential for vibration monitoring in industries where equipment reliability is critical:
- Oil & Gas: Monitors compressors, pumps, and turbines in refineries, pipelines, and offshore platforms to detect early signs of mechanical degradation, preventing unplanned shutdowns and production losses.
- Power Generation: Installed on steam turbines, generators, and auxiliary equipment in thermal, hydro, and nuclear plants to ensure grid stability and optimize energy production.
- Manufacturing: Used in high-speed rotating machinery (e.g., motors, fans, extruders) in automotive, chemical, and food processing facilities to maintain production quality and reduce maintenance costs.
- Mining: Deployed on crushers, mills, and conveyor systems to monitor equipment health in harsh mining environments, improving operational efficiency and safety.
Specific applications include:
- Turbine Health Monitoring: Analyzes shaft vibrations in steam turbines to detect imbalance or rubs, triggering alarms before catastrophic failure.
- Compressor Protection: Monitors radial vibrations in natural gas compressors to identify bearing wear or seal degradation.
- Predictive Maintenance: Provides trend data for condition-based maintenance, enabling scheduled repairs instead of reactive interventions.
Related Products
- 3500/22M Keyphasor Module: Works with the 3500/42-01-00 to provide rotational reference signals for phase-locked vibration analysis, essential for identifying synchronous faults.
- 3500/15 Power Supply Module: Supplies redundant power to the 3500/42-01-00 and other 3500 modules, ensuring uninterrupted operation.
- 3500/32M Relay Module: Triggers alarms or shutdowns based on vibration data from the 3500/42-01-00, enhancing safety in critical processes.
- 3500/92 Communication Gateway: Enables Ethernet connectivity for the 3500/42-01-00, supporting remote monitoring via SCADA systems.
- 3300 XL Proximity Probe System: Provides vibration data inputs for the 3500/42-01-00, available in various tip diameters for different machinery sizes.
- 3500/05 Rack Enclosure: Houses the 3500/42-01-00 and other modules, offering a structured and protected installation environment.
Installation and Maintenance
Pre-installation Preparations:
Before installing the BENTLY 3500/42-01-00, ensure the 3500 Series rack is properly grounded and ventilated. Verify compatibility with vibration sensors (proximity probes or velocity transducers) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using provided hardware, ensuring secure connections to the backplane and power supply. Configure channel parameters (e.g., measurement type, alarm thresholds) using Bently Nevada’s 3500 Configuration Software, and calibrate sensors against known vibration sources to validate accuracy.
Before installing the BENTLY 3500/42-01-00, ensure the 3500 Series rack is properly grounded and ventilated. Verify compatibility with vibration sensors (proximity probes or velocity transducers) and route shielded cables away from high-voltage lines to minimize interference. Mount the module in the rack using provided hardware, ensuring secure connections to the backplane and power supply. Configure channel parameters (e.g., measurement type, alarm thresholds) using Bently Nevada’s 3500 Configuration Software, and calibrate sensors against known vibration sources to validate accuracy.
Maintenance Suggestions:
- Routine Checks: Monthly visual inspections of LED indicators to confirm normal operation (power, communication, fault). Use the 3500 Series software to review channel diagnostics for signal anomalies or drift.
- Cleaning and Calibration: Annually clean the module’s vents to prevent dust accumulation, and perform sensor calibration using a vibration shaker table to maintain measurement accuracy. Document calibration results for compliance.
- Redundancy Testing: Periodically simulate channel failures to verify redundant operation, ensuring the module maintains functionality during single-channel faults.
- Spare Parts Management: Store spare 3500/42-01-00 modules in a controlled environment (10–30°C, <50% humidity) to ensure quick replacement during unexpected failures.
Product Guarantee
Our company provides a 12-month quality warranty for the BENTLY 3500/42-01-00, covering hardware defects under normal use. In the event of performance issues—such as signal inaccuracies or module failures—we offer prompt replacement services to minimize downtime. For legacy or urgent requirements, our global supply chain ensures rapid delivery of the 3500/42-01-00 and related components. Our technical support team assists with installation, calibration, and troubleshooting, delivering reliable solutions to maintain your machinery protection system’s integrity.
For inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
