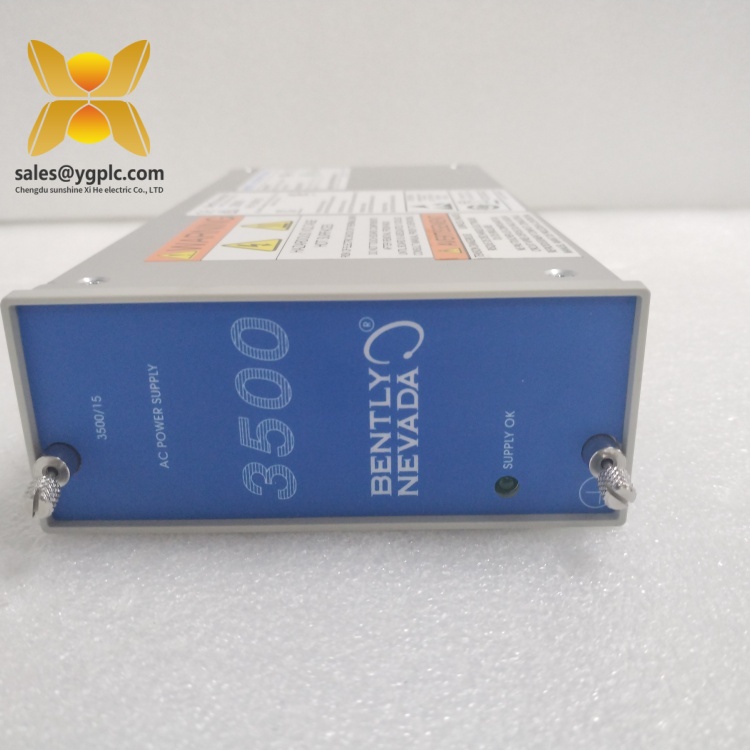

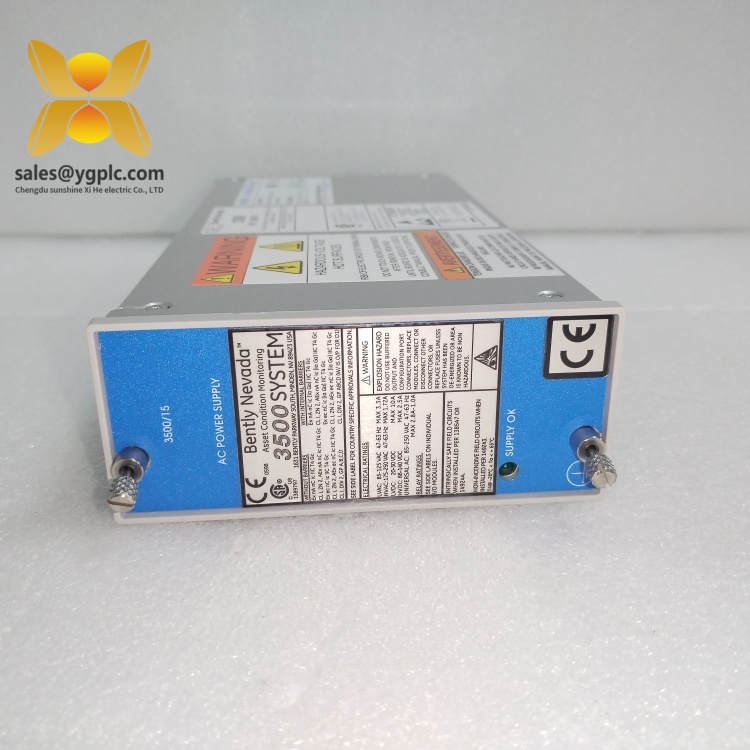

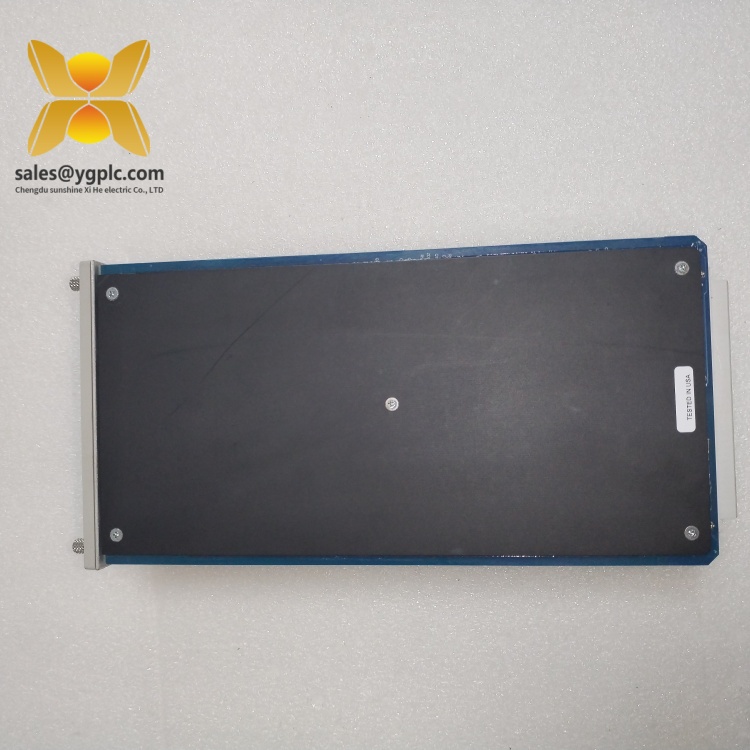

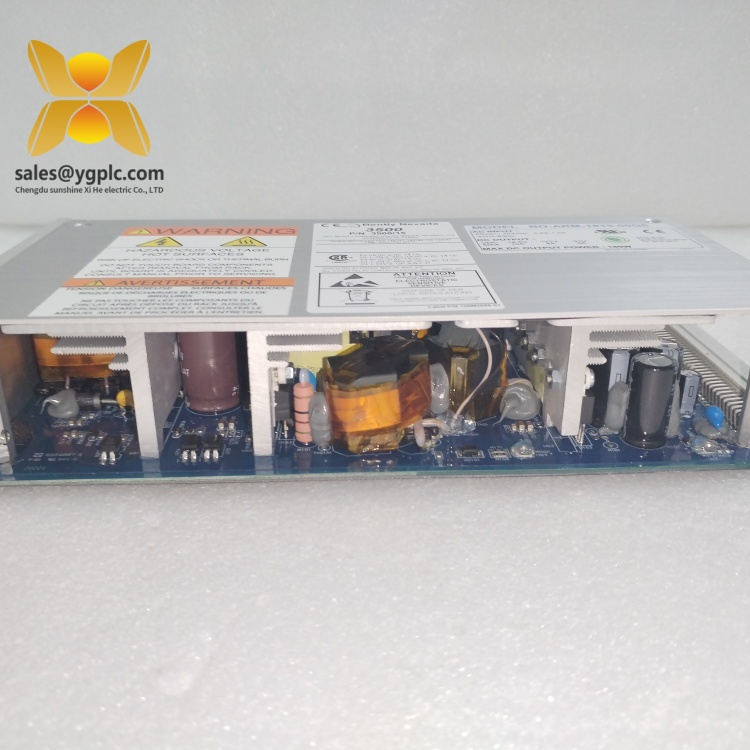

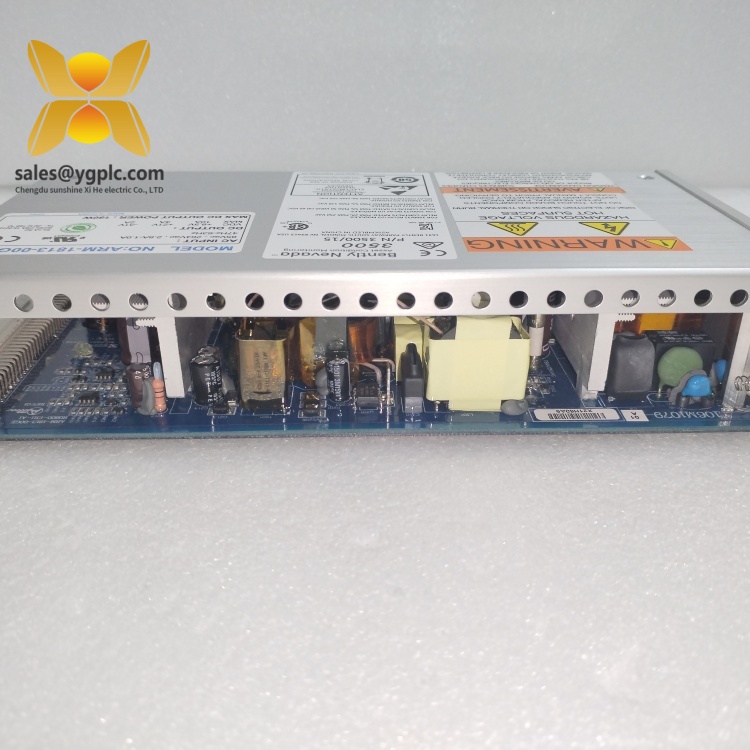

BENTLY 3500/15 114M5330-01 Power Supply Module
Product Overview
The BENTLY 3500/15 114M5330-01 is a high-reliability Power Supply Module engineered as the core power infrastructure for Bently Nevada’s 3500 Series Machinery Protection System. Designed to deliver stable and redundant DC power to monitoring modules in critical industrial setups, this module ensures uninterrupted operation of vibration analysis, shaft displacement, and safety systems. As an integral component of the 3500 Series, the 3500/15 114M5330-01 supports seamless integration with other 3500 modules (e.g., vibration monitors, keyphasor modules), providing a robust power backbone for rotating equipment protection in sectors like oil & gas, power generation, and heavy manufacturing.
Featuring a dual-channel redundant architecture, the BENTLY 3500/15 114M5330-01 converts 100–240 V AC input to a stable 24 V DC output, with each channel capable of delivering up to 5 A. Its hot-swappable design allows module replacement without system shutdown, minimizing downtime during maintenance. The module’s advanced power conditioning includes overvoltage, overcurrent, and thermal protection, ensuring reliable performance across a wide temperature range (-40°C to +70°C). Compliant with industry standards such as API 670 and IEC 61131-2, this power supply is tailored for mission-critical applications where uninterrupted monitoring is non-negotiable.
In automation ecosystems, the 3500/15 114M5330-01 serves as the energy hub for 3500 Series racks, powering modules that safeguard turbines, compressors, and generators. Its modular design facilitates easy installation in 19-inch racks, while built-in LED indicators provide real-time feedback on power status and fault conditions. By combining redundant power delivery with rugged industrial construction, this module enhances system availability and reduces the risk of unplanned outages, making it essential for proactive machinery protection strategies.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/15 114M5330-01 |
| Manufacturer | Bently Nevada |
| Product Type | Power Supply Module |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC ±0.5% |
| Output Current | 5 A per channel, 10 A total (dual-channel) |
| Efficiency | 85% typical |
| Redundancy | Dual-channel hot-swappable redundancy |
| Physical Dimensions | 10.16 cm (H) × 16.51 cm (W) × 22.86 cm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -40°C to +70°C |
| Mounting | Rack-mounted in 3500 Series enclosure |
| Certifications | CE, UL, cUL, API 670 |
Key Features and Advantages
Dual-Channel Redundancy: The 3500/15 114M5330-01 features two independent power channels that operate in parallel, ensuring continuous output even if one channel fails. This design eliminates single points of failure, critical for maintaining monitoring system functionality during power fluctuations or component faults.
Hot-Swap Capability: Engineered for maintenance flexibility, the module can be replaced without powering down the rack, allowing servicing in live systems. This feature is invaluable for 24/7 industrial operations where unplanned downtime translates to significant losses.
Wide Input Voltage Range: Supporting 100–240 V AC input, the module adapts to global power grids, reducing the need for region-specific adapters. This versatility simplifies installation in diverse geographic locations and industrial settings.
Comprehensive Protection Mechanisms: Built-in overvoltage, overcurrent, and thermal protection circuits safeguard both the module and connected monitoring equipment from damage. These safeguards extend the lifespan of the power supply and downstream components, reducing maintenance costs.
High-Efficiency Power Conversion: With 85% typical efficiency, the 3500/15 114M5330-01 minimizes energy loss and heat generation, reducing cooling requirements and operational costs. This efficiency is critical for maintaining optimal performance in enclosed control environments.
Rugged Environmental Tolerance: Designed to withstand extreme temperatures (-40°C to +70°C) and harsh industrial conditions, the module ensures reliable operation in offshore platforms, refineries, and other challenging environments where standard power supplies may fail.
Application Areas
The BENTLY 3500/15 114M5330-01 is essential for powering machinery protection systems across industries reliant on critical equipment:
- Oil & Gas: Powers vibration monitoring systems in compressors, pumps, and turbines at refineries, pipelines, and offshore rigs, enabling early detection of mechanical issues to prevent production disruptions.
- Power Generation: Supports health monitoring of steam turbines, generators, and auxiliary equipment in thermal, hydro, and nuclear plants, maintaining grid stability through real-time vibration and displacement analysis.
- Manufacturing: Powers monitoring modules for high-speed rotating equipment (e.g., motors, fans, conveyors) in automotive, chemical, and food processing facilities, minimizing unplanned downtime and optimizing production efficiency.
- Mining: Installed in crushers, mills, and ventilation systems to monitor equipment health in harsh mining environments, reducing maintenance costs and improving operational reliability.
Specific applications include:
- Turbine Protection Systems: Powers modules that monitor steam turbine vibrations, ensuring safe operation and preventing catastrophic failures through continuous data acquisition.
- Compressor Health Monitoring: Supplies power to displacement sensors and vibration analyzers in natural gas compressors, enabling predictive maintenance to avoid costly breakdowns.
- Industrial Machinery Diagnostics: Powers monitoring racks in manufacturing plants to analyze equipment vibrations, facilitating proactive maintenance and extending component lifespan.
Related Products
- 3500/15-02 Power Supply Module: An upgraded variant with enhanced thermal management, compatible with the 3500/15 114M5330-01 in redundant configurations for increased reliability.
- 3500/42M Vibration Monitor: Works in tandem with the 3500/15 114M5330-01 to analyze vibration data from rotating equipment, requiring stable power for real-time diagnostics.
- 3500/22M Keyphasor Module: Relies on the 3500/15 114M5330-01 for power, providing rotational reference signals essential for phase-locked vibration analysis.
- 3500/05 Rack Enclosure: Houses the 3500/15 114M5330-01 and other 3500 Series modules, offering a structured and protected environment for integrated monitoring systems.
- 3500/32M Relay Module: Triggers alarms or shutdowns based on monitoring data, dependent on the 3500/15 114M5330-01 for reliable power in safety-critical applications.
- 3500/92 Communication Gateway: Integrates with the 3500/15 114M5330-01 to enable remote monitoring via Ethernet, supporting Industry 4.0 initiatives and centralized control.
Installation and Maintenance
Pre-installation Preparations:
Before installing the BENTLY 3500/15 114M5330-01, ensure the 3500 Series rack is properly grounded and ventilated to prevent overheating. Verify that the input voltage (100–240 V AC) matches the module’s specifications and install redundant power cables for maximum reliability. Mount the module in the rack using the provided hardware, allowing adequate space for heat dissipation. Connect the input power using shielded cables and terminate them in the rack’s power distribution block, following Bently Nevada’s wiring guidelines to minimize electromagnetic interference.
Before installing the BENTLY 3500/15 114M5330-01, ensure the 3500 Series rack is properly grounded and ventilated to prevent overheating. Verify that the input voltage (100–240 V AC) matches the module’s specifications and install redundant power cables for maximum reliability. Mount the module in the rack using the provided hardware, allowing adequate space for heat dissipation. Connect the input power using shielded cables and terminate them in the rack’s power distribution block, following Bently Nevada’s wiring guidelines to minimize electromagnetic interference.
Maintenance Suggestions:
- Routine Inspections: Perform quarterly visual checks of LED indicators to verify power output status and detect potential faults. Use a multimeter to measure output voltage and current, comparing readings against the module’s specifications to ensure optimal performance.
- Cleaning and Cooling: Remove dust and debris from the module’s vents monthly using compressed air or a soft brush, particularly in dusty environments, to maintain efficient heat dissipation.
- Redundancy Testing: Annually simulate a channel failure to validate that the redundant channel switches on correctly, ensuring the system can withstand single-channel outages without disruption. Document test results for compliance and maintenance records.
- Spare Parts Management: Store spare 3500/15 114M5330-01 modules in a controlled environment (10–30°C, <50% humidity) to ensure rapid replacement during unexpected failures. Rotate inventory periodically to maintain component viability.
Product Guarantee
Our company provides a 12-month quality warranty for the BENTLY 3500/15 114M5330-01, covering hardware defects under normal operational conditions. In the event of power output anomalies or functional failures, we offer prompt replacement services to minimize downtime. For legacy or urgent requirements, our global supply chain network ensures rapid delivery of the 3500/15 114M5330-01 and related spare parts. Our technical support team is available 24/7 to assist with installation, troubleshooting, and system optimization, delivering reliable solutions to maintain your machinery protection systems.
