Name: BENTLY 3500/05-01-01-01-00-00 | Rack Enclosure | 330130-045-00-00 | SUNSHINE XIHE
Brand: Bently Nevada
Price: 2260.00 USD
Availability: InStock

Description

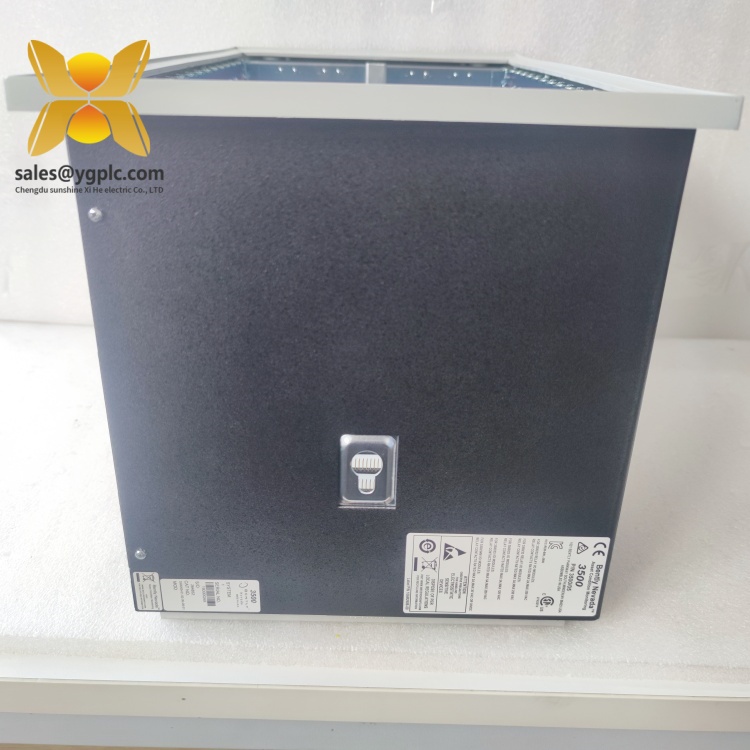

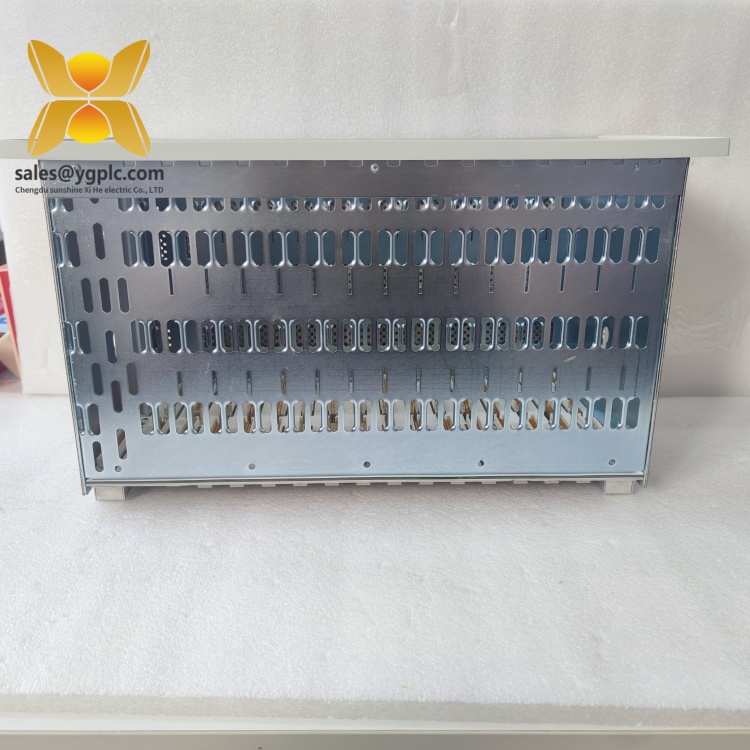

BENTLY 3500/05-01-01-01-00-00 Rack Enclosure

Product Overview: BENTLY 3500/05-01-01-01-00-00

The BENTLY 3500/05-01-01-01-00-00 rack enclosure is a high-reliability industrial chassis designed as the foundational platform for Bently Nevada’s 3500 Series Machinery Health Monitoring System. Engineered to house and integrate critical monitoring modules, this rack serves as the mechanical and electrical backbone for real-time vibration analysis, process variable monitoring, and machinery protection in mission-critical industrial applications. As a core component of the 3500 Series, the 3500/05-01-01-01-00-00 enables seamless integration of modules such as vibration monitors, communication gateways, and relay outputs, forming a comprehensive solution for predictive maintenance.

Featuring a 19-inch standard rack-mount design and rugged steel construction, the 3500/05-01-01-01-00-00 supports up to 14 modules (including power supplies, processors, and I/O cards) while ensuring optimal heat dissipation and electrical performance. Its dual redundant power supply slots (24V DC) and hot-swappable module design minimize downtime, allowing maintenance without system shutdown. The rack’s IP20 protection rating and -40°C to +70°C operating temperature range make it suitable for harsh environments, from power plant control rooms to offshore platforms.

In automation systems, the 3500/05-01-01-01-00-00 plays a pivotal role in centralizing machinery health data, enabling operators to monitor critical assets in real time. By integrating with Bently Nevada’s advanced monitoring modules, it supports early fault detection in rotating equipment, reducing unplanned downtime and optimizing maintenance schedules. Its compatibility with industry standards (e.g., API 670) ensures compliance and reliability in high-stakes industrial settings.

Technical Specifications: BENTLY 3500/05-01-01-01-00-00

Parameter Name	Parameter Value
Product Model	3500/05-01-01-01-00-00
Manufacturer	BENTLY NEVADA
Product Type	Rack Enclosure
Module Capacity	14 slots (12 functional, 2 power supply)
Power Supply	24V DC (dual redundant slots)
Physical Dimensions	482.6 mm (W) × 266.7 mm (H) × 304.8 mm (D)
Weight	12 kg
Operating Temperature	-40°C to +70°C
Humidity	5–95% non-condensing
Mounting Type	19-inch rack-mount (EIA standard)
Protection Rating	IP20
Compliance	API 670, IEC 61000-6-2
Country of Origin	United States

Main Features and Advantages: BENTLY 3500/05-01-01-01-00-00

Robust Redundancy Design: The 3500/05-01-01-01-00-00 supports dual redundant power supplies, ensuring continuous operation even if one power source fails. This feature is critical for applications where downtime risks significant financial loss, such as turbine control systems in power plants.

High-Density Module Integration: With capacity for 14 modules, the rack enables comprehensive monitoring setups, combining vibration analysis, process variables, and communication interfaces in a single chassis. This density reduces panel space requirements and simplifies system management.

Hot-Swappable Functionality: Modules can be replaced without powering down the system, minimizing maintenance downtime. This capability is essential for industries like oil & gas, where continuous operation is non-negotiable.

Industrial-Grade Durability: Constructed from heavy-gauge steel with an IP20 rating, the rack withstands dust, mechanical stress, and electromagnetic interference. Its wide temperature range ensures reliability in extreme industrial environments, from arctic mining sites to tropical refineries.

Standardized Ecosystem Compatibility: Designed exclusively for Bently Nevada’s 3500 Series, the rack ensures seamless integration with modules like 3500/42M vibration monitors and 3500/92 communication gateways, eliminating compatibility issues and simplifying system expansion.

Application Areas: BENTLY 3500/05-01-01-01-00-00

The BENTLY 3500/05-01-01-01-00-00 rack enclosure is essential for industries requiring precise machinery health monitoring:

Power Generation: Houses monitoring systems for steam turbines, generators, and auxiliary equipment, enabling real-time vibration analysis to prevent catastrophic failures in thermal, hydro, and renewable energy plants.
Oil and Gas: Deploys in refineries, pipelines, and offshore platforms to monitor compressors, pumps, and motors, supporting safety interlocks and predictive maintenance in harsh, hazardous environments.
Manufacturing: Integrates with CNC machines, robotic arms, and conveyor systems in automotive and pharmaceutical facilities, ensuring production consistency by detecting early signs of mechanical degradation.
Water Treatment: Manages pump and blower monitoring in water/wastewater plants, maintaining regulatory compliance and operational efficiency through continuous vibration and temperature analysis.
Aerospace and Defense: Supports condition monitoring of aircraft engines and ground support equipment, where failure prevention is critical for mission readiness.

Installation and Maintenance: BENTLY 3500/05-01-01-01-00-00

Pre-installation Preparations:
Before installing the 3500/05-01-01-01-00-00, verify the control cabinet meets ventilation requirements (25°C–40°C ambient) and is properly grounded. Secure the rack to a 19-inch mounting frame using the provided hardware, allowing at least 100 mm clearance for heat dissipation. Connect dual 24V DC power supplies to the designated slots, ensuring polarity and torque specifications (1.2–1.5 N·m). Install modules starting from the power supply slots, aligning them with the backplane connectors and securing them with retention clips.

Maintenance Recommendations:

Routine Inspections: Monthly checks include verifying power supply LEDs, tightening cable connections, and cleaning dust from ventilation slots to maintain thermal efficiency. Use a non-conductive brush to remove debris from module heatsinks.
Redundancy Testing: Quarterly test dual power supplies by simulating a failure to ensure automatic failover. Replace faulty power modules immediately to maintain system resilience.
Environmental Monitoring: Regularly assess ambient temperature and humidity, installing additional cooling if conditions exceed 40°C. Ensure the IP20 enclosure remains free of dust and moisture ingress.
Spare Parts Management: Keep a spare 3500/05-01-01-01-00-00 rack and critical modules on hand, leveraging our global supply chain for rapid replacement of discontinued components.

Product Guarantee: BENTLY 3500/05-01-01-01-00-00

Our company provides a 12-month quality warranty for the BENTLY 3500/05-01-01-01-00-00 rack enclosure, covering hardware defects from non-human causes. During the warranty period, we will replace any rack with faulty backplanes, damaged enclosures, or power supply slot failures at no cost. For urgent needs or discontinued models, our extensive inventory and global logistics network ensure prompt delivery, minimizing downtime and supporting continuous industrial operation.

With 17 years of expertise in industrial control distribution, we prioritize reliable solutions and exceptional service. The 3500/05-01-01-01-00-00 exemplifies our commitment to quality, offering the durability and integration needed for critical machinery monitoring. Contact us today to optimize your predictive maintenance strategy with this robust rack enclosure.

Note: All product names, logos, and brands are property of their owners. This document is informational and does not substitute for Bently Nevada’s official technical manuals.

Whatsapp:+86 18859254943
E-mail :sales@ygplc.com
