BENTLY 330130-045-00-00 Product Specification
Product Overview

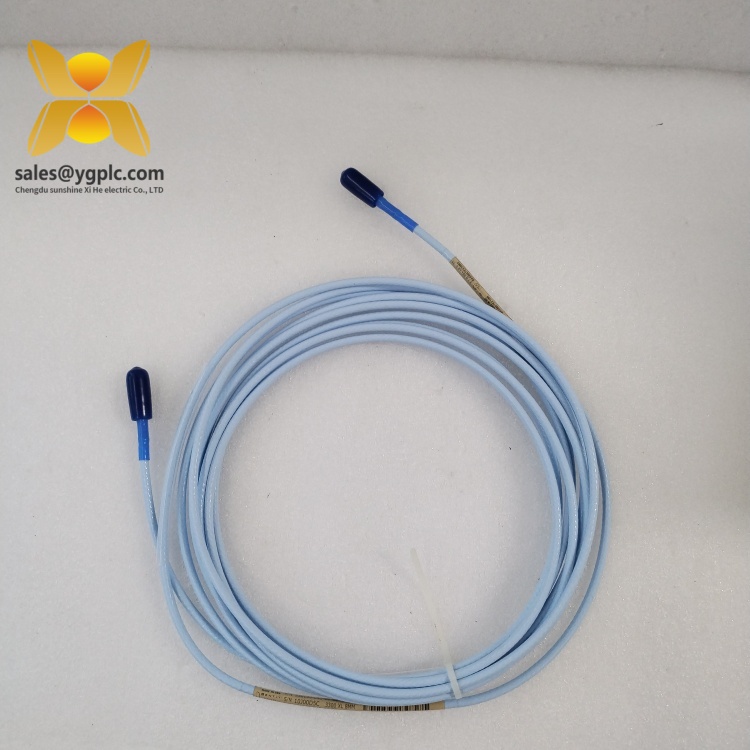

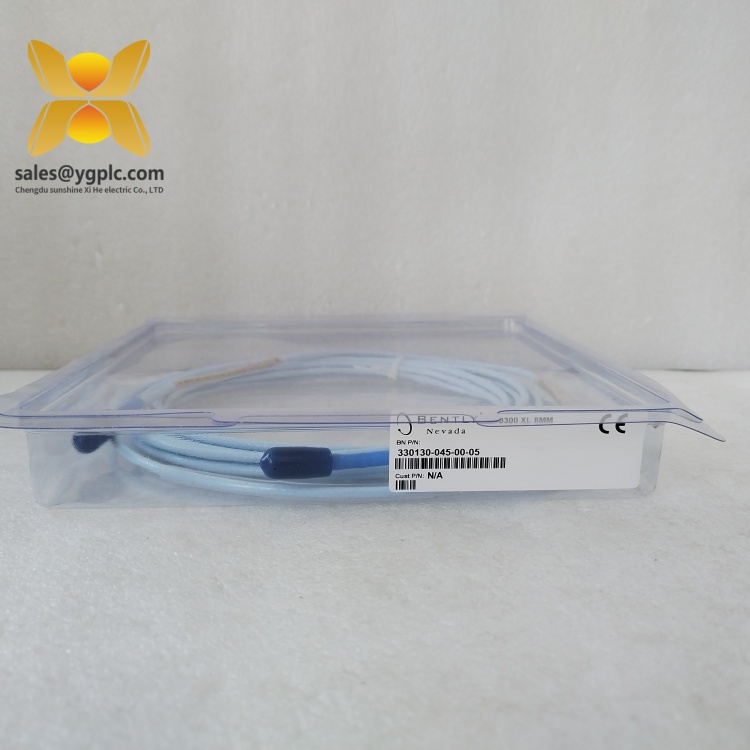

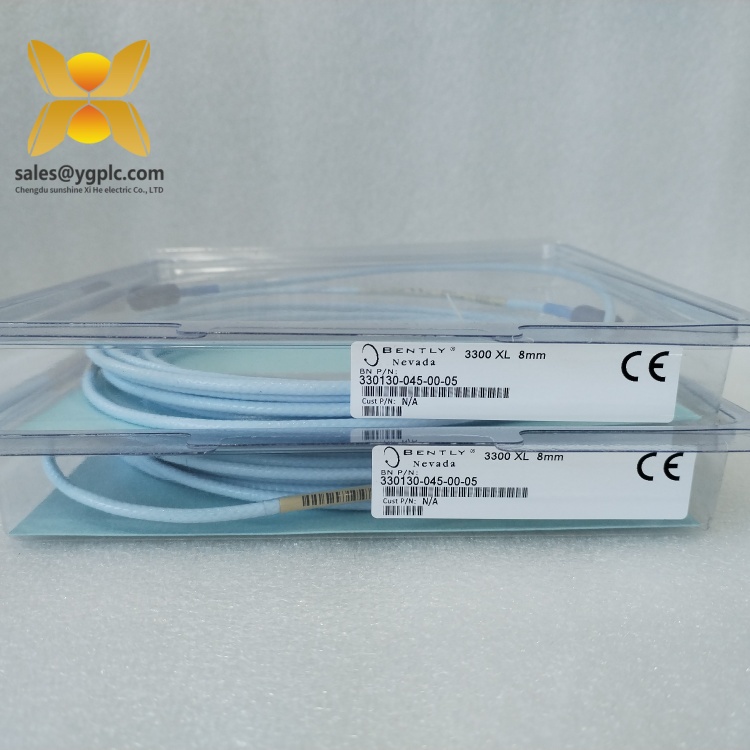

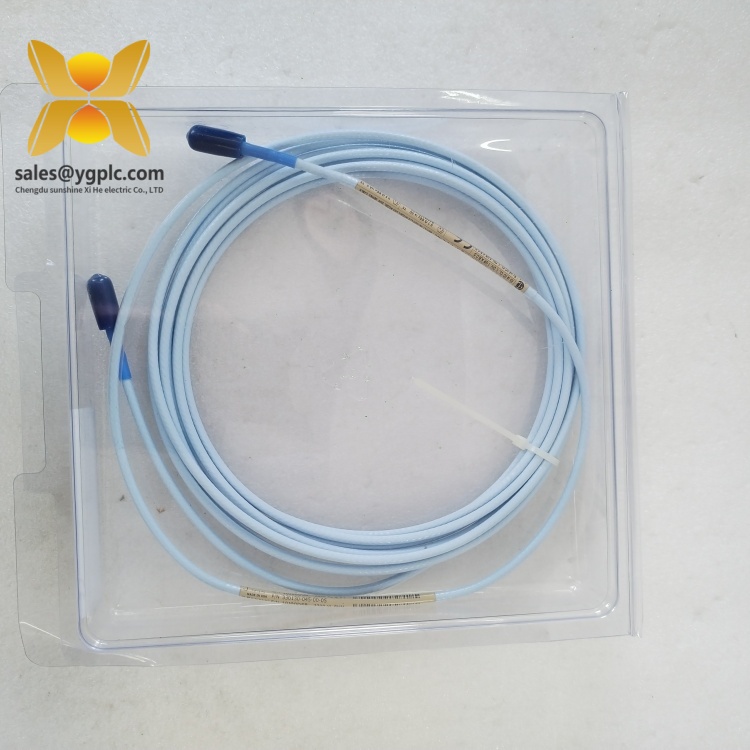

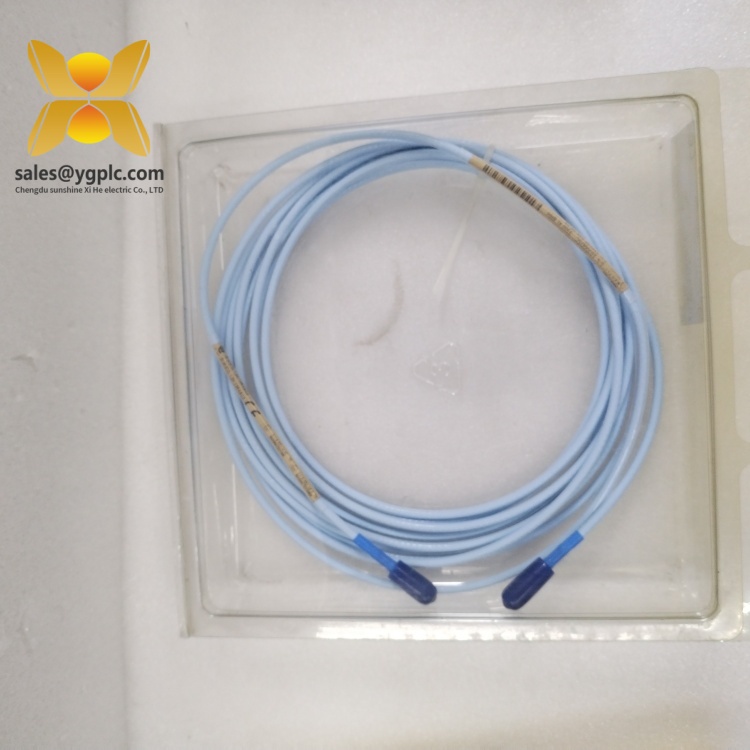

The BENTLY 330130-045-00-00 is a high-precision eddy current proximity probe engineered for BENTLY’s renowned 3300 Series Machinery Protection System. Designed to monitor shaft displacement, vibration, and position in rotating equipment, this probe serves as a critical component in industrial automation systems across industries such as oil and gas, power generation, and manufacturing. The BENTLY 330130-045-00-00 features a 5 mm probe diameter and a 4.5 m cable length, offering optimal performance in close-range monitoring of shafts, gears, and bearings in turbines, compressors, and generators.
As part of the 3300 Series, the BENTLY 330130-045-00-00 integrates seamlessly with BENTLY’s monitoring modules (e.g., 3300/42M vibration monitors) to form a comprehensive machinery health management solution. It utilizes eddy current technology to provide non-contact measurements with micron-level accuracy, enabling early detection of machinery degradation such as misalignment, imbalance, or bearing wear. The probe’s stainless-steel housing and PTFE-insulated cable ensure durability in harsh environments, with resistance to corrosion, high temperatures, and electromagnetic interference (EMI).
In automation systems, the BENTLY 330130-045-00-00 acts as a frontline sensor, converting mechanical movements into electrical signals for real-time analysis. Its linear measurement range of 0–2500 μm and sensitivity of 7.87 V/mm (200 mV/mil) make it ideal for critical applications where precise data is essential to prevent costly downtime. By delivering reliable displacement data, the probe supports predictive maintenance strategies, allowing engineers to address issues proactively and extend equipment lifespan.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | BENTLY 330130-045-00-00 |
| Manufacturer | BENTLY NEVADA |
| Product Type | Eddy Current Proximity Probe |
| Probe Diameter | 5 mm |
| Cable Length | 4.5 m (PTFE-insulated) |
| Measurement Range | 0–2500 μm (linear) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0–10 kHz |
| Operating Temperature | -54°C to +177°C |
| Storage Temperature | -54°C to +121°C |
| Housing Material | Stainless steel |
| Connector Type | BENTLY 3300 Series compatible (male) |
| Weight | 0.4 kg |
| Certifications | CE, ISO 9001 |
Main Features and Advantages
High-Precision Eddy Current Technology: The BENTLY 330130-045-00-00 utilizes eddy current principles to measure shaft displacement with micron-level accuracy, critical for detecting minimal movements that indicate potential machinery issues. Its linear response ensures consistent performance across the entire measurement range, reducing the risk of false alarms.
Rugged Environmental Design: Constructed with a stainless-steel housing and PTFE-insulated cable, the probe withstands extreme temperatures, moisture, and EMI, making it suitable for harsh industrial environments. The cable’s durability reduces maintenance needs in high-vibration settings, such as offshore platforms or power plant turbines.
Seamless System Integration: Designed for BENTLY’s 3300 Series monitoring platforms, the BENTLY 330130-045-00-00 connects directly to modules like the 3300/42M vibration monitor, enabling real-time data transmission and analysis. This integration streamlines system setup and ensures compatibility with existing BENTLY protection systems.
Self-Shielded Construction: The probe’s self-shielded design minimizes electromagnetic interference from adjacent devices, ensuring reliable measurements in dense installations with multiple probes. This feature is particularly valuable in multi-probe setups common in large turbines or compressors.
Optimal Cable Length: With a 4.5 m cable, the BENTLY 330130-045-00-00 balances installation flexibility with signal integrity, allowing placement in hard-to-reach areas while maintaining measurement accuracy. The cable’s PTFE insulation prevents signal degradation in high-temperature environments.
Application Areas
The BENTLY 330130-045-00-00 is widely applied in industries where precise monitoring of rotating equipment is essential:
-
Power Generation:
- Monitors steam and gas turbine shafts for displacement and vibration, enabling early detection of imbalance or bearing wear.
- Integrates with generator systems to ensure rotor alignment, optimizing energy production and preventing stator damage in power plants.
-
Oil and Gas:
- Controls compressor shafts in refineries and pipeline pumping stations, maintaining optimal flow rates and preventing catastrophic failures.
- Installed in offshore platforms to monitor drilling equipment under harsh marine conditions, ensuring safety and operational efficiency.
-
Manufacturing:
- Monitors high-speed rotating machinery in automotive plants, such as engine test stands and conveyor drives, to maintain production quality.
- Ensures precision in paper mills by measuring roll displacement in production lines, reducing material waste and improving product consistency.
-
Water/Wastewater Treatment:
- Monitors pump shafts in water treatment facilities to detect early signs of cavitation or misalignment, ensuring consistent water flow.
- Integrates with SCADA systems for remote monitoring of distributed pump stations, enabling proactive maintenance scheduling.
Related Products
- BENTLY 330130-025-00-00: A 5 mm proximity probe with a shorter 2.5 m cable, suitable for installations requiring closer proximity to the monitor module.
- BENTLY 330130-060-00-00: A 5 mm probe with a 6 m cable, ideal for applications where greater installation distance is needed.
- BENTLY 3300/42M 129408-01: A vibration/temperature monitor that processes signals from the BENTLY 330130-045-00-00 to generate alarm signals and trend data.
- BENTLY 330180-90-05: A proximity probe extension cable, allowing further adjustment of installation depth in tight spaces.
- BENTLY 3300/95 129411-01: A redundant power supply module ensuring continuous operation of the probe and monitor system in mission-critical applications.
Installation and Maintenance
Pre-installation Preparation:
Before installing the BENTLY 330130-045-00-00, ensure the following:
Before installing the BENTLY 330130-045-00-00, ensure the following:
- Verify the probe’s measurement range (0–2500 μm) matches the application’s requirements and use BENTLY’s installation tools to set the initial gap (typically 1.5 mm) between the probe and target surface.
- Route the 4.5 m cable away from high-voltage lines to minimize EMI, securing it with stainless-steel clamps to prevent movement-induced damage. Use cable trays or conduits for protection in high-vibration environments.
- Calibrate the probe using a BENTLY 3300 System Calibrator to ensure sensitivity is set to 7.87 V/mm, verifying output signals against known standards.
Maintenance Recommendations:
- Routine Inspections: Quarterly visual checks for cable abrasion, connector corrosion, and probe alignment, especially in high-vibration applications. Replace damaged cables immediately to avoid signal degradation.
- Calibration: Annual calibration using a BENTLY-certified vibration calibrator to ensure measurement accuracy. This involves applying known displacement values and verifying output signals to maintain precision.
- Environmental Monitoring: Regularly assess ambient temperature and humidity levels to ensure they remain within the probe’s operational range (-54°C to +177°C), as extreme conditions can affect measurement reliability.
- Spare Parts Management: Keep a spare BENTLY 330130-045-00-00 on hand for critical systems, as its hot-swappable design allows replacement without shutting down the machinery.
Product Warranty
Our company provides a one-year quality warranty for the BENTLY 330130-045-00-00, covering hardware defects not caused by misuse or environmental damage. During the warranty period, we will replace any probe that fails to meet performance specifications. For discontinued models like the BENTLY 330130-045-00-00, our global inventory of legacy industrial parts ensures rapid fulfillment of urgent orders. We also offer post-warranty technical support, including calibration services and repair solutions, to maintain your equipment’s reliability throughout its lifecycle.
Contact Information:
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Note: This document is based on technical data derived from BENTLY NEVADA’s official specifications and industry applications. For detailed installation guidelines, refer to the BENTLY 330130-045-00-00 user manual or contact our technical support team for personalized assistance.
