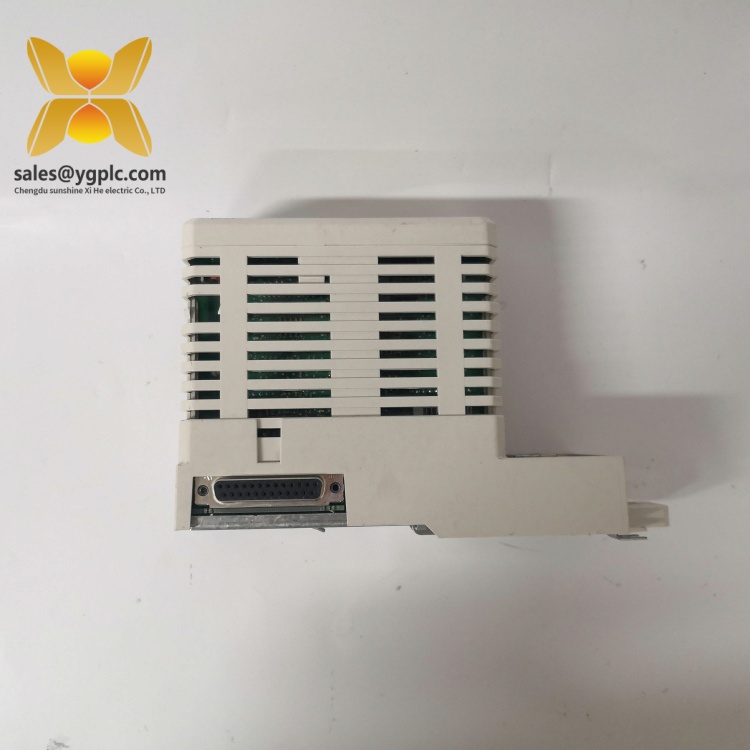

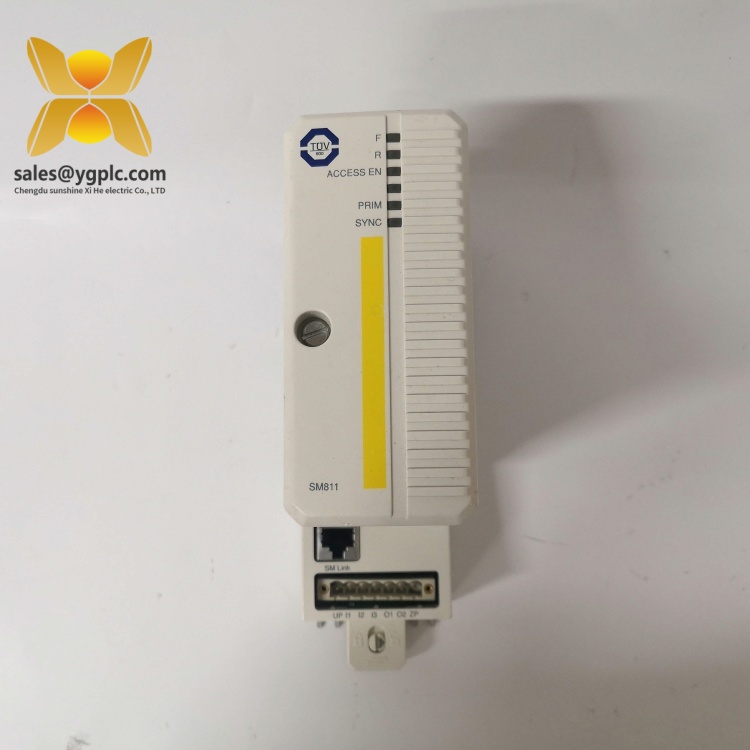

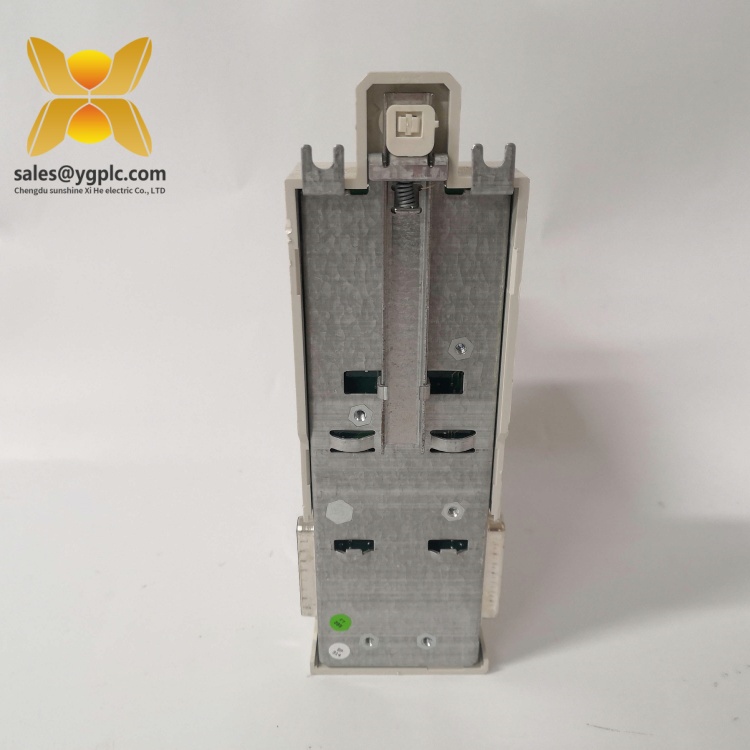

Product Overview: ABB SM811K01

Name: ABB SM811K01 | Safety Monitoring Module | SUNSHINE XIHE
Brand: ABB
Price: 3621.00 USD
Availability: InStock

In industrial automation, where safety and precision directly impact operational success, the ABB SM811K01 emerges as a critical component designed to elevate monitoring and control capabilities. As part of ABB’s esteemed range of safety and automation solutions, the ABB SM811K01 is engineered to provide real-time oversight of critical processes, ensuring compliance with safety standards and optimizing system performance across demanding industrial environments.

Whether deployed in manufacturing lines, energy plants, or heavy machinery systems, the ABB SM811K01 delivers consistent reliability, acting as a vigilant monitor that detects anomalies and triggers appropriate responses to prevent downtime or hazards. Built on ABB’s decades of expertise in industrial engineering, this module combines cutting-edge sensor integration with intuitive operation, making it a trusted choice for engineers and plant managers seeking to enhance both safety and efficiency in their operations.

Technical Specifications — ABB SM811K01

Parameter	Specification
Product Model	ABB SM811K01
Type	Safety Monitoring Module
Operating Voltage	24V DC (±15%)
Power Consumption	Max 8W
Input Channels	8 x Digital Inputs (24V DC, PNP/NPN configurable)
Output Channels	4 x Relay Outputs (NO/NC configurable, 5A @ 250V AC)
Communication Interface	Ethernet/IP, Modbus TCP
Response Time	<10ms
Operating Temperature	-10°C to +60°C (14°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Protection Rating	IP20 (DIN Rail Mount)
Dimensions (W x H x D)	45mm x 120mm x 110mm (1.77″ x 4.72″ x 4.33″)
Weight	Approx. 220g (0.48 lbs)
Certifications	SIL 2, IEC 61508, CE, UL 508

ABB SM811K01

Main Features and Advantages: ABB SM811K01

The ABB SM811K01 stands out in industrial safety systems, offering a blend of advanced functionality and practical benefits that address the core needs of modern operations:

1. High-Speed Safety Monitoring

With a response time of less than 10ms, the ABB SM811K01 quickly detects irregularities in connected equipment—such as unexpected stops, overcurrent, or pressure spikes—and triggers protective actions to prevent accidents or equipment damage. This rapid response is critical in high-risk environments where even a small delay could lead to costly incidents.

2. Flexible Input/Output Configuration

Equipped with 8 digital inputs and 4 configurable relay outputs, the ABB SM811K01 adapts to diverse system requirements. Inputs support both PNP and NPN signals, while outputs can be set to normally open (NO) or normally closed (NC) modes, eliminating the need for additional adapters and simplifying integration with existing sensors, switches, and actuators.

3. Seamless Network Integration

Featuring Ethernet/IP and Modbus TCP communication protocols, the ABB SM811K01 easily connects to PLCs, SCADA systems, and HMI panels. This connectivity enables real-time data sharing across the entire automation network, allowing operators to monitor system status remotely, analyze trends, and make informed decisions without being on-site.

4. SIL 2 Safety Compliance

Certified to SIL 2 (Safety Integrity Level) and compliant with IEC 61508 standards, the ABB SM811K01 meets rigorous safety requirements for critical applications. This certification ensures that the module operates reliably even in high-risk scenarios, providing peace of mind for operations where safety is non-negotiable.

5. Rugged Design for Industrial Environments

Built to withstand harsh conditions, the ABB SM811K01 operates flawlessly in temperatures ranging from -10°C to +60°C, resisting vibration, dust, and electrical interference. Its durable construction minimizes wear and tear, reducing the need for frequent replacements and lowering long-term maintenance costs.

Installation and Maintenance: ABB SM811K01

Installing and maintaining the ABB SM811K01 is designed to be efficient, ensuring minimal disruption to operations:

Installation Steps

Mounting: Secure the ABB SM811K01 on a 35mm DIN rail in a control cabinet, ensuring the location is dry, well-ventilated, and free from excessive vibration.
Wiring: Connect the 24V DC power supply, input signals (sensors, switches), and output devices (relays, alarms) using the terminal blocks. Follow the wiring diagram in the user manual to avoid polarity errors.
Network Setup: Configure Ethernet/IP or Modbus TCP settings via the module’s web interface or ABB’s configuration software, ensuring compatibility with your existing network.
Testing: Power on the system and verify input detection, output triggering, and network communication. Use the built-in diagnostic tools to check for wiring faults or configuration errors.

Maintenance Guidelines

Regular Inspections: Monthly checks for loose connections, terminal corrosion, or signs of overheating (e.g., discoloration). Tighten terminals as needed and clean dust with compressed air.
Diagnostic Checks: Quarterly run system diagnostics via the web interface to verify input/output functionality and communication health. Address any alerts promptly.
Firmware Updates: Periodically check for firmware updates on ABB’s website to access new features and security enhancements. Update via the network or USB port.
Replacement Criteria: Replace the ABB SM811K01 if it fails diagnostic tests, shows physical damage, or no longer meets safety certification requirements.

ABB SM811K01

Product Guarantee: ABB SM811K01

ABB stands behind the performance and reliability of the ABB SM811K01 with a comprehensive support package:

Warranty Period: 36 months from the date of delivery, covering defects in materials and workmanship under normal operating conditions.
Safety Compliance Support: Access to ABB’s safety engineering team to assist with SIL verification, risk assessments, and compliance documentation.
Technical Assistance: 24/7 global support via phone and email for installation guidance, troubleshooting, and configuration help.
Replacement Services: Priority replacement of faulty units during the warranty period to minimize downtime, with next-day shipping options in most regions.
Training Resources: Online courses and on-site training sessions to help teams maximize the functionality of the ABB SM811K01 and maintain safety standards.
