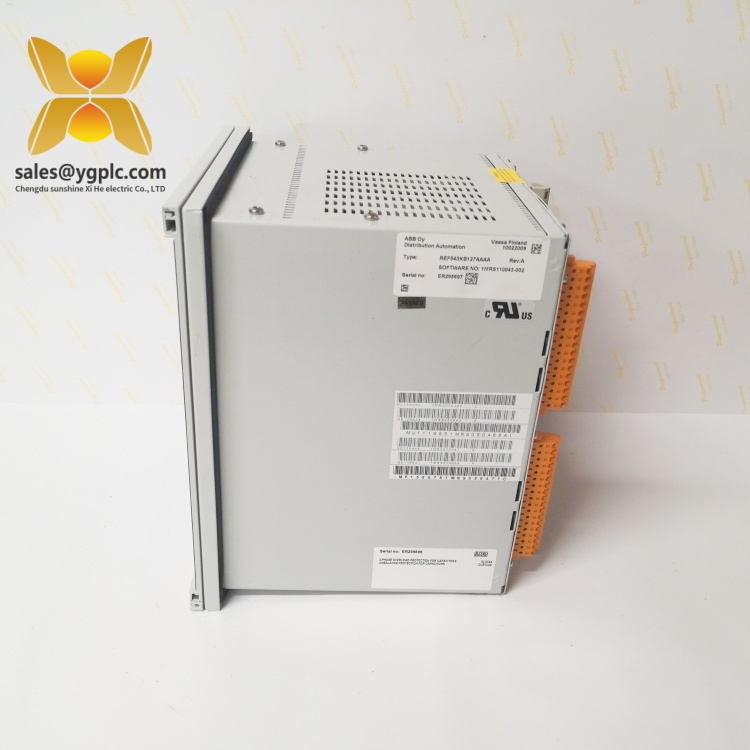

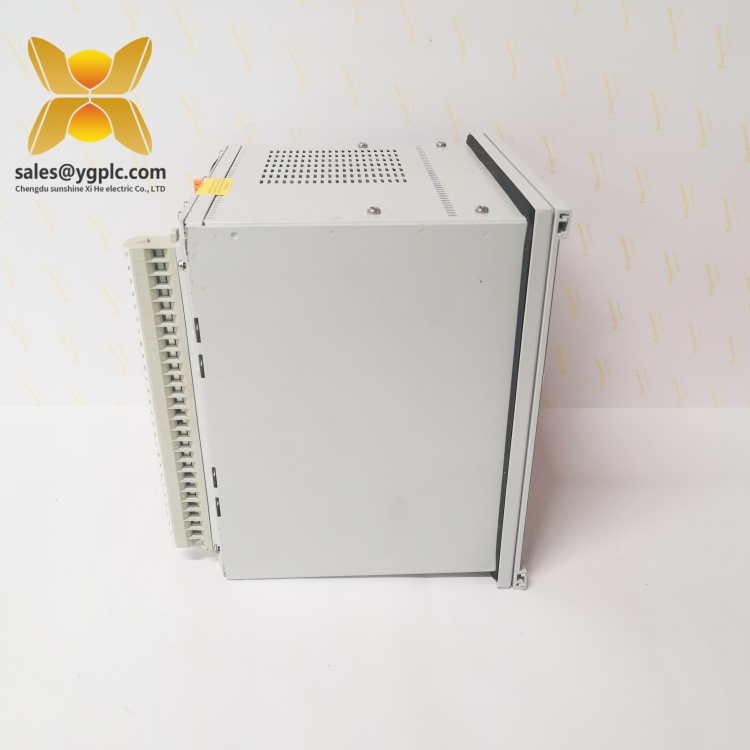

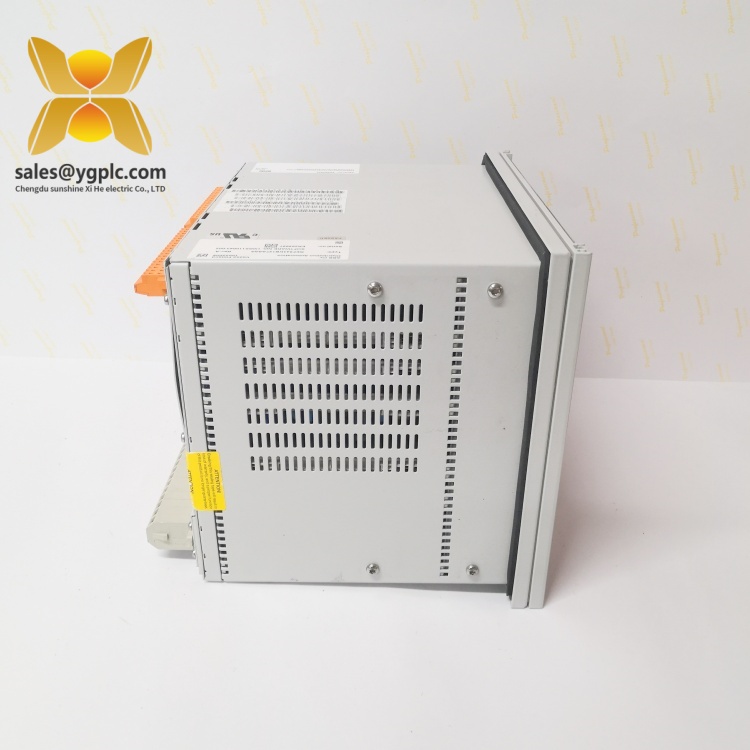

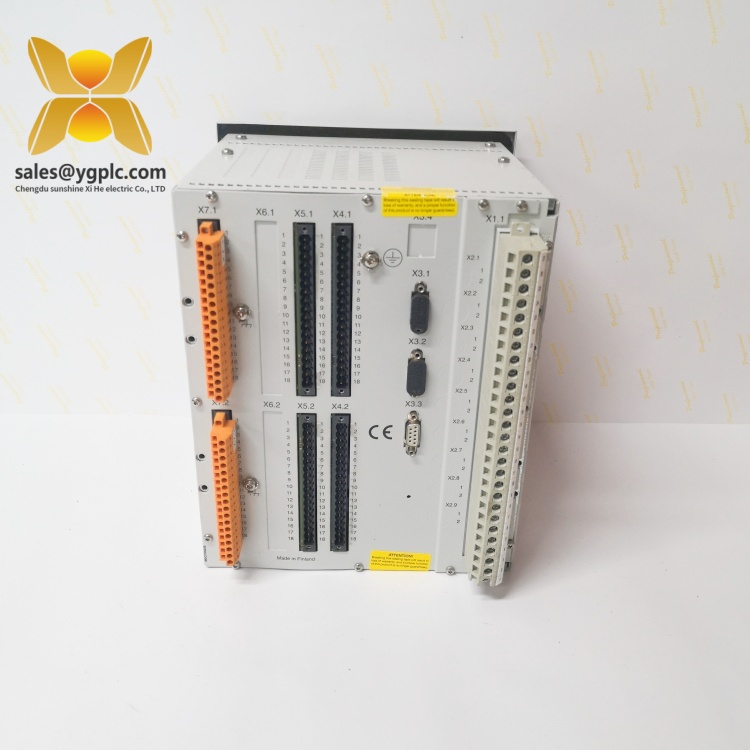

ABB REF543KB127AAAA Digital Protection Relay
Product Overview：ABB REF543KB127AAAA
The ABB REF543KB127AAAA is a high-performance digital protection relay designed for medium-voltage power systems, offering advanced protection, control, and monitoring capabilities. As part of ABB’s REF543 Series, this relay is engineered to safeguard critical electrical assets such as transformers, motors, generators, and transmission lines in industries like power generation, oil & gas, and manufacturing. The REF543KB127AAAA combines multiple protection functions into a single compact unit, ensuring reliable fault detection and rapid response to minimize downtime and prevent equipment damage.
Featuring a robust microprocessor-based architecture, the ABB REF543KB127AAAA supports a wide range of protection schemes, including overcurrent, earth fault, distance protection, and differential protection. Its intuitive HMI and configurable I/O interfaces enable seamless integration with SCADA systems, allowing real-time data monitoring and remote control. The relay’s compliance with international standards (IEC 61850, IEEE 1588) ensures interoperability in modern smart grids, while its rugged design (IP54-rated enclosure) guarantees performance in harsh environmental conditions.
In automation ecosystems, the REF543KB127AAAA serves as a cornerstone of power system reliability, providing both primary and backup protection layers. Its dual-core processing capability ensures simultaneous execution of protection algorithms and communication tasks, reducing latency and enhancing system stability. Whether deployed in standalone substations or integrated into large-scale DCS networks, this relay optimizes power system efficiency by enabling predictive maintenance and reducing manual intervention.
Technical Specifications：ABB REF543KB127AAAA
| Parameter Name | Parameter Value |
|---|---|
| Product Model | REF543KB127AAAA |
| Manufacturer | ABB |
| Product Type | Digital Protection Relay |
| Voltage Input | 57.7V/100V (phase), 100V (line) AC |
| Current Input | 1A or 5A AC |
| Communication Protocols | IEC 61850, Modbus TCP, DNP3 |
| Physical Dimensions | 224 mm (H) × 144 mm (W) × 246 mm (D) |
| Weight | 1.5 kg |
| Operating Temperature | -25°C to +70°C |
| Mounting | Panel-mounted or rack-mounted |
| Certifications | CE, IEC 61000-6-2, IEC 61000-6-4 |
| Protection Functions | Overcurrent, earth fault, distance, differential, auto-reclosing |
ABB REF543KB127AAAA
Key Features and Advantages：ABB REF543KB127AAAA
Integrated Protection and Control: The REF543KB127AAAA consolidates multiple protection functions into a single device, eliminating the need for separate relays and reducing panel space requirements. Its modular design allows easy configuration for different applications, from simple overcurrent protection to complex differential schemes.
Advanced Communication Capabilities: With native support for IEC 61850 and other industrial protocols, the relay enables seamless integration with smart grid systems. Real-time data streaming and remote firmware updates enhance operational flexibility, while IEEE 1588 precision time synchronization ensures accurate event recording.

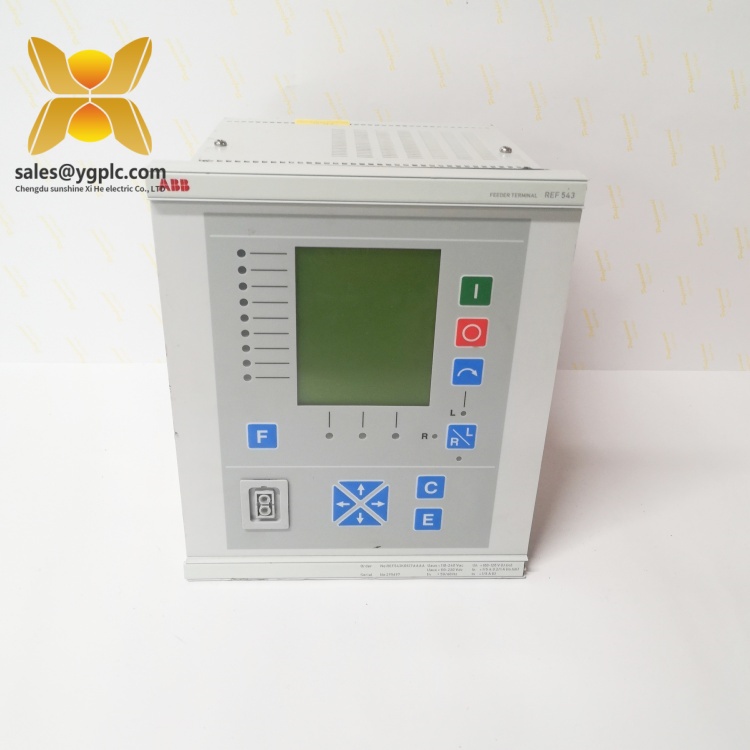

User-Friendly Interface: The relay’s graphical LCD display and front-panel controls simplify setup and troubleshooting. Customizable event logs and trend analysis tools help maintenance teams identify potential issues before they escalate, reducing mean time to repair (MTTR).
Rugged Industrial Design: Built to withstand electromagnetic interference (EMI) and extreme temperatures, the REF543KB127AAAA features a shock-resistant enclosure and conformal-coated PCBs. Its dual power supply inputs (AC/DC) provide redundancy, ensuring continuous operation during power fluctuations.
Scalable System Integration: As part of ABB’s Ability™ digital platform, the relay can be integrated with ABB’s Relion® management software for centralized monitoring and analytics. This scalability makes it suitable for both small-scale distribution networks and large-scale transmission systems.
ABB REF543KB127AAAA
Application Areas：ABB REF543KB127AAAA
The ABB REF543KB127AAAA is widely deployed in critical power infrastructure across various industries:
- Power Generation: Protecting steam turbines, gas generators, and auxiliary systems in thermal, hydro, and renewable energy plants. Its differential protection capabilities safeguard generators against stator and rotor faults.
- Transmission and Distribution: Ensuring reliable power flow in medium-voltage substations by detecting and isolating faults on transmission lines. Distance protection functions enable precise fault location, reducing repair time.
- Industrial Manufacturing: Safeguarding motors, transformers, and switchgear in steel mills, chemical plants, and automotive facilities. The relay’s motor protection features include 堵转 (locked rotor) detection and thermal overload protection.
- Oil & Gas: Providing fail-safe protection for offshore platforms and onshore pipelines, where uninterrupted power supply is critical for safety systems and production processes.
Specific applications include:
- Transformer Protection: Using harmonic restraint and percentage differential algorithms to detect internal faults in power transformers.
- Feeder Protection: Implementing time-overcurrent and earth fault protection for distribution feeders, with auto-reclosing functionality to restore power after transient faults.
- Grid Modernization: Supporting the integration of distributed energy resources (DERs) by providing fast-acting protection and seamless communication with microgrid controllers.
Related Products：ABB REF543KB127AAAA
- REF543KB128AAAA: A higher-channel variant with expanded I/O capabilities, suitable for complex power systems requiring multiple protection zones.
- REF543EB127AAAA: A cost-optimized model with basic protection functions, ideal for small-scale distribution networks.
- REF543LB127AAAA: Features built-in synchrocheck and auto-reclosing for transmission line applications, enhancing grid stability during switching operations.
- REF615 Digital Relay: A high-voltage protection relay designed for transmission systems, complementing the REF543KB127AAAA in layered protection schemes.
- PCM600 Communication Module: Extends the relay’s connectivity by adding support for Profibus DP or Ethernet/IP, enabling integration with legacy PLC systems.
- HMI800 Human-Machine Interface: Provides a dedicated graphical interface for the REF543KB127AAAA, enhancing local control and diagnostics in substation environments.
- SPC500 Power Supply: A redundant AC/DC power supply designed for ABB relays, ensuring uninterrupted operation in critical applications.
- REX670 Bay Controller: Acts as a central hub for multiple relays, coordinating protection, control, and monitoring functions in smart substations.
ABB REF543KB127AAAA
Installation and Maintenance：ABB REF543KB127AAAA
Installation Preparation:
Before installing the REF543KB127AAAA, verify the power supply voltage (110–240 V AC/DC) and ensure the mounting panel is properly grounded. Use shielded cables for current and voltage inputs to minimize interference, and route communication cables separately from power cables. Configure the relay’s IP address and communication parameters using ABB’s Relion® Configurator software before powering it on.
Before installing the REF543KB127AAAA, verify the power supply voltage (110–240 V AC/DC) and ensure the mounting panel is properly grounded. Use shielded cables for current and voltage inputs to minimize interference, and route communication cables separately from power cables. Configure the relay’s IP address and communication parameters using ABB’s Relion® Configurator software before powering it on.
Maintenance Recommendations:
- Routine Checks: Perform quarterly inspections to ensure all connections are secure and the enclosure is free of dust or moisture. Use the relay’s built-in self-diagnostics to verify the integrity of protection algorithms and I/O channels.
- Firmware Updates: Regularly update the relay’s firmware to access new features and security patches, following ABB’s official procedures. Back up configuration files before initiating updates to prevent data loss.
- Periodic Testing: Conduct annual functional tests using a relay test set to validate protection settings and trip characteristics. Document test results for compliance with industry standards.
- Spare Parts Management: Maintain a spare REF543KB127AAAA relay in a controlled environment (temperature: 10–30°C, humidity: 20–80% RH) to minimize downtime in case of failure.
ABB REF543KB127AAAA
Product Warranty：ABB REF543KB127AAAA
Our company provides a 12-month quality warranty for the ABB REF543KB127AAAA, covering hardware defects under normal use. In the event of performance issues or functional failures, we offer prompt replacement services. For discontinued models or urgent requirements, our global supply chain network ensures rapid delivery of rare or obsolete parts, supporting continuous industrial operations. Our technical support team is available 24/7 to assist with installation, troubleshooting, and system optimization, ensuring seamless integration and long-term reliability.
For inquiries, contact our team via Whatsapp:+86 18859254943 or E-mail :sales@ygplc.com
