ABB PCS6000 Medium Voltage Full Power Converter for Wind Turbines
1.Product Overview：ABB PCS6000
The ABB PCS6000 is a medium voltage full power converter specifically designed for large-scale wind turbines and tidal energy applications, providing a reliable and efficient solution for converting variable frequency power generated by wind turbines into grid-compatible electricity. As part of ABB’s 6000-series of liquid-cooled IGCT (Integrated Gate-Commutated Thyristor) converters, the PCS6000 is renowned for its exceptional durability and reliable operation in demanding industrial environments.
This converter represents the next generation of full-size power converters, featuring a modular design that allows for easy customization to meet specific customer requirements while maintaining high efficiency and performance. With its compact footprint and lightweight design, the PCS6000 offers flexibility in installation, being suitable for both nacelle and tower base mounting configurations.
What truly distinguishes the PCS6000 is its ability to provide grid code compliance and fault ride-through capabilities, ensuring that wind farms can continue operating even during grid disturbances. This feature is particularly important for modern wind energy installations that must maintain stable connections to the power grid while delivering consistent power output.
The PCS6000 has gained widespread acceptance in the global wind energy market, with certifications from leading testing organizations including DNV-GL, CGC (China General Certification Center), and UL. These certifications demonstrate the converter’s compliance with international standards and its suitability for deployment in various markets worldwide.
2.Technical Specifications and Performance Parameters：ABB PCS6000
2.1 Basic Technical Parameters
| Parameter | Value |
|---|---|
| Product Model | PCS6000 |
| Manufacturer | ABB |
| Product Type | Medium Voltage Full Power Converter |
| Power Rating | 4-15 MW |
| Voltage Rating | 3.3 kV |
| Voltage Range | 0 to 3.4 kV |
| Frequency Range (Generator Side) | 8 to 100 Hz |
| Frequency Range (Grid Side) | 50/60 Hz |
| Efficiency | Approximately 98% at rated point |
| Switching Technology | IGCT (Integrated Gate-Commutated Thyristor) |
| Cooling System | Liquid-cooled |
| Protection Rating | IP54 |
| Ambient Operating Temperature | -15°C to +50°C |
| Altitude | Up to 1000 meters |
| Control System | ABB AC 800PEC |
| Fieldbus Interfaces | Profibus DP/DPV1, Profinet IO, Modbus TCP, EtherCAT, CANopen |

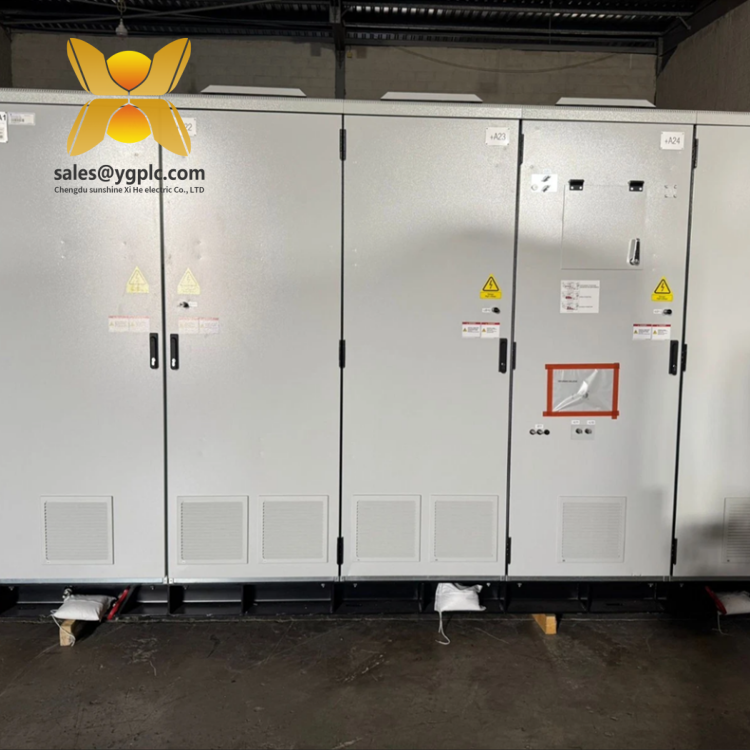

PCS6000
2.2 System Architecture and Design Features
The PCS6000 employs a 3-level, 4-quadrant VSI-NPC (Voltage Source Inverter-Neutral Point Clamped) topology, which provides several advantages over traditional converter designs. This configuration features a fuse-less design, eliminating the need for fuses and reducing maintenance requirements while enhancing system reliability.
The converter system includes all necessary components integrated within the IP54-rated cabinets, creating an unmatched power density in the industry. Key integrated components include:
- Voltage limiting unit
- Precharging unit
- Cooling unit
This all-inclusive design approach simplifies installation and reduces the overall system footprint, making the PCS6000 suitable for both new installations and retrofits of existing wind turbines.
2.3 Control and Communication Capabilities
The PCS6000 incorporates advanced control algorithms to optimize the performance of wind turbines:
- Generator-side control using pulse width modulation (PWM)
- Grid-side control using optimized pulse pattern technology
These control strategies work together to ensure that the wind turbine operates at the maximum power point at all times, maximizing energy capture and system efficiency. The converter’s control system is based on the ABB AC 800PEC, a robust and proven automation platform designed for demanding industrial applications.
For communication and integration with higher-level systems, the PCS6000 offers multiple fieldbus interfaces, including:
- Profibus DP/DPV1
- Profinet IO
- Modbus TCP
- EtherCAT
- CANopen
These interfaces enable seamless integration with wind turbine control systems, SCADA systems, and other components of modern wind farms. The converter also supports Ethernet-based service and maintenance access through an installed IPC, with VPN remote access capabilities for convenient remote monitoring and troubleshooting.
3.Core Functions and Technical Advantages：ABB PCS6000
3.1 Advanced Power Conversion Technology
The PCS6000 utilizes high-efficiency IGCT technology, which represents a significant advancement over traditional power semiconductor devices. IGCTs combine the advantages of both transistors and thyristors, offering:
- Higher power handling capabilities
- Lower conduction losses
- Faster switching speeds
- Improved thermal performance
This technology enables the PCS6000 to achieve conversion efficiencies of approximately 98% at rated load, significantly reducing energy losses and improving the overall efficiency of wind power generation systems. The converter’s design also ensures low part count, which contributes to its high reliability and availability.
3.2 Grid Code Compliance and Fault Ride-Through
One of the most critical features of the PCS6000 is its ability to comply with stringent grid connection requirements and provide fault ride-through capability. This means that the converter can maintain its connection to the grid and continue operating normally during voltage dips or other grid disturbances, which is essential for modern wind farms that must provide stable and reliable power to the grid.
The PCS6000 has been designed to meet grid code requirements in major markets around the world, including:
- United States
- European countries
- China
This global compliance allows wind farm operators to deploy the PCS6000 in diverse geographical locations without needing to modify the converter for each specific market.
3.3 Maximum Power Point Tracking
The PCS6000 full-scale converter technology enables wind turbines to operate consistently at their maximum power point, regardless of wind conditions. This is achieved through advanced control algorithms that continuously optimize the generator’s operating point based on real-time wind speed and other environmental factors.
By ensuring that the wind turbine always operates at the optimal efficiency point, the PCS6000 helps maximize energy production, which is particularly important for offshore wind farms where installation and maintenance costs are high. In fact, wind farms equipped with the PCS6000 have demonstrated energy production that is approximately 10% higher than initially estimated, significantly improving the return on investment for wind farm operators.
3.4 Modular Design and Customization Options
The modular design of the PCS6000 allows for easy customization to meet specific customer requirements while maintaining high reliability and performance. This modular approach offers several key benefits:
- Simplified maintenance and component replacement
- Easier system upgrades and expansions
- Greater flexibility in system configuration
- Reduced inventory requirement
The converter’s design also features a low part count, which contributes to its high availability and reduces the likelihood of component failures. Additionally, the PCS6000 employs a fuse-less design, eliminating the need for fuse replacement and further reducing maintenance requirements.
3.5 Lightweight and Compact Design
The PCS6000 stands out in the market for its lightweight construction and compact installation footprint, which enable fast and easy installation either in the wind turbine nacelle or tower base. This design flexibility is particularly valuable for offshore wind turbines, where space is limited and weight considerations are critical.
The converter’s compact design also results in lower cable installation costs and more efficient use of available space within wind turbine nacelles or towers. Despite its compact size, the PCS6000 offers exceptional power density, packing high power conversion capabilities into a relatively small package.
3.6 High Reliability and Availability
With its robust construction and proven IGCT technology, the PCS6000 is designed to deliver exceptional reliability and availability in even the most challenging operating environments. Key factors contributing to its high reliability include:
- Liquid-cooled IGCT technology that maintains optimal operating temperatures
- Low part count design reduces potential failure points
- Fuse-less design eliminates fuse-related failures
- IP54 protection rating provides excellent protection against dust and water ingress
- Comprehensive diagnostic capabilities enable early detection of potential issues
These reliability features are backed by ABB’s extensive experience in developing power conversion solutions for the wind energy industry, ensuring that the PCS6000 meets the highest standards for performance and durability.

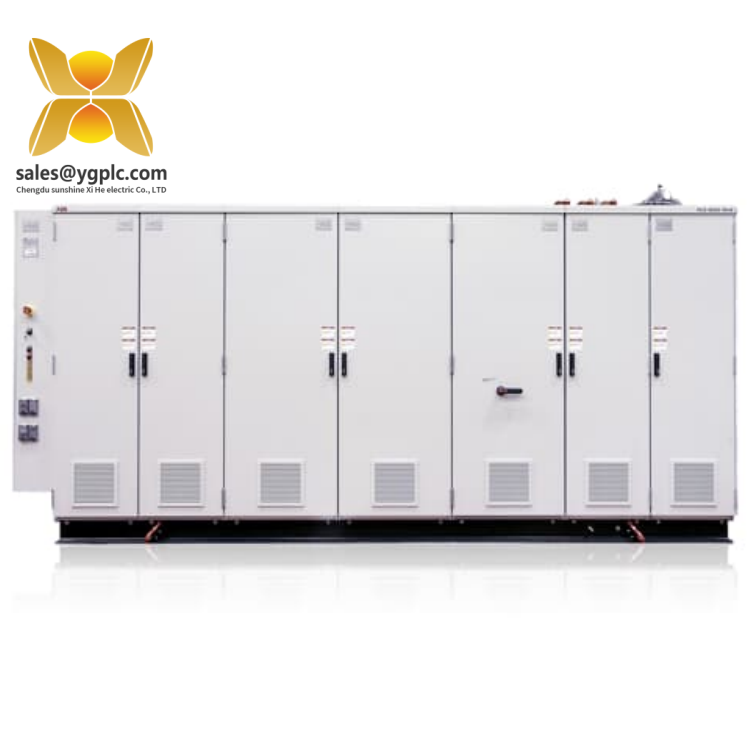

PCS6000
4.Application Scenarios and Industry Solutions：ABB PCS6000
4.1 Wind Turbine Applications
The PCS6000 is ideally suited for large-scale wind turbines with power requirements ranging from 3 to 8 MVA, making it a perfect match for modern utility-scale wind energy installations. This converter is compatible with both permanent magnet and induction generators, providing flexibility in wind turbine design and configuration.
The PCS6000 has demonstrated exceptional performance in various wind turbine applications, including:
- Onshore wind farms
- Offshore wind farms
- High-temperature environments
- Cold climate conditions
Its ability to operate effectively across a wide range of ambient temperatures (-15°C to +50°C) makes it suitable for deployment in diverse geographical locations around the world.
4.2 Offshore Wind Farm Applications
The PCS6000 has established itself as a leading converter solution for offshore wind farms, where reliability, space efficiency, and weight are of utmost importance. The converter’s compact design and lightweight construction make it particularly well-suited for offshore applications, where every kilogram and every cubic meter of space counts.
With over 1 GW of offshore wind turbine converters installed worldwide, the PCS6000 has proven its ability to withstand the harsh environmental conditions typically encountered in offshore wind farms. Its IP54 protection rating ensures reliable operation even in the presence of salt spray, high humidity, and other environmental challenges associated with offshore installations.
4.3 Tidal Energy Applications
In addition to wind energy applications, the PCS6000 has also been successfully deployed in tidal energy projects, where its robust design and high efficiency make it well-suited for converting power generated by tidal turbines into grid-compatible electricity.
The converter’s ability to handle the unique challenges of tidal energy applications, including frequent starts and stops, variable load conditions, and harsh marine environments, has made it a preferred choice for developers of marine renewable energy projects.
4.4 Grid Connection Solutions
The PCS6000 plays a critical role in connecting wind farms to the power grid, providing the necessary power conversion and conditioning to ensure that wind-generated power meets the strict quality and stability requirements of modern power systems.
In addition to its role as a wind turbine converter, the PCS6000 can also be configured as a STATCOM (Static Synchronous Compensator), providing reactive power compensation and voltage support to improve the stability and quality of the grid. This versatility makes the PCS6000 a valuable asset for wind farm operators looking to optimize the performance of their wind energy installations while meeting increasingly stringent grid connection requirements.

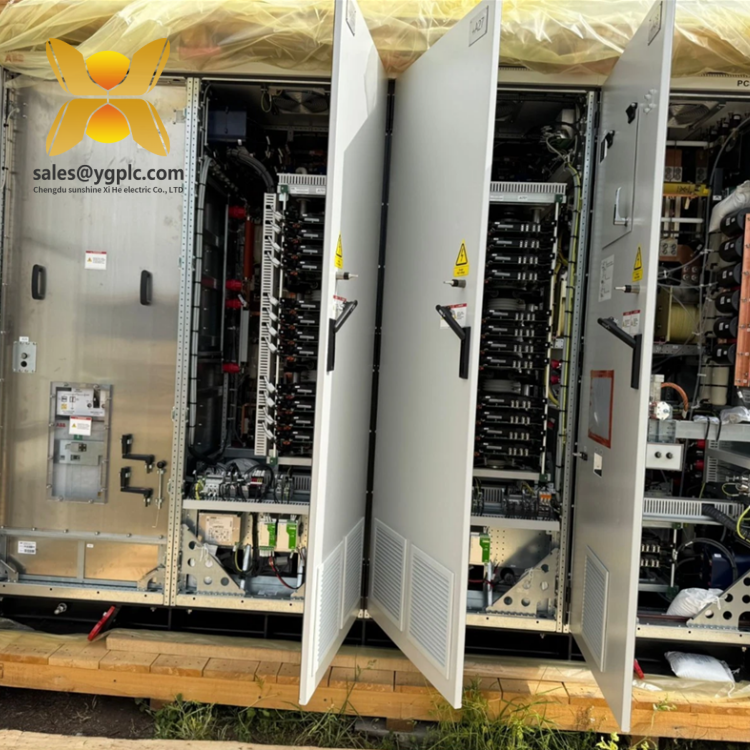

PCS6000
5、Installation and Maintenance Guidelines：ABB PCS6000
5.1 Installation Options and Requirements
The PCS6000 offers flexible installation options to accommodate different wind turbine designs and operational requirements:
- Nacelle installation: Allows for shorter generator cable lengths and reduced losses
- Tower base installation: Provides easier access for maintenance and service
Regardless of the installation location, the PCS6000’s compact design and lightweight construction simplify the installation process, reducing both time and cost. The converter is designed to be integrated into new wind turbine designs or retrofitted into existing installations with minimal modifications.
Key installation requirements include:
- Proper grounding to ensure electrical safety and minimize electromagnetic interference
- Adequate cooling system infrastructure (since the converter uses liquid cooling)
- Appropriate cable management to handle high-voltage and high-current connections
- Compliance with local electrical codes and safety standards
5.2 Commissioning and Startup
Commissioning the PCS6000 involves several key steps to ensure proper installation and operation:
- Visual inspection of all components and connections
- Electrical insulation testing
- Cooling system verification
- Control system configuration and programming
- Protection system testing
- Gradual power-up and system testing
ABB provides comprehensive documentation and support to facilitate the commissioning process, including detailed technical manuals, software tools, and access to experienced technical personnel. The commissioning process typically includes training for on-site personnel to ensure they are familiar with the operation and basic maintenance of the PCS6000.
5.3 Routine Maintenance
To ensure optimal performance and longevity, the PCS6000 requires regular maintenance, which includes:
- Periodic inspection of all components and connections
- Cooling system maintenance and coolant replacement
- Filter changes (if applicable)
- Cleaning of internal and external surfaces
- Software and firmware updates
- Performance testing and verification
The PCS6000’s design facilitates routine maintenance with easily accessible components and clear documentation. The converter’s comprehensive diagnostic capabilities help identify potential issues before they develop into major problems, reducing downtime and improving overall system availability.
5.4 Remote Monitoring and Service
One of the key advantages of the PCS6000 is its ability to support remote monitoring and service through its integrated IPC and VPN capabilities. This remote access capability allows ABB service personnel to:
- Monitor converter performance in real-time
- Diagnose potential issues without needing to visit the site
- Perform software updates and configuration changes remotely
- Provide technical support to on-site personnel
Remote monitoring also enables predictive maintenance by analyzing performance data to identify potential component failures before they occur, helping to minimize downtime and reduce maintenance costs.

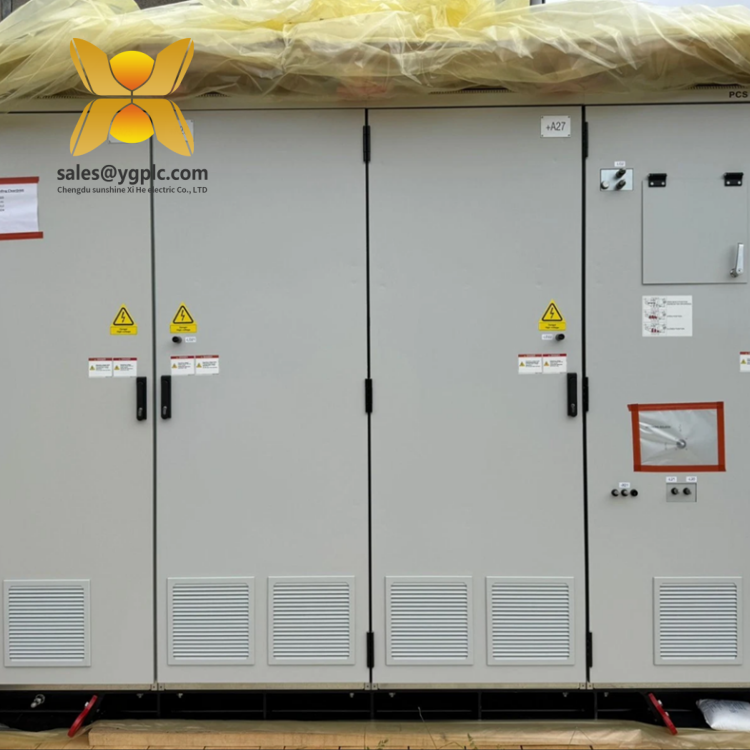

PCS6000
6、Certifications and Compliance：ABB PCS6000
The PCS6000 has received several important certifications that demonstrate its compliance with international standards and suitability for deployment in various markets:
- DNV-GL GL-IV-2:2012 product certification
- China General Certification Center (CGC) certification
- UL certification
These certifications validate the PCS6000’s compliance with rigorous technical, safety, and performance standards, providing wind farm developers and operators with confidence in the converter’s quality and reliability.
The PCS6000 is designed to meet grid code requirements in major markets around the world, including:
- United States
- European Union member states
- China
- Other countries with established wind energy markets
This global compliance allows wind farm operators to deploy the PCS6000 in diverse geographical locations without needing to modify the converter for each specific market, simplifying procurement and deployment processes.
7、Lifecycle Management and Upgrade Paths：ABB PCS6000
7.1 Product Lifecycle Status
The PCS6000 is currently in active production and supported by ABB, with ongoing development to enhance its performance and capabilities. ABB maintains a comprehensive lifecycle management approach for the PCS6000, ensuring that customers have access to:
- Spare parts
- Technical support
- Software updates
- Service and maintenance expertise
This commitment to product lifecycle management helps ensure the long-term reliability and performance of PCS6000 installations, even as wind energy technologies continue to evolve.
7.2 Upgrade and Modernization Options
As wind energy technologies advance and grid requirements evolve, ABB provides upgrade paths for existing PCS6000 installations to incorporate new features and capabilities:
- Software and firmware updates
- Hardware component upgrades
- Control system enhancements
- Integration of new communication protocols
- Performance optimization packages
These upgrade options allow wind farm operators to keep their PCS6000 converters up-to-date with the latest technologies and grid requirements without needing to replace the entire system, extending the useful life of their wind energy assets and maximizing their return on investment.
7.3 Replacement and Retirement Considerations
When the time comes to replace or retire PCS6000 converters, ABB provides comprehensive support to facilitate the transition:
- System decommissioning services
- Recycling and disposal of components
- Replacement system recommendations
- Integration support for new systems
- Data migration and system transition assistance
ABB’s approach to product replacement and retirement ensures that wind farm operators can transition to new technologies smoothly and efficiently, minimizing disruption to operations and maximizing the value of their wind energy investments.
PCS6000
8、Summary and Value Proposition：ABB PCS6000
The ABB PCS6000 medium voltage full power converter represents a significant advancement in wind energy conversion technology, offering wind farm operators a reliable, efficient, and flexible solution for converting variable frequency power from wind turbines into grid-compatible electricity.
Key value propositions of the PCS6000 include:
- High Efficiency: Approximately 98% efficiency at rated load maximizes energy capture and reduces operating costs
- Grid Code Compliance: Meets stringent grid connection requirements in major markets worldwide
- Fault Ride-Through: Maintains connection to the grid during voltage dips and other disturbances
- Modular Design: Allows for easy customization and future upgrades
- Lightweight and Compact: Simplifies installation and reduces space requirements
- High Reliability: Low part count and robust construction ensure long service life
- Global Compliance: Holds certifications from DNV-GL, CGC, and UL
The PCS6000 has proven its effectiveness in a wide range of wind energy applications, from onshore wind farms to challenging offshore installations, consistently delivering reliable performance and maximizing energy production. With its advanced IGCT technology, comprehensive control capabilities, and global compliance, the PCS6000 is well-positioned to continue leading the market for medium voltage wind turbine converters.
For wind farm operators seeking to maximize energy production while minimizing costs and ensuring compliance with evolving grid requirements, the ABB PCS6000 offers an exceptional value proposition, combining proven performance with innovative technology and comprehensive support throughout the product lifecycle.
