Product Overview: ABB ASE2UDC920AE01

Name: ABB ASE2UDC920AE01 | Industrial Power Supply Module
Brand: ABB
Price: 3621.00 USD
Availability: InStock

In the dynamic world of industrial automation, where reliability and precision directly impact operational success, ABB has long been a pioneer in delivering solutions that set industry benchmarks. The ABB ASE2UDC920AE01 is a testament to this legacy—an advanced power supply module designed to meet the rigorous demands of modern industrial systems. Engineered with ABB’s signature commitment to quality, the ABB ASE2UDC920AE01 ensures stable, efficient power distribution, making it an indispensable component for critical automation setups.

The ABB ASE2UDC920AE01 functions as a core power management unit, converting and regulating electrical power to supply consistent voltage to connected devices such as PLCs, sensors, actuators, and control modules. Its ability to maintain steady output even amid fluctuations in input power makes it a cornerstone of system reliability, preventing downtime and ensuring uninterrupted operations in high-stakes environments.

What distinguishes the ABB ASE2UDC920AE01 is its blend of robust performance and adaptability. Whether deployed in a factory floor, a power plant, or a complex manufacturing facility, it seamlessly integrates with existing infrastructure, thanks to its compatibility with standard industrial protocols and modular design. For businesses aiming to enhance system resilience or upgrade aging power supplies, the ABB ASE2UDC920AE01 offers a cost-effective, long-term solution that aligns with evolving automation needs.

Technical Specifications — ABB ASE2UDC920AE01

Parameter	Specification
Model Number	ASE2UDC920AE01
Brand	ABB
Type	Industrial Power Supply Module
Input Voltage Range	100-240V AC (50/60Hz)
Output Voltage	24V DC ±0.5%
Maximum Output Current	20A
Efficiency	Up to 92% at full load
Power Factor	≥0.95 (at 110V AC, full load)
Overload Protection	110-150% of rated current (auto-recovery)
Short-Circuit Protection	Yes (hiccup mode, auto-recovery)
Operating Temperature Range	-25°C to +70°C (-13°F to +158°F)
Storage Temperature Range	-40°C to +85°C (-40°F to +185°F)
Humidity Resistance	5-95% RH (non-condensing)
Protection Rating	IP20 (enclosed, panel-mounted)
Dimensions (W x H x D)	125mm x 180mm x 110mm
Weight	Approx. 850g
Certifications	CE, UL 508, IEC 61010-1, RoHS

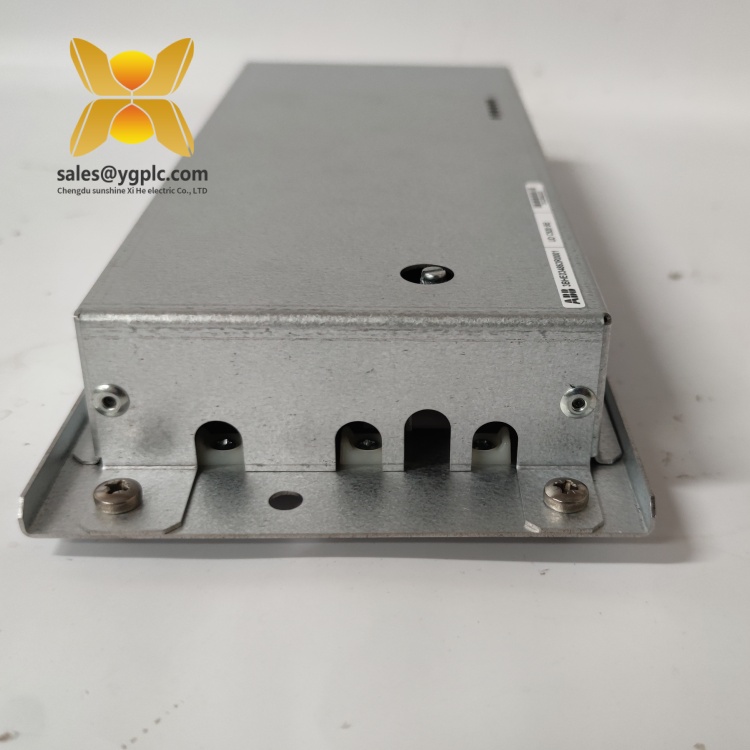

ABB ASE2UDC920AE01

Related products: ABB ASE2UDC920AE01

The ABB ASE2UDC920AE01 is part of ABB’s comprehensive ecosystem of industrial automation components, designed to work in harmony for seamless system performance. For users looking to build or expand their setups, these complementary products pair effectively with the ABB ASE2UDC920AE01:

ABB AC500-eCo PLC: A compact programmable logic controller that relies on the stable power output of the ABB ASE2UDC920AE01 for consistent operation in small to medium-sized automation systems.
ABB TU830 Terminal Unit: Enhances connectivity by distributing power from the ABB ASE2UDC920AE01 to multiple I/O modules, streamlining wiring in complex control panels.
ABB DSQC1031 Safety Module: Works with the ABB ASE2UDC920AE01 to ensure safe power distribution in applications requiring compliance with strict safety standards.
ABB HMI Panel 800: A high-performance human-machine interface that depends on the reliable power supply of the ABB ASE2UDC920AE01 for uninterrupted data visualization and operator control.

Like the ABB ASE2UDC920AE01, these products uphold ABB’s commitment to durability and compatibility, ensuring a cohesive, high-performance automation system.

Main features and advantages: ABB ASE2UDC920AE01

The ABB ASE2UDC920AE01 is engineered to deliver exceptional performance in industrial power management. Its key features and advantages include:

Wide Input Voltage Compatibility: With an input range of 100-240V AC, the ABB ASE2UDC920AE01 adapts to global power grids, making it suitable for international deployments without the need for voltage converters.
High Efficiency: Boasting up to 92% efficiency at full load, the ABB ASE2UDC920AE01 minimizes energy waste, reducing operational costs and supporting sustainable industrial practices. This efficiency remains consistent even under partial loads, optimizing performance across varying demand levels.
Robust Protection Mechanisms: Equipped with overload, short-circuit, and overvoltage protection, the ABB ASE2UDC920AE01 safeguards connected equipment from electrical faults. Its auto-recovery feature ensures quick resumption of operation after a fault is resolved, minimizing downtime.
Stable Output Voltage: Delivering a precise 24V DC output with ±0.5% tolerance, the ABB ASE2UDC920AE01 ensures sensitive components like sensors and microprocessors receive consistent power, maintaining accuracy in data processing and control.
Wide Operating Temperature Range: Designed to function reliably from -25°C to +70°C, the ABB ASE2UDC920AE01 thrives in extreme environments—from cold storage facilities to high-temperature manufacturing plants—without performance degradation.
Compact, Space-Saving Design: Measuring just 125mm x 180mm x 110mm, the ABB ASE2UDC920AE01 fits easily into crowded control panels, optimizing space utilization in industrial setups where real estate is limited.
Global Certifications: Compliant with CE, UL 508, IEC 61010-1, and RoHS standards, the ABB ASE2UDC920AE01 meets international safety and environmental requirements, ensuring seamless integration into global industrial networks.
Easy Installation: The module’s panel-mount design and clear terminal labeling simplify setup, reducing installation time and minimizing the risk of wiring errors—critical for maintaining project timelines.

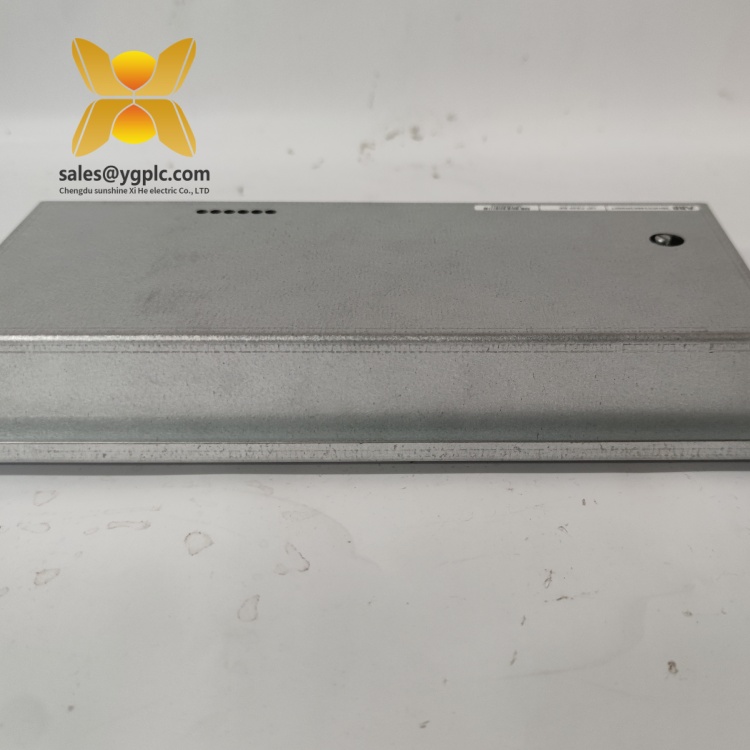

ABB ASE2UDC920AE01

Application fields: ABB ASE2UDC920AE01

The ABB ASE2UDC920AE01 is a versatile power supply module, making it suitable for a wide range of industrial applications where stable power is critical. Key sectors include:

Manufacturing: In automotive, electronics, and packaging plants, the ABB ASE2UDC920AE01 powers PLCs, robotic arms, and conveyor systems, ensuring consistent production cycles and reducing costly interruptions.
Energy and Utilities: Power generation facilities, water treatment plants, and renewable energy installations rely on the ABB ASE2UDC920AE01 to supply stable power to monitoring sensors and control systems, optimizing energy distribution and minimizing waste.
Oil and Gas: In upstream drilling operations and downstream refineries, the ABB ASE2UDC920AE01 withstands harsh conditions to power critical safety systems, valve controls, and pressure sensors, ensuring operational safety.
Food and Beverage: The module’s ability to operate in temperature-controlled environments makes it ideal for powering automation equipment in food processing lines, adhering to strict hygiene and safety standards.
Pharmaceuticals: In drug manufacturing facilities, where precision is paramount, the ABB ASE2UDC920AE01 provides stable power to labelling machines, mixing controls, and quality inspection systems, supporting compliance with regulatory requirements.
Logistics and Warehousing: Automated storage and retrieval systems (ASRS) depend on the ABB ASE2UDC920AE01 for reliable power, ensuring smooth operation of conveyor belts, sorting machines, and inventory tracking sensors.

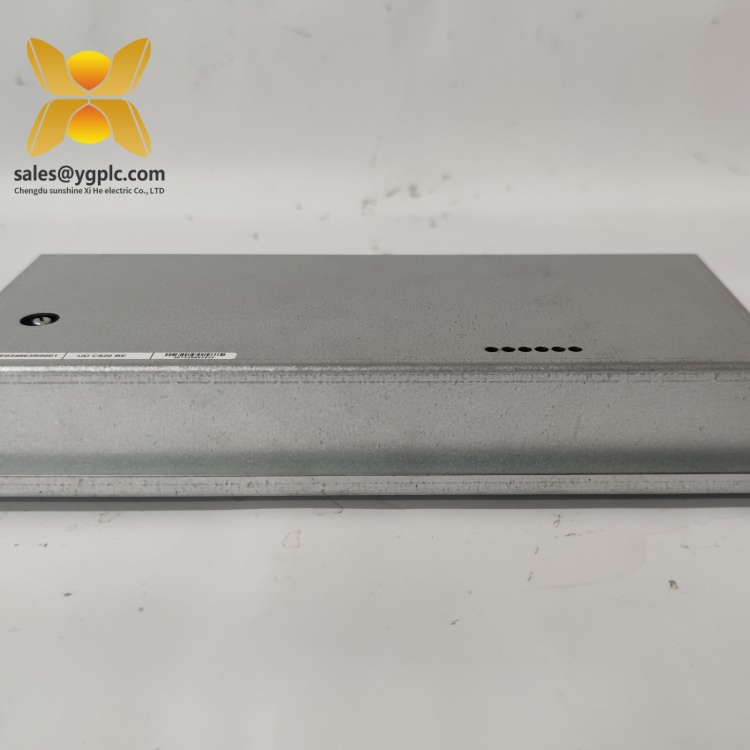

ABB ASE2UDC920AE01

Product guarantee: ABB ASE2UDC920AE01

ABB stands behind the quality and reliability of the ABB ASE2UDC920AE01 with a comprehensive warranty and dedicated support to maximize your investment:

Warranty Period: The ABB ASE2UDC920AE01 is backed by a 2-year warranty from the date of purchase, covering defects in materials and workmanship under normal operating conditions.
Technical Support: ABB’s global team of experts provides round-the-clock assistance for installation, troubleshooting, and maintenance. Customers can access support via phone, email, or the ABB online portal.
Replacement and Repair: In the event of a warranty claim, ABB offers prompt replacement or repair of the ABB ASE2UDC920AE01, ensuring minimal downtime for your operations. Repairs use only genuine ABB parts to maintain original performance standards.
Training Resources: ABB provides user manuals, installation guides, and online tutorials to help technicians maximize the performance of the ABB ASE2UDC920AE01, reducing the learning curve and ensuring proper setup.
