Product Overview
The TRICONEX 3000540-380 is a digital output module designed for use in TRICONEX safety instrumented systems (SIS). It plays a key role in industrial automation by converting digital signals from controllers into actions that operate field devices like valves, relays, and pumps. This makes the TRICONEX 3000540-380 essential in safety-critical setups where reliable control of equipment is needed to prevent accidents.
As part of TRICONEX’s line of I/O modules, the 3000540-380 is built to work seamlessly with TRICONEX Tricon and TriconEX systems, which are known for their triple modular redundancy (TMR) design. This redundancy helps ensure that the module keeps working even if one part fails, making it a trusted component in systems that need to meet high safety standards, such as SIL 3. The TRICONEX 3000540-380 is valued for its ability to provide steady, accurate control, helping industrial operations run safely and efficiently.
Technical Specifications
| Product model | 3000540-380 |
|---|---|
| Manufacturer | TRICONEX |
| Product type | Digital Output Module |
| Input voltage | 24V DC |
| Output voltage | 24V DC |
| Output current per channel | 1A |
| Number of channels | 16 isolated channels |
| Electrical isolation | 2500Vrms between channels and system ground |
| Physical dimensions | 130mm (W) x 160mm (H) x 210mm (D) |
| Weight | 1.1 kg |
| Interface type | Screw terminal block |
| Communication protocol | TRICONEX proprietary backplane |
| Working environment | Operating temperature: -40°C to +70°C; Relative humidity: 5% to 95% (non-condensing) |
| Place of origin | United States |

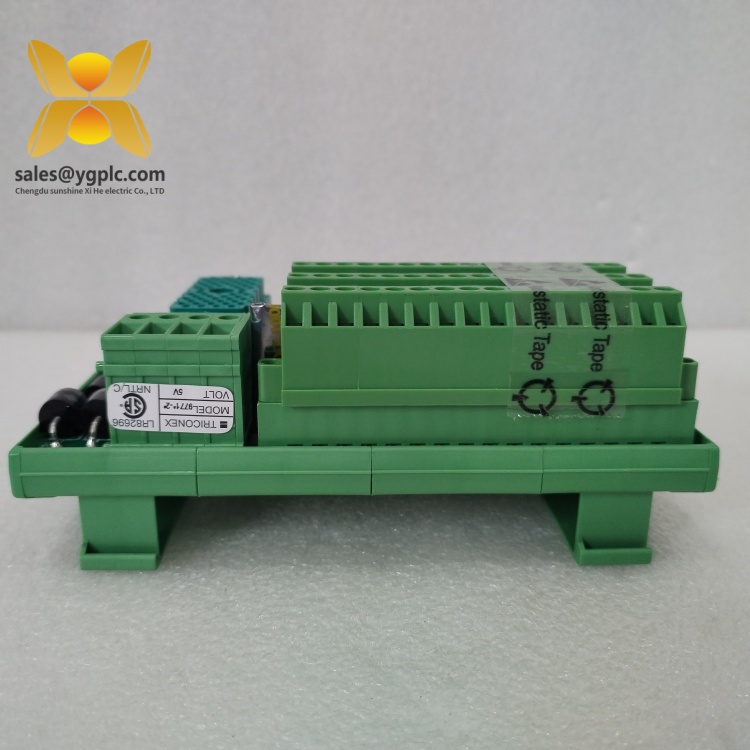

3000540-380
Related products
- TRICONEX 3000540-381: A similar digital output module to 3000540-380 but with 32 channels, designed for larger systems needing more control points.
- TRICONEX 3625: A digital input module that pairs with 3000540-380 to form a complete control loop, sending input signals to the controller which then uses 3000540-380 to trigger outputs.
- TRICONEX 4351B: The main processor module in TRICONEX systems. It sends commands to 3000540-380 to operate field devices based on safety logic.
- TRICONEX 8312: A redundant power supply module that provides steady power to 3000540-380, ensuring it works without interruption in critical setups.
- TRICONEX 9662-810: A communication module that connects TRICONEX systems to external networks. It works with 3000540-380 by sharing data on output status with other systems.
- TRICONEX 2401H: A higher-current digital output module (2A per channel) that can be used instead of 3000540-380 in applications needing more power for devices like large solenoid valves.
Main features and advantages
Reliable operation: The 3000540-380 is built to handle tough industrial conditions. Its 2500Vrms electrical isolation protects it from electrical noise and surges, which are common in factories and refineries. This isolation helps prevent false signals that could cause equipment to act incorrectly.
Safety compliance: The module is designed to work with TRICONEX’s TMR systems. In these systems, three separate paths check each other. This means the 3000540-380 only sends an output signal if at least two of the three paths agree. This reduces the chance of mistakes, helping systems meet SIL 3 safety standards.
Easy to use: With 16 isolated channels, the 3000540-380 can control multiple devices at once. Its screw terminal block makes wiring simple, saving time during installation. The module also has status lights that show if each channel is working, making it easy to spot and fix problems.
Flexible performance: The 3000540-380 works with 24V DC devices, which are widely used in industry. Its 1A per channel output is strong enough for most small to medium field devices, making it a versatile choice for many applications.
Installation and maintenance
Pre-installation preparations: Before installing 3000540-380, check that it fits the TRICONEX chassis (like TriconEX racks). Make sure the power supply is 24V DC. Clear the area around the installation spot to allow air flow, which keeps the module cool. Turn off the system power and disconnect all wires to avoid electric shock. Inspect the module for damage, like broken pins or cracks, before putting it in the chassis.
Maintenance suggestions: Check the 3000540-380 every three months. Use a multimeter to test that the output voltage stays at 24V DC. Look at the terminal block for loose or corroded wires and tighten them if needed. Keep the module clean by wiping dust from its surface and vents—dust can trap heat and cause damage. Watch the status lights; a red light means there’s a problem that needs fixing right away. In systems with two 3000540-380 modules (for backup), test once a year to make sure the backup takes over if the main one fails.

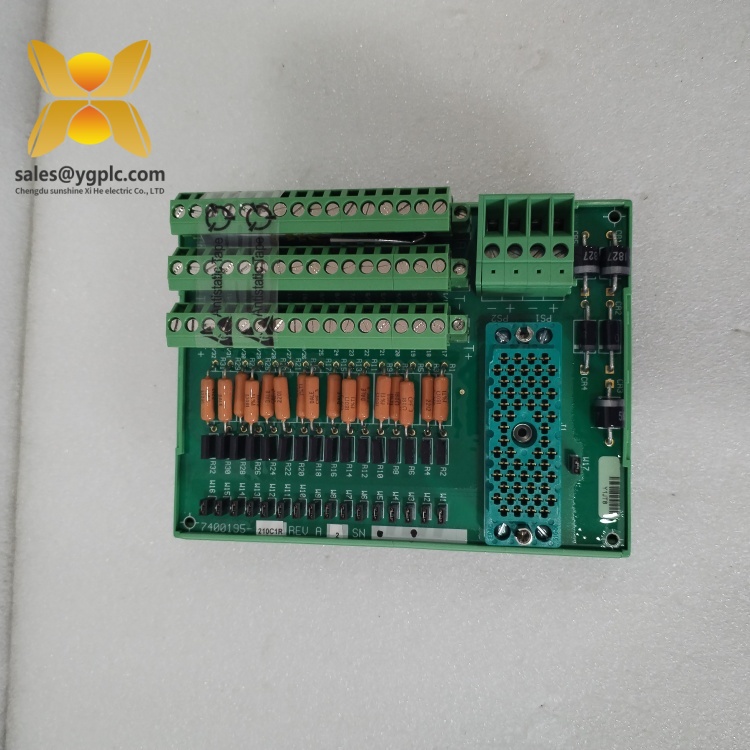

3000540-380
Application fields
The TRICONEX 3000540-380 is used in industries where safety is critical. In oil and gas, it controls emergency shutdown valves. If a leak is detected, the module shuts these valves to stop the flow of oil or gas, preventing fires or explosions.
In chemical plants, the 3000540-380 operates valves that control the flow of chemicals. It ensures these valves open or close at the right time to keep reactions safe. This helps prevent spills and harmful releases.
In power plants, the module controls pumps and dampers in boiler systems. It adjusts these devices to keep pressure and temperature within safe limits, avoiding equipment damage and power outages.
In food and beverage factories, the 3000540-380 controls conveyors and mixers. It stops these machines if sensors detect a problem, like a jam, keeping workers safe and preventing product waste.
Product guarantee
Our company offers a one-year quality warranty service for 3000540-380, covering hardware malfunctions not caused by human factors. During the warranty period, if the product shows abnormal performance or functional failure, we will provide replacement services. In addition, for discontinued models or urgent demands, relying on our global supply chain network, we can quickly respond to customers’ procurement needs for scarce spare parts, and provide reliable services to support the continuous and stable operation of industrial systems. Our company is a leading enterprise in the industrial control industry, established in 2007, with 17 years of experience. We are an import and export trade distribution company, mainly selling major brands of industrial control parts, with many unpopular discontinued models and a large stock. We have supply channel advantages and a large number of spot items to meet customers’ urgent needs for spare parts.
