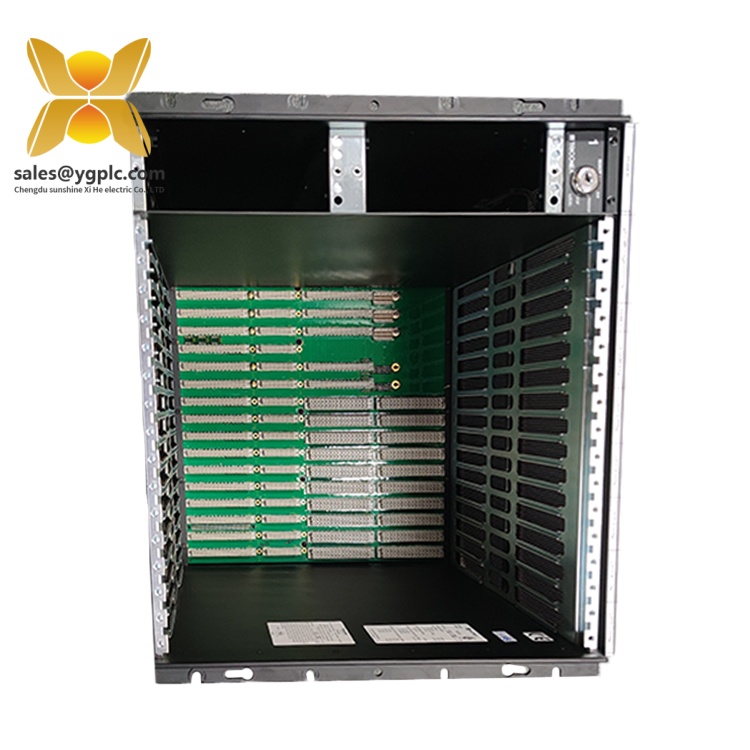

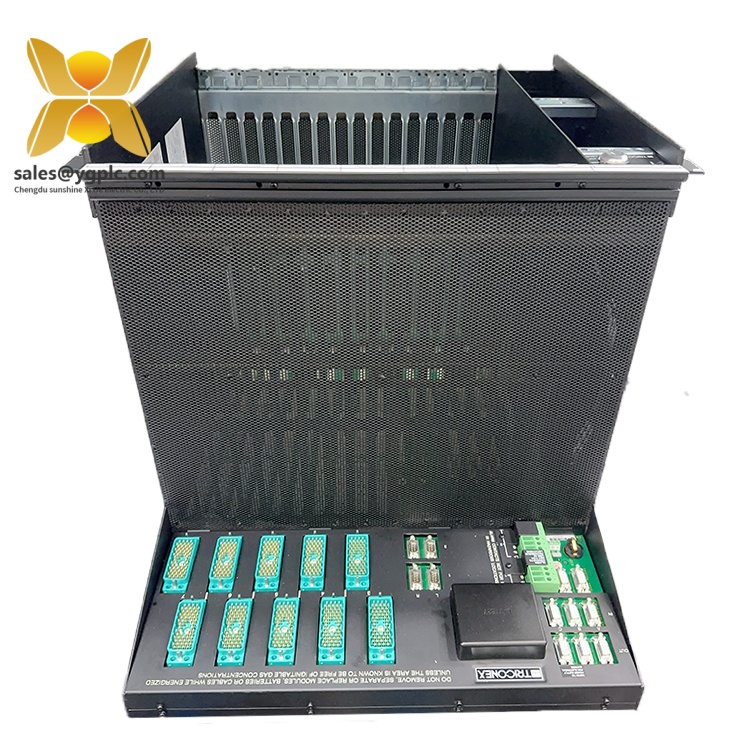

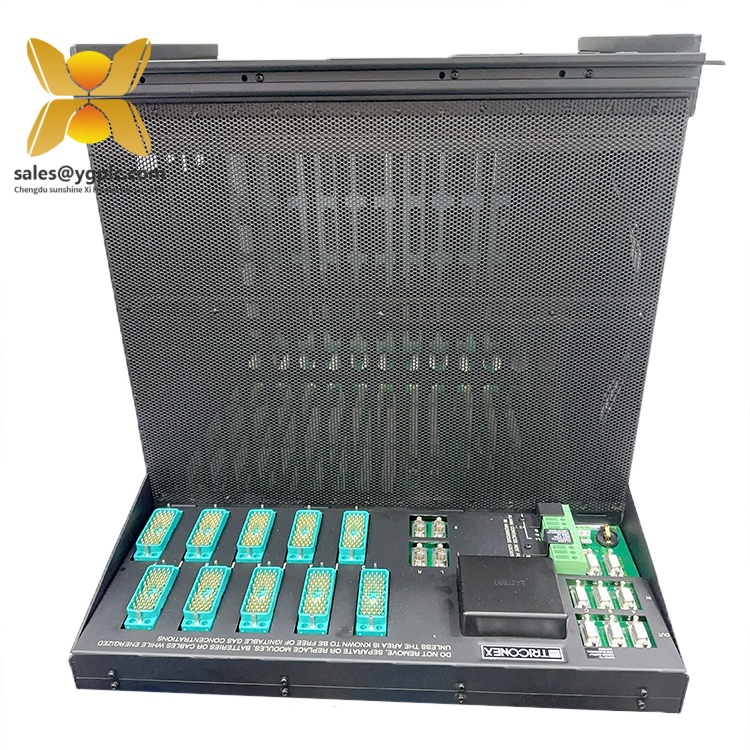

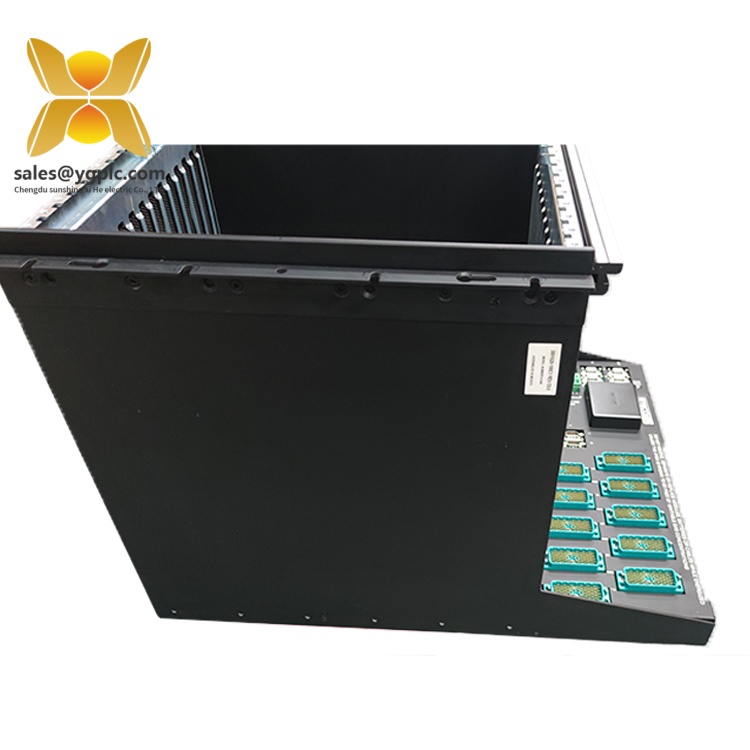

TRICONEX 8120E Fault-Tolerant Control System Framework
Product Overview：TRICONEX 8120E
The TRICONEX 8120E fault-tolerant control system framework is a cutting-edge industrial automation solution designed to deliver unparalleled reliability and safety in mission-critical applications. As part of TRICONEX’s renowned Tricon series, this framework is built on a triple modular redundancy (TMR) architecture, integrating three isolated control channels and independent diagnostic circuits to ensure continuous operation even in the event of component failures. By leveraging a two-out-of-three voting mechanism, the 8120E eliminates single points of failure, making it ideal for industries where downtime is unacceptable, such as oil & gas, power generation, and chemical processing.
Engineered for scalability, the 8120E supports a wide range of digital input modules and external terminal modules, enabling seamless integration with sensors, actuators, and other industrial devices. Its 100–240V AC input voltage range and 24V DC output ensure compatibility with diverse power systems, while the -20°C to +70°C operating temperature range and IP65 protection rating guarantee resilience in harsh environments. The framework’s modular design allows for easy expansion, with support for up to 74 I/O modules and multiple communication protocols, including Modbus TCP, Ethernet/IP, and RS-485.
In automation systems, the TRICONEX 8120E serves as the backbone of safety instrumented systems (SIS) and emergency shutdown (ESD) applications. By facilitating real-time data exchange between control processors and field devices, it enables precise monitoring and rapid response to process deviations, ensuring compliance with international safety standards such as IEC 61508 and TÜV AK 6. Its hot-swappable functionality further enhances system availability, allowing module replacement without disrupting operations. With certifications like FM, CSA, and NFPA 72, the 8120E is trusted worldwide for critical infrastructure protection.
Technical Specifications：TRICONEX 8120E
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8120E |
| Manufacturer | TRICONEX |
| Product Type | Fault-Tolerant Control System Framework |
| Input Voltage | 100–240V AC |
| Output Voltage | 24V DC |
| Output Power | 120W |
| Communication Protocols | Modbus TCP, Ethernet/IP, RS-485 |
| Interface Type | Multiple RS-485 ports, expansion chassis support |
| Redundancy | Triple Modular Redundancy (TMR) |
| Physical Dimensions | 150mm x 110mm x 80mm |
| Weight | 1.5 kg |
| Operating Temperature | -20°C to +70°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP65 |
| Certifications | IEC 61508, TÜV AK 6, FM, CSA, NFPA 72 |
8120E
Key Features and Advantages：TRICONEX 8120E
Triple Modular Redundancy (TMR): The 8120E’s TMR architecture ensures fault tolerance by triplicating critical components and using a two-out-of-three voting mechanism to validate inputs and outputs. This design eliminates single points of failure, providing 99.999% system availability in high-risk environments.
Modular Scalability: The framework supports a broad range of digital and analog I/O modules, allowing users to tailor system configurations to specific application needs. It can accommodate up to 74 I/O modules and multiple communication cards, enabling integration with SCADA systems, PLCs, and third-party devices.
Hot-Swappable Design: All modules can be replaced while the system remains operational, minimizing downtime during maintenance. This feature is particularly valuable in continuous processes where interruptions could lead to significant financial losses.
Advanced Diagnostics: Built-in self-diagnostic tools and LED indicators monitor module health in real-time, identifying faults such as communication errors or power fluctuations. Detailed diagnostic data is stored in system variables, streamlining troubleshooting and reducing mean time to repair (MTTR).
Compliance with International Standards: Certified to IEC 61508 (SIL 3), TÜV AK 6, and other global safety standards, the 8120E meets the most rigorous requirements for safety-critical applications. Its compliance with FM and CSA ensures suitability for hazardous environments.
Application Areas：TRICONEX 8120E
The TRICONEX 8120E fault-tolerant control system framework excels in industries where safety and reliability are paramount:
- Oil & Gas: Safeguards offshore platforms, refineries, and pipelines by monitoring pressure, temperature, and flow parameters. Its TMR architecture ensures continuous operation during equipment failures, preventing catastrophic events.
- Power Generation: Manages gas/steam turbines and generators, ensuring stable grid integration and compliance with environmental regulations. The 8120E’s redundancy supports 24/7 power production with minimal downtime.
- Chemical Processing: Controls reactors, distillation units, and other high-risk equipment, enabling precise process optimization while adhering to strict safety protocols. Its modular design facilitates easy integration with existing DCS systems.
- Metallurgy: Enhances safety in steel mills and smelters by monitoring furnace operations and critical machinery. The 8120E’s real-time diagnostics help detect anomalies before they escalate into costly failures.
- Water Treatment: Ensures reliable operation of pumps, valves, and filtration systems in wastewater treatment plants, supporting regulatory compliance and operational efficiency.
8120E
Related Products：TRICONEX 8120E
- TRICONEX 3805E: A digital input/output module sets with the 8120E to interface with field devices. It supports TMR architecture for high-integrity applications.
- TRICONEX 4108: An enhanced intelligent communication module (EICM) that expands the 8120E’s connectivity, supporting protocols like Profibus and Ethernet/IP.
- TRICONEX 4328: A network communication module (NCM) that enables high-speed data transfer between multiple 8120E frameworks in distributed control systems.
- TRICONEX 4351A: A communication module designed for integration with GE’s Mark VIe turbine control systems, enhancing interoperability in hybrid automation setups.
- TRICONEX 4400: A safety management module (SMM) that complements the 8120E by providing advanced risk analysis and compliance reporting for SIS applications.
- TRICONEX 5301: A digital input Tripak that interfaces with the 8120E to process discrete signals from sensors and switches in hazardous environments.
- TRICONEX 5351: An analog input Tripak used for high-precision monitoring of temperature, pressure, and flow variables in critical processes.
Installation and Maintenance：TRICONEX 8120E
Installation Preparation:
Before installing the 8120E, verify the 100–240V AC power supply meets the module’s requirements and ensure proper grounding to minimize electromagnetic interference. Clean the DIN rail and align the framework with the mounting brackets, securing it with the provided hardware. Connect power cables to the terminal block, following torque specifications (35A max per terminal), and link expansion chassis using the RS-485 communication ports.
Before installing the 8120E, verify the 100–240V AC power supply meets the module’s requirements and ensure proper grounding to minimize electromagnetic interference. Clean the DIN rail and align the framework with the mounting brackets, securing it with the provided hardware. Connect power cables to the terminal block, following torque specifications (35A max per terminal), and link expansion chassis using the RS-485 communication ports.
Maintenance Recommendations:
- Routine Inspections: Quarterly checks for loose connections, corrosion, or signs of overheating. Clean the module’s surface to prevent dust accumulation, which can affect thermal performance.
- Firmware Updates: Regularly update the 8120E’s firmware using TRICONEX’s ToolboxST software to access new features and security patches. Ensure compatibility with existing modules before deploying updates.
- Redundancy Testing: Conduct bi-annual tests of the TMR architecture to confirm failover functionality. Replace faulty modules immediately to maintain system resilience.
- Connector Checks: Inspect RS-485 and Ethernet connectors during annual maintenance. Re-seat connections to ensure reliable signal transmission and replace damaged components as needed.
8120E
Product Warranty：TRICONEX 8120E
We provide a 12-month quality warranty for the TRICONEX 8120E fault-tolerant control system framework, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to optimize your safety-critical systems with the 8120E fault-tolerant control framework.
