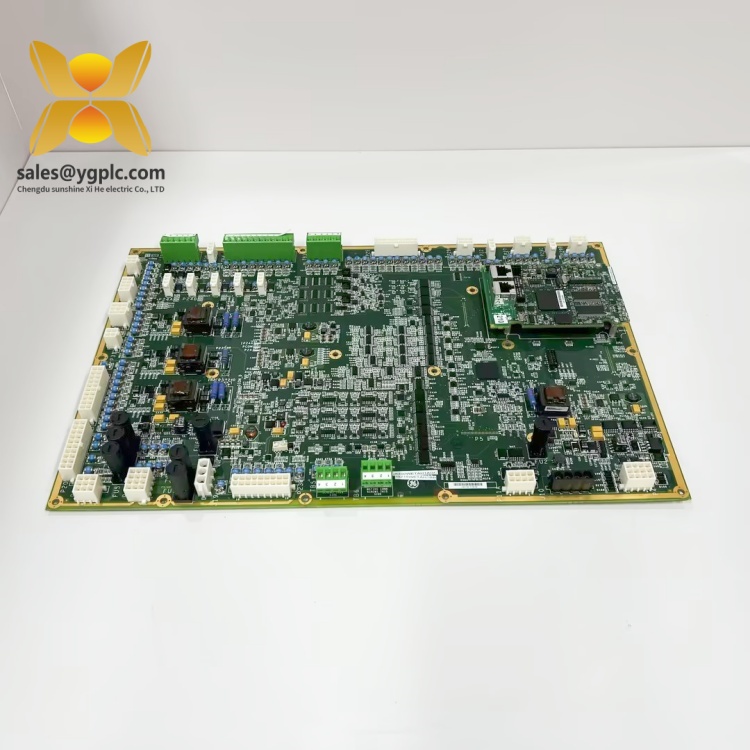

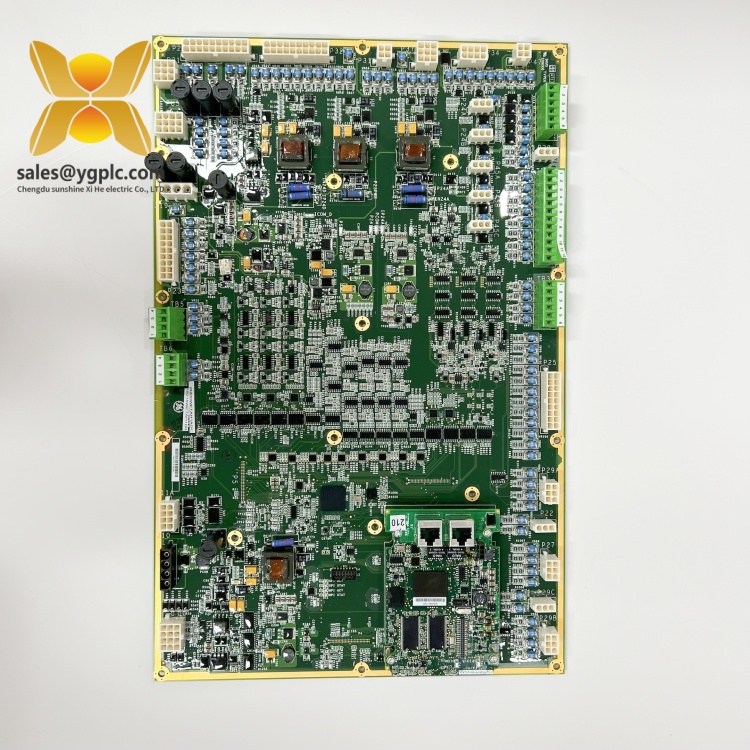

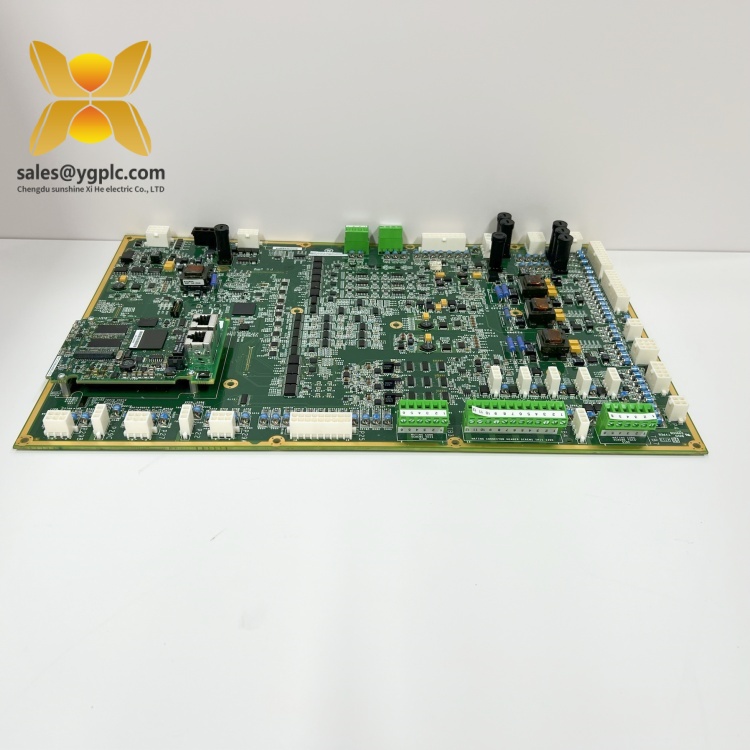

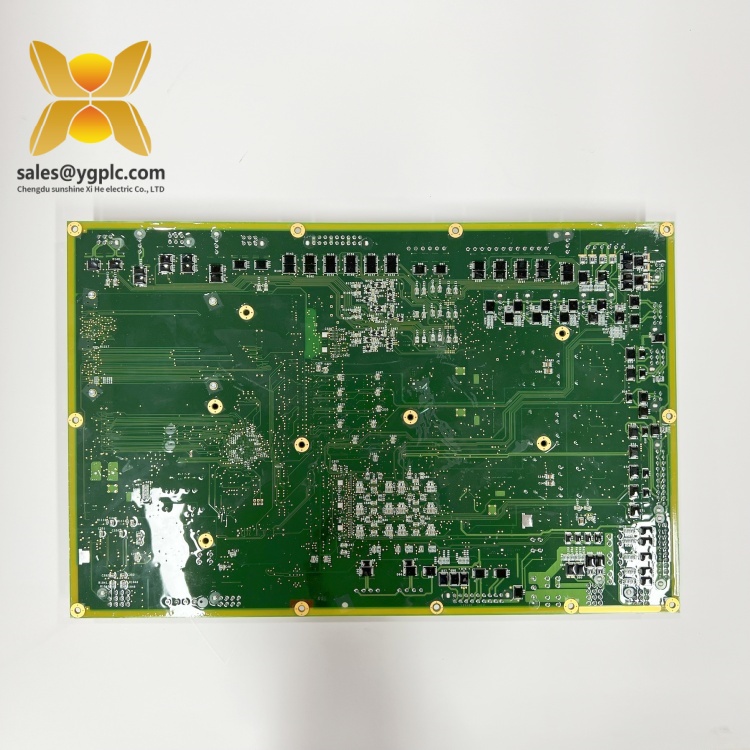

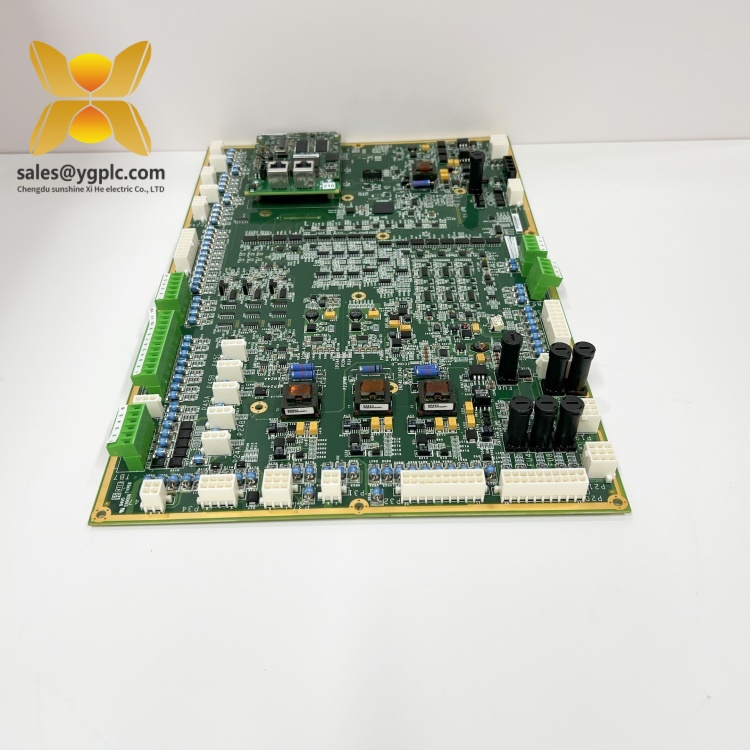

GE IS215WETAH1BB IS200WETAH1BB Turbine Control Power Supply Module
Product Overview：GE IS215WETAH1BB IS200WETAH1BB
The ：GE IS215WETAH1BB and IS200WETAH1AGC are high-reliability Turbine Control Power Supply Modules designed as critical components of GE’s Mark VIe control platform for steam and gas turbines in industrial automation systems. Engineered to deliver stable and redundant power to turbine control systems, these modules ensure uninterrupted operation of critical components such as processors, I/O modules, and communication gateways. As part of the Mark VIe ecosystem, the IS215WETAH1BB and IS200WETAH1AGC play a pivotal role in maintaining grid stability, optimizing fuel efficiency, and enhancing safety in power generation and heavy industrial applications.
The GE IS215WETAH1BB (upgraded version) and IS200WETAH1AGC (legacy model) feature advanced power regulation technology, including voltage surge protection and dynamic load balancing. Both modules support hot-swappable functionality, allowing seamless replacement without disrupting system operation—a critical feature for mission-critical environments. With a rugged design compliant with industrial standards (e.g., IEC 61131-2), these power supplies are built to withstand extreme temperatures, vibration, and electromagnetic interference, ensuring reliable performance in harsh settings such as power plants, refineries, and offshore platforms.
In automation systems, the IS215WETAH1BB and IS200WETAH1AGC serve as the backbone of power management, ensuring consistent energy delivery to control modules and field devices. Their redundant power architecture—supporting parallel operation with other Mark VIe power supplies—eliminates single points of failure, reducing the risk of unplanned outages. By combining robust hardware with intelligent diagnostics, these modules enhance system uptime and simplify maintenance, making them indispensable for industries reliant on continuous power generation and process control.
Technical Specifications：GE IS215WETAH1BB IS200WETAH1BB
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS215WETAH1BB, IS200WETAH1AGC |
| Manufacturer | GE |
| Product Type | Turbine Control Power Supply Module |
| Platform | Mark VIe |
| Input Voltage | 100–240 V AC (50/60 Hz) |
| Output Voltage | 24 V DC ±1% |
| Output Current | 10 A (continuous) |
| Redundancy Support | Parallel redundant configuration |
| Physical Dimensions | 228.6 mm (H) × 177.8 mm (W) × 76.2 mm (D) (standard 19-inch rack mount) |
| Weight | 2.5 kg (IS215WETAH1BB), 2.3 kg (IS200WETAH1AGC) |
| Operating Temperature | -40°C to +85°C |
| Certifications | CE, UL, IEEE 1131-2 |
GE IS215WETAH1BB IS200WETAH1AGC
Key Features and Advantages：GE IS215WETAH1BB IS200WETAH1BB
Redundant Power Architecture: Both modules support parallel redundancy, allowing two or more units to operate simultaneously. This design ensures continuous power supply even if one module fails, making them ideal for critical applications where downtime is unacceptable. The IS215WETAH1BB enhances this with improved load-sharing algorithms for smoother failover.
Hot-Swappable Design: The hot-swappable feature enables maintenance or replacement without powering down the entire system, minimizing downtime and reducing the risk of operational disruptions. This is particularly valuable in live industrial environments where shutdowns are costly.
Advanced Voltage Regulation: Equipped with dynamic voltage regulation, the IS215WETAH1BB and IS200WETAH1AGC maintain output stability within ±1% even during input voltage fluctuations or load changes. This precision protects sensitive control electronics from damage caused by power surges or sags.
Rugged Industrial Construction: Built with reinforced metal enclosures and conformal-coated PCBs, these modules resist corrosion, dust, and moisture. They comply with vibration (5 g) and shock (30 g) standards, ensuring reliability in harsh industrial settings such as turbine rooms and outdoor installations.
Intelligent Diagnostics: Integrated LED indicators and digital diagnostics provide real-time feedback on power status, overload conditions, and module health. The IS215WETAH1BB further supports remote diagnostics via the Mark VIe system’s communication network, enabling proactive maintenance and reducing troubleshooting time.
Backward Compatibility: The IS215WETAH1BB is backward compatible with legacy IS200WETAH1AGC systems, allowing seamless upgrades without redesigning the entire control infrastructure. This flexibility protects long-term investments in industrial automation.
GE IS215WETAH1BB IS200WETAH1AGC
Application Areas：GE IS215WETAH1BB IS200WETAH1BB
The GE IS215WETAH1BB and IS200WETAH1AGC are essential in industries requiring reliable power management for turbine control systems:
- Power Generation: Deployed in thermal, hydro, and combined cycle power plants to supply stable power to turbine control modules, ensuring consistent energy production and grid compliance.
- Oil & Gas: Used in offshore platforms, refineries, and pipeline compression stations to power control systems for gas turbines and steam turbines, optimizing fuel efficiency and safety.
- Industrial Manufacturing: Supports turbine-driven processes in chemical plants, steel mills, and paper factories, where uninterrupted power is critical for maintaining production consistency.
- Marine Propulsion: Installed in large vessels to power marine turbine control systems, delivering reliable performance in high-vibration, high-humidity marine environments.
Specific applications include:
- Turbine Control System Power: Directly powering Mark VIe CPU modules, I/O racks, and communication gateways to ensure real-time control and monitoring.
- Redundant Power Systems: Configured in parallel with other Mark VIe power supplies to create fail-safe power networks for mission-critical operations.
- Legacy System Upgrades: The IS215WETAH1BB replaces older IS200WETAH1AGC units in existing systems, enhancing reliability without disrupting operations.
Related Products：GE IS215WETAH1BB IS200WETAH1BB
- IS215WETBH1BB (Higher Power Module): A 15 A variant of the IS215WETAH1BB for systems requiring increased power density, ideal for large-scale turbine control setups.
- IS200WETAH1ABC (Legacy Spare Part): An earlier version of the IS200WETAH1AGC, suitable for maintaining older Mark VIe systems.
- IS215ACQBH1B (Communication Module): Works alongside the IS215WETAH1BB to enable Ethernet-based monitoring of power supply status in distributed control systems.
- IS210BPPCH1B (Redundant Power Supply): A complementary 24 V DC power supply for Mark VIe I/O modules, ensuring comprehensive system redundancy.
- IS215WETAH1CC (Upgraded Firmware Version): Features enhanced diagnostic capabilities and energy efficiency compared to the IS215WETAH1BB.
- IS200WETAH1AGG (High-Temperature Variant): Designed for extreme heat environments, suitable for direct installation in turbine compartments.
- IS215WETAH1BA (International Voltage Model): Supports 240 V AC input for global applications, addressing regional power supply variations.
GE IS215WETAH1BB IS200WETAH1AGC
Installation and Maintenance：GE IS215WETAH1BB IS200WETAH1BB
Installation Preparation:
Before installing the GE IS215WETAH1BB or IS200WETAH1AGC, ensure the Mark VIe rack is properly grounded and ventilated. Verify input voltage compatibility and use shielded cables for power connections to minimize electromagnetic interference. Mount the module in a designated rack slot, securing it with captive screws. For redundant configurations, connect parallel buses using GE-approved cables and ensure proper load-sharing settings in the system’s configuration software.
Before installing the GE IS215WETAH1BB or IS200WETAH1AGC, ensure the Mark VIe rack is properly grounded and ventilated. Verify input voltage compatibility and use shielded cables for power connections to minimize electromagnetic interference. Mount the module in a designated rack slot, securing it with captive screws. For redundant configurations, connect parallel buses using GE-approved cables and ensure proper load-sharing settings in the system’s configuration software.
Maintenance Recommendations:
- Routine Inspections: Conduct monthly visual checks for loose connections, overheating signs (e.g., discolored components), or physical damage. Clean air vents with compressed air to prevent dust accumulation that could affect cooling.
- Redundancy Testing: Quarterly tests of parallel redundant setups to ensure failover functionality operates within specified timelines. Document test results for compliance and maintenance records.
- Firmware Updates: For IS215WETAH1BB, periodically update firmware via GE’s Proficy software to access new features and security patches. Legacy IS200WETAH1AGC units should be checked for compatibility with firmware updates.
- Spare Parts Management: Store spare modules in anti-static packaging at room temperature (20–25°C) with low humidity. Rotate inventory to ensure shelf-life viability, particularly for legacy models like the IS200WETAH1AGC.
GE IS215WETAH1BB IS200WETAH1AGC
Product Warranty：GE IS215WETAH1BB IS200WETAH1BB
Our company provides a 12-month quality warranty for both the GE IS215WETAH1BB and IS200WETAH1AGC, covering hardware defects under normal use. In the event of failure, we offer prompt replacement services to minimize downtime. For discontinued models like the IS200WETAH1AGC, our global supply chain specializes in sourcing rare and obsolete industrial control parts, ensuring quick turnaround for urgent needs. Our technical team is available 24/7 to assist with installation, troubleshooting, and system optimization, delivering tailored solutions to maintain your industrial systems’ reliability.
For sales inquiries, contact us via WhatsApp at +86 18859254943 or email at sales@ygplc.com.
