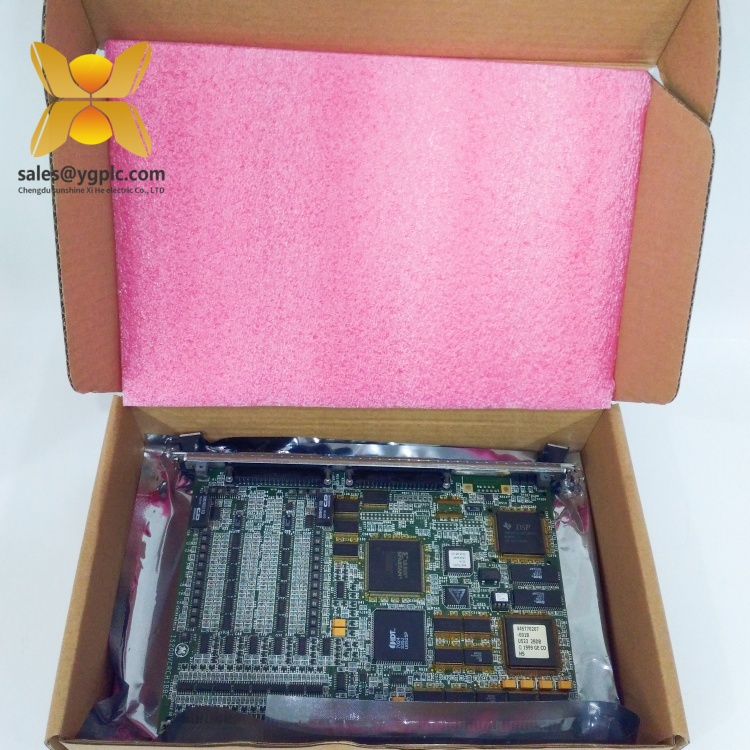

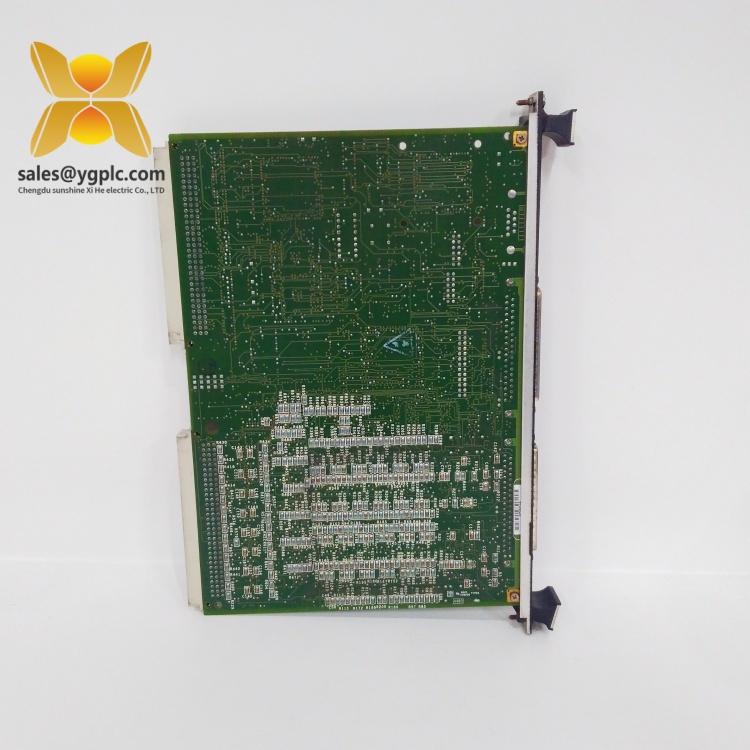

GE IS200VCRCH1B Product Specification
Product Overview
The GE IS200VCRCH1B is a high-reliability control relay module engineered for GE’s Mark VIe Turbine Control System, a cornerstone of industrial automation in power generation and heavy machinery applications. As a critical component of the Speedtronic family, this module serves as a dynamic interface between the control system and field devices, enabling precise relay control for turbine protection and speed regulation. The GE IS200VCRCH1B integrates advanced signal processing with rugged design, making it essential for industries requiring fail-safe operation, such as power plants, oil and gas facilities, and manufacturing complexes.
Designed to manage up to 16 relay outputs, the GE IS200VCRCH1B processes analog and digital signals from the turbine control system to execute critical commands, such as emergency shutdowns or speed adjustments. It supports 24 VDC power input and features optical isolation for each channel, ensuring immunity to electromagnetic interference (EMI) in harsh industrial environments. The module’s compact form factor (228.6 mm × 127 mm × 101.6 mm) and 1.5 kg weight facilitate easy integration into control cabinets, while its hot-swappable design allows maintenance without system downtime.
In automation architectures, the GE IS200VCRCH1B acts as a safety-critical hub, translating control signals from the Mark VIe CPU into physical relay actions. Its built-in diagnostics monitor relay health and signal integrity, reducing mean time to repair (MTTR) and enhancing system availability. By combining hardware durability with software configurability, the module empowers engineers to optimize turbine performance, ensure regulatory compliance, and minimize operational risks in mission-critical applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IS200VCRCH1B |
| Manufacturer | General Electric (GE) |
| Product Type | Control Relay Module |
| Relay Channels | 16 channels (SPDT, 24 VDC/2A max) |
| Input Voltage | 24 VDC ±10% |
| Optical Isolation | Yes, per channel |
| Communication Protocol | Serial (RS-485) for diagnostics |
| Physical Dimensions | 228.6 mm (W) × 127 mm (H) × 101.6 mm (D) |
| Weight | 1.5 kg |
| Operating Temperature | 0°C to +55°C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL |
Main Features and Advantages
Redundant Relay Configuration: The GE IS200VCRCH1B supports 16 independent relay channels, each with SPDT contacts rated for 2A at 24 VDC, enabling simultaneous control of multiple actuators or safety circuits. This redundancy ensures fail-safe operation in critical scenarios like turbine emergency shutdowns.
Optical Isolation Technology: Each channel features optical isolation, protecting the module from voltage spikes and EMI, the GE IS200VCRCH1B maintains signal integrity in high-noise environments typical of power plants or manufacturing floors.
Hot-Swap Capability: The module’s hot-swappable design allows replacement without powering down the Mark VIe system, minimizing downtime during maintenance. This feature is vital for 24/7 operations where system availability is non-negotiable.
Real-Time Diagnostics: Built-in LED indicators and serial communication (RS-485) provide real-time status updates on relay health, contact wear, and power supply stability. Engineers can access diagnostic data via the Mark VIe HMI, enabling proactive maintenance.
Modular System Integration: As part of GE’s Mark VIe ecosystem, the GE IS200VCRCH1B integrates seamlessly with other modules (e.g., CPU, I/O cards), forming a cohesive control solution. This modularity allows for easy system expansion or retrofitting in existing installations.
Application Areas
The GE IS200VCRCH1B is critical in industries where precise turbine control and safety are paramount:
-
Power Generation:
- Controls steam turbine speed and load in combined cycle power plants, ensuring grid stability.
- Executes emergency shutdown sequences in gas turbines to prevent overspeeding or mechanical damage.
-
Oil and Gas:
- Manages compressor relays in pipeline pumping stations, optimizing flow rates and preventing overpressure.
- Integrates with safety instrumented systems (SIS) in refineries to enforce process safety protocols.
-
Industrial Manufacturing:
- Regulates conveyor belts and robotic arms in automotive plants via precise relay control.
- Controls heating elements in steel mills, ensuring consistent material processing temperatures.
-
Marine Propulsion:
- Powers turbine-driven ship propulsion systems, enabling responsive speed adjustments for navigation safety.
- Integrates with shipboard emergency systems to ensure rapid shutdown in hazardous conditions.
Related Products
- GE IS200VCVIH1B: A voltage control module for the Mark VIe system, often paired with the GE IS200VCRCH1B for comprehensive turbine speed regulation.
- GE IS200TBCVH1B: A temperature bias module that provides thermal compensation data to the GE IS200VCRCH1B for environment adjustments.
- GE IS200UCSAH1B: A power supply module that delivers stable 24 VDC to the GE IS200VCRCH1B and other Mark VIe components.
- GE IS200DSVCH1B: A digital input module that feeds control signals to the GE IS200VCRCH1B from sensors and switches.
- GE IS200ESVCH1B: An emergency shutdown module that triggers relays in the GE IS200VCRCH1B during safety-critical events.
Installation and Maintenance
Pre-installation Preparation:
Before installing the GE IS200VCRCH1B, ensure the following:
Before installing the GE IS200VCRCH1B, ensure the following:
- Verify the control cabinet power supply meets 24 VDC ±10% and that the rack is properly grounded to prevent ESD damage.
- Use GE’s Proficy software to configure relay outputs (e.g., normally open/normally closed) based on turbine control logic.
- Secure the module in the Mark VIe rack using anti-vibration brackets, allowing 50 mm clearance for airflow.
Maintenance Recommendations:
- Routine Inspections: Monthly visual checks of front-panel LEDs (green for normal, red for fault) and cleaning dust from ventilation slots.
- Relay Testing: Annual functional tests of each relay channel using a low-voltage test circuit to ensure contact resistance remains within specification.
- Firmware Updates: Periodically update the module’s firmware via GE’s diagnostic tools to incorporate safety patches and compatibility improvements.
- Environmental Monitoring: Quarterly checks of ambient temperature and humidity to ensure they remain within the module’s operational limits.
Product Warranty
Our company provides a one-year quality warranty for the GE IS200VCRCH1B, covering hardware failures due to non-human factors. During the warranty period, we will replace any module that exhibits relay contact failure or signal processing defects. For discontinued models like the GE IS200VCRCH1B, our global inventory of legacy industrial parts ensures rapid fulfillment of urgent orders. We also offer post-warranty technical support, including repair services and configuration assistance, to maintain your system’s reliability.
Contact Information:
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Whatsapp: +86 18859254943
E-mail: sales@ygplc.com
Note: This document is based on GE’s official specifications and industry applications. For detailed operation guidelines, refer to the GE IS200VCRCH1B user manual or contact our technical support team.
