GE IS200AEADH4A 109W3660P001 Analog Input Module
Product Overview：GE IS200AEADH4A 109W3660P001
The GE IS200AEADH4A 109W3660P001 analog input module is a high-precision industrial component designed for seamless integration into GE’s Mark VIe Speedtronic turbine control systems. As part of the IS200 series, this module serves as a vital interface between field sensors and control processors, converting analog signals into digital data for real-time monitoring and control in mission-critical industrial environments.Whatsapp:+86 18859254943.
Engineered to handle diverse sensor types, the IS200AEADH4A 109W3660P001 supports input ranges for voltage (0–10V DC), current (4–20mA), and thermocouple signals, making it suitable for applications requiring precise measurement of parameters such as temperature, pressure, and flow rate. Its 24V DC isolated power supply ensures noise immunity and stable operation, while the 16-bit analog-to-digital converter delivers exceptional accuracy with a resolution of 0.015%. The module’s compact design (120mm x 100mm x 35mm) and DIN rail mounting facilitate easy installation in crowded control cabinets, ideal for space-constrained industrial setups.
Within automation systems, the IS200AEADH4A 109W3660P001 plays a critical role in enabling predictive maintenance and process optimization. By accurately capturing sensor data, it supports real-time decision-making in applications such as gas turbine control, steam generator monitoring, and industrial process automation. Its compatibility with GE’s Mark VIe controllers and third-party systems ensures seamless integration into existing architectures, enhancing system scalability and reducing integration complexity.
Technical Specifications：GE IS200AEADH4A 109W3660P001
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200AEADH4A 109W3660P001 |
| Manufacturer | GE |
| Product Type | Analog Input Module |
| Input Types | Voltage (0–10V DC), current (4–20mA), thermocouple |
| Resolution | 16-bit (0.015% of full scale) |
| Accuracy | ±0.1% of rated input range |
| Power Supply | 24V DC ±10% (isolated) |
| Power Consumption | 5W |
| Communication Interface | Serial communication with Mark VIe controllers |
| Physical Dimensions | 120mm (H) x 100mm (W) x 35mm (D) |
| Weight | 0.6 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | DIN rail (35mm standard) |
| Protection Rating | IP20 (indoor use) |

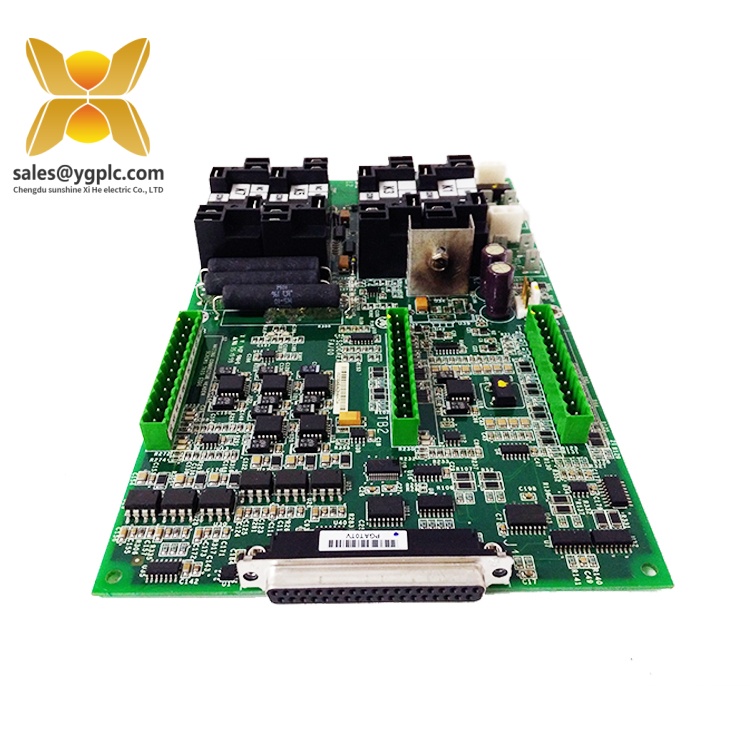

GE IS200AEADH4A 109W3660P001
Key Features and Advantages：GE IS200AEADH4A 109W3660P001
Versatile Signal Conditioning: The IS200AEADH4A 109W3660P001 accommodates multiple sensor types, eliminating the need for separate signal conditioners. This versatility simplifies system design, reduces component count, and lowers installation costs, making it an ideal choice for complex industrial setups.
High Precision and Stability: With a 16-bit ADC and ±0.1% accuracy, the module ensures reliable data acquisition even in environments with high electromagnetic interference. Its isolated power supply and noise-filtering circuitry further enhance signal integrity, critical for applications where measurement errors could lead to operational inefficiencies or safety risks.
Robust Industrial Design: Built to withstand harsh conditions, the module features a rugged metal casing and conformal coating on the PCB, protecting against dust, moisture, and vibration. The -40°C to +70°C temperature range allows deployment in extreme environments, such as offshore platforms, steel mills, and chemical plants, without compromising performance.
Seamless System Integration: Designed as part of GE’s Mark VIe ecosystem, the IS200AEADH4A 109W3660P001 communicates natively with Mark VIe controllers, enabling plug-and-play functionality. It also supports configurable input scaling and linearization, allowing users to tailor signal processing to specific application requirements through GE’s ToolboxST software.
Redundant Configuration Support: The module is compatible with dual-channel redundancy setups, ensuring continuous operation in critical systems. In the event of a hardware failure, redundant modules automatically assume control, minimizing downtime and maintaining process stability.
Application Areas：GE IS200AEADH4A 109W3660P001
The GE IS200AEADH4A 109W3660P001 analog input module is widely deployed in industries where precise sensor data acquisition is essential for process control and equipment health management:
- Power Generation: Used in gas and steam turbine systems to monitor parameters like exhaust temperature, steam pressure, and bearing vibration. Accurate data from the IS200AEADH4A 109W3660P001 enables operators to optimize fuel efficiency, detect early signs of equipment degradation, and ensure compliance with grid stability standards.
- Oil & Gas: Installed in refineries, pipelines, and offshore platforms to measure flow rates, pressure differentials, and temperature profiles in process streams. The module’s ability to handle thermocouple inputs makes it suitable for high-temperature applications, such as furnace monitoring and compressor control.
- Industrial Manufacturing: Integrates with production lines to monitor variables like motor current, hydraulic pressure, and material thickness in real time. This data supports predictive maintenance strategies, reducing unplanned downtime and improving overall equipment effectiveness (OEE).
- Water and Wastewater Treatment: Deployed in pump stations and treatment plants to measure pH levels, flow velocities, and chemical concentrations. The module’s reliability ensures consistent data for process automation, helping maintain regulatory compliance and operational efficiency.
- Mining and Metals: Used in conveyor systems, crushers, and smelters to monitor load weights, motor temperatures, and process fluid levels. Accurate analog input data from the IS200AEADH4A 109W3660P001 supports safe operation and resource optimization in harsh mining environments.

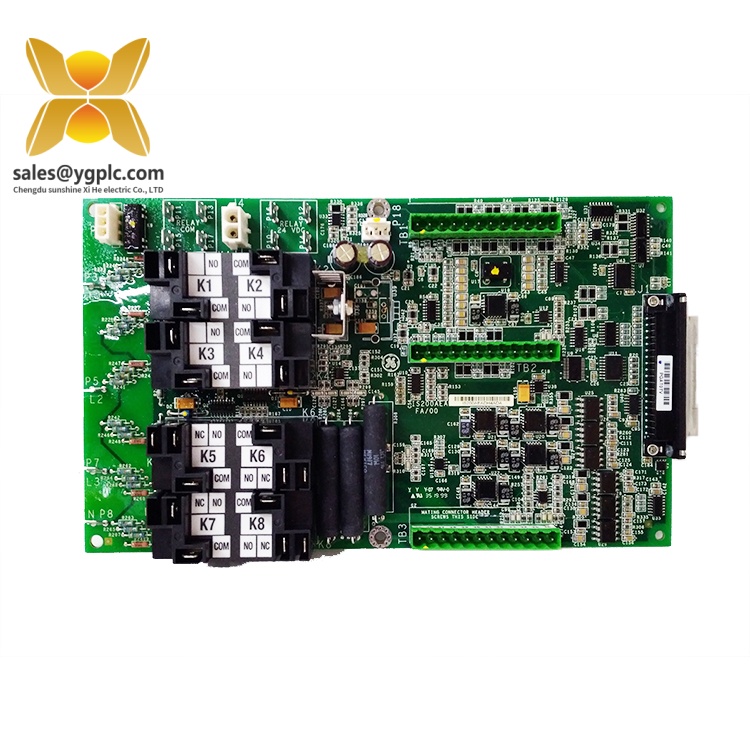

GE IS200AEADH4A 109W3660P001
Related Products：GE IS200AEADH4A 109W3660P001
- IS200ADIIH1A: A dual-channel digital input module that works alongside the IS200AEADH4A 109W3660P001 to handle both analog and digital signals in Mark VIe systems, providing a comprehensive I/O solution for complex control applications.E-mail :sales@ygplc.com.
- IS220PAOCH1A: An analog output module designed to complement the IS200AEADH4A 109W3660P001, converting digital control signals into analog outputs for actuators and valves, ensuring closed-loop process control.
- IS210BPPCH1ACA: A processor module that serves as the central controller for Mark VIe systems, integrating data from the IS200AEADH4A 109W3660P001 to execute control algorithms and manage system logic.
- IS200AEPCH1AB: A redundant power supply module that provides stable 24V DC power to the IS200AEADH4A 109W3660P001 and other Mark VIe components, ensuring reliable operation even during power fluctuations.
- IS420ESWBH3AE: A managed Ethernet switch that enhances network connectivity for the IS200AEADH4A 109W3660P001, enabling high-speed data transfer to SCADA systems and cloud-based analytics platforms.
- IS410SRLYS2A: A solid-state relay module that pairs with the IS200AEADH4A 109W3660P001 for safe and efficient power switching in industrial control loops, reducing mechanical wear and improving system lifespan.
Installation and Maintenance：GE IS200AEADH4A 109W3660P001
Installation Preparation:
Before installing the IS200AEADH4A 109W3660P001, verify that the power supply matches the module’s 24V DC requirement and that the control cabinet meets the IP20 protection rating for indoor use. Clean the DIN rail and ensure proper grounding to minimize electromagnetic interference. Align the module with the rail, secure it with the provided clips, and connect sensor cables to the terminal block, following GE’s wiring guidelines for signal type (voltage, current, or thermocouple). Configure input parameters using ToolboxST software, ensuring correct scaling and filtering settings for each channel.
Before installing the IS200AEADH4A 109W3660P001, verify that the power supply matches the module’s 24V DC requirement and that the control cabinet meets the IP20 protection rating for indoor use. Clean the DIN rail and ensure proper grounding to minimize electromagnetic interference. Align the module with the rail, secure it with the provided clips, and connect sensor cables to the terminal block, following GE’s wiring guidelines for signal type (voltage, current, or thermocouple). Configure input parameters using ToolboxST software, ensuring correct scaling and filtering settings for each channel.
Maintenance Recommendations:
- Routine Inspections: Conduct monthly visual checks for loose connections, damaged cables, or abnormal LED indicators. Use a multimeter to verify the power supply voltage and ensure sensor signals fall within the module’s rated input range.
- Calibration: Perform annual calibration using GE-approved test equipment to maintain measurement accuracy. This involves comparing the module’s output against a precision voltage or current source and adjusting offsets as needed through the configuration software.
- Firmware Updates: Periodically check GE’s official support portal for firmware updates for the IS200AEADH4A 109W3660P001. Updating the firmware ensures access to the latest features, bug fixes, and compatibility improvements with newer system versions.
- Environmental Maintenance: Clean the module’s surface quarterly to remove dust and debris, especially in high-dust environments. Inspect the conformal coating for signs of wear and tear, and replace the module if physical damage is detected to prevent moisture or chemical ingress.
Product Warranty：GE IS200AEADH4A 109W3660P001
We provide a 12-month quality warranty for the GE IS200AEADH4A 109W3660P001 analog input module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge, ensuring minimal disruption to your operations. For discontinued models or urgent spare part needs, our global supply chain network is equipped to source even the rarest components quickly, leveraging decades of industry connections to support your industrial system’s continuous operation.
With 17 years of expertise in distributing industrial control parts, we are committed to delivering not just products, but reliable solutions. The IS200AEADH4A 109W3660P001 exemplifies our dedication to quality and performance, offering your team the precision and durability required to maintain peak efficiency in today’s demanding industrial landscapes. Contact us to learn more about how this module can enhance your automation system’s reliability and control capabilities.
