Product Overview

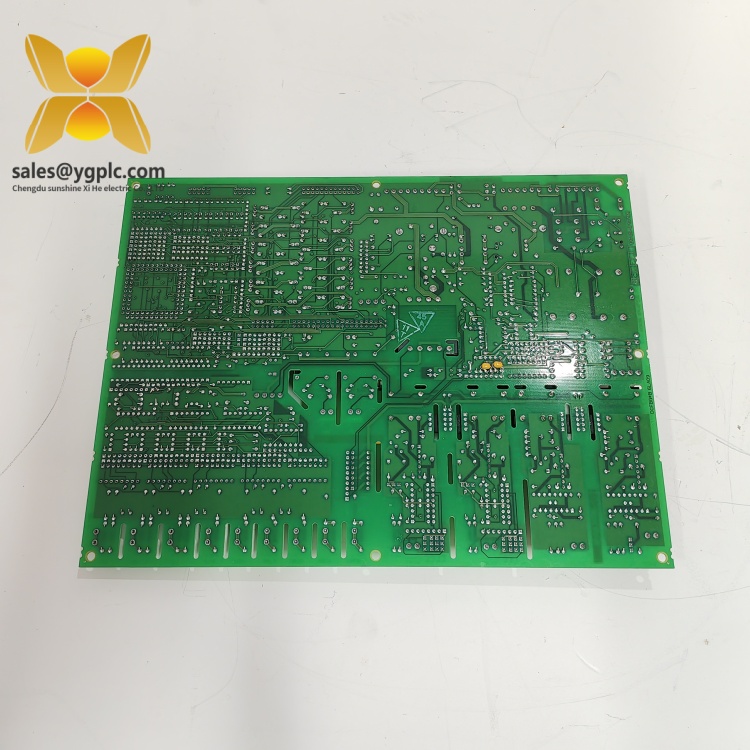

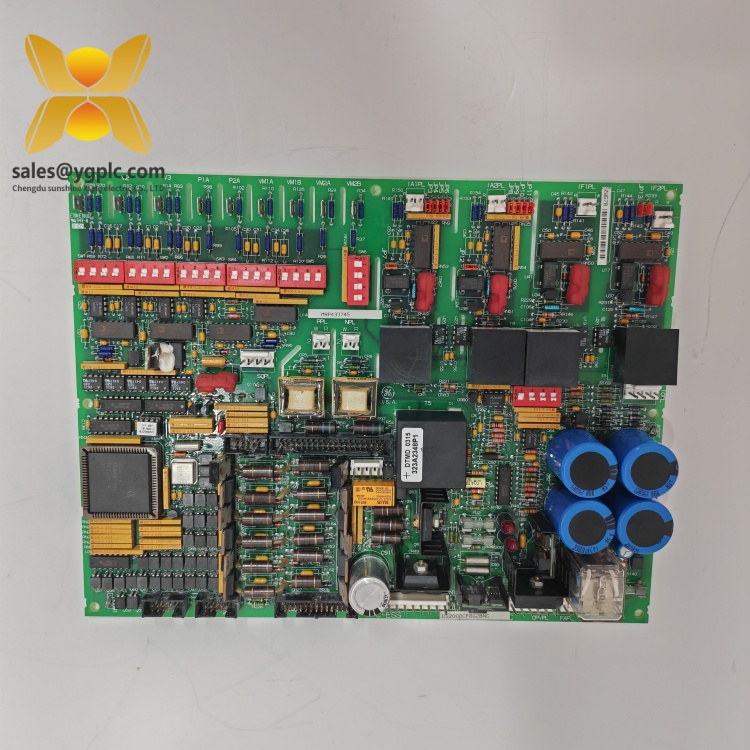

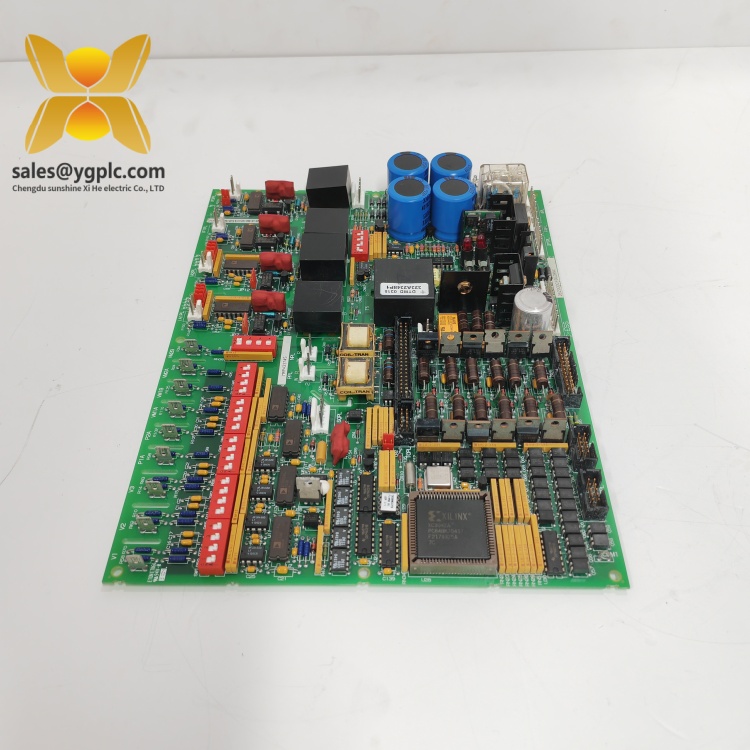

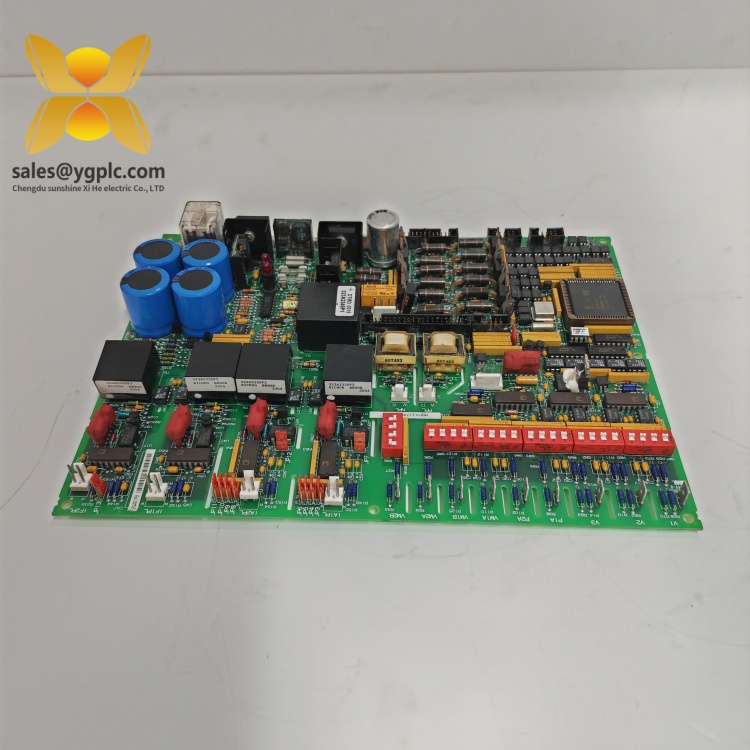

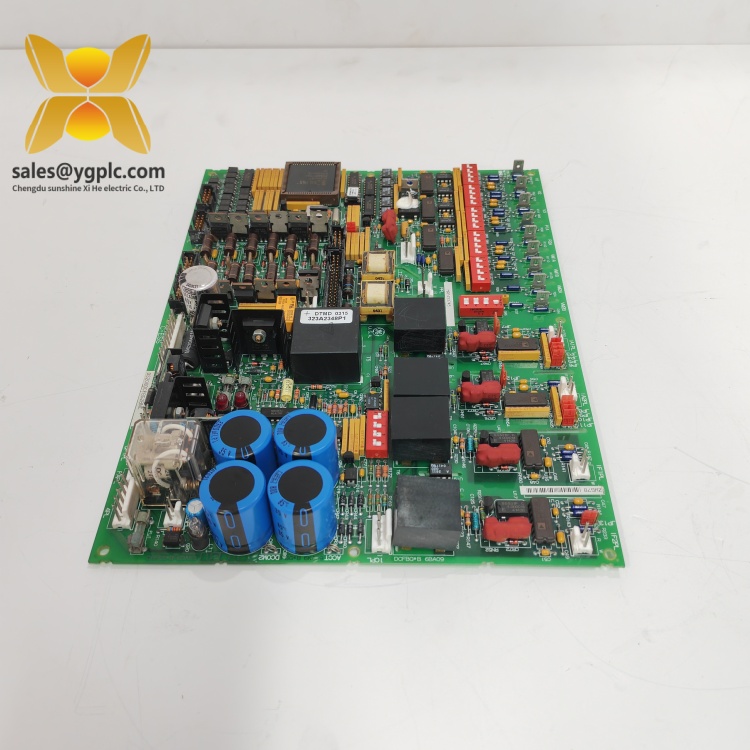

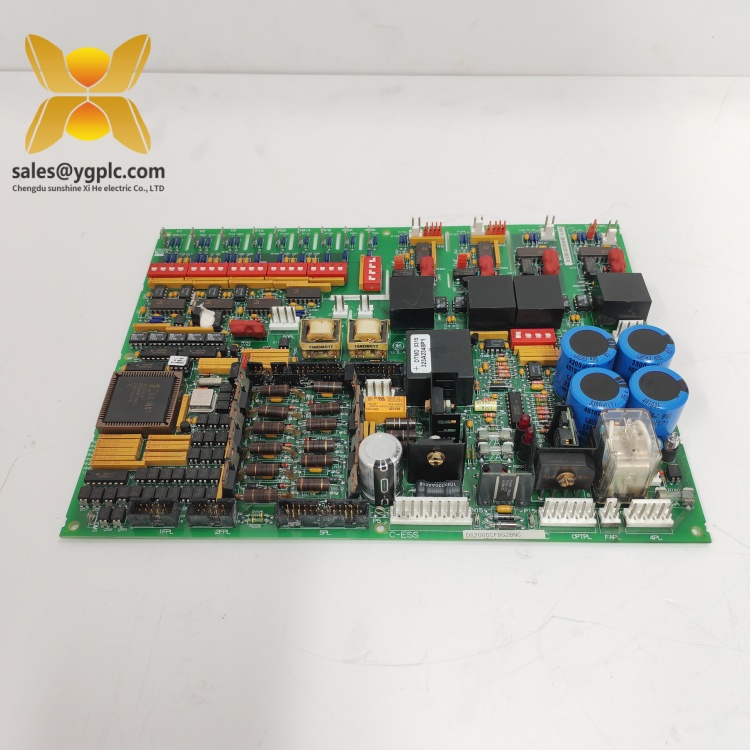

The GE DS200DCFBG2BNC MRP433745 Digital Control Module is a high-performance industrial automation component designed for precise turbine control in mission-critical applications. As part of GE’s Mark V turbine control system, this module serves as a central hub for managing turbine speed, load, and process parameters, ensuring optimal efficiency and reliability in power generation, oil & gas, and heavy industrial environments.
Engineered for rugged durability, the DS200DCFBG2BNC MRP433745 features a 24V DC input voltage and supports Modbus RTU communication, enabling seamless integration with centralized SCADA systems. Its DB-25 pin connectors provide secure connectivity for analog and digital signals, while the IP20-rated enclosure protects against dust and debris in harsh industrial settings. The module’s compact design (100mm x 150mm) and lightweight construction (0.5 kg) facilitate easy installation in space-constrained control cabinets.
Within automation systems, the DS200DCFBG2BNC MRP433745 acts as a critical component for predictive maintenance strategies. It continuously monitors turbine health through real-time data analysis, detecting 异常振动或 temperature fluctuations to prevent unplanned downtime. Its compatibility with GE’s Proficy Machine Edition software allows for remote diagnostics and firmware updates, enhancing operational flexibility. This module is widely used in gas and steam turbine control systems, where precision and reliability are paramount to maintaining continuous energy production.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DS200DCFBG2BNC MRP433745 |
| Manufacturer | GE |
| Product Type | Digital Control Module |
| Input Voltage | 24V DC |
| Output Voltage | 5V DC (regulated) |
| Communication Protocol | Modbus RTU |
| Connector Type | DB-25 pin |
| Physical Dimensions | 100mm x 150mm x 40mm |
| Weight | 0.5 kg |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
| Input Channels | 8 analog inputs, 4 digital inputs |
| Output Channels | 6 analog outputs, 2 digital outputs |
DS200DCFBG2BNC MRP433745
Key Features and Advantages
Multi-Channel Signal Processing: The DS200DCFBG2BNC MRP433745 supports 8 analog inputs and 6 analog outputs, enabling simultaneous monitoring and control of multiple turbine parameters, including pressure, temperature, and flow rate. This versatility makes it suitable for complex industrial processes requiring high precision.
Redundant Power Architecture: The module incorporates dual power supply inputs, ensuring continuous operation even if one path fails. This redundancy is critical for applications where downtime is costly, such as power plants and offshore platforms.
Advanced Diagnostics: Built-in self-diagnostic features continuously monitor module health, alerting operators to potential failures via LED indicators and fault codes. This proactive approach reduces maintenance costs and extends equipment lifespan.
Software Integration: Compatible with GE’s Proficy Machine Edition, the module allows for remote configuration, data logging, and firmware updates. This integration streamlines system management and enhances operational efficiency.
Rugged Design: The IP20-rated enclosure and industrial-grade components protect the module from environmental stressors, including vibration, dust, and temperature extremes. This durability ensures reliable performance in demanding industrial environments.
DS200DCFBG2BNC MRP433745
Application Areas
The GE DS200DCFBG2BNC MRP433745 Digital Control Module is ideally suited for industries requiring precise turbine control and real-time data management:
- Power Generation: Integrates with GE’s Mark V system to optimize gas and steam turbine performance, ensuring stable energy output and grid synchronization. Its multi-channel capabilities support monitoring of critical parameters like rotor speed and exhaust temperature.
- Oil & Gas: Deployed in compressor stations and refineries to control turbine-driven equipment, such as pumps and compressors. The module’s redundancy features ensure uninterrupted operation in high-value production environments.
- Manufacturing: Powers control systems in heavy machinery, such as rolling mills and extruders, by managing motor speed and process variables. Real-time data analysis helps optimize energy consumption and reduce waste.
- Water Treatment: Manages turbine-driven pumps and blowers in wastewater treatment plants, ensuring compliance with environmental standards through precise flow and pressure control.
- Mining: Supports ventilation systems and conveyor belts in mining operations by monitoring equipment health and adjusting operational parameters to enhance safety and productivity.
DS200DCFBG2BNC MRP433745
Related Products
- DS200DCFAG1A: A 配套使用 digital control module with expanded input/output channels, ideal for applications requiring additional signal processing capabilities.
- DS200DCFCH1A: An upgraded version with enhanced diagnostic features, providing advanced fault detection for complex turbine control systems.
- DS200DCFDG1A: A compact digital control module designed for space-constrained environments, offering reduced dimensions without compromising performance.
- DS200DCFEG1A: A specialized module for high-speed turbine control, supporting faster data processing and response times.
- DS200DCFFG1A: A redundant control module that pairs with the DS200DCFBG2BNC MRP433745 to create a fault-tolerant system, ensuring continuous operation in mission-critical applications.
- DS200DCFGG1A: A communication module that interfaces with the DS200DCFBG2BNC MRP433745 to enable integration with third-party systems via Ethernet/IP or Profibus protocols.
- DS200DCFHG1A: A high-voltage control module compatible with the DS200DCFBG2BNC MRP433745, designed for applications requiring direct control of high-power equipment.
Installation and Maintenance
Installation Preparation:
Before installing the DS200DCFBG2BNC MRP433745, verify the power supply matches the 24V DC input requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the module with the DIN rail and secure it using the provided clips. Connect analog and digital signals to the DB-25 connectors, following GE’s wiring guidelines. Finally, configure the module using GE’s Proficy Machine Edition software, ensuring compatibility with the existing control system.
Before installing the DS200DCFBG2BNC MRP433745, verify the power supply matches the 24V DC input requirement. Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the module with the DIN rail and secure it using the provided clips. Connect analog and digital signals to the DB-25 connectors, following GE’s wiring guidelines. Finally, configure the module using GE’s Proficy Machine Edition software, ensuring compatibility with the existing control system.
Maintenance Recommendations:
- Routine Inspections: Quarterly checks include verifying LED status indicators, inspecting connectors for corrosion, and cleaning the module’s surface to prevent dust accumulation.
- Firmware Updates: Periodically update the module’s firmware using GE’s official software to access new features and security patches.
- Sensor Calibration: Annually calibrate attached sensors (e.g., thermocouples, pressure transducers) to ensure accurate data acquisition.
- Redundancy Testing: Semi-annually test the module’s redundant power supply by disconnecting one input and verifying continuous operation.
DS200DCFBG2BNC MRP433745
Product Warranty
We provide a 12-month quality warranty for the GE DS200DCFBG2BNC MRP433745 Digital Control Module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to optimize your turbine control system with the DS200DCFBG2BNC MRP433745 Digital Control Module.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.
