Product Overview
The ABB 500BIO01 1MRB150005R0001 1MRB200060/E graphics expansion module is a high-performance component designed for ABB’s AC500 PLC platform, delivering advanced visualization and connectivity capabilities for industrial automation systems. As part of the AC500 series, this module enhances the functionality of control systems by enabling real-time data monitoring, user interface expansion, and seamless integration with other ABB devices.
Engineered for versatility, the 500BIO01 1MRB150005R0001 1MRB200060/E acts as a bridge between the PLC controller and human-machine interfaces (HMIs), allowing operators to access critical process data and execute control commands through intuitive graphical displays. It supports Ethernet/IP and Modbus communication protocols, ensuring compatibility with a wide range of industrial networks. The module’s dual 100 Mbit/s Ethernet ports enable redundant network connections, enhancing system reliability in mission-critical applications.Whatsapp:+86 18859254943.
In automation systems, the 500BIO01 1MRB150005R0001 1MRB200060/E plays a pivotal role in optimizing operational efficiency. It can expand the I/O capacity of AC500 PLCs, supporting up to 36 discrete and analog signals, and facilitates hot-swappable module replacement without disrupting system operation. This feature is particularly valuable in industries where downtime is costly, such as manufacturing and energy production. By integrating with ABB’s Automation Builder software, the module simplifies system configuration and programming, reducing engineering time and complexity.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 500BIO01 1MRB150005R0001 1MRB200060/E |
| Manufacturer | ABB |
| Product Type | Graphics Expansion Module |
| Communication Protocols | Ethernet/IP, Modbus RTU |
| Interface | 2 x 100 Mbit/s Ethernet ports (RJ45) |
| I/O Capacity | 36 channels (discrete/analog) |
| Power Supply | 24V DC ±10% |
| Power Consumption | <5W |
| Physical Dimensions | 125 mm x 100 mm x 50 mm |
| Weight | 0.6 kg |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% non-condensing |
| Protection Rating | IP20 |
| Mounting Type | DIN rail |

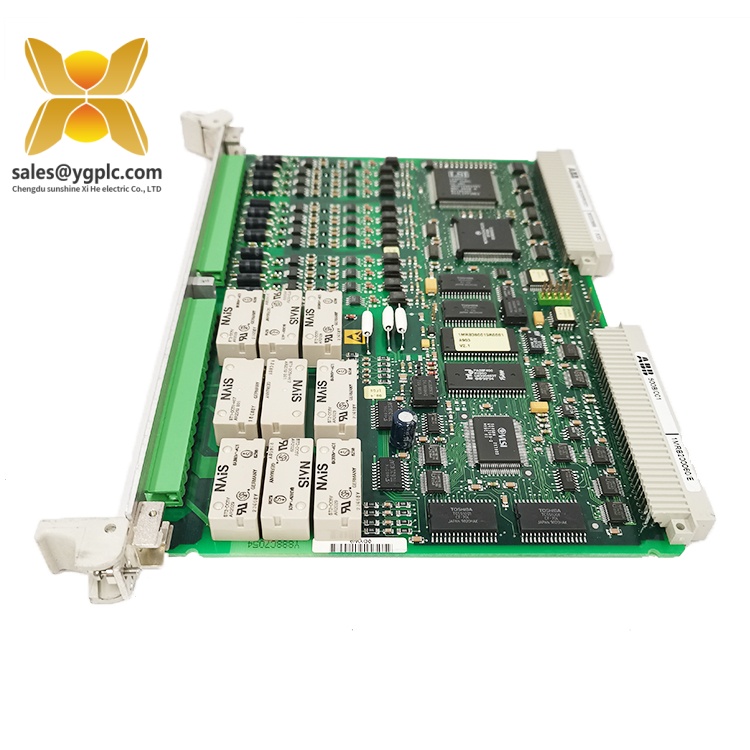

500BIO01 1MRB150005R0001 1MRB200060/E
Key Features and Advantages
Advanced Visualization: The 500BIO01 1MRB150005R0001 1MRB200060/E provides high-resolution graphical displays for real-time process monitoring, enabling operators to visualize data trends, alarms, and control parameters. This improves decision-making and reduces operational errors.
Hot-Swap Capability: With support for hot-swappable module replacement, the 500BIO01 1MRB150005R0001 1MRB200060/E minimizes downtime during maintenance. This feature is critical for continuous processes in industries like oil & gas and power generation.
Redundant Network Design: The dual Ethernet ports allow for redundant network configurations, ensuring uninterrupted communication even if one port fails. This enhances system resilience in harsh industrial environments.
Scalable I/O Expansion: By supporting up to 36 I/O channels, the module enables flexible system scaling. It can interface with sensors, actuators, and other field devices, making it suitable for both small-scale and large-scale automation projects.
Software Integration: Seamless integration with ABB’s Automation Builder software simplifies programming and configuration. The module’s embedded web server and FTP capabilities further streamline system management and data exchange.Whatsapp:+86 18859254943.
Application Areas
The ABB 500BIO01 1MRB150005R0001 1MRB200060/E graphics expansion module is widely used in industries requiring advanced visualization and control:
- Manufacturing: Integrates with AC500 PLCs to monitor production lines, optimize machine performance, and enable remote diagnostics.
- Energy & Utilities: Supports real-time data visualization in power plants and water treatment facilities, ensuring efficient resource management and compliance with environmental standards.
- Oil & Gas: Enhances safety and productivity in offshore platforms and refineries by providing operators with critical process data and control interfaces.
- HVAC Systems: Facilitates centralized monitoring and control of heating, ventilation, and air conditioning systems in commercial buildings, improving energy efficiency.
- Transportation: Used in railway and airport infrastructure to monitor and control electrical systems, ensuring safe and reliable operations.

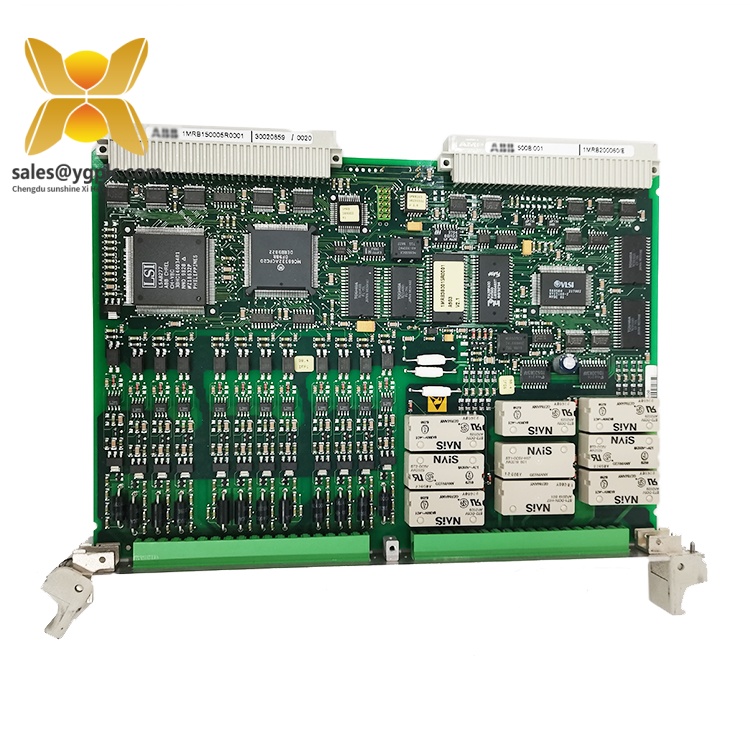

500BIO01 1MRB150005R0001 1MRB200060/E
Related Products
- PM5012-R-ETH: A high-performance CPU module for AC500 PLCs, compatible with the 500BIO01 1MRB150005R0001 1MRB200060/E for complex control applications.
- CP600 Control Panel: A touchscreen HMI that works with the module to provide intuitive operator interfaces for industrial systems.
- SD834 Digital Input Module: A complementary I/O module that expands the system’s input capabilities for discrete signals.
- AO830 Analog Output Module: Provides analog signal output for precise control of actuators and valves in process automation.Whatsapp:+86 18859254943.
- RPBA-01 Profibus DP Interface Module: Enables communication with Profibus DP devices, extending the system’s compatibility with legacy equipment.
- SM501 Power Supply Module: Ensures stable power delivery to the 500BIO01 1MRB150005R0001 1MRB200060/E and other AC500 components.
- DSQC651 I/O Module: A robotics-specific module that interfaces with the graphics expansion module for automated manufacturing processes.
- AC500-S Safety PLC: A safety-certified PLC that pairs with the module to implement SIL3-rated safety systems in hazardous environments.
Installation and Maintenance
Installation Preparation:
Before installing the 500BIO01 1MRB150005R0001 1MRB200060/E, verify the power supply voltage (24V DC) and ensure the DIN rail is securely mounted. Clean the installation area to prevent dust accumulation and ensure proper grounding. Align the module with the rail and secure it using the provided clips. Connect the Ethernet cables to the RJ45 ports and link the module to the PLC controller via the Automation Builder software.
Before installing the 500BIO01 1MRB150005R0001 1MRB200060/E, verify the power supply voltage (24V DC) and ensure the DIN rail is securely mounted. Clean the installation area to prevent dust accumulation and ensure proper grounding. Align the module with the rail and secure it using the provided clips. Connect the Ethernet cables to the RJ45 ports and link the module to the PLC controller via the Automation Builder software.
Maintenance Recommendations:
- Routine Checks: Inspect the module quarterly for loose connections, physical damage, or signs of overheating. Clean the surface with a dry cloth to maintain optimal performance.
- Firmware Updates: Regularly update the module’s firmware using ABB’s official software to access new features and security patches.
- Redundancy Testing: Periodically test the dual Ethernet ports to ensure redundant network functionality. Replace faulty components immediately to avoid system downtime.
- Documentation Review: Refer to ABB’s technical manuals for detailed troubleshooting procedures and safety guidelines.

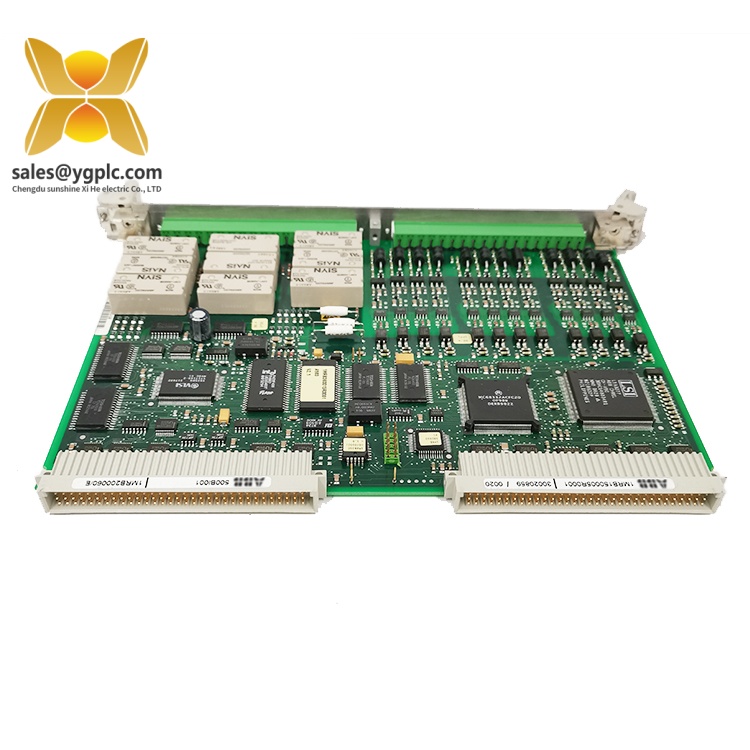

500BIO01 1MRB150005R0001 1MRB200060/E
Product Warranty
We provide a 12-month quality warranty for the ABB 500BIO01 1MRB150005R0001 1MRB200060/E graphics expansion module, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning module free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to enhance your automation system with the 500BIO01 1MRB150005R0001 1MRB200060/E graphics expansion module.E-mail :sales@ygplc.com.
