Product Overview

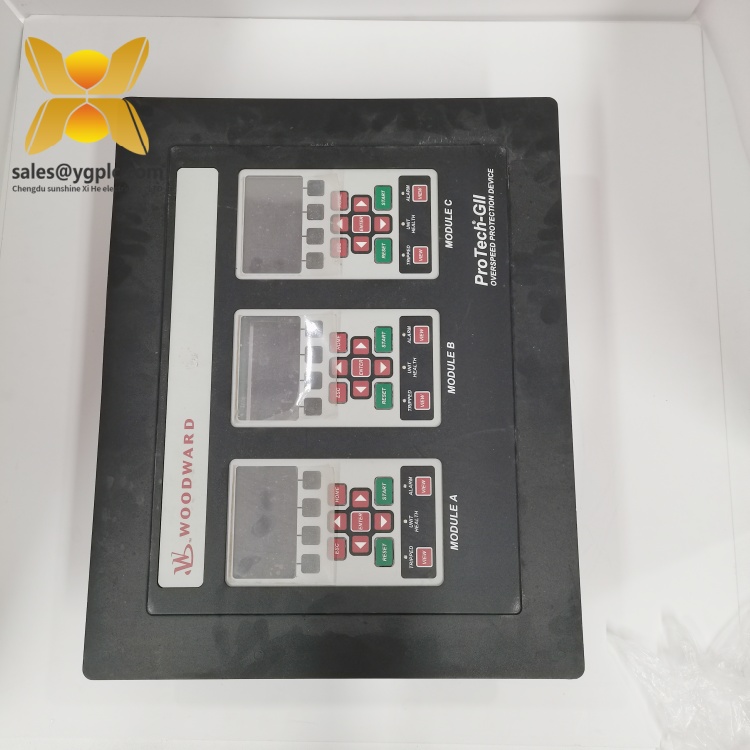

The Woodward 8237-1369 ProTech-GII overspeed protection device is a high-reliability safety system designed to safeguard steam, gas, and hydro turbines from catastrophic damage caused by overspeed or over-acceleration events. As part of Woodward’s ProTech-GII series, this device combines advanced monitoring capabilities with redundant architecture to ensure critical industrial systems operate within safe parameters.Whatsapp:+86 18859254943.
Engineered for mission-critical applications, the 8237-1369 continuously monitors turbine speed using 4-20 mA inputs from magnetic pickups (MPUs) and triggers emergency shutdowns when predefined thresholds are exceeded. Its triple modular design (A, B, C modules) supports 2-out-of-3 voting logic, ensuring fail-safe operation even if one module malfunctions. This redundancy is vital for industries where downtime translates to significant financial losses, such as power generation and oil & gas production.
In automation systems, the 8237-1369 acts as a standalone safety layer, interfacing with turbine control systems to provide real-time speed feedback and trip signals. Its Modbus communication capability enables seamless integration with higher-level SCADA or DCS systems, facilitating remote monitoring and diagnostics. With a response time of 12 milliseconds and a speed range of 0.5–32,000 RPM, this device delivers precision and agility in protecting rotating equipment.E-mail :sales@ygplc.com.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8237-1369 |
| Manufacturer | Woodward |
| Product Type | Overspeed Protection Device |
| Input Voltage | 115V AC / 240V AC / 125V DC (high voltage) |
| Input Voltage | 24V DC (low voltage) |
| Input Signal | 4–20 mA (speed readout) |
| Output Relays | 3 x Form C (2-out-of-3 voting) |
| Communication | Modbus RTU |
| Physical Dimensions | 330 x 445 x 159 mm |
| Mounting Type | Panel-mount (IP56 when installed correctly) |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5–95% non-condensing |
| Weight | 10.4 kg |
| Response Time | ≤12 ms |
| Speed Range | 0.5–32,000 RPM |
8237-1369
Key Features and Advantages
Redundant Architecture: The 8237-1369 employs a triple modular redundant (TMR) design with 2-out-of-3 voting logic, ensuring system integrity even if one module fails. This architecture meets SIL-3 safety requirements, making it suitable for applications with strict reliability standards.E-mail :sales@ygplc.com.
Comprehensive Monitoring: The device continuously tracks turbine speed and acceleration using magnetic pickup units (MPUs). Its auto-test routines verify sensor health and relay functionality, reducing false trips and minimizing maintenance downtime.
Flexible Configuration: Users can program custom trip thresholds and time delays via the front-panel keypad or Woodward Programming Configuration Tool (PCT). This flexibility allows tailoring the device to specific turbine characteristics and operational needs.
Robust Environmental Resistance: The 8237-1369 features conformal coating on PCBs to resist sulfur contamination, H₂S, and SO₂ gases, ensuring longevity in harsh industrial environments. Its IP56-rated enclosure protects against dust and water ingress.
Seamless Integration: With Modbus RTU communication, the device integrates effortlessly with existing control systems, enabling remote diagnostics and data logging. This connectivity enhances operational efficiency by reducing manual intervention.
8237-1369
Application Areas
The Woodward 8237-1369 ProTech-GII overspeed protection device is ideally suited for industries requiring precise speed monitoring and fail-safe shutdown capabilities:
- Power Generation: Protects steam and gas turbines in power plants, ensuring grid stability and preventing catastrophic failures during load fluctuations.
- Oil & Gas: Safeguards compressors, pumps, and turbines in refineries and offshore platforms, minimizing downtime and environmental risks.
- Industrial Manufacturing: Monitors high-speed machinery in pulp and paper mills, cement plants, and steel production facilities, optimizing equipment lifespan.
- Water Treatment: Ensures safe operation of pumps and turbines in wastewater treatment plants, maintaining compliance with regulatory standards.
- Mining: Provides critical overspeed protection for conveyor belts, crushers, and ventilation systems in mining operations, enhancing worker safety.E-mail :sales@ygplc.com.
Related Products
- 8237-1367: A dual-channel version of the ProTech-GII series with non-redundant trip outputs, suitable for less critical applications requiring basic overspeed protection.
- 8237-1246: A compact variant optimized for smaller turbines, offering similar functionality to the 8237-1369 but with reduced input voltage options.
- Woodward ProTech-GII Programming Configuration Tool (PCT): Software for configuring and monitoring the 8237-1369, enabling parameter adjustments and diagnostic analysis.
- Woodward MPU Sensors: Magnetic pickup units designed to interface with the 8237-1369, providing accurate speed feedback for turbine monitoring.
- Woodward Trip Valves: Hydraulic or pneumatic valves that integrate with the 8237-1369 to execute emergency shutdowns, ensuring rapid response to overspeed events.
- 8237-1370: An upgraded model with expanded communication capabilities, including Ethernet connectivity, for advanced industrial IoT (IIoT) applications.
- Woodward ESD-5100: A complementary emergency shutdown system that works alongside the 8237-1369 to provide multi-layered safety in complex industrial processes.
- 8237-1244: A predecessor model with limited configuration options, suitable for retrofitting older turbine systems.E-mail :sales@ygplc.com.
Installation and Maintenance
Installation Preparation:
Before installing the 8237-1369, verify the input voltage matches the power supply (115V AC/240V AC/125V DC or 24V DC). Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the device with the control panel cutout and secure it using the provided brackets. Connect the MPU sensors to the input terminals and wire the trip relays to the turbine’s shutdown valves, following Woodward’s wiring guidelines.
Before installing the 8237-1369, verify the input voltage matches the power supply (115V AC/240V AC/125V DC or 24V DC). Clean the mounting surface and ensure proper grounding to minimize electromagnetic interference. Align the device with the control panel cutout and secure it using the provided brackets. Connect the MPU sensors to the input terminals and wire the trip relays to the turbine’s shutdown valves, following Woodward’s wiring guidelines.
8237-1369
Maintenance Recommendations:
- Routine Checks: Inspect the 8237-1369 quarterly for loose connections, corrosion, or signs of overheating. Clean the enclosure with a dry cloth to prevent dust accumulation.
- Sensor Calibration: Calibrate MPU sensors annually using a Woodward-approved calibration tool to ensure accurate speed measurements.
- Firmware Updates: While the 8237-1369 does not require regular firmware updates, check Woodward’s technical bulletins for compatibility patches or hardware revisions.
- Relay Testing: Perform auto-test routines monthly to validate relay functionality. Replace worn-out relays with Woodward-certified components to maintain safety integrity.
Product Warranty
Our company provides a 12-month quality warranty for the Woodward 8237-1369 ProTech-GII overspeed protection device, covering hardware defects caused by non-human factors. During the warranty period, we will replace any malfunctioning unit free of charge. For discontinued models or urgent requirements, our global supply chain network ensures rapid fulfillment of scarce spare parts, supporting continuous operation of industrial systems.
With 17 years of expertise in industrial control parts distribution, we guarantee competitive pricing, fast delivery, and reliable technical support. Contact us today to enhance the safety and efficiency of your turbine systems with the 8237-1369 ProTech-GII overspeed protection device.
Note: All product names, logos, and brands are property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and installation guidelines.
