Name: ABB UFC718AE101 HIEE3009936R0101 | High-performance...
Brand: ABB
Price: 3830.00 USD
Availability: InStock

Description

Product Overview: ABB UFC718AE101 HIEE3009936R0101

The ABB UFC718AE101 HIEE3009936R0101 is a high-performance automation module tailored for complex industrial control systems. As part of ABB’s renowned UFC series, it integrates advanced hardware and software capabilities to facilitate seamless communication, real-time data processing, and robust system coordination. Whether deployed in power generation, manufacturing, or process industries, this module ensures consistent operation even in harsh environments, minimizing downtime and maximizing productivity.

Designed with scalability in mind, the ABB UFC718AE101 HIEE3009936R0101 adapts to evolving operational needs, supporting integration with existing ABB systems and third-party equipment. Its compact form factor and user-friendly design simplify installation and reduce setup time, making it a cost-effective solution for both new projects and system upgrades.

Technical Specifications — ABB UFC718AE101 HIEE3009936R0101

Specification	Details
Part Number	UFC718AE101 HIEE3009936R0101
Brand	ABB
Series	UFC
Operating Voltage	24V DC ±10%
Power Consumption	≤ 15W typical
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Communication Protocols	Profibus DP, Modbus RTU, Ethernet/IP
Input/Output (I/O)	8 digital inputs, 6 digital outputs
Dimensions (L×W×H)	120mm × 85mm × 60mm (4.7in × 3.3in × 2.4in)
Weight	350g (0.77lbs)
Certifications	CE, UL, RoHS compliant
MTBF (Mean Time Between Failures)	≥ 100,000 hours

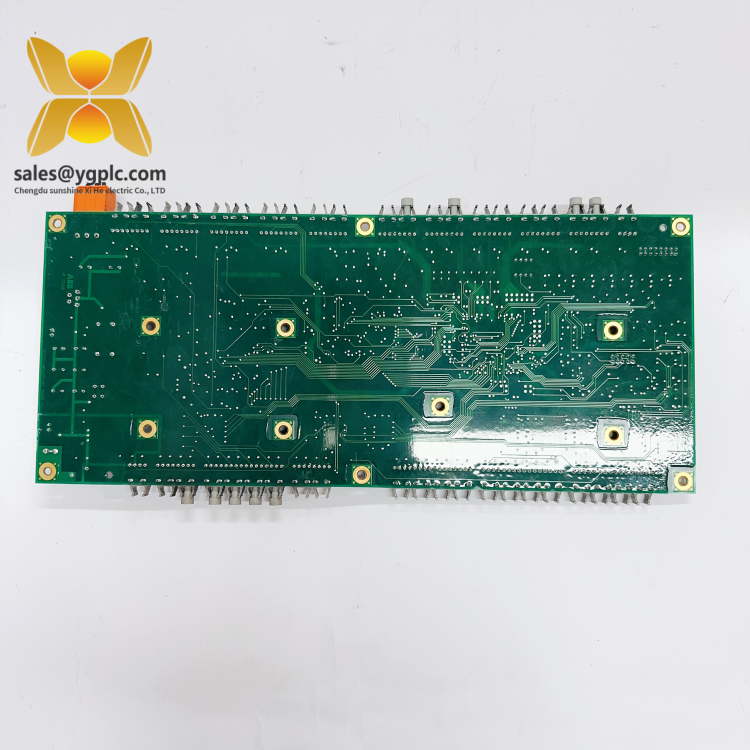

ABB UFC718AE101 HIEE3009936R0101

Installation and Maintenance: ABB UFC718AE101 HIEE3009936R0101

Proper installation and maintenance are key to maximizing the lifespan and performance of the ABB UFC718AE101 HIEE3009936R0101. Follow these guidelines for optimal results:

Installation Steps:

Environment Preparation: Mount the module in a dry, dust-free enclosure with adequate ventilation. Ensure the operating temperature remains within -20°C to +60°C.
Power Connection: Connect to a 24V DC power supply with ±10% tolerance. Use insulated wiring to prevent short circuits.
I/O Wiring: Follow the labeled ports to connect digital inputs and outputs, ensuring secure connections to avoid signal loss.
Communication Setup: Configure communication protocols via ABB’s programming software (e.g., Automation Builder) to match your system requirements.
Testing: Power on the system and verify functionality using diagnostic tools to confirm proper data transmission and response.

Maintenance Tips:

Conduct monthly visual inspections to check for loose connections, dust accumulation, or signs of damage.
Clean the module surface with a dry cloth; avoid using harsh chemicals.
Update firmware regularly using ABB’s official software to access new features and security patches.
In case of faults, refer to the user manual or contact technical support for troubleshooting assistance.

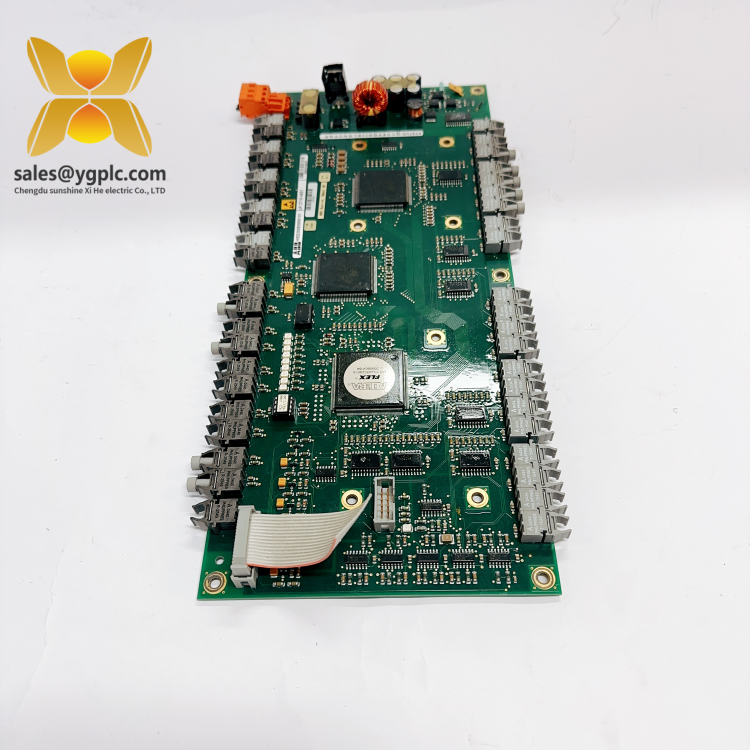

ABB UFC718AE101 HIEE3009936R0101

Product Guarantee: ABB UFC718AE101 HIEE3009936R0101

ABB stands behind the quality of the ABB UFC718AE101 HIEE3009936R0101 with a comprehensive warranty and support package:

Warranty Period: 24 months from the date of delivery, covering manufacturing defects and faulty components.
Warranty Coverage: Replacement or repair of defective units, excluding damage caused by improper installation, misuse, or environmental factors beyond specified limits.
Technical Support: Access to ABB’s global network of engineers for troubleshooting, firmware updates, and application guidance.
Genuine Parts: All replacements use authentic ABB components to ensure compatibility and performance consistency.

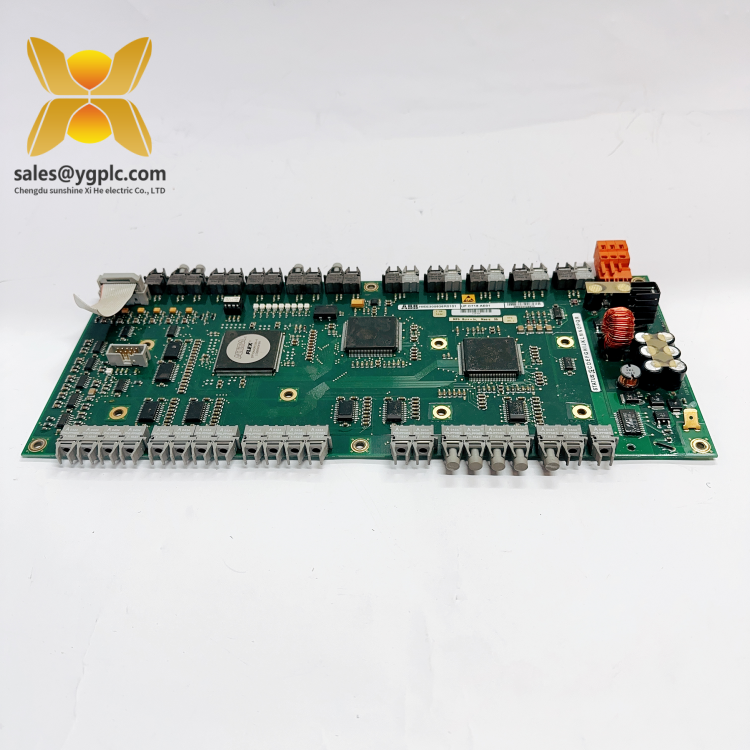

ABB UFC718AE101 HIEE3009936R0101

To claim warranty services, contact your supplier with proof of purchase and a detailed description of the issue.
