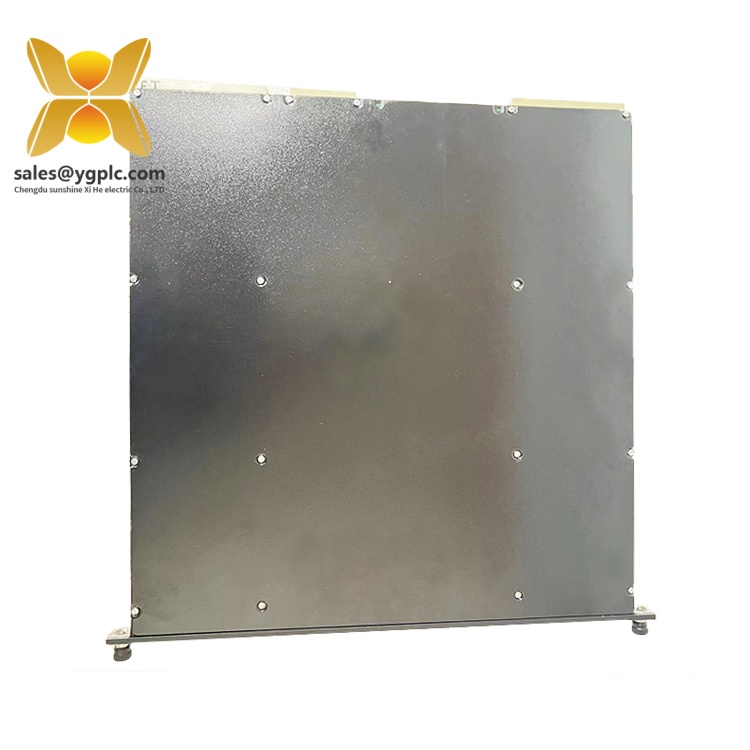

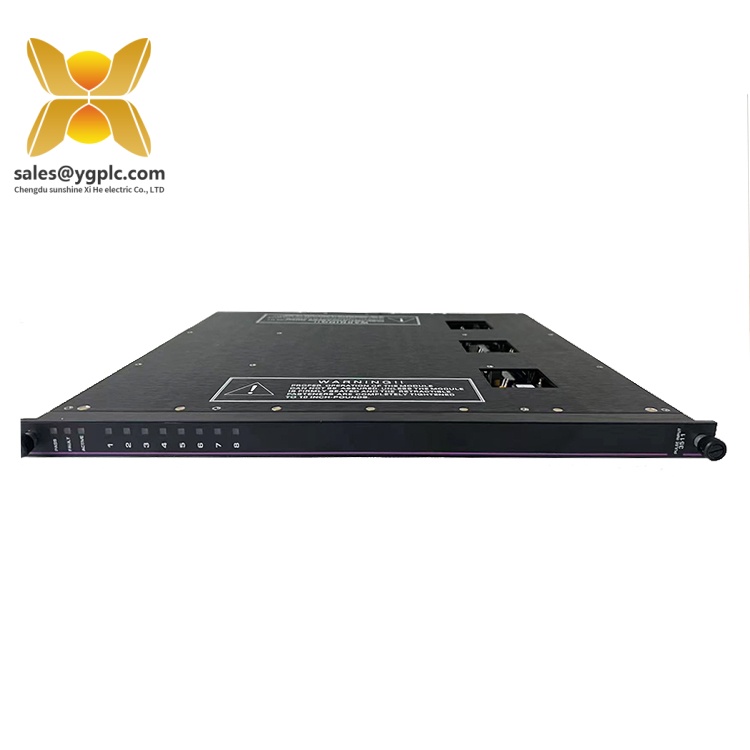

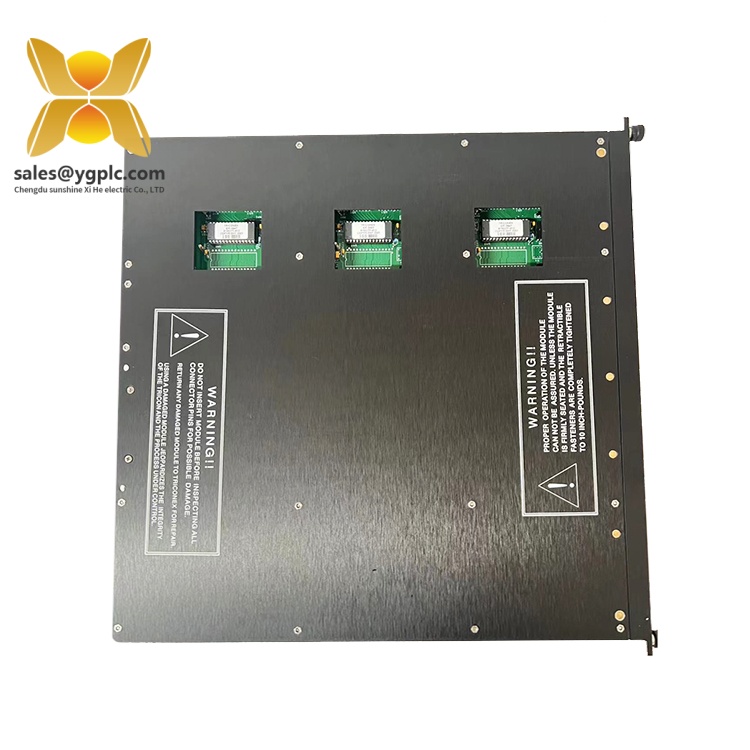

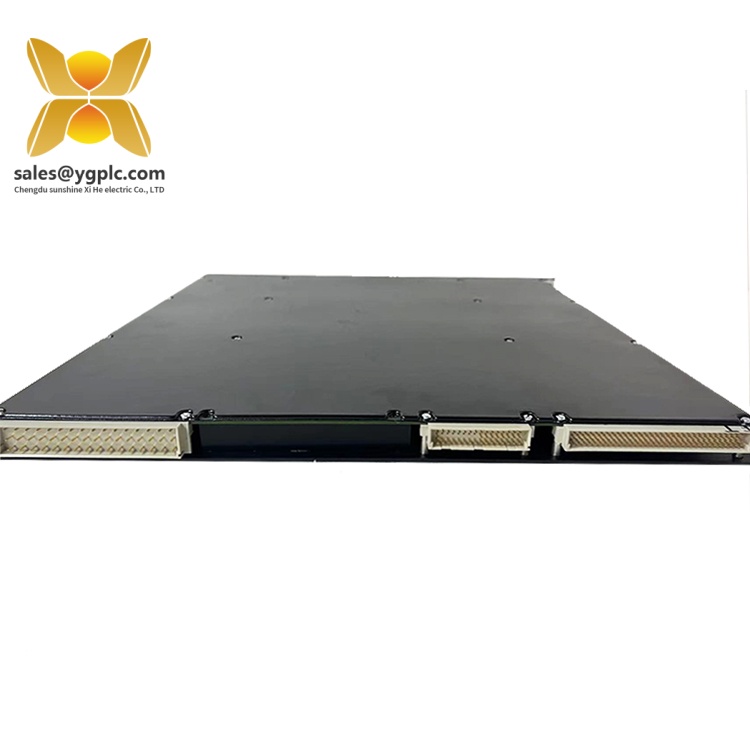

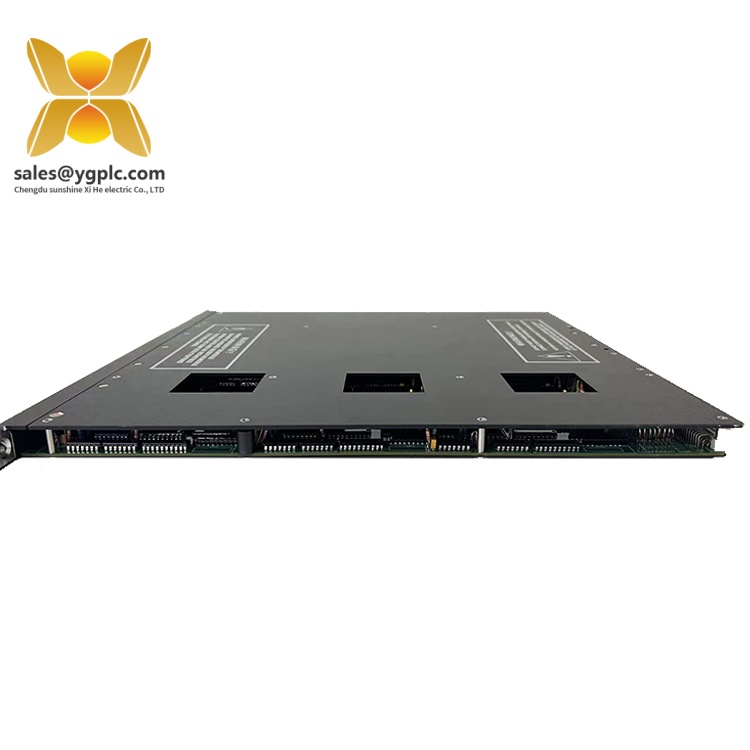

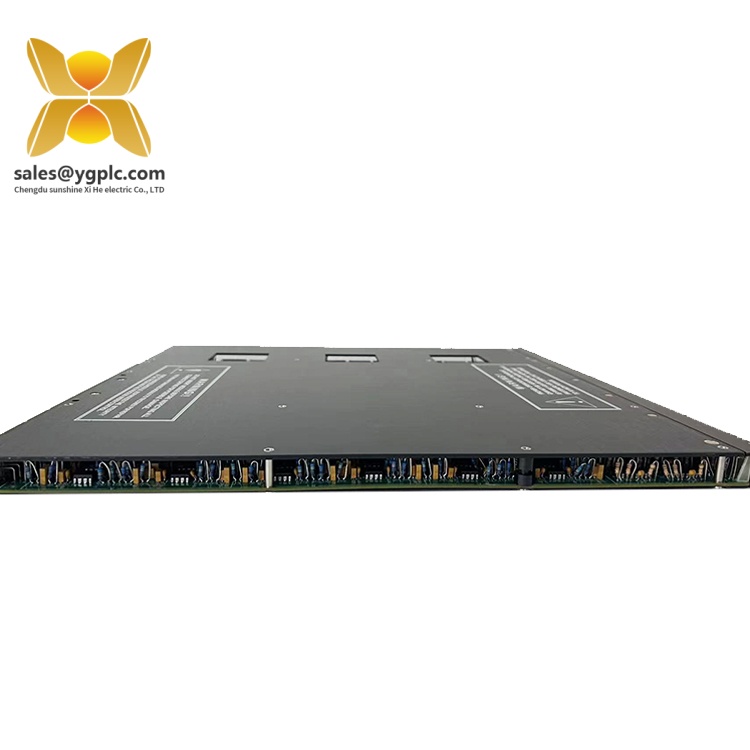

TRICONEX 3511 Product Specification
Product Overview：TRICONEX 3511
The TRICONEX 3511 is a high-performance TMR (Triple Modular Redundancy) pulse input module designed for mission-critical industrial automation systems. Engineered by TRICONEX, a global leader in safety-critical control solutions, this module is part of the Tricon series, renowned for its unparalleled reliability and precision in monitoring rotating equipment. The TRICONEX 3511 serves as a vital component in safety instrumented systems (SIS) and distributed control systems (DCS), enabling accurate acquisition and processing of high-frequency pulse signals from sensors in industries such as oil and gas, power generation, and manufacturing.
At its core, the TRICONEX 3511 integrates eight non-committed pulse input channels with 16-bit resolution, capturing signals ranging from 1,000 Hz to 20,000 Hz with ±0.01% accuracy17. Its TMR architecture ensures fault tolerance by independently processing inputs through three identical channels and voting on the results, minimizing the risk of single-point failures. This makes the TRICONEX 3511 ideal for applications where continuous operation and data integrity are non-negotiable, such as turbine speed control or compressor monitoring in offshore platforms.
In automation systems, the TRICONEX 3511 acts as a bridge between field devices (e.g., magnetic speed sensors) and higher-level control systems, converting raw pulse signals into actionable data for real-time decision-making. Its wide common-mode range (-100 VDC to +100 VDC peak-to-peak) and AC-coupled differential inputs provide immunity to noise and interference, ensuring stable performance in harsh industrial environments19. By combining high-speed processing with advanced diagnostic capabilities, the TRICONEX 3511 empowers industries to optimize equipment efficiency, reduce downtime, and comply with stringent safety standards like IEC 61508/SIL 337.
Technical Specifications：TRICONEX 3511
| Parameter Name | Parameter Value |
|---|---|
| Product Model | TRICONEX 3511 |
| Manufacturer | TRICONEX |
| Product Type | TMR Pulse Input Module |
| Input Channels | 8 (non-committed) |
| Resolution | 16 bits |
| Frequency Range | 1,000 Hz to 20,000 Hz (±0.01% accuracy) |
| Input Characteristics | AC-coupled, balanced differential |
| Power Supply | 24 VDC ±10% |
| Physical Dimensions | 139.7 mm (W) × 33.0 mm (H) × 88.9 mm (D) |
| Weight | 0.3 kg |
| Operating Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Safety Integrity Level | SIL 3 (IEC 61508 compliant) |
| Redundancy Support | Triple Modular Redundancy (TMR) |
3511
Main Features and Advantages：TRICONEX 3511
Triple Modular Redundancy (TMR): The TRICONEX 3511’s TMR architecture ensures fault tolerance by processing inputs through three independent channels and using a majority-vote mechanism. This design allows the module to continue operating even if one channel fails, making it suitable for safety-critical applications where downtime is unacceptable39.
High-Precision Signal Acquisition: With 16-bit resolution and ±0.01% accuracy, the module delivers precise measurement of pulse frequencies, enabling reliable speed and position monitoring of rotating machinery such as turbines and compressors. Its AC-coupled inputs and wide common-mode range further enhance noise immunity, ensuring stable performance in electrically noisy environments17.
Hot-Swap Capability: The TRICONEX 3511 supports hot-swappable replacement, allowing maintenance personnel to replace faulty modules without interrupting system operation. This feature minimizes downtime and reduces maintenance costs, particularly valuable in continuous-process industries like oil refining or power generation39.
SIL 3 Compliance: Designed to meet Safety Integrity Level 3 standards, the module is certified for use in safety instrumented systems (SIS), providing a robust foundation for emergency shutdown systems and process interlocks in high-risk environments79.
Flexible Configuration: The TRICONEX 3511 is compatible with TRICONEX’s TriStation 1131 software, offering intuitive programming and diagnostics. Users can configure input parameters (e.g., frequency range, signal filtering) to adapt to specific application requirements, ensuring seamless integration with existing control architectures39.
3511
Application Areas：TRICONEX 3511
The TRICONEX 3511 is widely deployed in industries where precise monitoring and high reliability are critical:
-
Oil and Gas:
- Monitors turbine speed and compressor performance in offshore platforms and refineries, ensuring optimal energy production and safety.
- Supports emergency shutdown systems (ESD) by providing real-time pulse data for critical equipment protection.
-
Power Generation:
- Measures rotational speed of generators and steam turbines to maintain grid stability and prevent overspeeding.
- Integrates with condition monitoring systems to detect early signs of equipment degradation, enabling predictive maintenance.
-
Manufacturing:
- Controls conveyor belts and robotic systems in automotive and pharmaceutical production lines by synchronizing pulse signals from encoders and proximity sensors.
- Ensures quality control by monitoring production rates and detecting anomalies in high-speed packaging machines.
-
Water and Wastewater Treatment:
- Manages pump stations by measuring flow rates via pulse signals from ultrasonic sensors, optimizing resource allocation and regulatory compliance.
- Provides redundant monitoring for wastewater treatment processes, ensuring continuous operation and environmental safety.
Related Products：TRICONEX 3511
- TRICONEX 3625: A 24V DC digital output module for actuating solenoid valves and relays in safety interlock systems, often used alongside the TRICONEX 3511 in hybrid control setups49.
- TRICONEX 2551: A high-speed analog input module for temperature and pressure monitoring, complementing the TRICONEX 3511 in multi-sensor applications89.
- TRICONEX 4211: A TMR-based controller module for complex logic processing, expanding the system’s computational capabilities in large-scale SIS configurations39.
- TRICONEX 3721E: A digital input module for handling discrete signals from switches and sensors, supporting the TRICONEX 3511 in comprehensive equipment monitoring systems49.
- TRICONEX 5201E: A power supply module designed for Tricon systems, ensuring stable and reliable power distribution to the TRICONEX 3511 and other modules39.
3511
Installation and Maintenance：TRICONEX 3511
Pre-Installation Preparation:
Before installing the TRICONEX 3511, ensure the following:
Before installing the TRICONEX 3511, ensure the following:
- Verify the power supply meets the module’s requirements (24 VDC ±10%).
- Clean the installation area to prevent dust or debris from affecting performance.
- Align the module with the Tricon chassis backplane connectors, ensuring a secure mechanical and electrical connection.
- Configure the module using TriStation 1131 software to define input parameters (e.g., frequency range, signal conditioning) based on sensor specifications39.
Maintenance Recommendations:
- Regularly inspect the module for physical damage or loose connections, particularly in high-vibration environments.
- Monitor the module’s operating temperature and humidity levels to ensure they remain within specified ranges (-40°C to +85°C, 5% to 95% non-condensing).
- Perform diagnostic tests using TriStation 1131 to check channel health and communication integrity.
- Replace the module immediately if fault indicators activate, leveraging its hot-swap capability to minimize downtime.
- Update firmware periodically to access the latest features and security patches, ensuring compatibility with evolving control system requirements39.
3511
Product Warranty：TRICONEX 3511
Our company provides a one-year quality warranty for the TRICONEX 3511, covering hardware failures due to non-human factors. During the warranty period, we will replace the product if it exhibits performance anomalies or functional failures. For discontinued models or urgent needs, our global supply chain network ensures rapid response to scarce spare parts requests, supporting the continuous and stable operation of industrial systems.
Note: This product description is based on publicly available technical data and industry applications. For detailed specifications, consult the official TRICONEX datasheet or contact our technical support team.
