Product Overview: TRICONEX 3411S2
The TRICONEX 3411S2 is a high-integrity analog output module engineered for safety-critical industrial automation and process control systems. As a core component of TRICONEX’s Tricon and Trident platforms, it serves as the interface between TRICONEX’s triple modular redundancy (TMR) controllers and field devices such as control valves, actuators, and variable-speed drives. Designed to transmit 32 isolated analog output signals with exceptional precision, the TRICONEX 3411S2 ensures reliable control in electrically noisy or hazardous environments, making it essential for industries like oil refining, chemical processing, and power generation .
Built with TRICONEX’s patented TMR architecture, the TRICONEX 3411S2 processes each output signal through three independent channels, eliminating single points of failure. It supports a wide output range of 4–20 mA (with tolerance for 2–22 mA) and features 2500 VDC channel-to-bus isolation, ensuring signal integrity even in high-interference settings. The module’s compact design (4.5 cm height × 18.8 cm width × 21.7 cm depth) and rugged construction allow operation across extreme temperatures (-40°C to +70°C), aligning with the harsh conditions of offshore platforms and nuclear facilities .
A key innovation of the TRICONEX 3411S2 is its continuous self-diagnostic capability, which monitors each output channel for open circuits, short circuits, or voltage anomalies. This real-time health monitoring, combined with hot-swap functionality, minimizes downtime by enabling maintenance without system shutdown. The module is SIL 3 certified (IEC 61508) and ATEX/IECEx compliant for use in explosive atmospheres, ensuring compliance with the most stringent safety standards .
Technical Specifications
| Parameter | Value (TRICONEX 3411S2) |
|---|---|
| Product model | TRICONEX 3411S2 |
| Manufacturer | TRICONEX |
| Product type | Analog output module |
| Physical dimensions | 4.5 cm (height) × 18.8 cm (width) × 21.7 cm (depth) |
| Weight | 1.28 kg |
| Electrical specifications | 24 VDC operating voltage; ≤4 W power consumption |
| Output channels | 32 isolated analog outputs |
| Output range | 4–20 mA DC (tolerant to 2–22 mA) |
| Resolution | 12-bit digital-to-analog conversion |
| Accuracy | ±0.15% of full scale |
| Isolation | 2500 VDC channel-to-bus isolation |
| Update time | <1 ms for all 32 points |
| Working environment | -40°C to +70°C; 5%–95% RH (non-condensing) |
| Certifications | SIL 3 (IEC 61508), ATEX/IECEx (Zone 1/2) |
| Installation | 19-inch rack mount; DIN rail compatible |

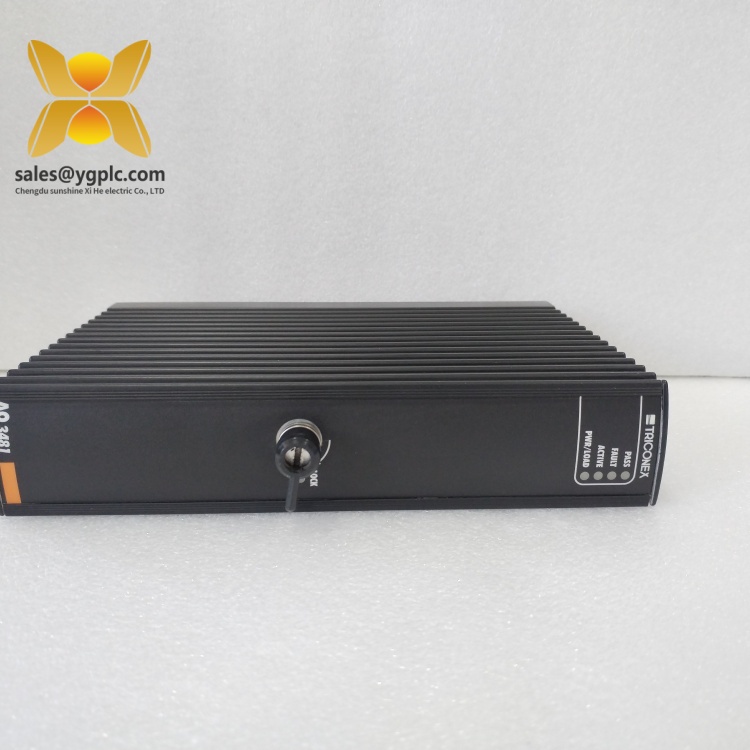

3411S2
Related Products
- TRICONEX AI 3351S2: An analog input module that works in tandem with the TRICONEX 3411S2 to form a complete control loop, capturing process data from sensors and transmitting it to the controller .
- TRICONEX DO 3401S2: A digital output module that complements the TRICONEX 3411S2 in hybrid control systems, handling discrete commands to solenoids and relays .
- TRICONEX CM3201S2: A high-speed communication module that enables the TRICONEX 3411S2 to interface with enterprise-level systems (e.g., cloud platforms) using protocols like Profibus DP and OPC UA .
- TRICONEX MP 3101: The primary processor module of TRICONEX SIS, which executes safety logic based on output signals from the TRICONEX 3411S2 .
- TRICONEX 4400: A redundant power supply module that ensures stable 24 VDC power to the TRICONEX 3411S2, preventing signal disruptions during voltage fluctuations .
- TRICONEX AO 3481S2: A high-current analog output module for applications requiring precise control of large-scale actuators, such as steam turbine governors .
Main Features and Advantages
Triple Modular Redundancy (TMR) Architecture
The TRICONEX 3411S2 processes each analog signal through three independent channels, with a 2-out-of-3 voting mechanism to ensure data accuracy. This design eliminates single-point failures and supports continuous operation even if one channel malfunctions, critical for applications where downtime is catastrophic (e.g., offshore drilling) .
High-Precision Signal Conditioning
With 12-bit resolution and ±0.15% full-scale accuracy, the module delivers precise control of process variables like pressure, temperature, and flow. Its 2500 VDC isolation and wide output range (4–20 mA) make it suitable for both legacy and modern industrial actuators .
Advanced Diagnostics
The module’s continuous self-diagnostic system monitors each channel for faults (e.g., open circuits, short circuits) in under 2 ms, providing real-time health status via LED indicators and system logs. This proactive monitoring reduces mean time to repair (MTTR) and enhances system availability .
Rugged Reliability
With ATEX/IECEx certification and an operating temperature range of -40°C to +70°C, the TRICONEX 3411S2 withstands extreme industrial conditions, including high electromagnetic interference (EMI) and explosive atmospheres. Its compact design and DIN rail compatibility simplify installation in space-constrained environments .
Hot-Swap Capability
Technicians can replace the TRICONEX 3411S2 without powering down the system, minimizing downtime in continuous-process industries like pharmaceuticals and oil refining. This feature is supported by TRICONEX’s field-proven TMR architecture, which ensures seamless module replacement .

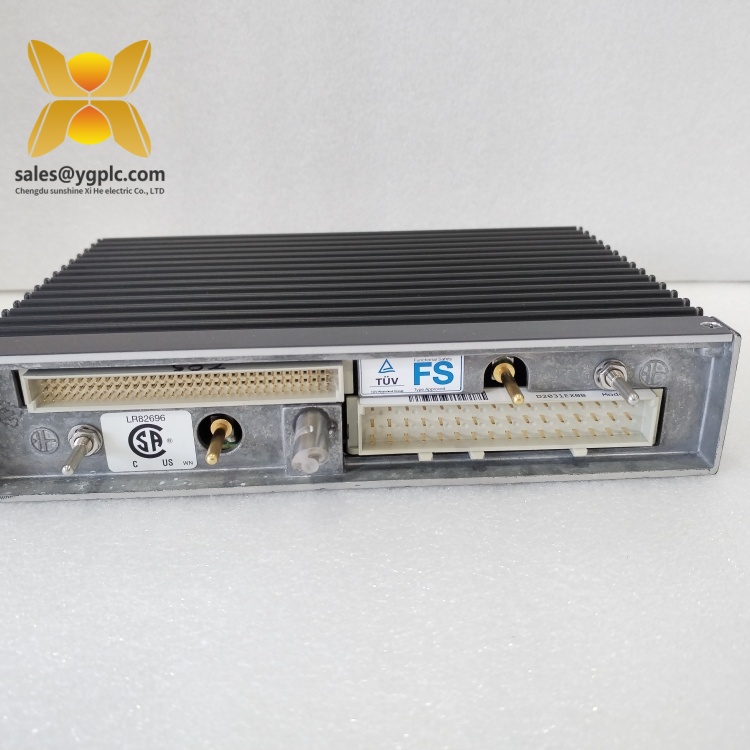

3411S2
Installation and Maintenance
Pre-installation Preparations
Before installing the TRICONEX 3411S2:
- Verify the system’s firmware is updated to the latest version compatible with the module.
- Inspect the module for physical damage and ensure the 19-inch rack or DIN rail is securely mounted.
- Configure the output signal range (4–20 mA) and verify power supply stability (24 VDC ±10%) .
Maintenance Suggestions
- Quarterly Checks: Clean dust from vents using compressed air to prevent overheating. Use TriStation software to run diagnostic tests and verify cable connections.
- Annual Updates: Update the module’s firmware to access bug fixes and new features. Perform a full system health check, including signal integrity tests for all output channels.
- Fault Resolution: Use built-in LED indicators to identify faulty channels. Replace the module if self-diagnostics detect irreparable hardware issues .
Application Fields
The TRICONEX 3411S2 is widely deployed in industries where safety and precision are non-negotiable:
- Oil and Gas: Controls emergency shutdown (ESD) valves and gas re-injection systems in offshore platforms and refineries. For example, it adjusts valve positions based on pressure transmitter inputs to maintain pipeline integrity .
- Chemical Processing: Manages reactor temperature and distillation column parameters by transmitting analog signals to control valves. It ensures rapid response to process deviations in hazardous environments .
- Power Generation: Optimizes turbine performance by controlling steam admission valves based on vibration and load data. The TRICONEX 3411S2 also supports predictive maintenance by relaying real-time health metrics to analytics platforms .
- Pharmaceuticals: Maintains sterile environments by adjusting cleanroom HVAC systems’ airflow and humidity. The module ensures deviations are immediately addressed, preventing product contamination and regulatory non-compliance .
3411S2
Product Guarantee
Our company, a leading industrial control parts distributor established in 2007, offers a one-year quality warranty for the TRICONEX 3411S2, covering hardware malfunctions unrelated to misuse or improper installation. During the warranty period, defective modules are replaced free of charge. As a specialist in hard-to-find and discontinued industrial components, we maintain a large inventory of TRICONEX products, including the TRICONEX 3411S2, to meet urgent procurement needs. Our global supply chain network ensures fast delivery, even for obsolete models. Technical support is available to assist with installation, configuration, and troubleshooting, ensuring seamless integration and long-term reliability of your safety-critical systems .
