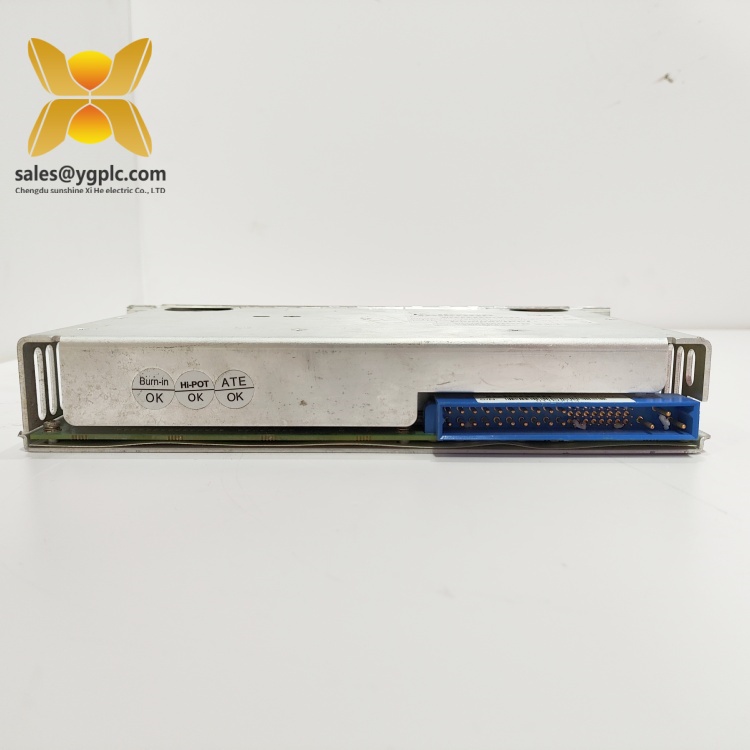

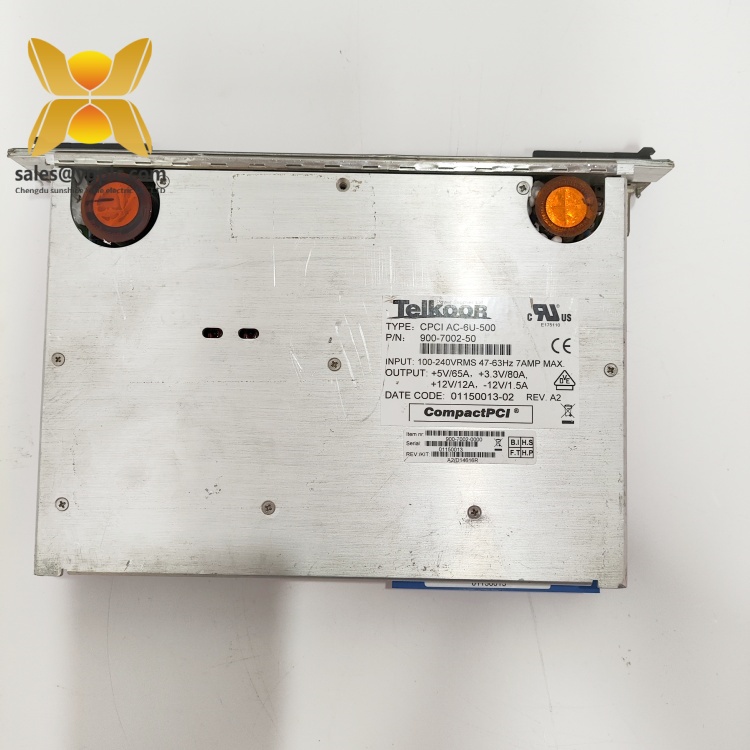

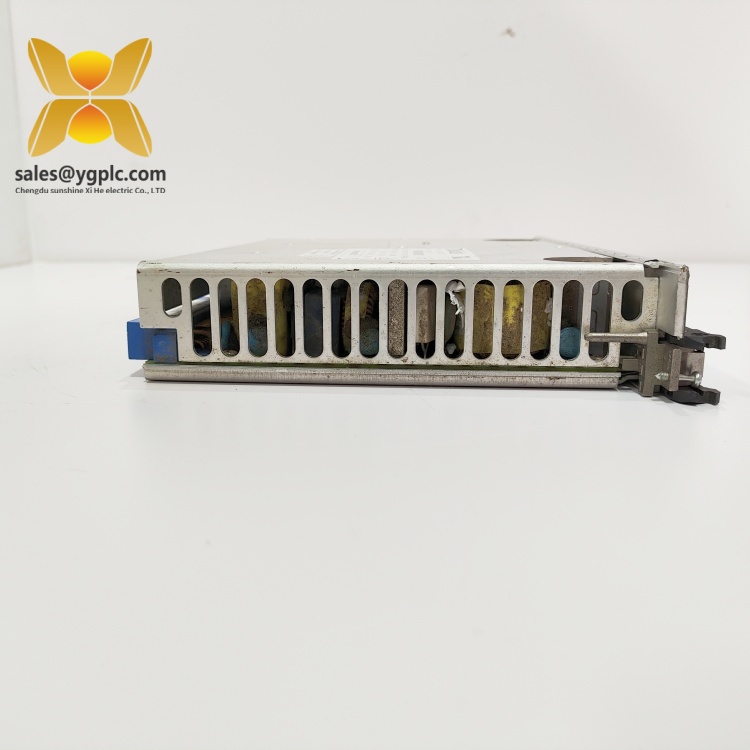

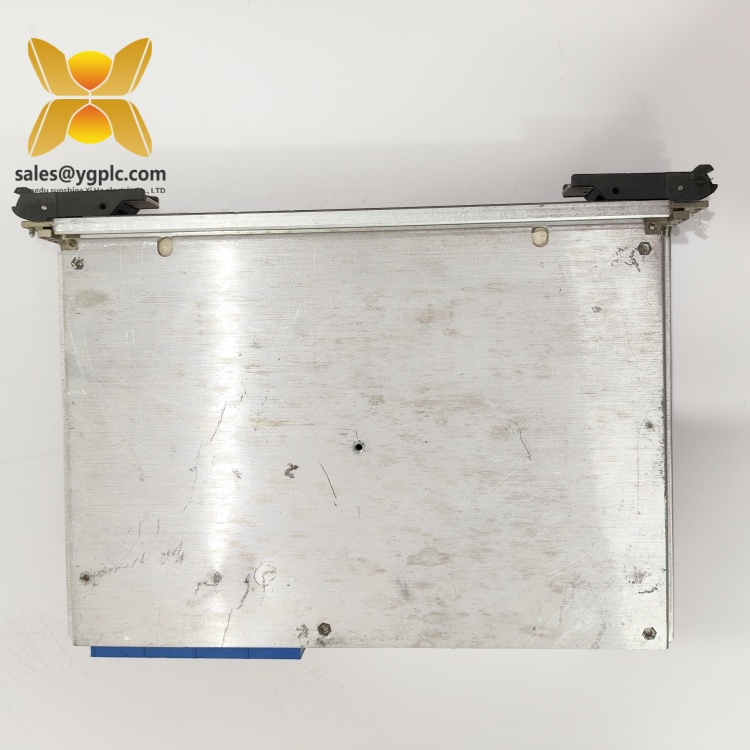

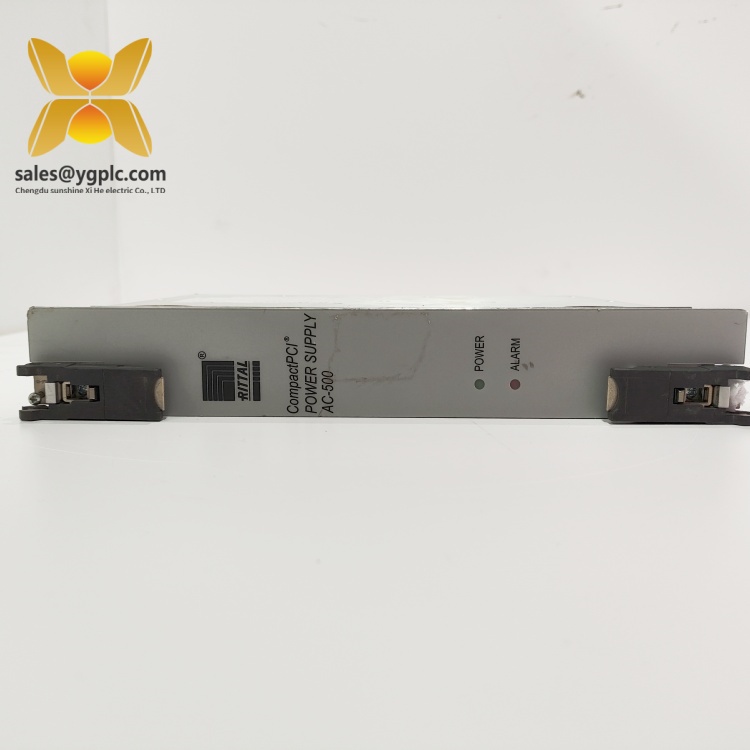

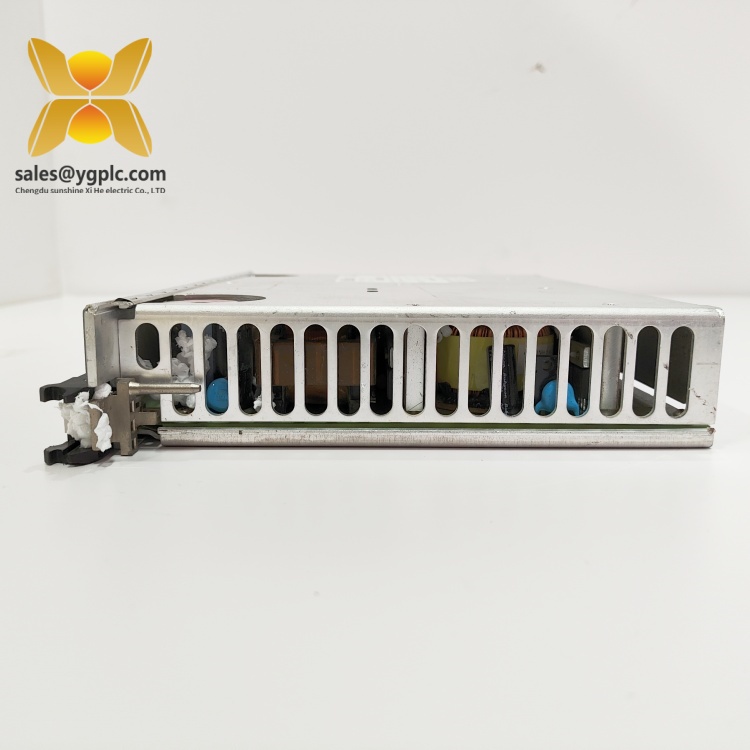

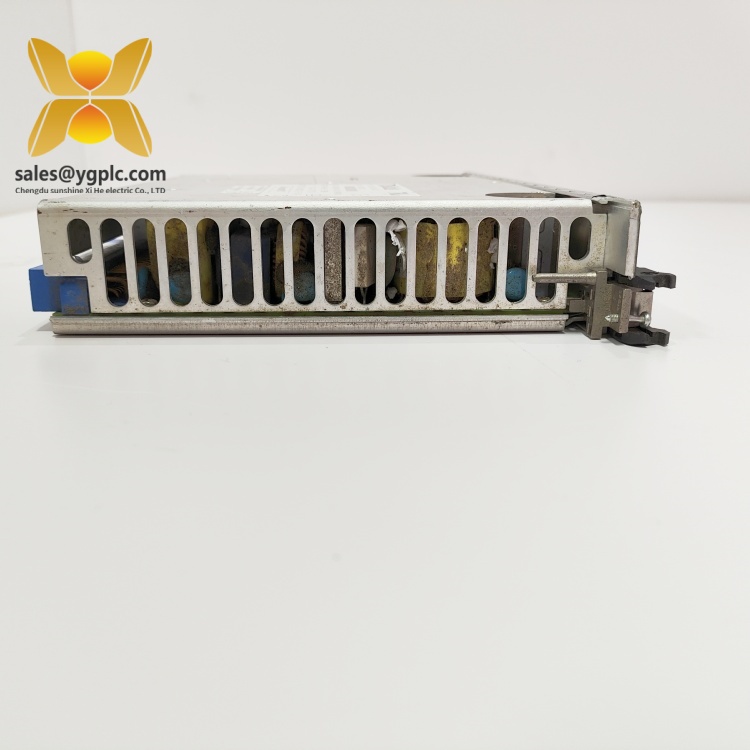

TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 CPCI Power Supply Module
Product Overview：TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
The TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 CPCI power supply module is a high-reliability power solution designed for industrial automation and telecommunications systems adhering to the CompactPCI (CPCI) standard. As part of TeIKOOR’s CPCIAC series, this module delivers stable and efficient power distribution for 6U CPCI systems, ensuring uninterrupted operation in mission-critical environments. Engineered to meet the rigorous demands of industrial applications, the PSMU-350-3 combines advanced power conversion technology with a rugged design, making it an essential component for systems requiring high availability and scalability.
Featuring a 350W output power capacity, the PSMU-350-3 CPCIAC-6U-500 900-7002-10 supports universal input voltage (100–240V AC) and includes built-in redundancy capabilities, allowing seamless integration into redundant power architectures. Its 6U form factor complies with the PICMG 2.11 standard, ensuring compatibility with a wide range of CPCI backplanes and chassis. The module’s intelligent thermal management system, including temperature-controlled fans, ensures optimal performance across a broad operating temperature range (-20°C to +60°C), while its LED status indicators provide real-time feedback on power health and fault conditions.
In automation systems, the PSMU-350-3 CPCIAC-6U-500 900-7002-10 serves as a reliable power backbone for industrial computers, communication gateways, and control servers. Its ability to support hot-swappable operations minimizes downtime during maintenance or upgrades, while advanced protection features (overvoltage, overcurrent, short-circuit) safeguard connected hardware from electrical faults. By delivering consistent power with high efficiency (up to 92%), this module enhances the reliability of industrial networks, making it ideal for applications where power stability is non-negotiable.
Technical Specifications：TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PSMU-350-3 CPCIAC-6U-500 900-7002-10 |
| Manufacturer | TeIKOOR |
| Product Type | CPCI Power Supply Module |
| Input Voltage | 100–240V AC, 50/60Hz |
| Output Power | 350W (12V DC, 29.17A) |
| Efficiency | Up to 92% |
| Physical Dimensions | 233.35mm (H) x 160mm (W) x 80mm (D) |
| Weight | 2.8 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 6U CPCI shelf mounting |
| Country of Origin | United States |
TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
Main Features and Advantages：TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
High-Reliability Redundancy: The PSMU-350-3 CPCIAC-6U-500 900-7002-10 supports parallel redundancy, allowing multiple modules to operate in tandem for fault tolerance. This feature ensures continuous power delivery even if one module fails, making it critical for systems such as telecom switches and industrial control cabinets where downtime is unacceptable.
Efficient Thermal Management: The module’s integrated heat sinks and variable-speed fans maintain optimal operating temperatures, even in high-density rack environments. This design reduces the risk of overheating and extends the lifespan of internal components, minimizing maintenance requirements.
Hot-Swappable Design: Designed for easy installation and replacement, the PSMU-350-3 supports hot-swapping, enabling service personnel to replace faulty modules without powering down the entire system. This feature significantly reduces mean time to repair (MTTR) and enhances system availability.
Comprehensive Protection: Built-in overvoltage, overcurrent, and short-circuit protection mechanisms safeguard the module and connected devices from electrical anomalies. The module also includes a remote on/off function for centralized power control, enhancing system security and flexibility.
Standard Compliance: Fully compliant with PICMG 2.11 (CPCI power supply standard) and RoHS 2.0, the PSMU-350-3 CPCIAC-6U-500 900-7002-10 ensures compatibility with legacy and modern CPCI systems while meeting environmental and safety regulations.
TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
Application Areas：TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
The TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 CPCI power supply module is widely deployed in industries requiring robust and reliable power solutions:
- Telecommunications: Used in telecom central offices and data centers to power CPCI-based switches, routers, and network appliances. Its redundancy support ensures uninterrupted network connectivity in carrier-grade environments.
- Industrial Automation: Integrates with CPCI-based control systems in manufacturing plants, enabling stable power for PLCs, HMIs, and industrial PCs. The module’s wide temperature range makes it suitable for harsh factory floors and outdoor installations.
- Aerospace and Defense: Deployed in military-grade communication systems and avionics, where high reliability and compliance with rugged standards are essential. The module’s ability to withstand vibration and extreme temperatures meets the demands of mobile and airborne applications.
- Medical Equipment: Powers CPCI-based medical imaging systems and diagnostic equipment, ensuring consistent power for sensitive instruments. The hot-swappable design minimizes downtime in healthcare settings, where continuous operation is critical.
- Test and Measurement: Used in automated test systems to provide stable power for CPCI-based measurement instruments and data acquisition modules, enhancing test accuracy and repeatability.
Related Products：TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
- PSMU-500-3 CPCIAC-6U-700 900-7003-10: A 500W variant of the PSMU-350-3, offering higher power output for systems with increased energy demands while maintaining the same 6U form factor.
- CPCIAC-6U-500 Backplane: A complementary CPCI backplane designed to work with the PSMU-350-3, providing robust interconnection and power distribution for multi-module systems.
- PSMU-350-5 CPCIAC-6U-500 900-7002-15: A 5V DC output version of the module, suitable for systems requiring lower voltage rails alongside 12V DC.
- CPCIAC-6U-1000 Chassis: A 19-inch rackmount chassis that houses the PSMU-350-3 and up to 14 CPCI modules, offering the cooling and mechanical support for large-scale systems.
- PSMU-350-3-R CPCIAC-6U-500 900-7002-20: A redundancy kit for the PSMU-350-3, including a redundant power backplane and cabling to enable parallel operation for enhanced reliability.
- TeIKOOR CPCIAC-6U-500 Cooling Fan Module: A dedicated cooling module that integrates with the PSMU-350-3 to enhance airflow in high-temperature environments.
TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
Installation and Maintenance：TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
Pre-installation Preparations:
Before installing the PSMU-350-3 CPCIAC-6U-500 900-7002-10, verify that the CPCI chassis and backplane comply with PICMG 2.11 standards and support 6U power modules. Ensure the input power source matches the module’s voltage range (100–240V AC) and that the chassis is properly grounded. Align the module with the CPCI shelf, sliding it into place until the connectors are fully engaged, then secure it with the provided retention screws to prevent accidental disconnection.
Before installing the PSMU-350-3 CPCIAC-6U-500 900-7002-10, verify that the CPCI chassis and backplane comply with PICMG 2.11 standards and support 6U power modules. Ensure the input power source matches the module’s voltage range (100–240V AC) and that the chassis is properly grounded. Align the module with the CPCI shelf, sliding it into place until the connectors are fully engaged, then secure it with the provided retention screws to prevent accidental disconnection.
Maintenance Recommendations:
- Routine Inspections: Regularly check the module’s LED indicators to monitor power status and fault conditions. Clean the air vents quarterly using compressed air to remove dust and debris that could impede airflow.
- Fan Maintenance: Inspect the cooling fans annually for signs of wear or abnormal noise. Replace fans immediately if they fail to operate, as inadequate cooling can lead to overheating and reduced module lifespan.
- Redundancy Testing: For systems using multiple PSMU-350-3 modules in redundant configurations, test the failover mechanism biannually to ensure seamless switching between modules.
- Firmware Updates: Periodically check TeIKOOR’s official website for firmware updates that may improve module performance or add new features, following the provided guidelines for safe installation.
Product Warranty：TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10
Our company offers a 12-month quality warranty for the TeIKOOR PSMU-350-3 CPCIAC-6U-500 900-7002-10 CPCI power supply module, covering hardware defects arising from non-human causes. During the warranty period, we will replace any malfunctioning module at no cost to ensure your system’s uninterrupted operation. For discontinued models or urgent repair needs, our global supply chain network enables rapid sourcing of spare parts, minimizing downtime and supporting the long-term reliability of your industrial infrastructure.
With 17 years of expertise in industrial control distribution, we pride ourselves on delivering high-quality components and exceptional customer service. The PSMU-350-3 CPCIAC-6U-500 900-7002-10 exemplifies our commitment to providing reliable, innovative power solutions for critical applications. Contact us today to discuss how this module can enhance your system’s performance and resilience.
Note: All product names, logos, and brands are the property of their respective owners. This document is for informational purposes only and does not substitute for official technical documentation. Always refer to the manufacturer’s guidelines for detailed installation and safety instructions.
