SCHROFF MPS022 | Modular Power Supply | PE-1957/26

Description

Product Overview：SCHROFF MPS022

Technical Specifications：SCHROFF MPS022

Parameter Name	Parameter Value
Product Model	MPS022
Manufacturer	SCHROFF
Product Type	Modular Power Supply
Input Voltage	90–264 V AC, 127–370 V DC
Output Voltage	24 V DC (adjustable ±10%)
Output Current	Up to 8.3 A
Efficiency	Up to 92%
Physical Dimensions	44 mm x 200 mm x 250 mm
Weight	1.8 kg
Place of Origin	Germany
Interface Type	Screw terminals for input/output
Operating Temperature	-20°C to +70°C
Mounting Type	19-inch rack mountable

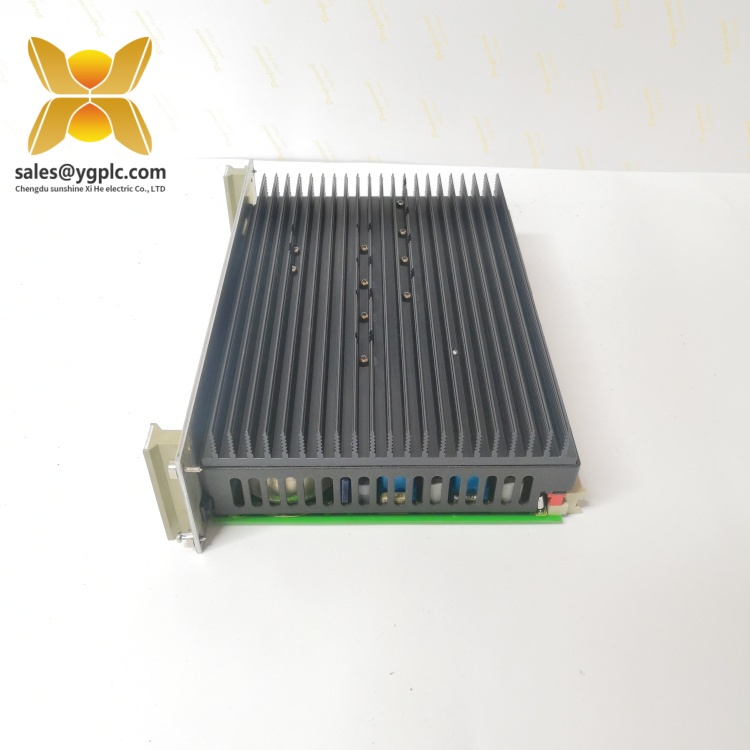

SCHROFF MPS022

Key Features and Advantages：SCHROFF MPS022

Intelligent Monitoring: Equipped with built-in monitoring functions, the MPS022 can detect overloads, short circuits, and voltage fluctuations in real-time. It provides status indicators and optional remote monitoring interfaces, allowing operators to proactively manage power supply performance and prevent potential system failures.

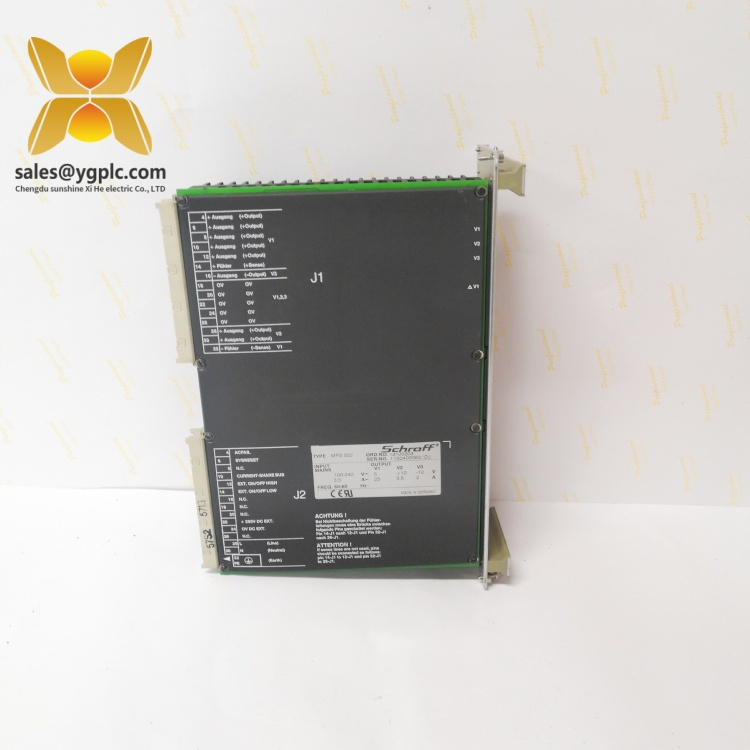

SCHROFF MPS022

Application Areas：SCHROFF MPS022

• Industrial Automation: In manufacturing plants, the MPS022 powers PLCs, HMIs, and robotic control systems, ensuring stable operation of automated production lines. Its reliability is crucial for maintaining high production rates and product quality.
• Telecommunications: It serves as a reliable power source for communication equipment in data centers, cell towers, and network hubs. The wide input voltage range and high efficiency make it suitable for maintaining continuous connectivity in remote or power-unstable locations.
• Renewable Energy: In wind farms and solar power plants, the MPS022 provides power to monitoring and control systems. Its ability to withstand harsh environmental conditions, such as high humidity and temperature variations, makes it a preferred choice for renewable energy applications.
• Transportation: Used in railway signaling systems, airport control towers, and intelligent transportation infrastructure, the MPS022 ensures reliable power supply for safety-critical equipment. Its compact size allows for easy integration into space-constrained control cabinets.
• Medical Equipment: In healthcare facilities, the MPS022 powers diagnostic and monitoring devices. Its stable output and electromagnetic compatibility ensure accurate operation of sensitive medical equipment.

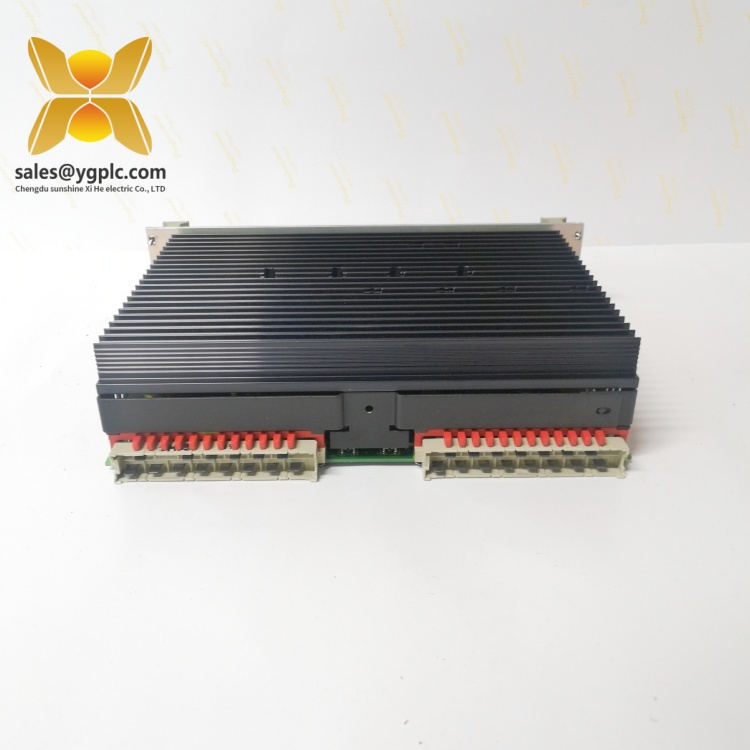

  SCHROFF MPS022

Related Products：SCHROFF MPS022

1. SCHROFF MPS044: This model is a higher-power variant of the MPS022, offering up to 16.6 A output current. It is suitable for applications requiring more substantial power supply, such as large-scale industrial machinery or complex automation systems.
2. SCHROFF MPS011: A lower-power alternative to the MPS022, providing up to 4.1 A output current. Ideal for smaller control systems or applications with limited power requirements.
3. SCHROFF PEM series: These power entry modules complement the MPS022 by providing input filtering, surge protection, and power switching functions, enhancing the overall reliability of the power supply system.
4. SCHROFF RPS series: Remote power supplies that can be used in conjunction with the MPS022 to distribute power over longer distances in large installations, reducing cable losses and improving system efficiency.
5. SCHROFF BMU series: Battery management units that can be integrated with the MPS022 to create uninterruptible power supply (UPS) systems, ensuring continuous operation during power outages.
6. SCHROFF SPM series: System power modules that work alongside the MPS022 to provide redundancy and load sharing capabilities, enhancing the resilience of critical power applications.

Installation and Maintenance：SCHROFF MPS022

Installation Preparation:
Before installing the **SCHROFF MPS022, ensure that the input power source matches the specified voltage range. Mount the power supply onto a 19-inch rack using the provided mounting brackets, making sure it is securely fastened. Connect the input power cables to the designated terminals, ensuring proper insulation and torque specifications. For the output, connect the cables to the equipment that requires power, taking care to match the voltage and current ratings. Ground the MPS022 properly to prevent electrical hazards and electromagnetic interference.
Maintenance Recommendations:
Regularly inspect the MPS022 for any signs of physical damage, loose connections, or abnormal heat generation. Clean the ventilation openings quarterly to prevent dust accumulation, which can affect the cooling efficiency and overall performance. Periodically check the input and output voltages using a multimeter to ensure they remain within the specified ranges. In case of any performance issues or error indicators, refer to the user manual for troubleshooting steps. If necessary, contact our technical support team for assistance. For long-term storage, keep the MPS022 in a dry, dust-free environment and power it on periodically to maintain its functionality.

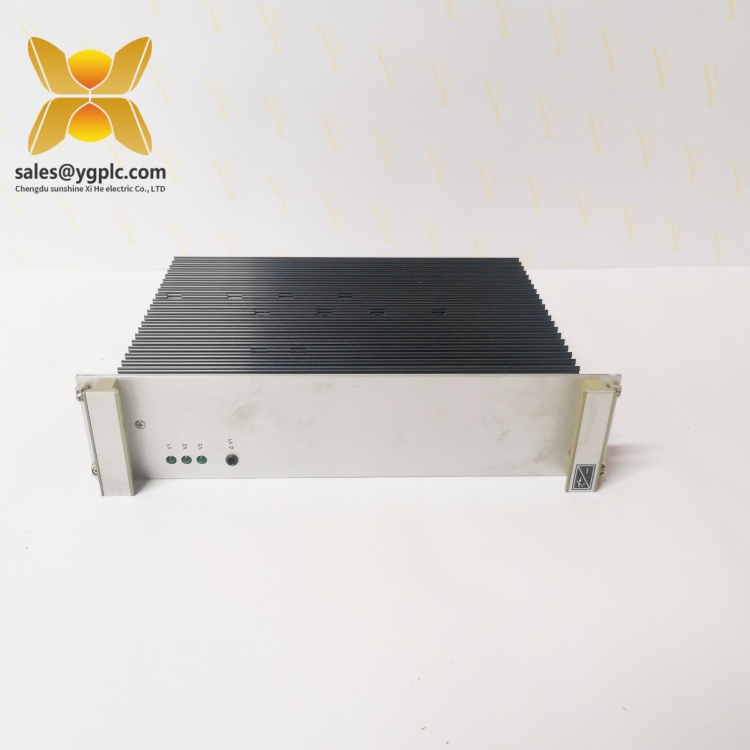

SCHROFF MPS022

Product Guarantee：SCHROFF MPS022
