Rexroth VT-VPCD-1-15/V0/1-P-1 | Proportional Valve Control Card Others

$5,682.00

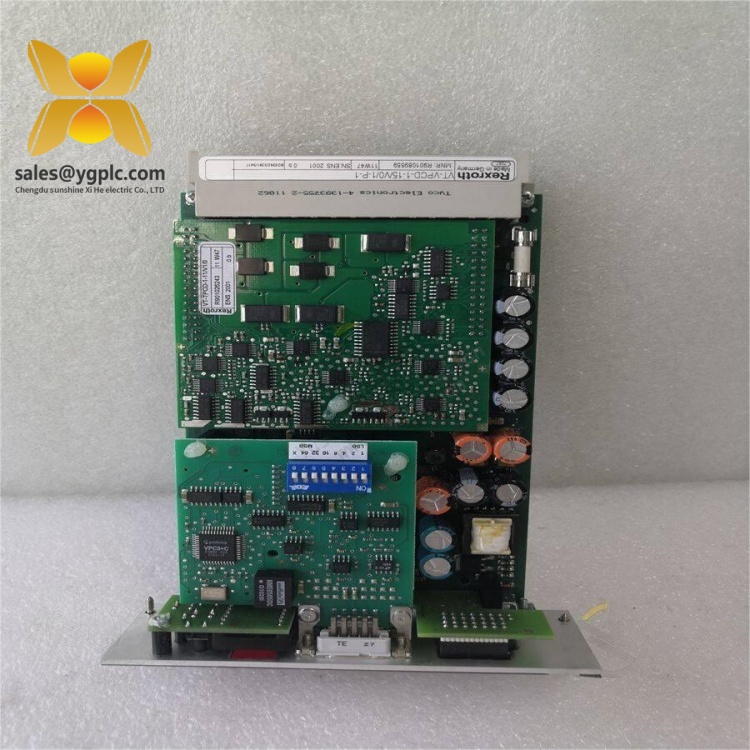

The Rexroth VT-VPCD-1-15/V0/1-P-1 is a Bosch Rexroth Indramat plug-in control card for electrohydraulic valve applications. It belongs to the VT-VPCD series and is designed to process control signals for proportional or servo-hydraulic systems.
Brand model：Rexroth
Product Name:VT-VPCD-1-15/V0/1-P-1
Warranty: 1 year
Origin:USA
HS code：85389000.00
Inventory: Spot/Futures
Goods condition: Brand new
Delivery time: 3-4days/1month

Get a Quote
Categories: , Brand:

Description

Product Overview

The Rexroth VT-VPCD-1-15/V0/1-P-1 is a Bosch Rexroth Indramat plug-in control card for electrohydraulic valve applications. It belongs to the VT-VPCD series and is designed to process control signals for proportional or servo-hydraulic systems. Available technical references identify a 24 VDC supply, approximately 3.5 A current consumption, RS-232 parameterization, and a 64-pin DIN 41612 G backplane connector. The Eurocard-format board measures approximately 100 × 160 mm and weighs about 0.2 kg. A current cross-reference identifies R901089559 as the related material number.

Technical Specifications — VT-VPCD-1-15/V0/1-P-1

Parameter Value
Product Model VT-VPCD-1-15/V0/1-P-1
Manufacturer Bosch Rexroth Indramat
Product Type Proportional Valve Control Card
Material Number R901089559
Supply Voltage 24 VDC
Current Consumption Approx. 3.5 A
Analog Output ±10 V
Output Resolution 10 mV
Communication / Protocol Profibus DPV0
Parameter Interface RS-232
Backplane Connector 64-pin DIN 41612 G
Format Eurocard
Dimensions (HxWxD) Approx. 100 × 160 mm
Weight Approx. 0.2 kg
Application Electrohydraulic valve and drive control
Rexroth VT-VPCD-1-15/V0/1-P-1

Rexroth VT-VPCD-1-15/V0/1-P-1

Key Features and Benefits — VT-VPCD-1-15/V0/1-P-1

  • Designed for electrohydraulic proportional-valve control.
  • 24 VDC operating supply for industrial control cabinets.
  • ±10 V analog output supports compatible valve-control architectures.
  • RS-232 interface allows parameterization and service access.
  • Compact Eurocard construction fits compatible Rexroth rack systems.
  • Profibus DPV0 connectivity is documented for this configuration.
  • Suitable for replacement and lifecycle maintenance of existing hydraulic control equipment.

Related Models

R901089559 — Material-number reference associated with this VT-VPCD configuration.

VT-HNC100 — Rexroth hydraulic numerical-control unit commonly associated with electrohydraulic axis-control systems.

VT-VPCD series — Related valve-pre-command control cards designed for hydraulic valve applications.

VT-VPCD-1-27 — A related VPCD configuration reported in industrial spare-part inventories; output-stage compatibility should be confirmed before substitution.

Rexroth VT-VPCD-1-15/V0/1-P-1

Rexroth VT-VPCD-1-15/V0/1-P-1

Installation and Maintenance — VT-VPCD-1-15/V0/1-P-1

Before replacement, isolate the hydraulic control cabinet and discharge the 24 VDC supply. Record the existing card position, connector orientation, parameter settings, communication configuration, and valve wiring before removing the board.

Inspect the DIN 41612 connector, PCB, adjustment elements, and rack contacts for contamination or mechanical damage. Configuration and valve matching should be verified after installation. Personally, I would confirm the complete material number and valve-control specification before approving a substitute, especially where proportional-valve current requirements are critical.

Product Warranty — VT-VPCD-1-15/V0/1-P-1

Warranty terms depend on supplier, condition, test status, and purchase agreement. For refurbished or surplus hydraulic-control cards, request functional-test information and confirm the exact hardware identification before shipment. The Rexroth VT-VPCD-1-15/V0/1-P-1 should be matched to the existing rack, valve-control circuit, and communication architecture before commissioning.
