Description

Product Overview

The PTQ-PDPMV1 is a PROFIBUS DPV1 Master network interface module designed for Schneider Electric Modicon Quantum processors. It provides a direct interface between the Quantum backplane and PROFIBUS DP slave devices, allowing PLC systems to exchange cyclic I/O data and acyclic diagnostic or parameter information. The module supports PROFIBUS DPV0 and DPV1 communication and operates as a PROFIBUS master only. Typical applications include remote I/O, motor control centers, variable-frequency drives, instrumentation, and process automation networks. ProSoft Technology provides configuration and diagnostic tools through ProSoft Configuration Builder and PROFIBUS comDTM. The module can also support Unity Hot Standby architectures when configured with the appropriate system and software versions.

Technical Specifications — PTQ-PDPMV1

The manufacturer specifies support for up to six modules per rack in standard installations and up to four modules for Hot Standby implementations.

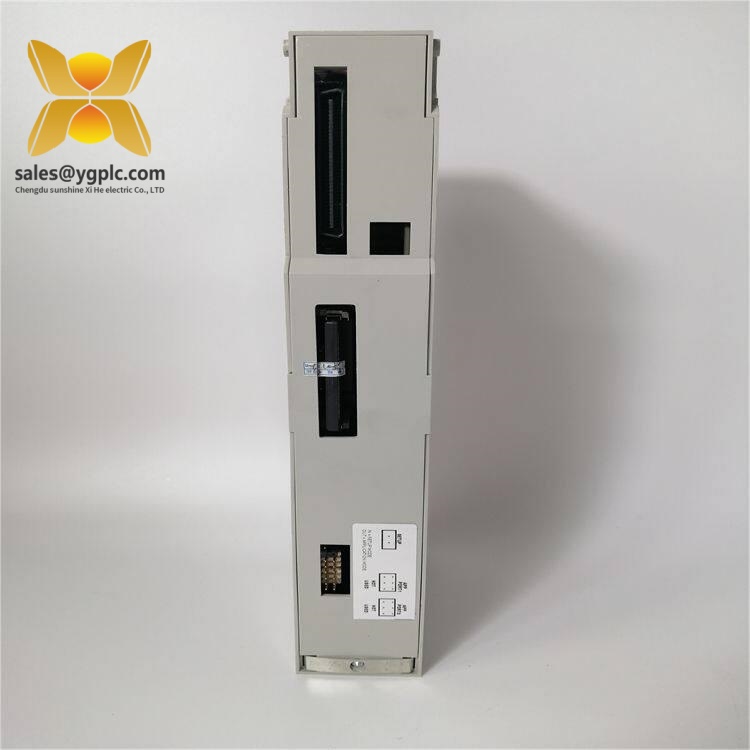

ProSoft PTQ-PDPMV1

Key Features and Benefits — PTQ-PDPMV1

• PROFIBUS DPV1 Master functionality for Quantum PLC systems.
• Supports both DPV0 cyclic I/O and DPV1 acyclic services.
• RS-485 PROFIBUS physical interface.
• Supports extended slave diagnostics and alarm handling.
• Ethernet-based module configuration and diagnostics.
• Compatible with ProSoft Configuration Builder.
• PROFIBUS comDTM support for device-level parameterization.
• Flash-upgradable firmware.
• Supports Unity Hot Standby architectures.
• Suitable for legacy Quantum control systems requiring PROFIBUS connectivity.

The practical advantage is its ability to add PROFIBUS master capability without replacing the existing Quantum controller architecture.

Related Models

PTQ-PDPS: A related ProSoft PROFIBUS interface for Quantum applications with a different communication role.

MVI69-PDPMV1: PROFIBUS DPV1 Master module designed for CompactLogix and MicroLogix platforms rather than Quantum.

MVI56-PDPMV1: PROFIBUS DPV1 Master solution for Rockwell ControlLogix architectures.

ProLinx PDPMV1: PROFIBUS DPV1 Master gateway family for applications requiring a different host interface.

Installation and Maintenance — PTQ-PDPMV1

Before installation, verify the Quantum rack, processor type, PROFIBUS master configuration, slave GSD files, network baud rate, termination, and required data-map size. Save the existing configuration before replacing the module.

During commissioning, confirm PROFIBUS slave addresses, bus diagnostics, cyclic data exchange, and acyclic parameter access. Check the RS-485 cable shielding and termination carefully; communication faults are often caused by field wiring rather than the interface module itself.

Personally, I would export and retain the working ProSoft Configuration Builder project before replacing the hardware. That configuration can save considerable commissioning time when restoring a legacy PROFIBUS network.

Product Warranty — PTQ-PDPMV1

Warranty coverage should be confirmed according to the supplied condition, such as new surplus, refurbished, repaired, or tested-used. For critical communication spares, procurement records should include the complete part number, firmware revision, configuration file, inspection status, and warranty period.

When sourcing the ProSoft PTQ-PDPMV1, verify the Quantum processor, PROFIBUS network configuration, firmware compatibility, and Hot Standby requirements before purchase. ProSoft and Schneider Electric continue to provide technical documentation for this legacy module.
