Description

Product Overview

The PROSOFT MVI56-PDPMV1 is a PROFIBUS DP-V1 Master network interface module designed for Rockwell Automation ControlLogix systems. Installed directly in a ControlLogix chassis, it provides the PLC processor with a dedicated interface to PROFIBUS DP-V0 and DP-V1 slave devices, including remote I/O, motor control centers, variable frequency drives, and other field equipment. The module operates exclusively as a PROFIBUS master and exchanges process data with the ControlLogix processor through its internal database and module I/O interface. ProSoft documentation specifies an optically isolated RS-485 PROFIBUS interface, support for acyclic DP-V1 read/write messaging, alarms, Sync and Freeze commands, and PROFIdrive parameter access. It supports up to 125 PROFIBUS slaves when repeaters are used, making it well suited to legacy and mixed-vendor automation networks.

Technical Specifications — MVI56-PDPMV1

ProSoft’s current documentation confirms the data capacity, diagnostic capabilities, DP-V1 functions, and isolated RS-485 interface.

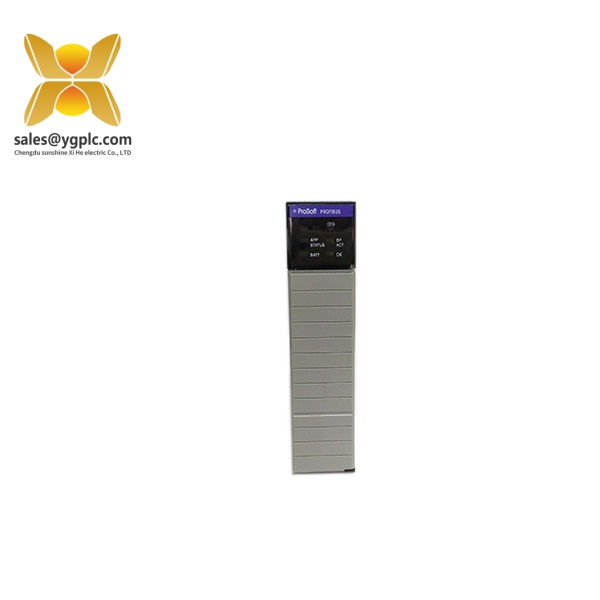

ProSoft MVI56-PDPMV1

Key Features and Benefits — MVI56-PDPMV1

• PROFIBUS DP-V1 master connectivity for ControlLogix processors.
• Supports both cyclic process data and acyclic DP-V1 messaging.
• Up to 125 slave devices when appropriate PROFIBUS repeaters are deployed.
• Optically isolated RS-485 interface helps separate the field network electrically from the host control system.
• Supports extended diagnostics, alarms, Sync, Freeze, Multicast, and Broadcast functions.
• PROFIdrive 3.1 support makes the module practical for compatible drive and motion applications.
• Uses ProSoft configuration and Add-On Instruction resources for ControlLogix integration.

Personally, I would verify the existing ControlLogix chassis, firmware, PROFIBUS master configuration, and slave GSD files before replacing this module. Network compatibility is not determined by the connector alone.

Related Models

MVI56-PDPS — A related ControlLogix PROFIBUS interface designed for slave rather than master operation. ProSoft lists it as a separate legacy product family.

ILX56-PBM — ProSoft’s listed replacement path for the legacy MVI56-PDPMV1, with technical support recommended for migration planning.

MVI56-PDPMV1 User Manual — The primary configuration reference covering module operation, PROFIBUS setup, diagnostics, and ControlLogix integration.

MVI56 ControlLogix Series — Legacy ProSoft in-chassis communication modules covering PROFIBUS and other industrial protocols.

ProSoft MVI56-PDPMV1

Installation and Maintenance — MVI56-PDPMV1

Before installation, verify the ControlLogix chassis position, module firmware, PROFIBUS station address, baud rate, slave configuration, termination, and GSD/device parameters. For hazardous-area installations, follow the specified Class I, Division 2 wiring and power-removal requirements; ProSoft explicitly warns against module substitution or disconnection while energized in a hazardous location.

During maintenance, inspect the backplane connector, module status LEDs, PROFIBUS DB-9 connection, shielding, and termination resistors. After replacement, confirm master startup, slave diagnostics, cyclic I/O exchange, and any DP-V1 acyclic transactions before returning the system to operation.

Product Warranty — MVI56-PDPMV1

Warranty coverage depends on supplier condition and sales terms. Confirm whether the unit is new, refurbished, repaired, or surplus, and request firmware information, functional-test records, serial-number traceability, and warranty details.

The PROSOFT MVI56-PDPMV1 is a legacy ControlLogix PROFIBUS master module, and ProSoft now identifies ILX56-PBM as the replacement path. For an operating legacy system, exact configuration matching should be completed before migration or substitution.
