Product Overview

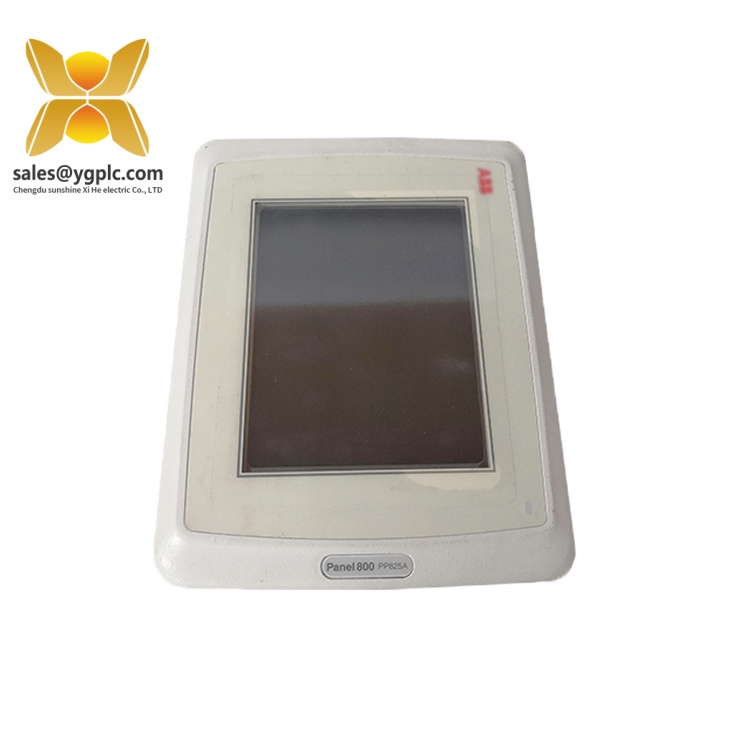

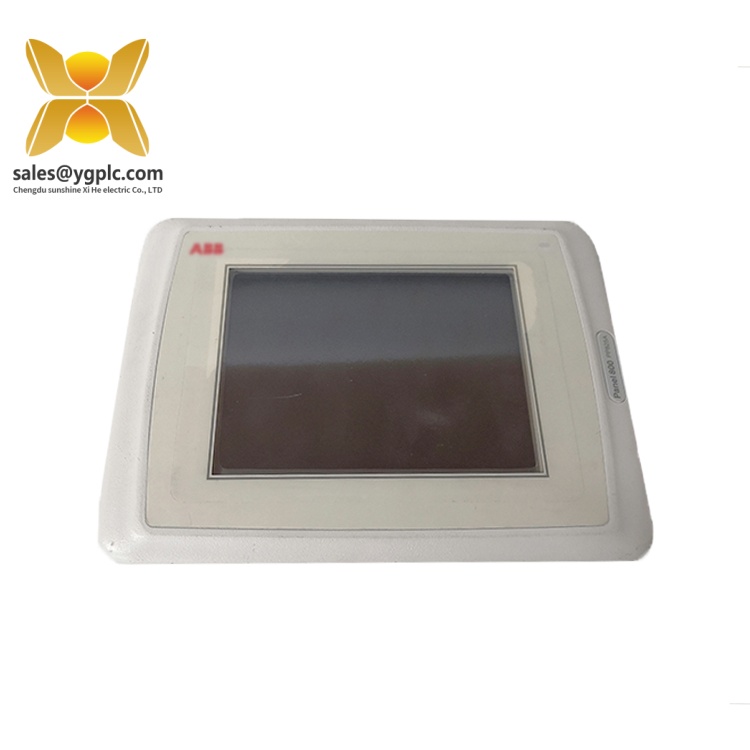

The ABB PP825A 3BSE042240R3 is a high – performance 5.7 – inch resistive touch panel that serves as a crucial Human – Machine Interface (HMI) in industrial automation systems. Engineered by ABB, a global leader in power and automation technologies, this touch panel is designed to offer seamless interaction between operators and industrial processes or machinery.
With a CSTN – LCD display featuring 320×240 pixels, the PP825A 3BSE042240R3 can vividly present both graphical and textual information. This makes it easy for operators to monitor various parameters, such as process variables, equipment status, and alarm messages. The touch – based interface of the PP825A 3BSE042240R3 allows for intuitive control..E-mail :sales@ygplc.com. Operators can simply touch the screen to input commands, adjust settings, and navigate through different control interfaces. This significantly simplifies the operation of industrial systems, reducing the learning curve for new operators and enhancing the efficiency of day – to – day operations.
As part of ABB’s extensive range of HMI solutions, the PP825A 3BSE042240R3 is highly adaptable and can be integrated into a wide variety of industrial control setups. Whether it is used in a small – scale manufacturing unit or a large – scale industrial plant, this touch panel can effectively bridge the gap between the human operator and the automated industrial processes, ensuring smooth and efficient operation.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | PP825A 3BSE042240R3 |
| Manufacturer | ABB |
| Product Type | Resistive Touch Panel (HMI) |
| Display Type | CSTN – LCD |
| Display Resolution | 320×240 pixels |
| Display Size | 5.7 inches |
| Touch Technology | Resistive |
| Input Voltage | [Specify the voltage range, e.g., 24V DC (±10%)] |
| Power Consumption | [Typical power consumption value, e.g., < 10 W] |
| Operating Temperature | – 20°C to +50°C (non – condensing) |
| Storage Temperature | – 40°C to +70°C |
| Humidity Range | 5% – 95% (non – condensing) |
| Dimensions (W×H×D) | [e.g., 150mm × 100mm × 30mm] (approx.) |
| Mounting Method | Panel – mount |
| Communication Interfaces | [List the supported interfaces, e.g., RS – 232, RS – 485, Ethernet] |
| Backlight Life | [Specify the approximate backlight life, e.g., 50,000 hours] |
PP825A 3BSE042240R3
Main Features and Advantages
User – Friendly Touch Interface
The resistive touch technology of the ABB PP825A 3BSE042240R3 offers a highly responsive and user – friendly interaction experience. It can accurately detect touch inputs, allowing operators to quickly select options, enter data, and control processes. The touch panel is also designed to be durable, withstanding frequent use in industrial environments. This makes it suitable for applications where quick and accurate operator input is required, such as in real – time process control scenarios.
Clear and Readable Display
The 5.7 – inch CSTN – LCD display with a 320×240 – pixel resolution provides clear and sharp graphical and textual information. The display is visible even in bright industrial lighting conditions, ensuring that operators can easily monitor process variables and system status. The ability to present information in both graphical and text formats allows for better understanding of complex industrial processes. For example, process flow diagrams can be displayed graphically, while numerical values of parameters like temperature, pressure, and flow rate can be shown in text.
Wide Operating Temperature Range
With an operating temperature range from – 20°C to +50°C, the PP825A 3BSE042240R3 can function reliably in a variety of industrial settings. .E-mail :sales@ygplc.com. This makes it suitable for use in cold storage facilities, outdoor industrial plants, and high – temperature processing environments. The wide temperature tolerance ensures that the touch panel can maintain its performance and functionality, reducing the risk of system failures due to temperature – related issues.
Multiple Communication Interfaces
Equipped with multiple communication interfaces such as RS – 232, RS – 485, and Ethernet, the ABB PP825A 3BSE042240R3 can easily integrate with different industrial control systems. It can communicate with PLCs, DCSs, and other intelligent devices, enabling seamless data exchange. For instance, it can receive real – time data from a PLC about the status of industrial equipment and display it on the touch panel. At the same time, operator commands input on the touch panel can be transmitted back to the PLC for further processing.
PP825A 3BSE042240R3
Durable Design
The touch panel is designed to be robust and durable, capable of withstanding the harsh conditions of industrial environments. Its enclosure protects against dust, moisture, and vibrations, ensuring long – term reliable operation. This durability reduces the need for frequent replacements, leading to cost savings in the long run for industrial users.
Application Areas
Manufacturing Industry
In manufacturing plants, the ABB PP825A 3BSE042240R3 is used in various production lines. For example, in an automotive assembly line, operators can use the touch panel to control the operation of robotic arms, adjust the speed of conveyor belts, and monitor the quality control parameters. In a food and beverage factory, it can be used to control the filling and packaging machines. Operators can set the filling volume, adjust the packaging speed, and monitor the production line status through the touch panel, ensuring efficient and accurate production.
Power Generation
In power generation facilities, the PP825A 3BSE042240R3 is utilized for monitoring and controlling power – related processes. In a thermal power plant, operators can use the touch panel to monitor the temperature, pressure, and steam flow in the boiler and turbine systems. They can also adjust the power output of the generators by controlling the excitation current through the touch – based interface. In a hydroelectric power plant, it can be used to control the opening and closing of valves, adjust the water flow rate, and monitor the performance of the turbines.Whatsapp:+86 18859254943.
Process Industries
In process industries such as chemical and petrochemical plants, the ABB PP825A 3BSE042240R3 plays a vital role in process control. Operators can use it to monitor and control chemical reactions in reactors. They can adjust the flow rate of reactants, control the temperature and pressure inside the reactors, and receive real – time alarms in case of any abnormal conditions. In oil refineries, it can be used to monitor the oil and gas flow in pipelines, control the operation of pumps and compressors, and manage the storage of refined products.
PP825A 3BSE042240R3
Related Products
- PP815: A touch panel from ABB with a potentially smaller display size or fewer features compared to the PP825A 3BSE042240R3. It may be suitable for applications where a more compact and basic HMI solution is required.
- PP835A 3BSE042234R2: Another touch panel in ABB’s lineup. It could offer a higher – resolution display or more advanced communication capabilities. This model might be a better choice for applications that demand more detailed graphical representation or enhanced connectivity.
- PP865A 3BSE042236R2: A more advanced HMI device with potentially larger display size and more powerful processing capabilities. It can handle more complex control interfaces and is suitable for applications where a high – end HMI solution is needed, such as in large – scale industrial plants with complex processes.
- CI854K01 3BSE025961R1: A communication card from ABB that can be used in combination with the PP825A 3BSE042240R3 to enhance its communication capabilities within an industrial network. It enables better data transfer between the touch panel and other components in the control system.Whatsapp:+86 18859254943.
- PM861K01: A processor module that can work with the PP825A 3BSE042240R3 to process data related to the HMI operations. It can perform tasks such as data analysis and control algorithm execution, ensuring smooth operation of the touch panel in an industrial control environment.
Installation and Maintenance
Installation Preparation
Before installing the ABB PP825A 3BSE042240R3, ensure that the power to the industrial control system is turned off. Select an appropriate location on the control panel for mounting. The location should be easily accessible to operators and free from excessive vibrations, dust, and moisture. Follow the provided mounting instructions to securely fix the touch panel to the panel. Connect the power supply wires, ensuring that the voltage is within the specified 24V DC (±10%) range. Connect the communication cables to the relevant interfaces on the touch panel and the other components in the control system, following the correct wiring sequence to avoid signal interference. Use the provided configuration software to set up the touch panel’s parameters, such as communication settings, display preferences, and control functions.
Maintenance Recommendations
Regularly clean the touch panel’s screen using a soft, non – abrasive cloth to remove dust, dirt, and fingerprints. This helps to maintain the clarity of the display and the responsiveness of the touch interface. Inspect the touch panel for any signs of physical damage, such as cracks in the screen or loose connections. Check the communication interfaces periodically to ensure that the data transfer is working correctly. If there are any issues with the display or touch functionality, perform basic troubleshooting steps, such as restarting the touch panel or checking the power supply. Update the touch panel’s firmware regularly to access the latest features, security enhancements, and bug fixes. Keep spare parts, such as replacement touch panels or communication cables, on hand to minimize downtime in case of component failures.
PP825A 3BSE042240R3
Product Assurance
Chengdu Sunshine XiHe Electric Co., LTD offers the ABB PP825A 3BSE042240R3 with a 1 – year product warranty. With 17 years of experience in the industrial control industry, we have firmly established ourselves as a leading import and export trade distribution company. We specialize in sourcing and supplying a wide range of industrial control parts from major brands, including hard – to – find and discontinued models. Our large inventory ensures that we can quickly meet the urgent needs of our customers for spare parts.Whatsapp:+86 18859254943.
We have a distinct advantage in our supply channels, allowing us to source genuine ABB products directly from the manufacturer. This not only guarantees the quality of the products but also enables us to offer competitive prices. Our professional technical team is available to provide comprehensive after – sales support, including installation guidance, configuration assistance, and troubleshooting services. We are committed to ensuring customer satisfaction and the reliable operation of the products we supply. When you choose the PP825A 3BSE042240R3 from us, you can be confident in the product’s quality and performance, backed by our dedicated service and support.
