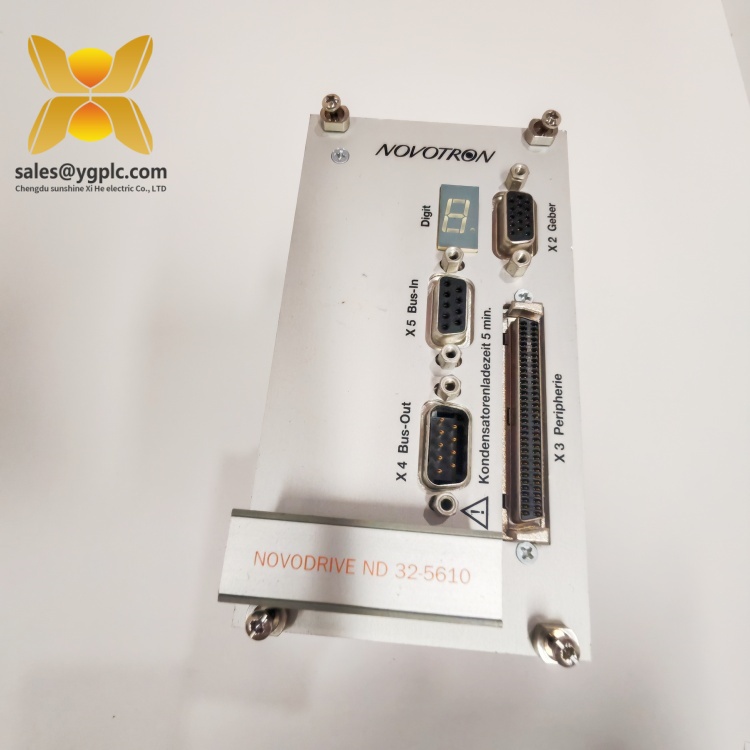

Novotron ND32-5610 ND32-5610VS-001-000-00 Industrial Control Module
Product Overview ： Novotron ND32-5610 ND32-5610VS-001-000-00
The Novotron ND32-5610 ND32-5610VS-001-000-00 industrial control module is a high-performance automation component designed to deliver precise control and monitoring capabilities for complex industrial systems. As part of Novotron’s ND32 series, this module combines advanced microprocessor technology with a rugged design to meet the demands of harsh industrial environments. It serves as a critical interface between sensors, actuators, and higher-level control systems, enabling real-time data processing and command execution in applications ranging from manufacturing to energy production.
Engineered for versatility, the ND32-5610 supports multiple input/output (I/O) configurations, including analog and digital channels, to accommodate diverse sensor and actuator types. Its core functions include signal conditioning, data acquisition, and closed-loop control, making it suitable for applications requiring high precision, such as robotic assembly, process automation, and quality control systems. The module’s -40°C to 85°C operating temperature range and IP67 protection rating ensure reliable performance in extreme conditions, while its compact design (100mm x 150mm x 50mm) facilitates installation in space-constrained control panels.
Within automation systems, the ND32-5610VS-001-000-00 acts as a decentralized intelligence node, reducing the burden on central controllers by handling localized control logic and data preprocessing. This enhances system responsiveness and reduces latency, critical for real-time control applications. Its support for Modbus RTU and Ethernet/IP protocols enables seamless integration with SCADA systems, PLCs, and HMIs, creating a unified automation ecosystem. By combining robust hardware with flexible software configuration, the module delivers tangible value in terms of improved operational efficiency, reduced downtime, and enhanced system scalability.
Technical Specifications ： Novotron ND32-5610 ND32-5610VS-001-000-00
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ND32-5610 ND32-5610VS-001-000-00 |
| Manufacturer | Novotron |
| Product Type | Industrial Control Module |
| Input Voltage | 24V DC ±15% |
| I/O Channels | 32 channels (16 analog, 16 digital) |
| Communication Protocols | Modbus RTU, Ethernet/IP |
| Physical Dimensions | 100mm (W) x 150mm (H) x 50mm (D) |
| Weight | 1.5 kg |
| Operating Temperature | -40°C to 85°C |
| Humidity Resistance | 5–95% non-condensing |
| Protection Rating | IP67 |
| Mounting Type | DIN rail or panel mount |
| Country of Origin | United States |
Novotron ND32-5610 ND32-5610VS-001-000-00
Main Features and Advantages ： Novotron ND32-5610 ND32-5610VS-001-000-00
Flexible I/O Configuration: The ND32-5610 offers 32 configurable I/O channels, including analog inputs/outputs (0–10V, 4–20mA) and digital inputs/outputs (24V DC), allowing customization for specific application needs. This flexibility eliminates the need for multiple specialized modules, simplifying system design and reducing hardware costs.
Robust Environmental Performance: With an IP67 rating, the module is fully protected against dust and water immersion, making it suitable for use in washdown areas, outdoor installations, or environments with high humidity. Its wide temperature range ensures reliable operation in both extreme cold and heat, minimizing the risk of thermal failure.
High-Speed Data Processing: Equipped with a 32-bit microprocessor, the ND32-5610VS-001-000-00 delivers fast data acquisition and control loop updates, supporting sampling rates up to 1kHz for analog channels. This precision is critical for applications requiring real-time feedback, such as motor control or process optimization.
Seamless Network Integration: The module’s dual communication ports (RS485 and Ethernet) enable simultaneous connectivity to both legacy and modern control systems. Its support for Modbus RTU and Ethernet/IP ensures compatibility with a wide range of controllers, from traditional PLCs to cutting-edge IIoT platforms.
User-Friendly Configuration: Novotron’s dedicated ND Configurator software allows users to easily program I/O mappings, set alarm thresholds, and configure communication parameters via a graphical interface. This reduces commissioning time and minimizes the risk of human error during setup.
Novotron ND32-5610 ND32-5610VS-001-000-00
Application Areas ： Novotron ND32-5610 ND32-5610VS-001-000-00
The Novotron ND32-5610 ND32-5610VS-001-000-00 industrial control module is widely deployed across industries that demand reliable and flexible automation solutions:
- Manufacturing Automation: Used in automotive assembly lines to control robotic arms, conveyor belts, and quality inspection systems. The module’s high-speed I/O capabilities ensure precise coordination of multiple devices, enhancing production throughput and reducing defects.
- Process Industries: Ideal for chemical and pharmaceutical plants, where it monitors and controls critical parameters such as temperature, pressure, and flow rate. Its rugged design withstands corrosive environments and ensures compliance with strict safety standards.
- Energy and Utilities: Deployed in power generation facilities to manage turbine control systems, switchgear, and renewable energy inverters. The module’s ability to operate in harsh conditions makes it suitable for both onshore and offshore applications.
- Material Handling: Integrates with automated storage and retrieval systems (AS/RS) and packaging machinery, enabling real-time tracking of inventory and optimized material flow. Its flexible I/O configuration adapts to various sensor types, including barcode scanners and proximity switches.
- Marine and Offshore: Used in shipboard automation systems to monitor engine performance, manage ballast control, and ensure compliance with maritime safety regulations. The IP67 rating provides essential protection against saltwater corrosion and vibration.
Related Products ： Novotron ND32-5610 ND32-5610VS-001-000-00
- ND32-5620: A 64-channel variant of the ND32-5610, offering double the I/O capacity for more complex systems. Suitable for large-scale manufacturing plants or process control applications requiring extensive sensor integration.
- ND32-5610VS-002-000-00: Features redundant power inputs for mission-critical applications, ensuring continuous operation even in the event of a power supply failure. Ideal for aerospace and defense systems.
- ND32-5600: A base model with 16 I/O channels, designed for small-scale automation projects or as a cost-effective alternative for less demanding applications.
- ND32-5610-EXT: Includes expansion ports for connecting external modules, such as analog signal conditioners or relay output boards, enhancing the system’s scalability.
- ND32-5610-HS: Optimized for high-speed applications, with sampling rates up to 5kHz for analog channels. Suited for precision measurement systems or high-frequency control loops.
- ND32-5610-ATEX: A hazardous area-certified version compliant with ATEX and IECEx standards, suitable for use in explosive environments such as oil refineries or gas storage facilities.
Novotron ND32-5610 ND32-5610VS-001-000-00
Installation and Maintenance ： Novotron ND32-5610 ND32-5610VS-001-000-00
Pre-installation Preparations:
Before installing the ND32-5610, ensure the power supply voltage (24V DC) matches the module’s requirements and that the installation site meets the IP67 environmental specifications. Clean the DIN rail or mounting surface to remove debris, then secure the module using the provided clips. Connect power cables to the terminal block, ensuring proper polarity, and terminate signal cables according to the wiring diagram provided in the user manual. Finally, configure the module’s communication settings using the ND Configurator software to match the network parameters of the host system.
Before installing the ND32-5610, ensure the power supply voltage (24V DC) matches the module’s requirements and that the installation site meets the IP67 environmental specifications. Clean the DIN rail or mounting surface to remove debris, then secure the module using the provided clips. Connect power cables to the terminal block, ensuring proper polarity, and terminate signal cables according to the wiring diagram provided in the user manual. Finally, configure the module’s communication settings using the ND Configurator software to match the network parameters of the host system.
Maintenance Recommendations:
Regular maintenance is essential to ensure the ND32-5610VS-001-000-00 operates at peak performance. Conduct monthly inspections to check for loose connections, damaged cables, or signs of environmental ingress. Use a dry, lint-free cloth to clean the module’s exterior, avoiding harsh chemicals that could damage the housing. Annually, verify the accuracy of analog inputs using a calibrated signal source and update the module’s firmware to access the latest features and bug fixes. In the event of a malfunction, replace the module with a pre-configured spare to minimize downtime, and return the faulty unit to our service center for analysis.
Novotron ND32-5610 ND32-5610VS-001-000-00
Product Warranty ： Novotron ND32-5610 ND32-5610VS-001-000-00
Our company stands behind the Novotron ND32-5610 ND32-5610VS-001-000-00 industrial control module with a 12-month quality warranty, covering all non-human-induced hardware defects. If the module exhibits abnormal behavior or fails to meet specified performance criteria during this period, we will provide a prompt replacement at no additional cost. For discontinued models or urgent repair needs, our global supply chain network ensures access to spare parts within 24–48 hours, minimizing disruption to your operations.
With 17 years of expertise in industrial control distribution, we are committed to delivering solutions that prioritize reliability and performance. The ND32-5610 series exemplifies this commitment, combining advanced technology with robust engineering to address the evolving needs of modern industries. Contact us today to explore how this module can enhance the efficiency and resilience of your automation system.
Note: All product names, logos, and brands are the property of their respective owners. This document is for informational purposes only and does not constitute an official technical manual. Always refer to the manufacturer’s documentation for detailed specifications and safety guidelines.
