Product Overview
The NI GPIB-140A is a National Instruments fiber-optic GPIB bus extender designed to connect two physically separate IEEE 488 systems over distances of up to 1 km. It provides transparent GPIB communication across a point-to-point optical link, allowing existing instrumentation software and GPIB control programs to operate without application modifications. The unit supports IEEE 488.1 and IEEE 488.2 operation and can use NI HS488 for higher-speed transfers. In buffered mode, the extension supports transfer rates above 1.1 MB/s, while HS488 operation can exceed 2.8 MB/s. The architecture also increases the total device loading capability of an extended GPIB system to as many as 28 devices, including the extenders. NI identifies the GPIB-140A as discontinued, with the GPIB-140B recommended as its successor for supported legacy applications.
Technical Specifications — GPIB-140A
| Parameter | Value |
|---|---|
| Product Model | GPIB-140A |
| Manufacturer | National Instruments (NI) |
| Product Type | GPIB Fiber-Optic Bus Extender |
| Bus Standard | IEEE 488.1 / IEEE 488.2 |
| Extension Distance | Up to 1 km |
| Transmission Medium | Multimode fiber optic |
| Optical Connector | ST-style |
| Optical Wavelength | 850 nm |
| Buffered Transfer Rate | > 1.1 MB/s |
| HS488 Transfer Rate | > 2.8 MB/s |
| Unbuffered Rate | > 200 kB/s |
| Device Loading | Up to 28 devices in the extension system |
| Input Power | 100–120 VAC or 220–240 VAC, 50–60 Hz |
| Operating Temperature | 0 to 40 °C |
| Storage Temperature | -20 to 70 °C |
| Relative Humidity | 10–90%, noncondensing |
| Dimensions (H×W×D) | 8.89 × 14.35 × 4.11 cm |
| Weight | Approx. 0.25 kg |
| Mounting | Benchtop / equipment installation |
| Typical Interfaces | GPIB and ST fiber-optic interfaces |
| Status | Discontinued |
Specifications are based primarily on the NI user manual and NI product information.

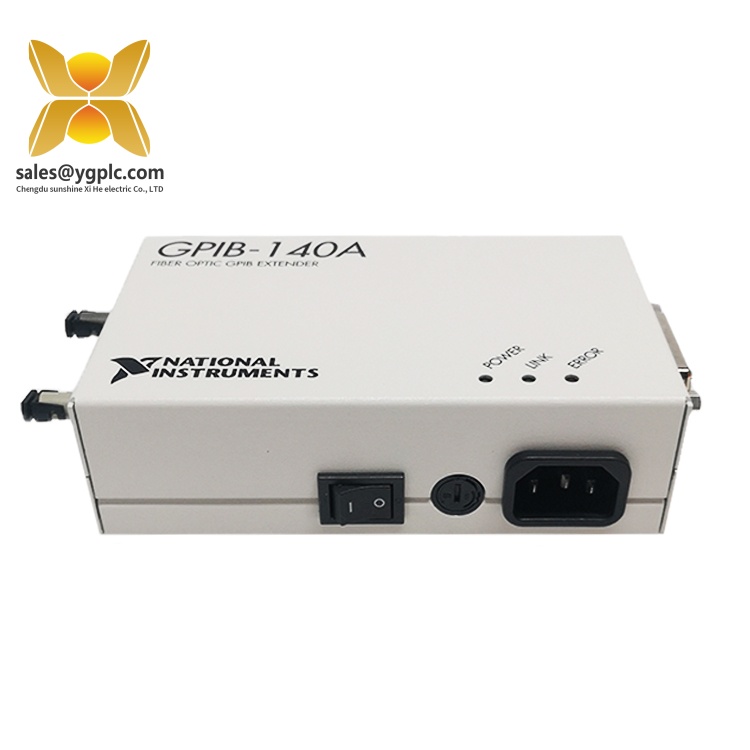

NI GPIB-140A
Key Features and Benefits — GPIB-140A
- Extends standard GPIB communication up to 1 km through fiber optic transmission.
- Functionally transparent to normal GPIB communication software.
- Supports buffered, unbuffered, and HS488 operating modes.
- Optical isolation helps separate equipment operating at different ground potentials.
- Supports expanded GPIB device loading beyond a conventional single-segment installation.
- Uses ST-style fiber connections and NI Type T7 fiber cable for the 1 km configuration.
Personally, I would preserve the original extender type when maintaining a legacy test system rather than assuming every NI GPIB extender is interchangeable. In particular, NI states that the GPIB-140A and GPIB-140B are compatible, while the older GPIB-140 and GPIB-140A/2 use different fiber protocols.
Related Models
GPIB-140B — Current-generation NI replacement for the discontinued 140A, retaining compatibility with GPIB-140A installations.
GPIB-140A/2 — Similar fiber-optic GPIB extender designed for distances up to 2 km, using a different optical configuration.
GPIB-140 — Earlier NI GPIB extender generation that is not directly compatible with the 140A fiber protocol.
GPIB T7 Cable — ST-terminated multimode fiber cable specified for GPIB-140A systems and distances up to 1 km.
NI GPIB-140A
Installation and Maintenance — GPIB-140A
Install the extender in a dry indoor environment within the specified temperature and humidity range. Use shielded GPIB cabling and the correct T7 fiber-optic cable, with both extenders configured consistently for the selected transfer mode. NI specifies a point-to-point optical architecture rather than a conventional multidrop fiber network.
During maintenance, inspect the GPIB connector, ST fiber connectors, optical cable ends, power input, and status indicators. Keep fiber interfaces clean; contamination at the optical connection can cause intermittent communication or reduced link performance.
Product Warranty — GPIB-140A
Warranty depends on supplier condition and sales terms. Because NI lists the GPIB-140A as no longer available, verify whether a replacement unit is new old stock, refurbished, or used, and request functional-test records and traceability where available. NI identifies the GPIB-140B as the recommended replacement for the 140A family.
For legacy automated test equipment, the NI GPIB-140A remains a practical spare where the existing fiber architecture and system configuration must be preserved.
