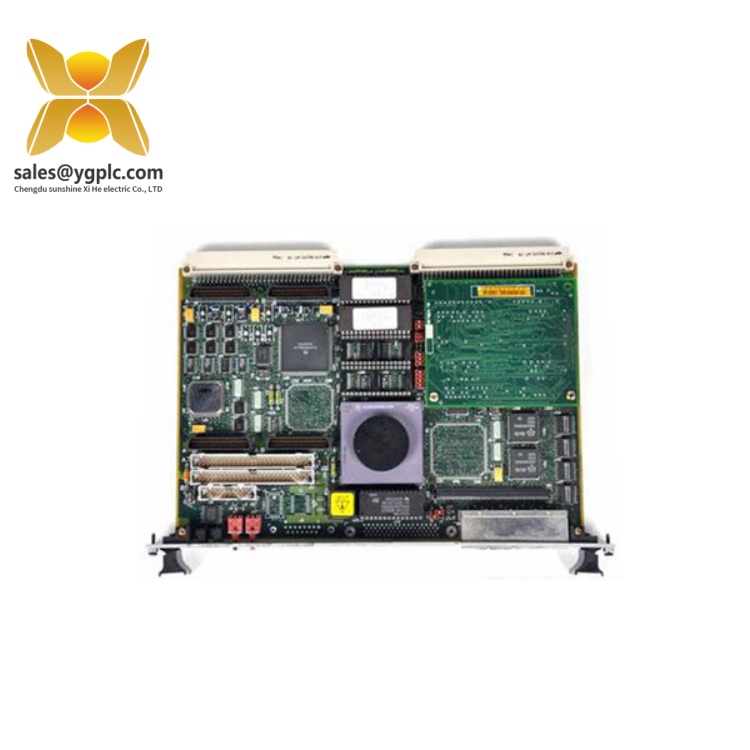

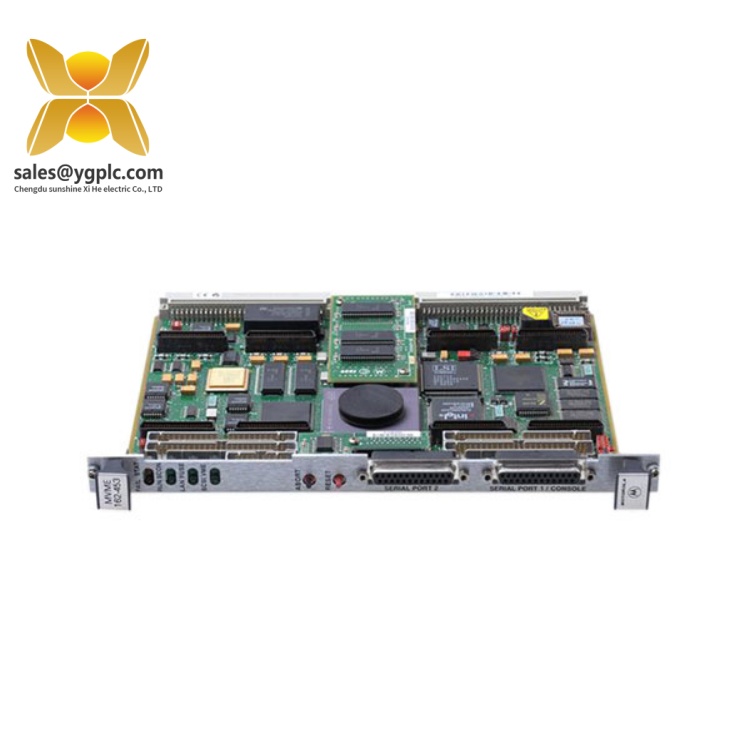

MOTOROLA MVME162-010A | Industrial Single-Board Computer Module

Description

Specification	Details
Brand	MOTOROLA
Model	MVME162-010A
Product Type	Industrial Single-Board Computer Module
Operating Voltage	5V DC ±5%, 12V DC ±10%
Rated Current	3.5A Max (5V), 1.2A Max (12V)
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Processor	Motorola 68040 RISC CPU
Clock Speed	25 MHz
Memory	8 MB DRAM (Expandable to 32 MB)
Storage Interface	SCSI-2, IDE
Communication Ports	RS-232, Ethernet (10BASE-T)
Expansion Slots	1 x VMEbus Interface (32-bit/33 MHz)
Dimensions (L×W×H)	233mm × 160mm × 25mm
Weight	Approx. 500g
Certification	UL, CE, FCC

MVME162-010A

• MOTOROLA MVME162-020A: A higher-clock-speed variant with enhanced memory capacity.
• MOTOROLA MVME167-010A: A compact single-board computer for space-constrained applications.
• MOTOROLA MVME3100-010A: A modernized successor with updated processor architecture.

1. Proven Reliability: MOTOROLA MVME162-010A is built with industrial-grade components and rigorous testing, ensuring consistent performance in harsh environments with temperature variations, vibration, and electrical noise.
2. Robust Processing Power: Equipped with the Motorola 68040 RISC CPU running at 25 MHz, MOTOROLA MVME162-010A handles real-time control tasks and data processing efficiently, making it ideal for time-sensitive industrial operations.
3. Flexible Connectivity: With multiple communication ports (RS-232, Ethernet) and storage interfaces (SCSI-2, IDE), MOTOROLA MVME162-010A integrates seamlessly with sensors, actuators, and 上位机 systems, simplifying network integration.
4. Expandable Design: The module supports memory expansion up to 32 MB and features a VMEbus interface, allowing users to add peripherals or upgrade functionality without replacing the entire system.
5. Long-Term Availability: MOTOROLA MVME162-010A is known for its extended lifecycle, making it a cost-effective choice for legacy systems that require ongoing support and replacement parts.
6. Easy Integration: Compatible with industry-standard operating systems and programming tools, MOTOROLA MVME162-010A reduces setup time and minimizes training requirements for technical teams.

• Installation: Mount MOTOROLA MVME162-010A in a VMEbus chassis or compatible enclosure with proper cooling. Connect power supply (5V and 12V) following polarity guidelines. Secure the module with mounting screws to prevent movement during operation.
• Initial Setup: Configure network parameters via the on-board BIOS or configuration utility. Test communication ports and memory functionality using diagnostic software provided by Motorola.
• Maintenance: Inspect the module quarterly for dust accumulation; clean with compressed air if needed. Check power and data connections for corrosion or looseness. Avoid exposing MOTOROLA MVME162-010A to excessive moisture or direct sunlight.
• Safety Precautions: Always disconnect power to the chassis before installing or removing MOTOROLA MVME162-010A. Use anti-static wristbands when handling the module to prevent electrostatic discharge (ESD) damage.

MVME162-010A

• Industrial Automation: Controls assembly lines, robotic systems, and process machinery in manufacturing plants.
• Energy Sector: Monitors and regulates power distribution systems, transformer stations, and renewable energy equipment.
• Transportation: Manages signaling systems, vehicle diagnostics, and fleet management in railways and automotive production.
• Aerospace & Defense: Supports avionics testing, radar systems, and military communication equipment with rugged performance.
• Medical Equipment: Powers diagnostic machines, laboratory automation systems, and patient monitoring devices requiring stable computing.
• Telecommunications: Controls network switches, base stations, and data transmission equipment in telecom infrastructure.
