Product Overview: MOTOROLA MVME162-453
The MOTOROLA MVME162-453 is a rugged embedded single-board computer (SBC) developed by Motorola, a pioneer in industrial computing and communication technologies. As part of Motorola’s renowned MVME (Motorola Versatile Module Europa) series, this board is engineered for high-reliability real-time control applications in harsh industrial environments. The MOTOROLA MVME162-453 combines robust processing power with flexible I/O capabilities, making it a cornerstone for mission-critical systems requiring stable performance and long-term availability.
Technical Specifications — MOTOROLA MVME162-453
| Specification | Details |
|---|---|
| Brand | MOTOROLA |
| Model Number | MVME162-453 |
| Product Type | Embedded Single-Board Computer |
| Processor | Motorola 68040 RISC CPU, 25 MHz |
| Floating-Point Unit | Integrated 68882 FPU |
| Memory | 16 MB DRAM (expandable to 32 MB), 2 MB Flash ROM |
| Cache | 8 KB Instruction Cache, 8 KB Data Cache |
| I/O Interfaces | 2 x RS-232 Serial Ports, 1 x Parallel Port (Centronics) |
| Expansion Slots | 1 x VMEbus Interface (32-bit, 33 MHz) |
| Timers | 3 x 16-bit Programmable Timers |
| Watchdog Timer | Hardware Watchdog with Reset Function |
| Operating Voltage | +5V DC, ±12V DC |
| Power Consumption | Typical 15W, Maximum 20W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Dimensions | 160mm × 233mm (6.3″ × 9.2″) |
| Weight | Approximately 0.5kg |
| Operating System Support | VxWorks, OS-9, QNX, LynxOS |
| Certifications | CE, FCC Class A, UL 1950 |
| MTBF | >100,000 hours |

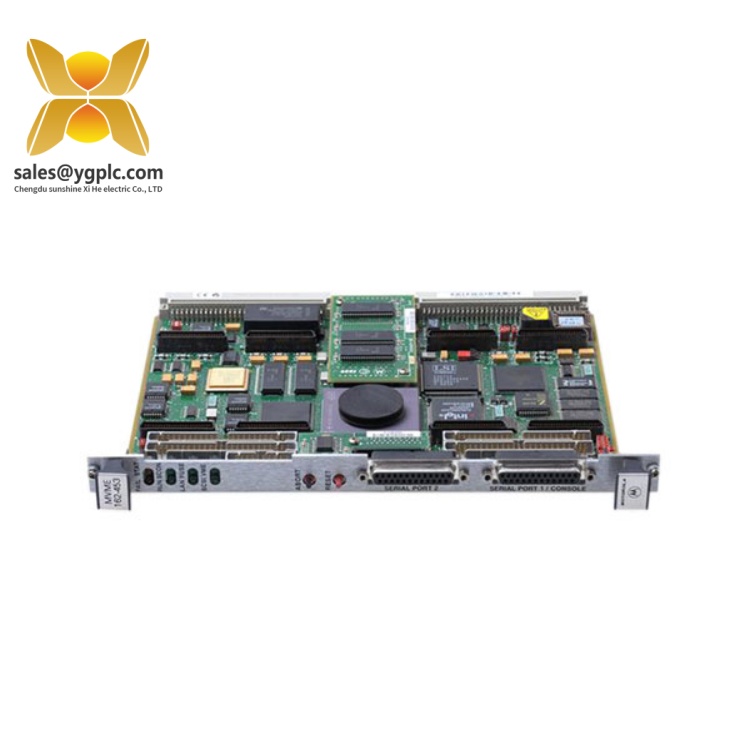

MVME162-453
Related products: MOTOROLA MVME162-453
- MOTOROLA MVME162-222: Entry-level MVME162 variant with 8 MB DRAM, ideal for light industrial control.
- MOTOROLA MVME167-001: High-performance SBC with 68060 processor, compatible with MOTOROLA MVME162-453 systems.
- MOTOROLA MVME712M: Digital I/O module for expanding MOTOROLA MVME162-453’s input/output capabilities.
- MOTOROLA MVME2301: Power supply module optimized for MVME series boards including MOTOROLA MVME162-453.
- MOTOROLA MVME3100: Modern VMEbus controller offering backward compatibility with MOTOROLA MVME162-453 setups.
- MOTOROLA MVME5500: Advanced single-board computer for upgrading legacy systems using MOTOROLA MVME162-453.
Main features and advantages: MOTOROLA MVME162-453
The MOTOROLA MVME162-453 stands out with features tailored for industrial reliability:
- Industrial-Grade Durability: Built to withstand temperature extremes, vibration, and electrical noise, the MOTOROLA MVME162-453 operates reliably in factory floors, power plants, and outdoor installations.
- Real-Time Processing: The 68040 CPU with integrated FPU delivers consistent performance for time-critical tasks, ensuring precise control in applications requiring microsecond-level responsiveness.
- Flexible Expansion: Equipped with a 32-bit VMEbus interface, the MOTOROLA MVME162-453 easily integrates with other VME modules, allowing system customization without redesign.
- Robust Memory Configuration: 16 MB expandable DRAM and 2 MB Flash ROM provide ample storage for operating systems, applications, and critical data, with non-volatile memory preserving settings during power cycles.
- Built-In Reliability Features: A hardware watchdog timer automatically resets the system during faults, minimizing downtime, while ECC (Error-Correcting Code) support enhances data integrity.
- Legacy Compatibility: Supports classic real-time operating systems like VxWorks and OS-9, ensuring seamless integration with existing software ecosystems built around MOTOROLA MVME162-453.
- Long-Term Availability: Motorola’s commitment to industrial product lifecycles means the MOTOROLA MVME162-453 remains available for extended periods, reducing replacement costs for long-running projects.
Installation and maintenance: MOTOROLA MVME162-453
Installing the MOTOROLA MVME162-453 is designed for simplicity, with a standard VMEbus card form factor that fits into most VME racks. The board features clearly labeled connectors and mounting holes, simplifying alignment and wiring. Motorola provides a detailed installation guide with step-by-step instructions for power connection, VMEbus termination, and initial configuration.
For maintenance, the MOTOROLA MVME162-453 requires minimal intervention due to its solid-state design. Key maintenance tasks include periodic inspection of connectors for dust or corrosion and verification of cooling airflow to prevent overheating. The board’s self-diagnostic tools, accessible via software utilities, allow operators to check CPU, memory, and I/O status remotely.
Firmware updates can be performed via serial port or network (with optional modules), avoiding the need for physical access. Replacement parts, such as DRAM modules or connectors, are readily available through Motorola’s global supply chain. Technical support is accessible through Motorola’s industrial computing service network, offering troubleshooting assistance for MOTOROLA MVME162-453 installations.
Application fields: MOTOROLA MVME162-453
The MOTOROLA MVME162-453 excels in applications demanding reliability and real-time performance:
- Industrial Automation: Controls assembly lines, robotic systems, and process machinery, coordinating sensors and actuators in manufacturing plants.
- Power Generation & Distribution: Monitors and regulates turbine operations, transformer performance, and grid stability in power utilities.
- Aerospace & Defense: Manages navigation systems, flight controls, and mission-critical equipment in aircraft and military vehicles, where failure is not an option.
- Transportation: Controls railway signaling, traffic management systems, and maritime navigation equipment, ensuring safe and efficient operations.
- Medical Equipment: Powers diagnostic machines, patient monitoring systems, and laboratory automation tools requiring stable, precise processing.
- Oil & Gas: Oversees pipeline monitoring, drilling equipment, and refinery processes, operating reliably in remote and harsh environments.
- Telecommunications: Manages network switches, base stations, and transmission equipment, maintaining connectivity in critical communication infrastructure.
Product guarantee: MOTOROLA MVME162-453
The MOTOROLA MVME162-453 is backed by a 2-year manufacturer’s warranty covering defects in materials and workmanship under normal operating conditions. This warranty reflects Motorola’s confidence in the board’s durability and performance.
Each MOTOROLA MVME162-453 undergoes rigorous testing before shipment, including temperature cycling, vibration testing, and full functional verification to ensure compliance with industrial standards. The board is certified to meet CE, FCC, and UL requirements, ensuring safety and electromagnetic compatibility.
For extended support, Motorola offers optional extended warranty plans and dedicated technical service agreements. Customers can access datasheets, user manuals, and software utilities through Motorola’s online resources. For inquiries, contact us via WhatsApp +86 18859254943 or visit https://www.ygplc.com/ for more information on the MOTOROLA MVME162-453.
