GE IS420YAICS1B Product Specification
Product Overview
The GE IS420YAICS1B is a high-performance analog input/output (I/O) pack module engineered for GE’s Mark VIe Speedtronic Turbine Control System, serving as a critical interface between field sensors, actuators, and the central controller in industrial automation. Designed to process both analog inputs (e.g., temperature, pressure) and outputs (e.g., valve position commands), this module ensures precise data conversion and real-time communication, making it indispensable for gas turbines, steam turbines, and rotating machinery in power generation, oil and gas, and heavy manufacturing.
As part of the Mark VIe distributed architecture, the GE IS420YAICS1B features 16 analog input channels (4–20 mA, 0–10 VDC) and 4 analog output channels (4–20 mA), with 1500 Vrms galvanic isolation between channels to eliminate electrical interference. Its 32-bit microprocessor executes signal conditioning—including filtering and linearization—at sub-millisecond speeds, ensuring accurate data for control loops. The module’s compact 3U VME form factor (228.6 mm × 101.6 mm × 165.1 mm) and rugged construction—triple-layer conformal coating, IP20 enclosure—enable operation in harsh environments (-30°C to +65°C) with high vibration, humidity, and chemical exposure.

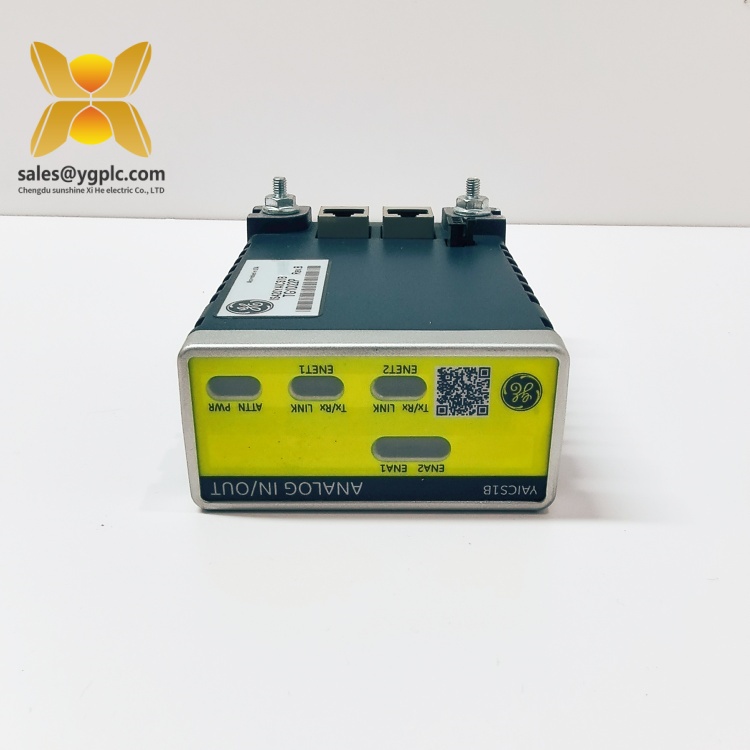

In automation systems, the GE IS420YAICS1B acts as the bridge between field devices and the Mark VIe controller, translating sensor data into actionable commands for turbine governors, compressor anti-surge valves, and generator excitation systems. Its dual 100 Mbps Ethernet ports (IONET protocol) support redundant communication, ensuring uninterrupted data flow in safety-critical applications. Compatibility with IS230TCISH6C terminal boards allows deployment in hazardous locations (Class I, Division 2), adhering to ATEX and IECEx standards. The GE IS420YAICS1B’s hot-swappable design and front-panel diagnostics (Power, Run, Fault LEDs) simplify maintenance, solidifying its role as a reliable workhorse in mission-critical operations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE IS420YAICS1B |
| Manufacturer | General Electric (GE) |
| Product Type | Analog Input/Output (I/O) Pack Module |
| Series | Mark VIe Speedtronic Turbine Control System |
| Input Channels | 16 analog inputs (4–20 mA, 0–10 VDC) |
| Output Channels | 4 analog outputs (4–20 mA) |
| Isolation | 1500 Vrms galvanic isolation (channels to ground) |
| Communication Interface | 2 × 100 Mbps Ethernet (IONET protocol) |
| Power Supply | 24 VDC ±10% (2 A max) |
| Physical Dimensions | 228.6 mm (H) × 101.6 mm (W) × 165.1 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5–95% non-condensing |
| Mounting Type | 3U VME rack mount |
| Certifications | CE, UL 61010-1, Class I Division 2 (Groups A-D) |
Main Features and Advantages
Precise Analog Signal Processing:
The GE IS420YAICS1B converts analog signals from sensors (e.g., pressure transmitters, RTDs) into digital data with ±0.1% accuracy, critical for monitoring turbine exhaust temperatures or compressor discharge pressures. Its 16 input channels support both current (4–20 mA) and voltage (0–10 VDC) signals, eliminating the need for external converters and simplifying system design.
The GE IS420YAICS1B converts analog signals from sensors (e.g., pressure transmitters, RTDs) into digital data with ±0.1% accuracy, critical for monitoring turbine exhaust temperatures or compressor discharge pressures. Its 16 input channels support both current (4–20 mA) and voltage (0–10 VDC) signals, eliminating the need for external converters and simplifying system design.
Redundant communication:
Dual Ethernet ports with IONET protocol support ensure uninterrupted data transmission to the Mark VIe controller. In redundant architectures, automatic failover (<10 ms) maintains control continuity, preventing downtime during network faults—a key requirement for safety systems like turbine emergency shutdown loops.
Dual Ethernet ports with IONET protocol support ensure uninterrupted data transmission to the Mark VIe controller. In redundant architectures, automatic failover (<10 ms) maintains control continuity, preventing downtime during network faults—a key requirement for safety systems like turbine emergency shutdown loops.
Rugged industrial design:
A triple-layer conformal coating protects against dust, moisture, and chemical vapors, while the module’s vibration resistance (10–2000 Hz, 10 G rms) ensures reliability in turbine halls and offshore platforms. Its wide operating temperature range (-30°C to +65°C) adapts to extreme climates, from arctic pipelines to desert power plants.
A triple-layer conformal coating protects against dust, moisture, and chemical vapors, while the module’s vibration resistance (10–2000 Hz, 10 G rms) ensures reliability in turbine halls and offshore platforms. Its wide operating temperature range (-30°C to +65°C) adapts to extreme climates, from arctic pipelines to desert power plants.
Seamless integration:
The GE IS420YAICS1B directly interfaces with Mark VIe terminal boards like IS230TCISH6C (discrete I/O) and IS400STCIS2AFF (analog terminal blocks), simplifying wiring and reducing installation time. Its 3U VME form factor fits standard control racks, ensuring compatibility with existing systems during retrofits.
The GE IS420YAICS1B directly interfaces with Mark VIe terminal boards like IS230TCISH6C (discrete I/O) and IS400STCIS2AFF (analog terminal blocks), simplifying wiring and reducing installation time. Its 3U VME form factor fits standard control racks, ensuring compatibility with existing systems during retrofits.
Advanced diagnostics:
Built-in self-tests monitor channel integrity, power supply health, and communication links. Faults (e.g., open sensor, overrange signal) trigger front-panel LEDs and are logged with timestamps, enabling rapid troubleshooting. This visibility allows predictive maintenance, such as replacing aging sensors before they fail.
Built-in self-tests monitor channel integrity, power supply health, and communication links. Faults (e.g., open sensor, overrange signal) trigger front-panel LEDs and are logged with timestamps, enabling rapid troubleshooting. This visibility allows predictive maintenance, such as replacing aging sensors before they fail.
Hot-swappable operation:
The module supports hot swapping, allowing replacement without powering down the control system. This feature cuts mean time to repair (MTTR) to under 15 minutes, critical for maintaining uptime in mission-critical applications like gas turbine control.
The module supports hot swapping, allowing replacement without powering down the control system. This feature cuts mean time to repair (MTTR) to under 15 minutes, critical for maintaining uptime in mission-critical applications like gas turbine control.
Application Areas
-
Power Generation:
- Processes steam turbine bearing temperature data from RTDs, adjusting cooling systems to prevent overheating.
- Controls gas turbine fuel valves via analog outputs, regulating flow rates to maintain optimal combustion efficiency.
- Monitors generator excitation current, ensuring stable voltage output during grid fluctuations.
-
Oil and Gas:
- Measures pipeline pressure in offshore platforms, using analog outputs to adjust compressor speeds and prevent surge.
- Processes level transmitter signals in storage tanks, triggering valve actuators to maintain safe fluid levels.
- Supports wellhead automation by converting pressure sensor data into commands for choke valves, optimizing production rates.
-
Manufacturing:
- Regulates oven temperatures in steel mills by processing thermocouple inputs and adjusting heating elements.
- Controls robotic arm position in automotive plants via analog outputs, ensuring precise welding and assembly.
-
Renewable Energy:
- Processes wind turbine nacelle temperature data, activating cooling fans to prevent generator overheating.
- Adjusts solar inverter settings based on irradiance sensor inputs, maximizing energy capture during peak sunlight.
Related Products
- GE IS220PDIOH1B: Discrete I/O module paired with GE IS420YAICS1B to handle digital signals (e.g., valve status) in turbine control loops.
- GE IS230TCISH6C: Terminal board that distributes power and signals between GE IS420YAICS1B and field sensors/actuators.
- GE IS420ESWBH3A: Ethernet switch that extends IONET connectivity, enabling GE IS420YAICS1B to communicate with remote I/O racks.
- GE IS220PPROS1B: Redundant power supply module that delivers stable 24 VDC to GE IS420YAICS1B, ensuring reliable operation.
- GE IS230SRTDH2A: RTD input module whose temperature data is processed by GE IS420YAICS1B for turbine bearing monitoring.
- GE IS400STCIS2AFF: Analog terminal board that conditions sensor signals before transmission to GE IS420YAICS1B, reducing noise in high-interference environments.
Installation and Maintenance
Pre-installation preparations: Before installing GE IS420YAICS1B, verify the control rack is properly grounded to prevent electrostatic discharge (ESD). Use an ESD wrist strap during handling. Mount the module in a 3U VME rack with 50 mm clearance for airflow, securing it with M4 screws (torque: 0.6 N·m). Connect the IS230TCISH6C terminal board to the module’s input/output ports, ensuring correct wiring for sensor signals and Ethernet links to the Mark VIe controller.
Maintenance suggestions: Perform monthly visual inspections of GE IS420YAICS1B front-panel LEDs to confirm normal operation (green Power, steady Run). Clean dust from ventilation slots with compressed air to maintain cooling efficiency. Quarterly, use a signal generator to calibrate analog channels, verifying ±0.1% accuracy. Inspect terminal connections for corrosion, especially in humid environments. Annually, update firmware via GE’s Proficy software to access bug fixes and enhanced diagnostics. Test redundancy by disconnecting one Ethernet port, ensuring seamless switchover to the secondary channel.
Product Guarantee
Our company offers a one-year quality warranty service for GE IS420YAICS1B, covering hardware malfunctions not caused by human factors. During the warranty period, if GE IS420YAICS1B exhibits abnormal signal processing, communication failures, or functional defects, we will provide replacement services. As a leading import-export trade distribution company established in 2007 with 17 years of experience, we maintain large inventories of industrial control parts, including many unpopular and discontinued models, to meet urgent customer needs. Our global supply chain network ensures rapid delivery of scarce spare parts, supporting the continuous and stable operation of your industrial systems.
